Mode 3
Default mode
Mode 2
Mode 1
Default mode
Digital Camera
Mode
LVL BLC
1
LL Phase
SHUT

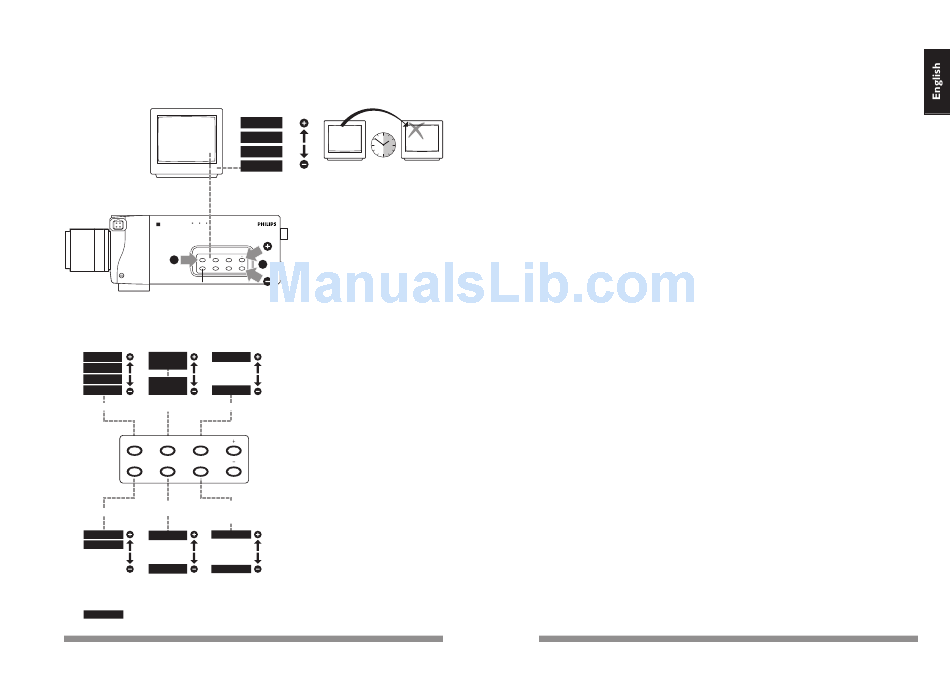

9.2 FUNCTION SET -UP
Use the buttons to change the following settings:
Mode 3 Video Level On
-30, +30
Mode 2
Mode 1
DC Lens
VI Lens
Default mode Off
Mode Lens Initialisation Backlight Comp
Mode LVL BCL
SHUT LL Phase
V-phase Deg
Shutter Linelock H-phase
extVphase
Flickerless
Linelock On ϕ 358°
Auto
1/60
1/125
1/250 Linelock Off
ϕ 0°
1/500
1/1000
1/2000
1/4000
1/10,000
Off
14
30 sec.
Default Default
2

9.2.1 Mode setting

The camera is delivered operating in Mode 1.
In total three modes are available.
Mode 1 = Backlight compensation
Mode 2 = Traffic
Mode 3 = Night (low light mode)
Mode 0 is a non-programmable mode (Default mode) in which factory settings are stored.

9.2.2 Video level setting

The nominal video level setting is 700 mV contrast. Adjustments are possible in +30/-30
steps.

9.2.3 Backlight compensation

Turn on the backlight compensation to improve the image quality when you have a scene
where the background features a high level of illumination.
To adjust the amount of back light compensation the use of the software configuration
tool is needed.

9.2.4 Shutter time selection

Auto, flickerless, fixed timing up to 1/100,000.The auto setting automatically optimizes the
shutter time according to the light conditions.

9.2.5 Linelock setting

Use this button to select between internal synchronisation and linelock.The camera will
switch to external lock when an external lock source is connected (see 9.2.6-9.2.8)
When DC is supplied, the camera selects internal synchronisation.

9.2.6 Linelock Phase

This function is active when the camera operates in linelock mode.
15
