Summary of Contents for Linear Series RV4800

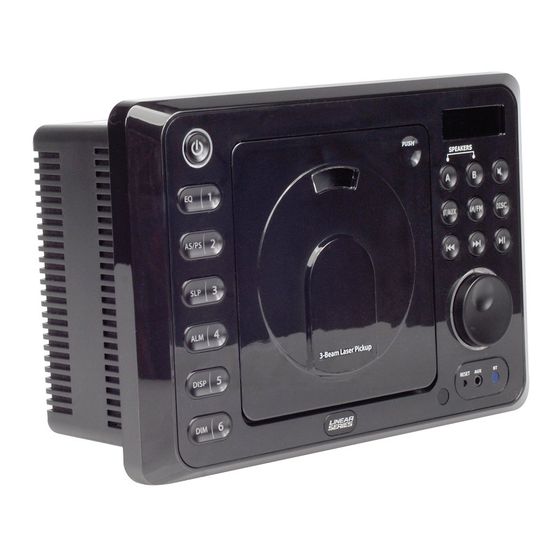

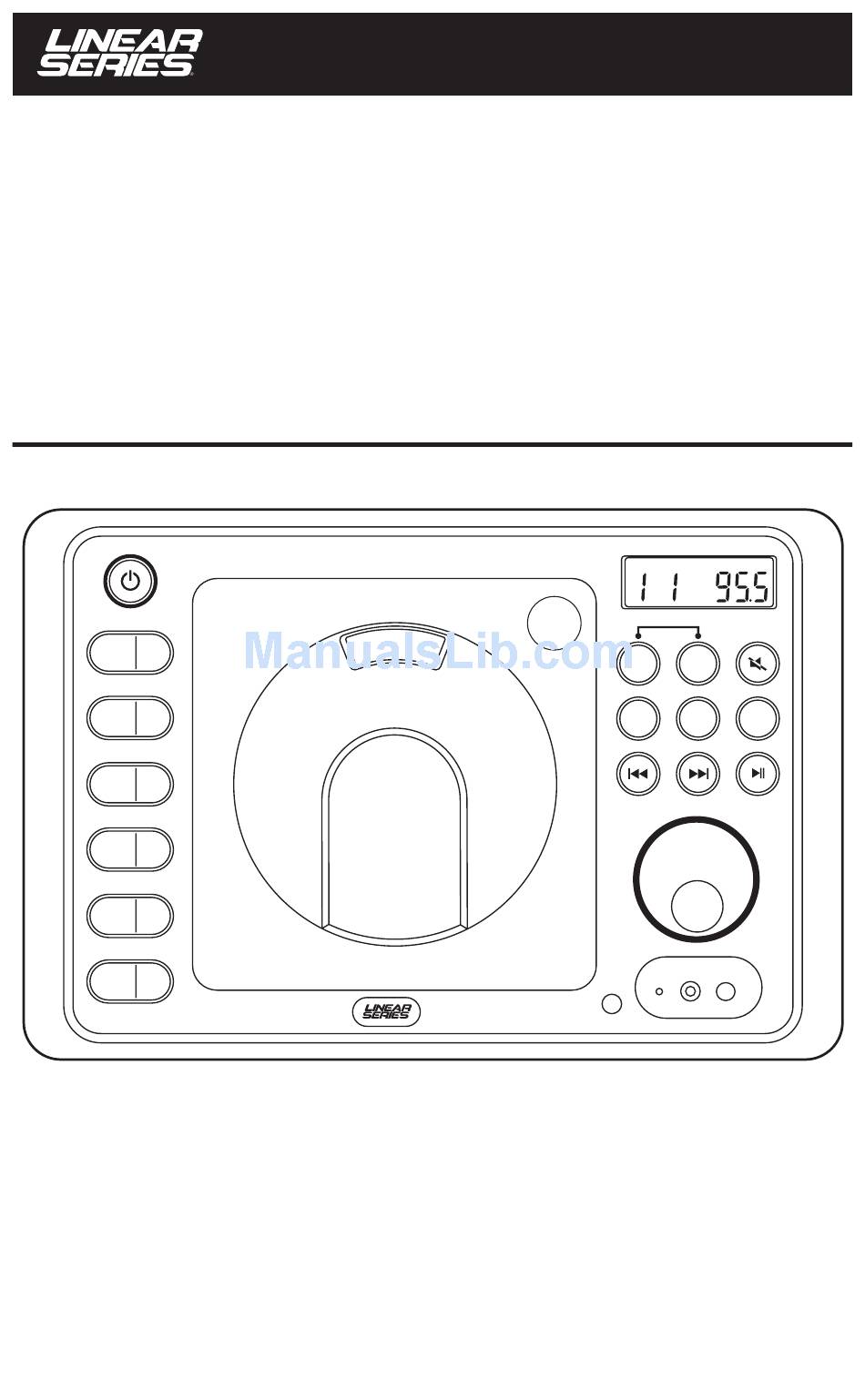

- Page 1 Operation and Installation Manual PUSH SPEAKER AS/PS BT / AX AM/FM DISC 3-Beam Laser Pickup DISP RESET RV4800 BT AM / FM Stereo Multi-Media Receiver...
-
Page 2: Table Of Contents
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media Receiver. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove cover or bottom screws. -
Page 3: Button Locations And Functions
Button Locations and Functions PUSH SPEAKER AS/PS BT / AX AM/FM DISC 3-Beam Laser Pickup DISP RESET 14 13 1. Power On/Off: Press to turn the unit on or off. 2. Disc Door: To play a disc, insert the disc with label facing forward. 3. -
Page 4: Button Locations And Functions
Button Locations and Functions (Continued) Note: The RV4800 does not control the device, it just allows the audio/video to be played through the system. 15. Reset Button: Press to reset the unit to it’s default settings. 16. Infrared Eye: Receives the signals from the remote control. -
Page 5: Remote Control Button Locations And Functions
Remote Control Button Locations and Functions 11. AS/PS Elapse Button: POWER Radio: Automatic radio station memory storing MENU MODE MUTE (AS) and Preset radio station scanning (PS). SETUP (See “AM/FM Operation” for more details). TONE Disc: Press to display movie information. 12. -
Page 6: General Operation
General Operations Power On/Off: Press the POWER button to turn the unit On/Off. PUSH SPEAKER AS/PS BT / AX AM/FM DISC DISP RESET Selecting a Play Source: To select a play source, press one of the PUSH SPEAKER following mode buttons: AS/PS AM/FM DISC... - Page 7 Sound Controls Bass, Treble and Balance Control Select the desired sound mode by pressing the VOLUME knob. The modes will be displayed in the following order: Bass, Treble, Balance and Volume. Bass: Select the Bass mode by pressing the VOLUME PUSH SPEAKER knob.
-
Page 8: Sound Controls
Sound Controls (Continued) Mute: Press the button to mute the volume level. PUSH SPEAKER Press the button again to restore the volume. AS/PS BT / AX AM/FM DISC DISP RESET Speaker Selection Selecting Speaker Sets: • Press the A button to toggle speaker set A on SPK A PUSH SPEAKER... -
Page 9: Setting The Clock
Setting the Clock (Continued) 4. Press the VOLUME knob and the Minute indicators will start flashing. PUSH SPEAKER AS/PS AM/FM DISC BT / AX DISP RESET 5. Rotate the VOLUME knob until the correct Minutes appears in the display. Wait 5 seconds PUSH SPEAKER and the colon between the hours and the... -
Page 10: Alarm Operation
Alarm Operation Setting the Alarm Timer: 1. Press the ALM button and the clock PUSH SPEAKER will appear in the display with the hour number flashing. AS/PS AM/FM DISC BT / AX DISP RESET 2. Rotate the VOLUME knob until the correct Hour appears in the display. -
Page 11: Radio Operations
Radio Operations Selecting the Play Source: SPK A Press the AM/FM button and “rAdIO” appears in PUSH SPEAKER the display. After a brief moment either AM or FM will appear in the display. AS/PS AM/FM DISC BT / AX Selecting the AM or FM: Press the AM/FM button repeatedly and select DISP from FM 1, FM 2, FM 3, AM 1 or AM 2. -
Page 12: Radio Operations
Radio Operation (Continued) Automatically Store Radio Stations: SPK A 1. Press the AM/FM button to select PUSH SPEAKER either the FM or AM radio band. 2. Press and hold the AS/PS button then release. AS/PS AM/FM DISC BT / AX The tuner will search for the strongest stations and store them into memory. -
Page 13: Music Disc Operation
Music Disc Operation General Operations: SPK A 1. Push the door access the disc player. PUSH SPEAKER AS/PS AM/FM DISC BT / AX DISP RESET 2. Insert the disc onto the hub with the label facing forward. Use your thumb to make sure the disc snaps onto the hub. -
Page 14: Music Disc Operation
Music Disc Operation (Continued) Pausing the Disc: POWER Press the button on the remote control to MENU MODE MUTE pause the disc, press it again to resume play. SETUP TONE ENTER Stopping the Disc: POWER Press the button to stop the disc. MENU MODE MUTE... -
Page 15: Mp3 Disc Operation
MP3 Disc Operation General Operations: SPK A 1. Push the door access the disc player. PUSH SPEAKER AS/PS AM/FM DISC BT / AX DISP RESET 2. Insert the disc onto the hub with the label facing forward. Use your thumb to make sure the disc snaps onto the hub. -
Page 16: Mp3 Disc Operation
MP3 Disc Operation (Continued) Pausing the Disc: POWER Press the button on the remote control to MENU MODE MUTE pause the disc, press it again to resume play. SETUP TONE ENTER Stopping the Disc: POWER Press the button to stop the disc. To resume MENU MODE MUTE... -
Page 17: Movie Disc Operation
Movie Disc Operation General Operations: SPK A 1. Push the door access the disc player. PUSH SPEAKER AS/PS AM/FM DISC BT / AX DISP RESET 2. Insert the disc onto the hub with the label facing forward. Use your thumb to make sure the disc snaps onto the hub. - Page 18 Movie Disc Operation (Continued) Pausing the Movie Press the button on the remote control to POWER pause the movie, press it again to resume play. MENU MODE MUTE SETUP TONE ENTER Stopping a Movie: POWER Press the button on the remote control to stop MENU MODE MUTE...
-
Page 19: Movie Disc Operation
Movie Disc Operation (Continued) Slow Motion: Continue to press the SLOW button to play the ENTER movie is slow motion in the following order: DISP SF 1/2, SF 1/3, SF 1/4, SF 1/5, SF 1/6, SF 1/7, ZOOM SLOW SEEK SCAN SB 1/2, SB 1/3, SB 1/4, SB 1/5, SB 1/6, SB 1/7 To resume normal play, press... -
Page 20: Setup Menu
Setup Menu Accessing the Movie Disc Setup Menu: POWER Press the SETUP button on the remote control to MENU MODE MUTE display the Setup Menu. SETUP TONE ENTER Language Setup System Setup Speaker Setup Audio Setup Video Setup Page Page Page Page Page... -
Page 21: Audio Input
“•” indicator will flash every BT Indicator 5 seconds. • is off = RV4800 is not in BT mode. Note 1: If the BT mobile device is already paired • is flashing quickly = RV4800 is trying with the entertainment center, select “WALL MOUNT... -
Page 22: Reset Button
Play/Pause Button: Press the button to pause the BT playback. Press again to resume playback. PUSH SPEAKER Note: The RV4800 display will not show the playback is pause. The mobile device will show that the AS/PS BT / AX AM/FM DISC playback is paused. -
Page 23: Installation
Installation Wall Panel Chassis Opening Structural Stud Caution: Do not install radio without rear cover installed: No user-serviceable parts inside. Rear cover provides protection against potential fire hazard. Trim Ring ”... -
Page 24: Speaker Connections
Speaker Connections Left Right Speaker B Speaker B White/Black Wire (Common -) Gray Wire Gray/Black Wire Left Right Speaker A Speaker A Brown Wire Brown/Black Wire White Wire (Common -) -
Page 25: Wiring And Auxiliary Connections
Wiring and Auxiliary Connections Red Wire (+) to 12 Volt DC Power External Automotive Type Antenna Black Wire Ground (Optional) AUX IN VIDEO OUT 10A Fuse AUX Audio Input Connection Options Video Out Connection Options AUX IN VIDEO OUT AUX IN VIDEO OUT AUX IN VIDEO OUT... -
Page 26: Safety Instructions
Safety Instructions • Read Instructions: All the safety and operating instructions should be read before the appliance is operated. • Retain Instructions: The safety and operating instructions should be retained for future reference. • Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to. •... -
Page 27: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product. - Page 28 © Copyright 2016 RV4800-UM_IM Magnadyne Corporation Rev. A 3-2-16...
