Model #
XXXXXXXXXXXXXXXXXXXXXX
Register online at www.thuleracks.com/register
506-7009_02
CIRCUIT

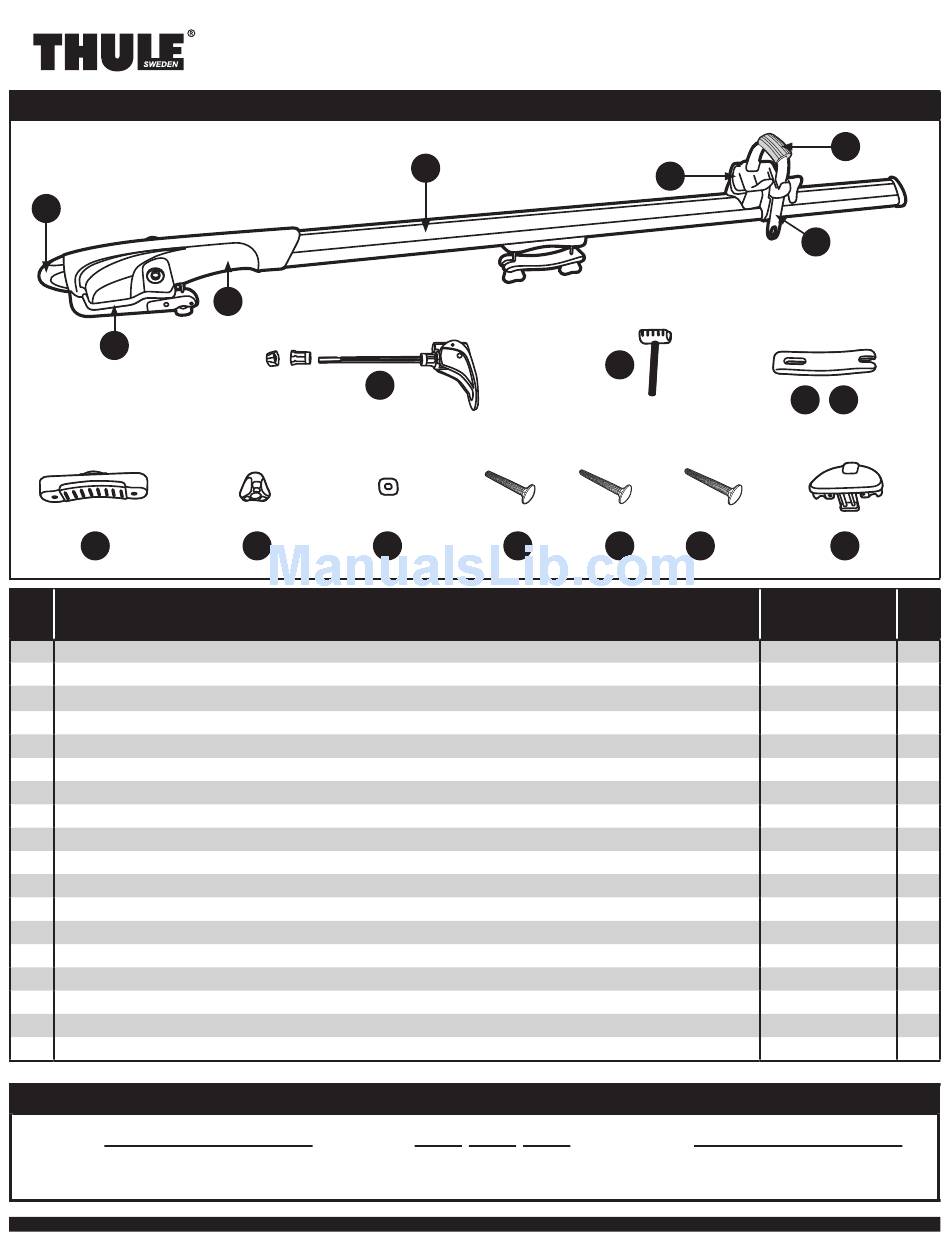

PARTS INCLUDED • PIÈCES INCLUSES • PIEZAS INCLUIDAS
K
C
F
description
description
descripcion
PRODUCT REGISTRATION / ENREGISTREMENT DE PRODUIT / REGISTRO DE PRODUCTO
Purchase Date
526
R
E
D
XXXXX/XXXXX/XXXXX
THULE 42 Silvermine Road Seymour, Connecticut 06483 (800) 238-2388
M
A
P
Q
Place of
PurchaseXXXXXXXXXXXXXXXXXXXXXX
O
N
G
H
B
part number
qty.
numéro de pièce
qté
numero de parte
cant.
7521470001
1
8523306001
1
7520943001
1
915066554
2
8523278001
2
8523476001
2
8523346001
1
8523347001
1
7521550001
1
7521449001
1
7521544001
1
8523272001
1
7521453001
1
8523285001
1
8524274001
1
8523490001
2
8523489001
2
8523315001
1
1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIRCUIT 526 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thule CIRCUIT 526

  • Page 1 / tube principal / tubo del soporte estructural 8523315001 PRODUCT REGISTRATION / ENREGISTREMENT DE PRODUIT / REGISTRO DE PRODUCTO Model # XXXXXXXXXXXXXXXXXXXXXX Purchase Date XXXXX/XXXXX/XXXXX Place of PurchaseXXXXXXXXXXXXXXXXXXXXXX Register online at www.thuleracks.com/register THULE 42 Silvermine Road Seymour, Connecticut 06483 (800) 238-2388 506-7009_02 1 of 6...
  • Page 2 La quincaillerie de montage arrière est préconfigurée pour les barres de toit carrées Thule et Yakima. Si le montage se fait sur un autre type de barres, consultez le guide d’achat au verso de ces instructions pour déterminer la bonne longueur de boulon.
  • Page 3 Coloque el cabezal del Circuit sobre la barra de carga frontal. NOTE: When mounting onto Thule’s square bar be sure shoulder of head is centered on the load bar as illustrated. REMARQUE: Lors du montage sur les barres carrées Thule, assurez-vous que l’épaulement de la tête est centré...
  • Page 4 • For Thule square bars set the clamp in the highest slot as shown. For Thule Aeroblades set the clamp in the middle slot. To accommodate for larger diameter bars simply set the clamp in the middle or bottom slot.
  • Page 5 • Unscrew the ratcheting nut and nut body off end of Skewer as shown. Slide Skewer rod through channel in Circuit head. Lever should face the side of vehicle that bike is loaded from. Re-attach Skewer ratcheting nut and body. The Skewer rod and ratcheting nut have a rectangular slot that must be aligned.
  • Page 6 • Pull Wheel Strap over rim and position Rim Protector directly • Insert Strap through buckle and pull firmly. over rim. Insérez la sangle dans la boucle et tirez fermement. Faites passer la sangle de roue au-dessus de la jante et placez le Pase la correa a través de la hebilla y tire con firmeza.
  • Page 7 • Mantenga las ruedas de las bicicletas lejos del tubo de escape caliente. d’échappement chaud. Thule Inc. • 42 Silvermine Road • Seymour, CT 06483 Thule Canada Inc. • 710 Bernard • Granby QC J2J 0H6 North American Consumer Service: Toll Free 800-238-2388 / Fax 450-777-3615 • www.thule.com...
