Standard EnviroVent 2 Installation

This section of the manual covers standard installations of The EnviroVent 2 on a single top loading, multi-sid-
ed, electric kiln with a chamber size under 12 cubic feet. A Dual Intake Kit is available for venting a single kiln
over 12 cubic feet or two kilns with chamber volumes each at or under 12 cubic feet. The maximum chamber
volume that can be vented with one motor is 24 cubic feet. For instructions on venting two kilns, kilns greater
than 12 cubic feet and other custom installations consult the Custom Installations section of this manual.
As with any change in firing routine, we recommend that you closely follow all instructions and monitor your
firings with witness cone groups on each shelf of your kiln both before and after you install the EnviroVent 2. If
you have any questions, please contact your supplier.
EnviroVent 2 Contents
Blower Motor w/6 ft. Power Cord w/In-line Switch
8" x 12" Mounting Plate
8 ft. x 3" Flexible Aluminum Duct
Spring Loaded Plenum Cup Assembly
Cast Plenum Cup
Fiber Gasket
Plenum Stand w/Base
Plenum Spring
Blower Inlet Tube
Blower Discharge Tube
3" to 4" Connector
3 1/8" Cutout
in Wall
Cut as
Necessary
Rain
Hood
3" x 8" Discharge Tube

Setup

Envirovent 2

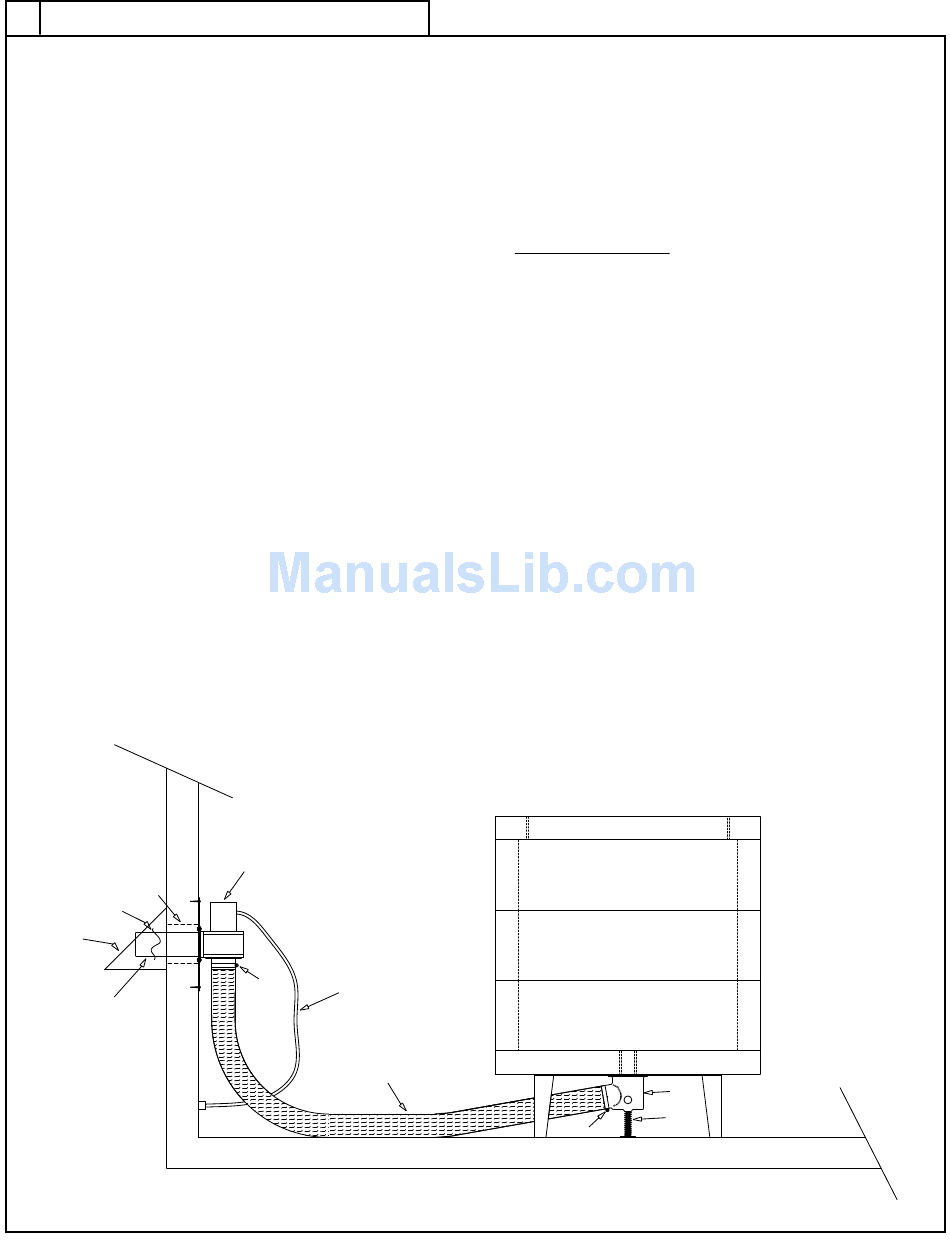

Typical Installation
Blower
W/Motor
115 volt
Hose
Cordset
Clamp
w/Switch
3" Diameter
Flex
Tube
Floor Mount Plate
Operating Manual
Mounting Hardware
4 - #10 x 1 ½" Sheet Metal Screws
4 - 8-32 x ¼" Screws
4 - 8-32 Lock Washers
4 - 8-32 Hex Nuts
4 - 1/8" x 2" Toggle Bolts
1 - 1/4" twist drill
1 - 3/16" twist drill
2 - Hose Clamps
Hose
Clamp
4
Plenum
Cup
Cup Stand
With Spring
