Part Number 679060
Rev. AA

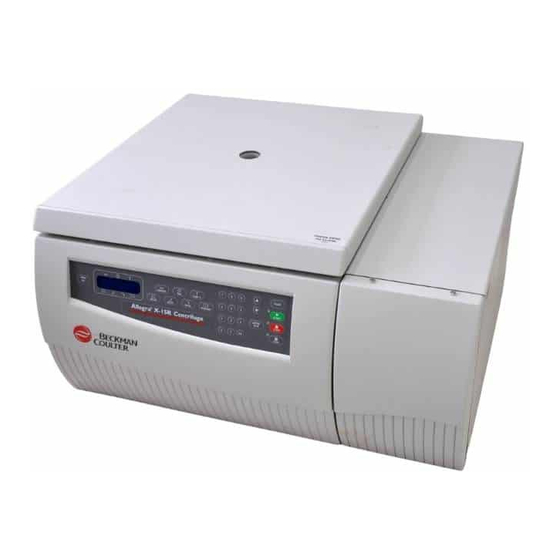

ALLEGRA X-12/R, X-15R
Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALLEGRA X-12/R and is the answer not in the manual?

Questions and answers

Related Manuals for Beckman Couler ALLEGRA X-12/R

Summary of Contents for Beckman Couler ALLEGRA X-12/R

  • Page 1 Part Number 679060 Rev. AA ALLEGRA X-12/R, X-15R Service Manual...
  • Page 2 COPYRIGHT INFORMATION This Service Manual is copyrighted and Beckman Coulter reserves all rights. This document may not, in whole or part, be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form without prior consent, in writing, from Beckman Coulter, Inc.
  • Page 3 To obtain a copy of the Operator's Manual(s), please order it through any Beckman Coulter Sales and Service Office. Part Number Description GX-IM-1 Allegra X-12/R Instruction Manual GXR-IM-1 Allegra X-15R Instruction Manual...
  • Page 4 SAFETY REMINDERS The following pages summarize cautionary information basic to the safe operation of this instrument. However, it is strongly recommended that the user read the entire manual carefully before attempting to service the instrument. In addition, be sure to heed all NOTES, CAUTIONS, and WARNINGS, which are specifically defined as follows: NOTE:...
  • Page 5 IMPORTANT NOTICE This Service Manual is designed solely for the use of Beckman Coulter Field Service Representatives who have had training and experience in the servicing of Beckman Coulter products. To improve product performance, Beckman Coulter may have made changes in the product to which this Service Manual relates. Such changes may not be reflected in this manual.
  • Page 6 MECHANICAL SAFETY Good mechanical safety practices are more important than ever now that microprocessors are taking control of mechanical devices. Yet, the area of mechanical safety is often overlooked during instrument servicing. We may be able to change this situation if you heed the following safety tips: Remember to keep clothing and fingers away from rotating or moving components.
  • Page 7 ELECTRICAL SAFETY It is shocking but true. Many people service instruments without giving much thought to electrical safety. Unfortunately, this can be a dangerous mistake. It pays to take a few precautions before and during servicing to avoid injury from electrical shock.
  • Page 8 ELECTROSTATIC DISCHARGE Static electricity is an electrical charge which can damage circuitry and components. Listed below are important Electrostatic Discharge guidelines for handling electronic components. Following these guidelines will avoid needless damage to circuit cards and components on them. • Keep paper, non-conductive plastic, plastic foams or cardboard away from circuit boards and components and static-free work areas.
  • Page 9 HIGH VOLTAGE REMINDER When you have removed the front panel and/or the rear panel from the instrument and have the circuit breaker on, there is high voltage (>200VAC/ 300VDC) on some components. This voltage is there even though the instrument is not running.
  • Page 10 REFRIGERATION SYSTEM SAFETY Working with refrigeration systems requires special equipment and training. If you are not familiar with the operational theory for refrigeration systems and the special requirements for performing service on a system, do NOT attempt it. Use the following precautions for working with refrigeration systems in Beckman instruments.
  • Page 11 BRAZING SAFETY PRECAUTIONS Brazing requires the use of a high-temperature "MAPP Gas" torch and as such many potential safety hazards exist. Always follow the guidelines below when brazing. 1. Wear safety glasses. 2. Work in a ventilated area. 3. Know fire extinguisher location. 4.

  • Page 12: Table Of Contents

    ALLEGRA X12 &12R, X-15R Main Table of Contents INTRODUCTION 1 - 1 SYSTEM INSTALLATION 2 - 1 SERVICE PROCEDURES 3 - 1 SCHEMATICS 4 - 1 PARTS 5 - 1 ACCESSORIES & MISCELLANEOUS 6 - 1 APPLICATIONS 7 - 1 SERVICE MEMOS 8 - 1...

  • Page 13: Introduction

    SECTION 1 INTRODUCTION 1.1 ALLEGRA X-12/R, X-15R PERFORMANCE SPECIFICATION 1 - 1 1.2 GENERAL DESCRIPTION 1 - 3...

  • Page 14: System Installation

    SECTION 2 SYSTEM INSTALLATION 2.1 SAFETY NOTICE 2 - 1 2.2 PREINSTALLATION REQUIREMENTS 2 - 3 2.3 CUSTOMER TRAINING 2 - 6...

  • Page 15: Service Procedures

    SECTION 3 SERVICE PROCEDURES 3.1 MECHANICAL SYSTEMS 3 - 1 3.2 TEMPERATURE CONTROL SYSTEM 3 - 8 3.3 TROUBLESHOOTING 3 - 15 3.4 PREVENTIVE MAINTENANCE 3 - 20...

  • Page 16: Schematics

    SECTION 4 SCHEMATICS 4.1 ALLEGRA X-12/R, X-15R CIRCUIT DESCRIPTION 4 - 1 4.2 SCHEMATICS X – 12/R 4 – 5 SCHEMATICS X – 15R 4 - 18...

  • Page 17: Parts

    SECTION 5 PARTS 5.1 REPLACEMENT PARTS LIST 5 – 1 5.2 TABULATION DRAWING X-12/R 5 - 5 TABULATION DRAWING X-15R 5 - 13...

  • Page 18: Accessories & Miscellaneous

    SECTION 6 ACCESSORIES & MISCELLANEOUS NO MATERIAL AVAILABLE AT THIS TIME...

  • Page 19: Applications

    SECTION 7 APPLICATIONS NO MATERIAL AVAILABLE AT THIS TIME...

  • Page 20: Service Memos

    SECTION 8 SERVICE MEMOS ISSUED DURING TRAINING CLASS...
  • Page 21 Pollution degree..........2 Allegra X-12/R/ X-15R Service Manual 07/04...
  • Page 22 Pollution degree..........2 Allegra X-12/R, X-15R Service Manual 07/04...
  • Page 23 • Rapid sedimentation of protein precipitates, large particles, and cell debris. The Allegra X-12/R and X-15R are microprocessor-controlled, providing interactive operation. The instrument design features a brushless asynchronous motor, automatic rotor identification system, program memory that enables repeated run conditions, temperature control system, and a choice of acceleration and deceleration rates.
  • Page 24 Section 1: Introduction Available Rotors The following Beckman Coulter rotors can be used in the Allegra X-12 series centrifuge. The rotors are described in individual manuals that accompany each rotor. Allegra X-12/R, X-15R Service Manual 07/04...
  • Page 25 Section 1: Introduction Allegra X-12/R/ X-15R Service Manual 07/04...
  • Page 26 SAFETY FEATURES Saftey features include the following: PROTECTIVE RING A structural steel ring surrounding the rotor chamber provides full operator protection. Allegra X-12/R, X-15R Service Manual 07/04...
  • Page 27 Speed is limited to the maximum safe speed of the identified rotor. Allegra X-12/R/ X-15R Service Manual 07/04...
  • Page 28 Section 2: Installation 2.1 SAFETY NOTICE This safety notice summarizes information basic to the safe operation of the equipment described in this manual. The international symbol displayed above is a reminder that all safety instructions should be read and understood before installation, operation, maintenance, or repair of this centrifuge.
  • Page 29 Risk Group II materials (as identified in the World Health Organization Laboratory Biosafety Manual) are handled; materials of a higher group require more than one level of protection. • Dispose of all waste solutions according to appropriate environmental health and safety Allegra X-12/R, X-15R Service Manual 01/07...
  • Page 30 It is your responsibility to decontaminate the centrifuge and accessories before requesting service by Beckman Coulter. 2.2 Allegra X-12/R, X-15R Installation Requirements The Allegra X-12/R, X-15R model centrifuge is customer installed. Installation requirements for power and location are described below. Warning Do not place the centrifuge near areas containing flammable reagents or combustible fluids.
  • Page 31 Allegra X-12/R, X-15R centrifuges avoid this by using a conical seat and an additional expanding connection at the drive shaft. The conical seat is located above the bearing plate, and the cross-slit end of the shaft with inner cone is the expanding connection.
  • Page 32 Centrifuge Anchoring Kit for Allegra X-12/R, X-15R SECURING THE CENTRIFUGE TO THE BENCH Allegra X-12/R, X-15R centrifuges are certified to meet the requirements of the European CE mark. To meet these requirements, the centrifuge must be secured to the bench using the anchoring hardware shipped with the instrument.
  • Page 33 Show the customer how to setup a simple run. Observe the customer as they setup the run. Explain: Troubleshooting Customer maintenance items Beckman Coulter Field Service, service agreements, etc. Accessories and options that are available for the instrument How to get applications support from Beckman Coulter Inc. Allegra X-12/R, X-15R Service Manual 01/07...
  • Page 34 G. Remove two screws on top of the drive that hold the imbalance flag bracket in place. H. Remove four motor mounting lock-nuts by holding the Philips screws underneath the suspension plate with a 90 angle Philips screwdriver in place. I. Remove washers, grommets and screws Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 35 E. Disconnect the ground wire and remove the cables from the cable holder. F. Remove the boot from the bowl. G. Remove four motor mounting nuts. H. Pull drive upward while feeding the motor harness through the opening. Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 36 H. Make sure the door is closed when you lift the housing of the instrument. I. Disconnect harness attached to the left and right hand latch assembly. J. Reverse the above steps to reinstall the housing and electrical panel. Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 37 R. Tie both latch cords together so that both cords are the same length. S. Reinstall the latch cords in the plug in the base of the instrument. T. Make sure that the emergency release is functioning. Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 38 Unplug the centrifuge or turn off and lock out the main wall circuit breaker before removing an instrument panel. Warning: As long as the yellow LED on the Motor driver board is lit, the Bus Voltage is still present. Wait until LED is off. Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 39 Customer Rotor Library Loads to be used SX4750 SX4750 2x 700g pos 1&2+2x 750g (1.2d) Pos 3&4 SX4750A SX4750A 2x 750g pos 1&2 +2x 625g (1.2d) Pos 3&4 FX6100 FX6100 5x 47ml + 1x 62ml (water) Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 40 H.. Pull the rotor to the 6 o’clock position and release it. After the rotor moved back to its center position check for 2.5 Volts DC again and adjust bracket if necessary. Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 41 Temperature measurements are performed by using 40ml of glycerol in two of the opposing buckets. B. To precool the rotor and chamber, set temperature to -2° C, speed to 2000 RPM and time for 30 minutes. Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 42 Proceed to step 3.2.4 to check for leaks. H. After removing refrigeration manifold, and access valves, ensure the service valve caps are replaced and tightened. Insulate the low-side service valve with “Presstite” insulation tape. Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 43 Section 3: Service Procedures Figure 3-1 Allegra X-12R 3-10 Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 44 Section 3: Service Procedures Allegra X-12/R, X-15R Service Manual 07/07 3-11...
  • Page 45 Section 3: Service Procedures Allegra X-15R 3-12 Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 46 B. Connect charging manifold and R404a refrigerant supply per procedure in step 3.2.3. Vacuum Monitor (338866) Compressor High Side Service Valve Evacuation Manifold (341676) Compressor Low side High Vacuum Service Valve Pump FIGURE 3 - 3 Allegra X-12/R, X-15R Service Manual 07/07 3-13...
  • Page 47 DO NOT CUT OR DAMAGE THE CAPILLARY TUBE. Evacuate, charge and leak test the refrigeration system per step 3.2.3. NOTE : Ensure chamber gasket and door form a good seal prior to performing refrigeration tests. 3.2.6 Temperature Sensor Check 3-14 Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 48 17.22K 7579 3629 2760 16.49K 7291 3504 1990 15.79K 7016 3385 1458 15.13K 6752 3270 1084 14.50K 6500 3160 816.8 13.90K 6258 3054 623.5 13.33K 6026 2952 481.8 12.79K 5805 2854 3.3 Troubleshooting Allegra X-12/R, X-15R Service Manual 07/07 3-15...
  • Page 49 Service Software Exception Shutdown, no brake Any time S-5 System error, call Service Battery backed Ram data changed Shutdown, no brake On power up/ reset S-7 System error, call Service Power Diagnostics 3-16 Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 50 Imbalance Diagnostics The Allegra X-12/R, X-15R centrifuge has a rotor imbalance detector as used in the Allegra 25/64R. In a situation where an imbalanced rotor is being used an Imbalance diagnostic will be generated and the instrument will brake the run to a stop. The system reports imbalance diagnostic if the sensor reading is positive and the door is closed.
  • Page 51 Driver not established Shutdown, no brake Driver not established D-8 Drive Error, call after turning Off Service Driver not connected Shutdown, no brake Driver board not D-9 Drive Error, call connected Service Speed Diagnostics 3-18 Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 52 Magnets see Manual Unknown Rotor in chamber Shutdown with brake Magnets detected, but R-5 No Rotor Match, pattern is not one of see Manual Allegra X-12 R rotors 3.3.4 Emergency Access Allegra X-12/R, X-15R Service Manual 07/07 3-19...
  • Page 53 If the rotor is still spinning, close the door and wait until it stops before attempting to remove it. ! WARNING Never attempt to slow or stop the rotor by hand. 6. Reinstall the cap in the opening after sample retrieval. 3.4 Preventive Maintenance 3-20 Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 54 Test operation (This is not a certification). Speed Set____________________Checked______________________ Temp Set____________________Checked______________________ Run time Set_________________Checked______________________ Safety inspection. -Wires, Connectors, Boards, Fans -Vibration mounts -Labels -Door, Fuses -Refrigeration (labels correct etc.) -Power cord 3.4.2 Rotors Allegra X-12/R, X-15R Service Manual 07/07 3-21...
  • Page 55 Check refrigerant level during run only if instrument fails test run when set at lowest temperature of rotor used while controlling at max. speed for the rotor. Replace all panels, clean exterior. Notify customer upon completion and inform him/her of any problems found and corrected. 3-22 Allegra X-12/R, X-15R Service Manual 07/07...
  • Page 56 Section 4: Schematics 4.1 ALLEGRA X-12/R, X-15R CIRCUIT DESCRIPTION Control Driver Board General The Control Driver Board (CDB) is a Motorola 68332 based board providing all instrument control. Power Supply A single power supply generates 3 voltages; +24V (LD62), +5V (LD63), and +3.3V (LD65).
  • Page 57 Section 4: Schematics Motor Temperature Via J11 Motor Temp signal is routed to logic and the data bus through J11. Sensors Via J12 Door Latch, Striker Status, and CAN TMP signals are routed to logic and the data bus through connector J12. Two +24VDC fans are also powered through J12. Door Latches J4 &...
  • Page 58 U20 translates the 5 volt level PWM signals to 400 volt amplitude. It provides the necessary gate drive voltages for the IGBT bridge and some fault detection. It also provides the gate drive voltage to drive a Brake Drive IGBT. Allegra X-12/R, X-15R Service Manual 7/04...
  • Page 59 Section 4: Schematics Power Module The Power Module contains six IGBTs forming a three-phase bridge circuit, a Brake Drive IGBT, a full wave bridge rectifier, and a thermistor for monitoring heat sink temperature. Fault Detection Besides the fault detection provided by the IGBT driver, the current through the IGBT bridge is monitored by U12 &...
