Setting up the network on the computer

■
You must now make certain network settings so that the PC can work with the router. First, configure the
TCP/IP settings of the PC which you have connected to the router.
The actual procedure will vary slightly according to your operating system. An example for Windows® XP is
described below.

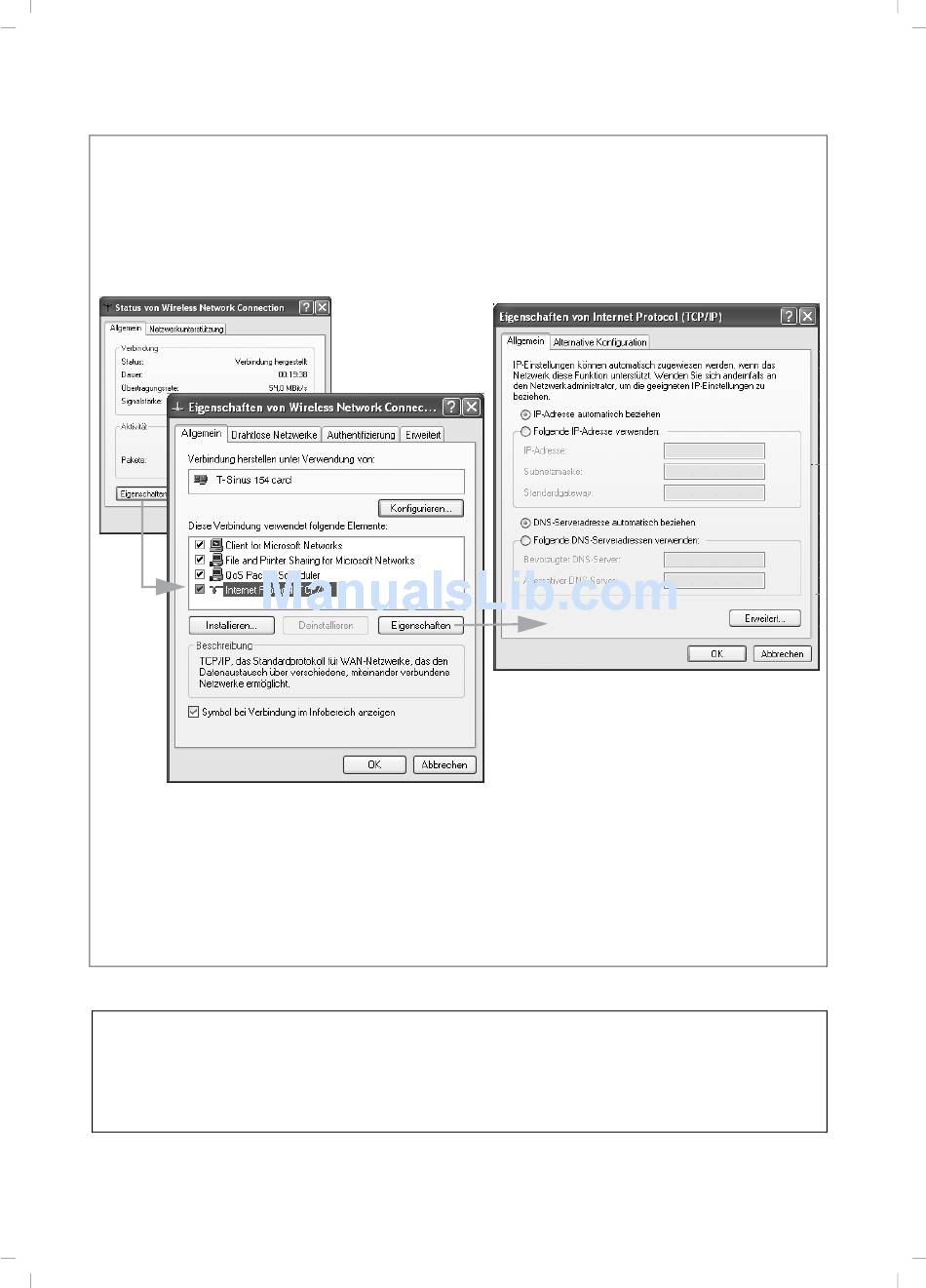

Select Start - Systemsteuerung.
■
Select Netzwerk- und Internetverbindungen and then click on the Netzwerkverbindungen icon.
■
Double click on the LAN connection with which you are connected to the router.
■
Click Eigenschaften.
■
Select Internetprotokoll (TCP/IP) and click on Eigenschaften again.
■
If the IP-Adresse automatisch beziehen and DNS-Serveradresse automatisch beziehen options have
■
already been activated, your PC is already configured for DHCP. Click on Abbrechen and close the next
windows with OK to save your network configuration.
If the IP-Adresse automatisch beziehen and DNS-Serveradresse automatisch beziehen options have
■
not been activated, activate them now and click on OK. Close the following screens.
Restart your network.
■

Restarting the network

■
To restart your T-Sinus 154 DSL, switch it off and then back on again with the Power button at the rear of
■
the unit.
Ensure that the Power and T-DSL indicators at the front of the unit are on continuously.
■
Restart your PC.
■
You have now configured and opened a link between your PC and the T-Sinus 154 DSL .
