FRANCO BELGE Burgundy Technical Manual

Oil fired room heater
Hide thumbs Also See for Burgundy:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

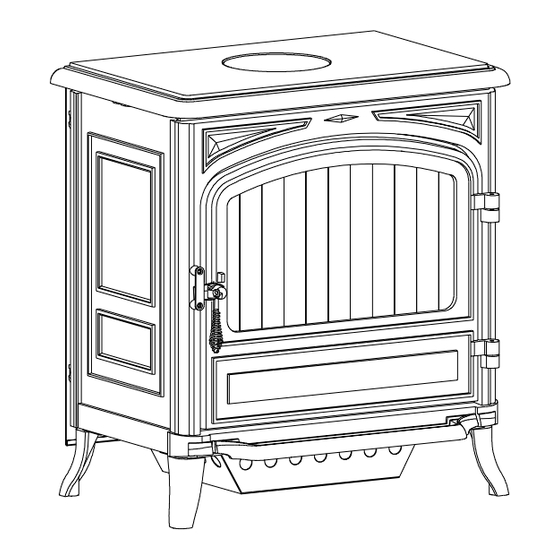

Burgundy
Document n° 918-3 ~ 15/04/1999
Oil Fired Room Heater
Ref. 174 10 38
Fuel oil (28 seconds)
Technical manual
to be saved
by the user
for future reference
Description of the appliance
Installation instructions
Operating instructions
Spare parts
Les Fonderies Franco-Belges
59660 MERVILLE
Warranty certificate
Phone : 03.28.43.43.43
Fax : 03.28.43.43.99
RC Hazebrouck 445750565B
Subject to modifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Burgundy and is the answer not in the manual?

Questions and answers

Related Manuals for FRANCO BELGE Burgundy

Summary of Contents for FRANCO BELGE Burgundy

  • Page 1 Burgundy Document n° 918-3 ~ 15/04/1999 Oil Fired Room Heater Ref. 174 10 38 Fuel oil (28 seconds) Technical manual to be saved by the user for future reference Description of the appliance Installation instructions Operating instructions Spare parts Les Fonderies Franco-Belges...
