Sentry US GSM-DE2123 User Manual

Gsm door / gate intercom entry system

Advertisement

Quick Links

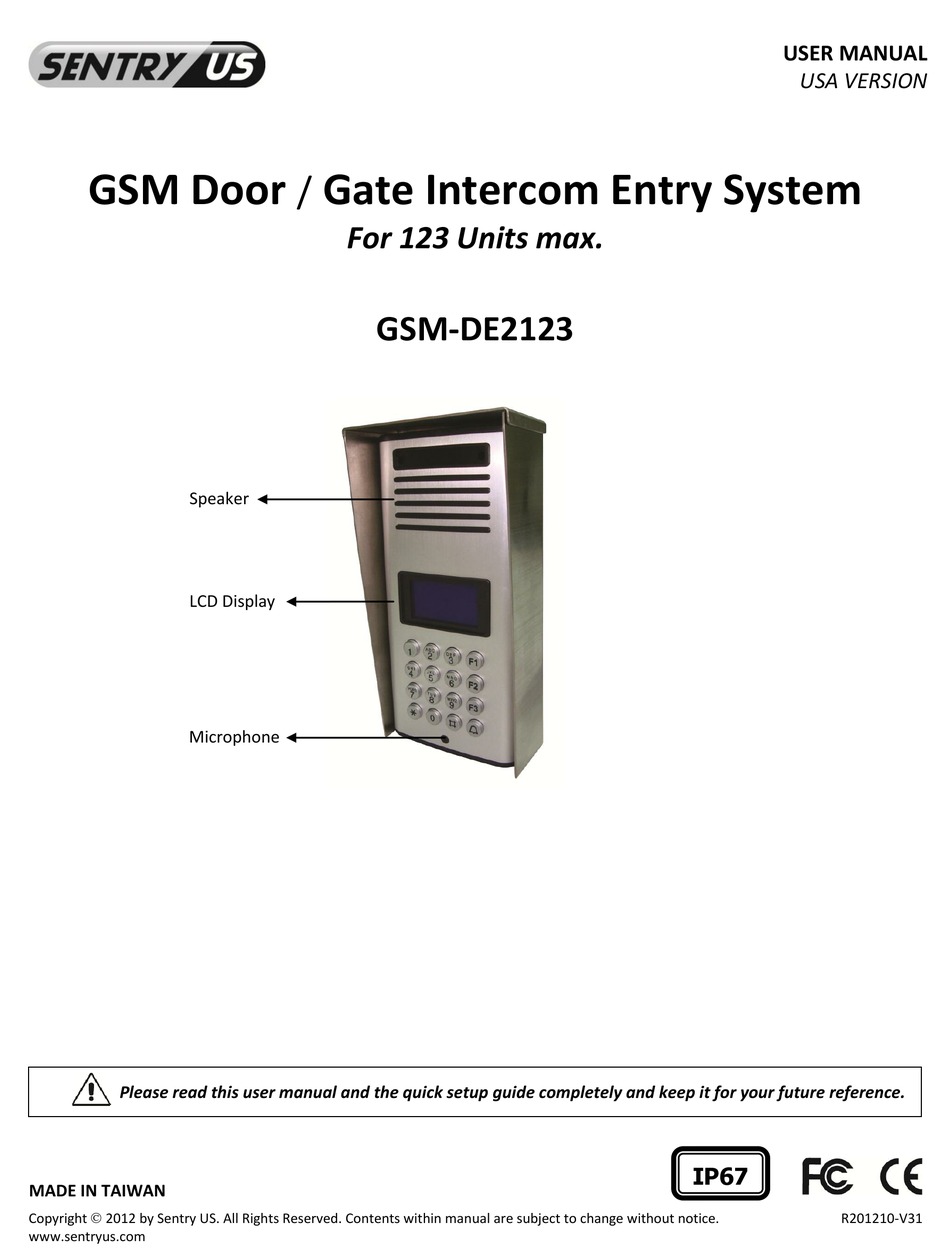

GSM Door
Speaker
LCD Display
Microphone
Please read this user manual and the quick setup guide completely and keep it for your future reference.
MADE IN TAIWAN
Copyright  2012 by Sentry US. All Rights Reserved. Contents within manual are subject to change without notice.
www.sentryus.com
Gate Intercom Entry System
/
For 123 Units max.
GSM-DE2123
USER MANUAL
USA VERSION
IP67
R201210-V31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM-DE2123 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sentry US GSM-DE2123

  • Page 1 Please read this user manual and the quick setup guide completely and keep it for your future reference. IP67 MADE IN TAIWAN Copyright  2012 by Sentry US. All Rights Reserved. Contents within manual are subject to change without notice. R201210-V31 www.sentryus.com...
  • Page 2: Caution

    Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 3: Table Of Contents

    INDEX CAUTION .................................. 2 PACKAGE CONTENTS ..............................4 SYSTEM DIAGRAM ..............................4 WALL MOUNT BRACKET DIAGRAM .......................... 5 INSTALLATION ................................5 WIRING DIAGRAM & WIRING INSTRUCTIONS ......................6 OPERATION & SETTINGS ............................6-13 POWERING ON/OFF ............................... 6 MANAGER MODE & FUNCTIONS ..........................7 MANAGER SETTINGS ............................
  • Page 4: Package Contents

    PACKAGE CONTENTS Door/Gate Intercom Unit Stainless Steel Surface Wall Mounting Bracket Power Adapter Wire for Power Mount Panel Housing 13.5V DC 1000mA GSM External Antenna Four (4) Screws for Two (2) Screws for Door Phone User Manual 16.5ft / 5m lead length Mounting Bracket For any returns, please include all components listed above with original packaging in Resalable Condition.
  • Page 5: Wall Mount Bracket Diagram

    WALL MOUNT BRACKET DIAGRAM Wall mount bracket Screw connection to GSM door/gate unit Latch to connect to back of the metal cover INSTALLATION Take the wall-mount bracket from the package and screw it on proper place (as Step 1 & 2 shown in figure 1).
  • Page 6: Wiring Diagram & Wiring Instructions

    WIRING DIAGRAM & WIRING INSTRUCTIONS System Power Supply Wiring The system power supply (adapter) AC 120V or 230V / DC 13V is provided along with the system (please note whether it can meet local voltage specification). The negative wire is connected to Terminal Pin 1 and the positive wire is connected to Terminal Pin 2. Install Door Lock with System Power Wiring The door lock power may be supplied from the system by connecting the positive wire of the lock to Terminal Pin 4 and the negative wire to Terminal Pin 5.
  • Page 7: Manager Mode & Functions

    MANAGER MODE & FUNCTIONS Note: The unit will be time out after 5 seconds if no button is pressed. Press F1 (MENU) button, and the system will show "Hello! Manager! "Password: ______". After entering default password "123456", press CALL button to show the button functions as listed below: Press any button or wait for 6 seconds, it will show: MANAGER SETTINGS Under the Manager section, there are 4 main options: “System Setting”, “Volume Setting”, “Door Setting”...
  • Page 8 STORE MANAGER PHONE NUMBER: Manager Setting  System Setting  Manager Phone# Note: This will be the number that is called when the CALL button is pressed in standby mode. Under the Manager Menu option, press CALL button. Select System Setting and press CALL button.
  • Page 9: Volume Settings

    VOLUME SETTINGS Change Microphone Volume: Manager Setting  Volume Setting  Mic. Volume Note: There are 9 levels of sensitivity for the microphone volume going from left (least sensitive) to right (most sensitive). If the GSM Door Phone is installed outdoors, please set the microphone level to 3 or 4. This may help to reduce picking up too much background noise and/or feedback from the speaker.
  • Page 10 Select Open by Password and press CALL button. Press CALL button to toggle between “Enabled” and “Disabled”. Press F1 (EXIT) button to return to the previous option screen and the last setting will be saved. Under standby mode, press the password and then press “F1” to open the door. Change Door Opening Password: Manager Setting ...
  • Page 11: Calling Settings

    CALLING SETTING Set Calling Time: Manager Setting  Calling Setting  Calling Time Note: The GSM Door Phone can be set with the calling time by seconds. Under the Manager Menu option, press CALL button. Select Calling Setting and press CALL button.
  • Page 12: Subscriber Id Number Setting

    SUBSCRIBER ID NUMBER SETTING The Subscriber function supports to set up multiple tenants and enable the user to press a subscriber number by the CALL button to connect with the tenant. A subscriber ID # can be set from 1 to 6 digits in length. There are maximum 123 subscribers which can have 2 phone numbers programmed for each.
  • Page 13: Open Door Remotely

    If the dialing fails, the screen will show “No dial tone” and go back to standby mode. If the call is not answered within one minute, the screen will show “No answer” and go back to standby mode. During conversation, if the other party hangs up or the line is cut, the screen will show “No carrier” and go back to standby mode. During conversation or while dialing, pressing F1 (Menu/Exit) or F2 (Delete/Cancel) button will stop the conversation.
  • Page 14: Specifications

    2.98 lbs / 1350 g *Specifications are subject to change without notice. TROUBLESHOOTING Sentry US Technical Support Line: 1-800-872-9907 Mon.-Fri. 9am – 5pm PST LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Manufacturer is free of defects in materials and workmanship under normal and proper use for one (1) year from the purchase date.
  • Page 15: Optional Name Directories

    4 Channel Recordable Siren & Voice 8 Channel Recordable Voice Annunciator 365 Days Schedule Timer Annunciator Module Module MD-T365 MD-SVOICE4 MD-VOICE8 Additional Technology Security Inc. dba: Sentry US E-mail: info@SentryUS.com www.SentryUS.com 5500 Stewart Avenue | Fremont, CA 94538 Tel: 1-800-916-8783...
