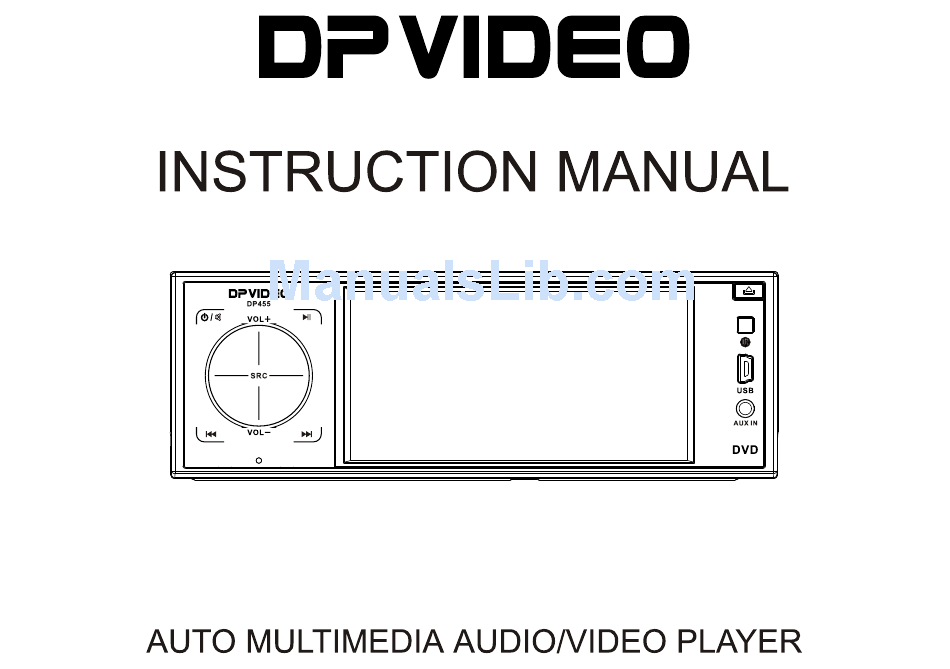

DP VIDEO DP455 Instruction Manual

Auto multimedia audio/video player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DP455

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP455 and is the answer not in the manual?

Questions and answers

Related Manuals for DP VIDEO DP455

Summary of Contents for DP VIDEO DP455

  • Page 1 DP455...

  • Page 2: Table Of Contents

    Contents Thanks for choosing our products. Please read this User Manual carefully for functions and operations of this product and follow the precautions in it. Keep this manual for future reference. 1. Safety Precautions 2. Introduction to Panel Functions 3. Instructions for Using the Remote Control 4.

  • Page 3: Safety Precautions

    1. Safety Precautions Important Safety Measures 1) Be sure wiring is installed according to the installation guide. Improper wiring may lead to malfunction of this product or damage to the vehicles electrical system. 2) Lead for speaker 1 must be connected to terminal of speaker 1. Never connect the lead to the car body or an incorrect speaker terminal.
  • Page 4 Disc Type Disc Content Disc Size Audio and Image 12cm Audio and Image 12cm Only Audio 12cm Only Audio 12cm Audio and Image MPEG-4 12cm Note: VCD of this product is compatible with VCD 1.0/1.1/2.0/3.0 DVD disc. * Do not alter this product as it may lead to accident. * Any operation of this product which may affect normal driving should be conducted only after the auto has been stopped.

  • Page 5: Introduction To Panel Functions

    2. Introduction to Panel Functions /MUTE: press this key to start up under standby mode, and long press to power off; under the working mode, press this key to turn off audio output. : press the key to stop playing, press it again to continue.
  • Page 6 : press this key to unfold the panel. : use the USB port to read MP3/MP4/MPEG file. 10. EJECT: press it to eject the disc; long press it to force eject the disc. 11. RESET: press it with ballpen or a similar object with a pointed head to reset to factory settings. 12.

  • Page 7: Instructions For Using The Remote Control

    Instructions for Using the Remote Control 1. EQ : Press this key to select a preset sound mode; 2. PWR/ : LongPress this key to start up; under playing mode, Long press this key to turn off;Press the key to mute. 3.
  • Page 8 13. SRC: Press the key to switch modes. 14. SUB-T/LOC: In FM mode, press the key to select long-range and short-range radio; in DVD mode, press the key to change subtitle languages. 15. BAND/P/N: In radio mode, press the key to change wave band; in DVD/VCD mode, press the key to select output format.
  • Page 9 Bluetooth(Optional) Bluetooth(Optional) :under Bluetooth mode, press this key to dial or answer calls; under Bluetooth mode, this key works as a key to input telephone numbers. :under any mode, press this key to turn on Bluetooth; under Bluetooth mode, press this key to hang up or turn off Bluetooth.

  • Page 10: Basic Operation

    4. Basic Operation Resetting This device shall be reset before using this system for the first time or after changing the vehicles battery. Unfold the panel and press the "RESET" button to start the device in original status. Note: the function is achieved only by buttons on the main unit. Power On/Off Press the key to turn on the power of this product.

  • Page 11: Function Operation

    5. Function Operation A. Radio Operation Switch to radio mode, the screen displays as shown to the right. 1. Choose Wave Band desired Under radio mode, press the BAND key repeatedly to switch to the disired wave band in the order of FM1 MW2;...

  • Page 12: Bluetooth Operations (Optional)

    2) Press the AMS key, the tuner will search and save the channels with a relative strong signal strength on the selected wave band. Manual Saving 1) Select a wave band and tune to the radio channel you want to save to preset memory. 2) Long press any Radio Preset key (1-6) on the remote control to store the selected radio.
  • Page 13 2. Connections * Under any mode, press "EQ BT" on the panel to turn on Bluetooth; * Turn on cell phone search device (Btcarkit), press "PAIR LOU" on the panel to realize Bluetooth matching; * Select your bluetooth device (Btcarkit) and input pairing password 1234; * Successfully connected (Bluetooth icon will flash on the top right corner of the screen).

  • Page 14: Dvd/Vcd/Cd Operations

    5. Hang up Press " " on the remote controller or "BAND/ " on the panel to hang up. The system will return to previous mode once the conversation is ended. * Handfree conversation is output via the speakers by default, however, you can "MODE/ "...
  • Page 15 3. Stop playing Press the button for pre-stop status, and at this time, you can press the ENTER button to start playing the current song or chapter; press this button twice to stop playing completely. Also, you can press the ENTER button to play from the first song on the disk. 4.
  • Page 16 Note: This function is implemented only by remote controller. 8. Zoom in/out Image In DVD/VCD mode, press ZOOM to zoom in/out the image. The sizes are as follows: Note: This function is implemented only by remote control. Channel Conversion In VCD mode, press "AUDIO" on the remote control to convert formats according to the following order: MONO LEFT MONO RIGHT MIX-MONO...
  • Page 17 12. Change Dialogue Languages When Playing (Multi-Audio) DVD audio has different dialogue languages and various audio systems; if a DVD disc has multi-audio recordings, dialogue languages and audio systems can be switched when playing; press "AUDIO" repeatedly to switch dialogue languages according to the following order: Audio 01 Audio 02.

  • Page 18: Mp3 Operations

    17. Auto shift to car back system When you back you car, the player will be shifted to video mode for car rear view. C. Mp3 Operation 1. Insert a disc compatible with MP3, the unit will automatically switch to MP3 mode. Screen displays as shown in the figure to the right: * Press on the main part to pop the disc up.
  • Page 19 5) Fast Forward/Fast Backward Press on the remote control to fast forward or fast backward; press the key every time, the speed changes as follows: Long press on the panel to implement the same function. 6) Folder Operation When playing disc, SD card or USB card with folders, press on the remote control or the panel to select target folders, and then press "ENTER"...

  • Page 20: Dvd System Setup

    6. DVD System Setup Press "SETUP" on the remote control, and the setup menu will appear on the screen. The setup menu includes GENERAL SETUP, AUDIO SETUP, PREFERENCE PAGE, PASSWORD SETUP and EXIT SETUP MENU. 1) In the setup menu, move UP/Down, Left/Right cursor on the remote control and press "ENTER"...
  • Page 21 1.2 OSD LANGUAGE AUDIO SETUP OSD language: you can choose your You can configure digital audio and Dolby desired language here. digital here if necessary. NEDERLANDS FRANCAIS DEUTSCH ITALIANO PORTUGUES ESPANOL 2.1 DIGITAL AUDIO SETUP SPDIF OFF: Close digital audio output After audio output line (including front, rear, left, right, middle and subwoof) is connected, analog audio is output.
  • Page 22 2.2 DOLBY DIGITAL SETUP DUAL MONO: dual mono output mode. DYNAMIC: audio dynamic range. 3. PREFERENCE PAGE This funcation can be activated only if playing is completely stopped. Any settings configured will be saved for future use. 3.1 AUDIO Disk sound: to set up preferrred disk sound for DVD playing (if the setup language is supported by the DVD to be played).
  • Page 23 3.2 SUBTITLE 3.3 DISC MENU Disk subtitle: to set up a preferrred disk Disk menu: to set up preferrred disk subtitle for DVD playing (if the setup menu for DVD playing (if the setup language is supported by the DVD to language is supported by the DVD to be played).
  • Page 24 3.5 DEFAULT SETTINGS Default settings: You can reset to the default settings by pressing ENTER. 4. PASSWORD SETUP 4.1 PASSWORD MODE Password control: Turn ON password control to lock the password and turn OFF for modifications. * Old password authentication is required when trying to turn ON or OFF password control.
  • Page 25 4.2 PASSWORD CHANGE Password change: You can change your password by entering a new 6-digit password. Note: input 6-digit password with the remote controller EXIT SETUP MENU Move the cursor to X by arrow keys on the remote controller, and press "ENTER" to exit system setup. Press X to exit directly.
  • Page 26 6. Unit system setting 6.1 Under any mode, long press volume button, the unit will enter system setting mode, and the screen displays as the right figure. Under this mode, users can set up audio frequency, video frequency and time. Specific operation is to rotate volume button to the desired option and the Then, the press volume button to confirm.
  • Page 27 7. Setup TV screen sizes Multiple sizes are available as listed below: TV picture sizes Disk picture frames 16:9 Wide screen 4:3 Full view 4:3 Mailbox 16:9 8. Disk functions supported A number of disk functions are supported by this player as listed below: Region code and Digital language Limit lock...

  • Page 28: Installation Guide

    7. Installation guide Caution: Before installing, please make sure the device can work normally. Please use provided accessories only to ensure proper installation. Unqualified components may cause faults. If it is necessary to drill holes or refit the vehicle before installing, please consult a local retailer. Do not install the device at the place that blocks the driver's sight or may bump the passengers when the vehicle is stopped suddenly (braked).
  • Page 29 2. Disassemble Remove the decoration frame, align notches for a pair of disassembling keys (supplied with the product) with disassembling holes, respectively, and insert (see the diagrams). The clips are depressed after a sound is heard. Now, hold the disassembling keys and keep it balanced to pull out the main part.

  • Page 30: Wiring Diagram

    8. Wiring Diagram White Green White/Black plug Green/black plug Gray Purple Gray/Black plug Purple/black plug Yellow White/Brown plug Black White/White plug Blue Orange Black Brown Red/White plug Red/Red plug White/White plug Warming! 1. brake cable (Brown) Connect the negative electrode of the stop lamp Directly Picture displays when braking only, Sounds only when driving, but "warming"...

  • Page 31: Troubleshooting

    9. Troubleshooting Common problems Problem Reason Solution Please make sure all connections The wire isn't connected to the are properly; Please replace with a Can't turn on the device connector properly; The fuse is new fuse with the same capacity burned out The remote control is invalid Battery capacity is low Replace with a new battery...
  • Page 32 Problem Reason Solution Can't switch the audio The disc isn't recorded with several If the disc isn't recorded with several language and caption languages; you can only switch among languages, you can't switch the language the options indicated in the disc items language No captions The disc doesn't have captions...

  • Page 33: Technical Specifications

    10. Technical Specifications General specifications Power: DC/12V(8.5 16V) Grounding: Negative grounding Maximum current: 15A Maximum power: 4 45W Load resistance: 4 (4~8 ) Dimensions: 188mm(W) 58mm(H) 188mm(D) Weight: 2.5KG DVD Player Audio output: 2.0Vrms 0.3V 10K S/N Ratio: 62dB(1KHz) Dynamic range: 80dB(1KHz) Distortion: 0.2%...

  • Page 34: Accessories

    FM Tuning Frequency range: Practical sensitivity: 10dB S/N Ratio: 55dB (mono) Distortion: 0.5%(mono) Stereo Crosstalk: 30dB(1KHz) MW Tuning Frequency range: Practical sensitivity: 30dB S/N Ratio: 50dB 11. Accessories 1. Cabinet(one) 6. Disassembling keys (two) 2. Decoration frame (one) 7. AV input conversion line (one) 3.
