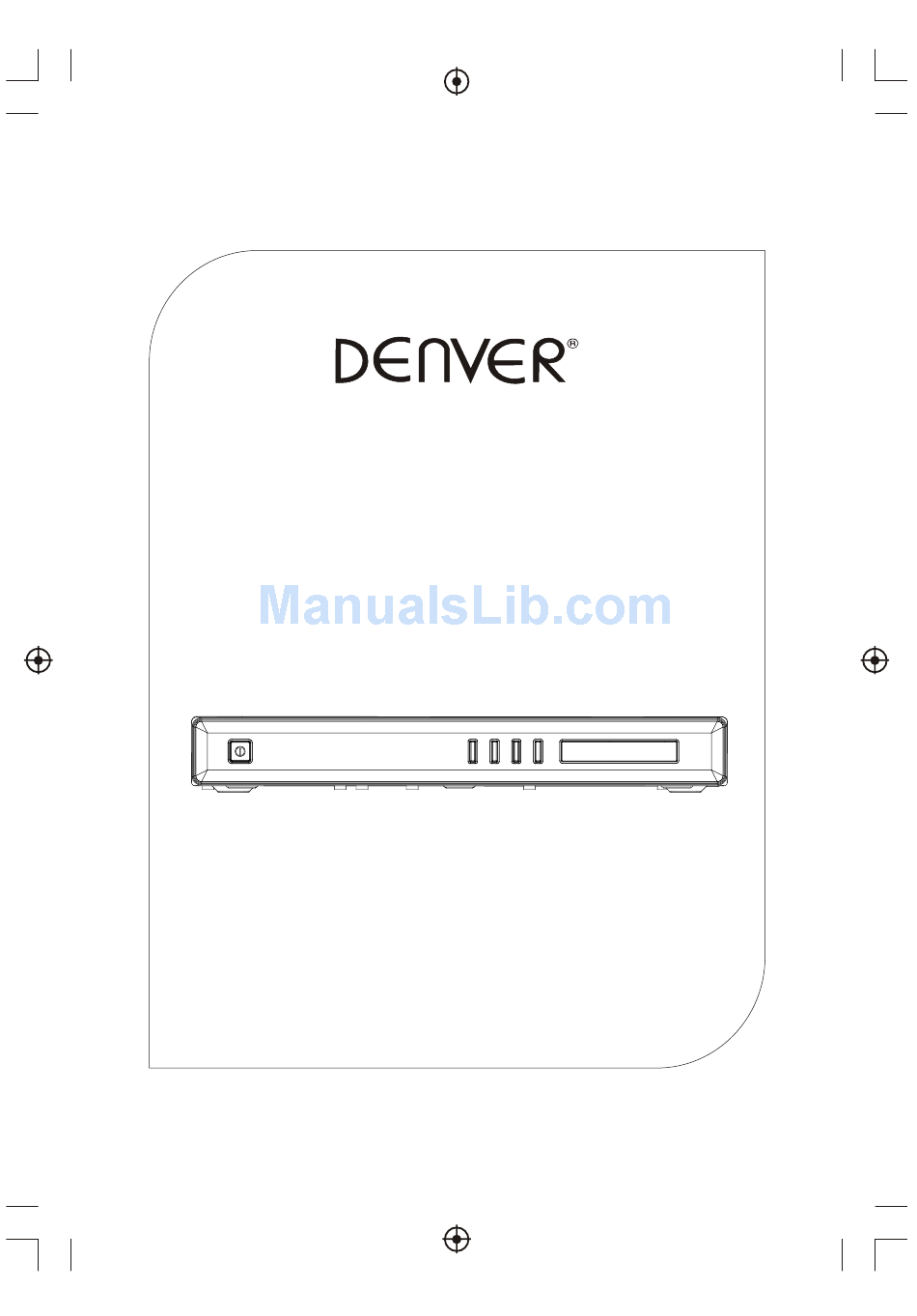

- Page 1 Digital Set Top Box Operating Manual DMB-100HD DVB-T PLAYER...
-
Page 2: Safety Instructions
Safety Instructions Always read the safety instructions carefully Keep this Instruction Manual for future reference Keep this device away from humidity Lay this device on a reliable flat surface before setting it up Do not stand it on soft furnishings If any of the following situation arises, get the Set Top Box checked by a service technician: It has been exposed to moisture... -
Page 3: Front Panel
Front Panel 1. Power switch button. 2. PROG+/-¡¢VOL+/-. 3. Remote receive sensor. 4. LED indicator lamp. 5. LED display panel. Rear Panel ~ 110-240V 50/60Hz HDMI COAXIAL VCR SCART TV SCART 1. RF IN/RF LOOP THROUGH TV RF IN socket connects to your external aerial. LOOP THROUGH socket will bypass the input RF signal to another tuner. -
Page 4: Remote Control Unit
Remote Control Unit 1)MUTE: Used to turn the sound on or off. 2)STANDBY: Used to switch the set top MUTE STANDBY box to on and off. 3)NUMBER KEYS: Used to select channel TV/RADIO numbers or input numbers in menus. 4)TV/RADIO: Used to switch between TV AUDIO channels and Radio stations. -
Page 5: Installing The Batteries
Installing the Batteries Remove the battery cover from the Remote Control and put 2xAAA size batteries inside the compartment. The diagram inside the Battery Compartment shows the correct way to install the batteries. 1.Open the cover 2.Install batteries 3.Close the cover... -
Page 6: First Time Installation
First Time Installation After all connections have been made properly, switch on TV and make sure the receiver is connected to the Main Power. Press Power Button to switch receiver on. If you are using the receiver For the first time or restored to Factory Default, the Main Menu will appear on your TV screen. - Page 7 (2) Program Edit To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'. Program Edit ALL TV 003 ITV1 004 Channel 4 006 ITV2 010 ITV3...
- Page 8 Move a TV or Radio Program/s 1. Select the preferred program then press the RED button. Amove symbol will appear 2. Press UP/DOWN to move the program 3. Press OK to confirm 4. Repeat the above steps to move more channels Lock Program/s You can lock selected programs for restricted view.
- Page 9 (6) Video Setting To access the Menu, press MENU then select [Picture]. The Menu provides options to adjust the video settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust that setting. Press EXIT to exit the menu. Picture Aspect Ratio 16:9 Wide Screen...
- Page 10 (7) Channel Search To access the menu,press MENU and select [Search Channel]. The Menu provides options to adjust the Search Channel settings. Select an option and press RIGHT/LEFT to adjust the settings. Press EXIT to exit the Menu. Channel Search Auto Search Manual Search Country...
- Page 11 2. Press the RIGHT/LEFT key to select the channel frequency 3. Press OK to start searching channels If a channel is found, it is saved and added to the channels list. If channels cant be found, then exit the menu. (3) Country Select your country of residence.
- Page 12 (1). OSD Language Select an OSD language (2). Audio Language Select the preferred audio language for watching TV channels. If the language is not available, the default program language will be used. (3). Subtitle Language Select the preferred subtitle language. (10) System Setting To access the Menu,press MENU and select [System].The menu Provides options to adjust the system settings.
- Page 13 (3) Restore Factory Default Reset your Set Top Box to the Default Factory Settings. In Main Menu select [Restore Factory Default] and press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings. (4) Information View model, hardware and software information.
-
Page 14: Troubleshooting
Troubleshooting Problem Potential Reasons What to do Connect the power Power isn't connected No picture The power switch is not on Switch on the power Screen shows DVB-T cable not connected Plug in the DVB-T cable No Signal Incorrect setting Reset setting No sound from No or incorrect connection... -
Page 15: Technical Specifications
Technical Specifications Item Sub Item Parameter 170~230MHz Input Frequency Tuner 470~860MHz -25~-82dBm RF Input level IF Bandwidth 7MHz and 8MHz QPSK,16QAM,64QAM Modulation Decoder Format MPEG4 AVC/H.264 HP@L4 Video MPEG2 MP@ML.HL 576P , 720P, 1080i, 4:3 and 16:9 Output Format HDMI Output Port Decoder Format Audio... - Page 16 Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly. Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below.
