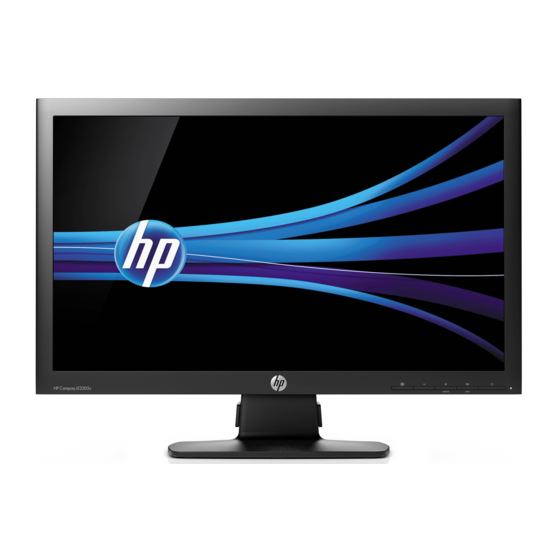

HP Compaq LE2202x Quickspecs

21.5-inch led backlit lcd monitor.
Hide thumbs


Advertisement

QuickSpecs
Overview
1. Menu
Opens, selects or exits the OSD menu. 4.
2. Minus
If the OSD menu is on, press to
navigate backward through the OSD
menu and decrease adjustment levels.
3. Plus/source
If the OSD menu is on, press to
navigate forward through the OSD
menu and increase adjustment levels. If
the OSD menu is inactive, press to
activate the source button that chooses
the video signal input (VGA or DVI).
Model
LL649AA
DA - 14083 Worldwide QuickSpecs — Version 4 — 1.12.2012
HP Compaq LE2202x 21.5-inch LED Backlit LCD
OK/auto
5.
Power
6.
Power LED
If the OSD menu is on, press to select
the highlighted menu item.
If the OSD menu is inactive, press to
activate the auto adjustment feature to
optimize the screen image.
Turns the monitor on or off.
Blue = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
Monitor
Page 1

Advertisement

Table of Contents

   Also See for HP Compaq LE2202x

   Related Manuals for HP Compaq LE2202x

   Summary of Contents for HP Compaq LE2202x

  • Page 1 HP Compaq LE2202x 21.5-inch LED Backlit LCD QuickSpecs Monitor Overview 1. Menu Opens, selects or exits the OSD menu. 4. OK/auto If the OSD menu is on, press to select the highlighted menu item. If the OSD menu is inactive, press to activate the auto adjustment feature to optimize the screen image.
  • Page 2: Technical Specifications

    Color Gamut (typical) Color Support** Can display up to 16.7 million colors *All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. ** With the use of FRC technology. On Screen Display Buttons or Switches Menu, Minus ("-"), Plus/Source ("+"), "OK/Auto"...
  • Page 3 HP Compaq LE2202x 21.5-inch LED Backlit LCD QuickSpecs Monitor Technical Specifications Input Connectors VGA (analog), DVI-D w/ HDCP Input Impedance 75 Ohms (VGA) Sync Input TTL separate synch Video Cable One 15-pin D-sub (VGA), One DVI-D Video Cable Lengths 1,8 m (5.9 ft.)
  • Page 4 RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
  • Page 5 Recycling http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.
  • Page 6 For more information, refer to this product's QuickSpecs document. * The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws).
  • Page 7 All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
