Bradley s19314 series Installation Manual

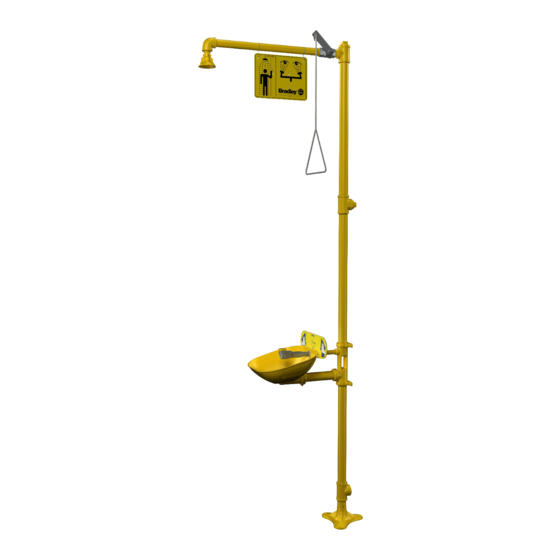

Halo combination drench shower and eyewash or eye/face wash
Hide thumbs
Also See for s19314 series:
- Installation manual (56 pages) ,
- Installation manual (51 pages) ,
- Installation manual (59 pages)
Table of Contents
Advertisement
215-1684 Rev. M; ECN 13-05-007E
© 2013 Bradley
Page 1 of 50
7/8/2013
Installation
S19314 Series
Halo™ Combination Drench Shower
and Eyewash or Eye/Face Wash
Patents Pending
Halo™ Combiné douche oculaire
ou douche oculaire/faciale
Brevets en instance
Halo™ Combinación de ducha de
aspersión y lavaojos o lavaojos/
rostro
Patentes pendiente
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley s19314 series
Summary of Contents for Bradley s19314 series
- Page 1 Halo™ Combinación de ducha de aspersión y lavaojos o lavaojos/ rostro Patentes pendiente 215-1684 Rev. M; ECN 13-05-007E P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2013 Bradley PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 Page 1 of 50 7/8/2013 bradleycorp.com...
-
Page 2: Table Of Contents
S19314 Installation Table of Contents Table of Contents................2 Pre-Installation Information . -
Page 3: Pre-Installation Information
“ON” at all times. Provisions shall be made to prevent unauthorized shutoff. The ANSI Z358.1 standard requires an uniterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure. Flushing fluid should be tepid per ANSI Z358.1. -
Page 4: Halo Pre-Configured Models
S19314 Installation Halo Pre-Configured Models Halo Model Number Description Eyewashes S19314EW* Halo Eyewash, plastic showerhead & bowl Halo Eyewash, plastic showerhead & bowl w/ hose spray S19314P* S19314SB* Halo Eyewash, plastic showerhead, stainless steel bowl Halo Eyewash, plastic showerhead, stainless steel bowl, hand/foot activated S19314LL* S19314F* Halo Eyewash, plastic showerhead w/ stainless steel shroud &... -
Page 5: Halo Configurator
How to Specify Model and Configurations for Bradley Halo Products: Model No......... .S19314 1. -
Page 6: Dimensions
S19314 Installation Dimensions S19314 shown with Plastic Bowl and Plastic Showerhead Plastic Showerhead with Plastic or Stainless Steel Shroud ⁄ " (681mm) Plastic Ø 10" (254mm) Stainless Steel Ø 10¾" (273mm) Ø 3.1" (78.7mm) Type 304 and 316 Stainless Steel Showerheads ⁄... -
Page 7: Installation Instructions
Installation S19314 Assembly — Connect Base and Eyewash Standard eyewash unit is shown. Other units are similar. Connect components before securing the base to the floor. When connecting components, use the rubber grip pad (provided) around pipes to prevent marring. Apply pipe sealant (supplied by installer) to all male-threaded pipe joints, making sure not to get any excess over the edge of the pipes. - Page 8 S19314 Installation Assembly — Connect Drench Shower Components Stainless steel Standard eyewash unit is shown. Other units are similar. tee with reducer Apply pipe sealant (supplied by installer) to all male-threaded pipe joints, making sure not to get any excess over the edge of the pipes. 1¼"...
-
Page 9: Service Parts - Bowl And Hub
Installation S19314 Service Parts — Bowl and Hub Cross (Item #3) is for use with freeze/scald valves and drench hose accessories only. Hub with Plastic Bowl Hub with Stainless Steel Bowl 215-1684 Rev. M; ECN 13-05-007E 7/8/2013... - Page 10 S19314 Installation Service Parts List — Bowl and Hub Item Part No. Description Item Part No. Description 111-092 113-1202 Pipe 1¼" x 11" thd. one end 111-093 Hub stainless steel 113-1203 Pipe 1¼" x 11" thd. one end stn. steel 111-095 Hub stainless steel 316 113-1204...
-
Page 11: Service Parts - Eyewash, Eye/Face Wash And Bowl Covers
Installation S19314 Service Parts — Eyewash Service Parts — Eye/Face Wash Prepack S65-339 includes items 26, 27, 28 Eyewash Cover Prepack Eye/Face Wash Cover Prepack S45-2675 includes items S45-2676 includes items 22, Prepack S88-068 includes items 25, 26, 27, 28 22 and 23 24a and 24b 215-1684 Rev. - Page 12 S19314 Installation Service Parts — Plastic Bowl Cover Plastic Bowl Cover Prepack S90-390 includes items 35a, 36, 39, 42, 43 Service Parts — Stainless Steel Bowl Cover Stainless Steel Bowl Cover Prepack S90-388 includes items 35b, 36, 39, 42, 43 Prepack S90-389 includes items 35b, 36, 39, 42, 43 Handle Prepacks include items 39, 40, 41, 44, 45, 5, 5.1...
- Page 13 Installation S19314 Service Parts List — Eyewash, Eye/Face Wash and Bowl Covers Item Part No. Description Item Part No. Description ¡ ¢ £ ¢ ¤ ¡ ¡ ¢ ¢ § ¨ © ¢ " ¤ ¢ " £ ¤ ¡ ¢...
-
Page 14: Service Parts - Base And Drain
S19314 Installation Service Parts and Parts List — Base and Drain Foot Pedal kits foot pedal kit foot pedal kit 301a 301b 302b 302a Base and Drain Kits for 24" Drains include items 1, 4, 301b, 302b, 303 301b 305a 305b 302b Item... -
Page 15: Service Parts - Drench Shower
Installation S19314 Service Parts — Drench Shower ll s Ü F ti g L IC s ig s tä P .O ly . e ld Ö C a in p rü A IR e tr R Ä e (s s tb c ti S tö... - Page 16 S19314 Installation Service Parts — Drench Shower Stainless Steel Valve Prepacks include items 350b, 354b, 355b 350b 350a 355b.1 354b 350b.2 354a Self-Closing Valve Prepacks 350a.1 355a 350b 344a includes items 350c, 351, 353, 354a, 355a 350c 350b.1 354b 350b.2 350c 354a 350a.1...
- Page 17 Installation S19314 Parts List — Showerhead and Shower Valves BSP = British Standard Pipe Thread (not available in the U.S.) Item Part No. Description Item Part No. Description 169-727 Tee 1¼" painted galvanized 269-915 Rubber Grip Pad 169-727B Tee 1¼" painted galvanized BSP 204-421 Emergency Inspection Tag 269-237...
-
Page 18: Service Parts - Optional Accessories
S19314 Installation Service Parts and Parts List — Optional Accessories Accessory Item Part No. Qty. Description Mounting (for units with two 169-025 Elbow ½" as req’d. accessories) 269-241 Elbow ½" stainless steel as req’d. 269-1396 Elbow ½" stainless steel 316 as req’d.
