STEREO INTEGRATED AMPLIFIER/TUNER
R-SE9
SERVICE MANUAL
(HM-901)

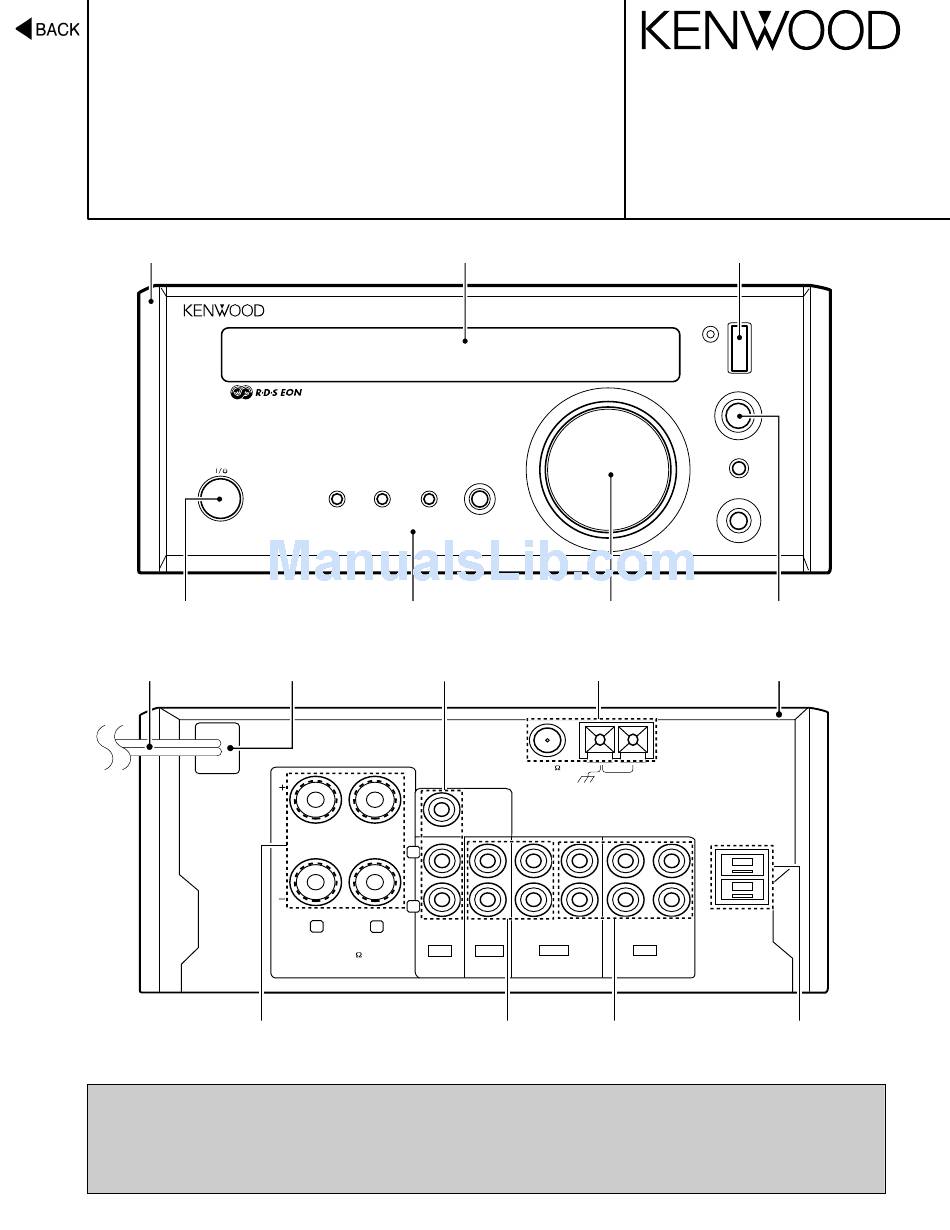

Side plate
(A50-1303-02)
stereo integrated amplifier/tuner
on/standby
Knob
(K29-6741-04)
AC power cord *
Power cord bushing
(E30-)
(J42-0083-05)
Screw terminal board
(E70-0061-05)
PRECAUTIONS FOR REPAIR
• For the SERIAL TEST CODE LIST of the circuit description, see Service manual (B51-5210-00) of R-SA7.
• For the INITIAL STATE, the BACK UP and the MICROPROCESSOR of the circuit description, see Service manual (B51-
5373-00) of R-SE7.
• No connection of ground line if disassemble the unit.
• Please connection the ground line on rear panel, PCBs, Chassis and some others.
Front glass
(B10-2369-03)
R-SE9
volume control
N.B.
band
auto/mono
enter
Panel*
(A60-)
Phono jack
(E63-1014-05)
SUPER
WOOFER
PRE OUT
L
R
R
L
IN
IN
SPEAKERS
CD
AUX
( 6 - 16
)
Phono jack
(E63-0046-15)
©1997-10/B51-5375-00 (K/K) 888
TRAITR
pure
∞
∞
down
up
Knob
(K29-6738-04)
Lock terminal board
(E20-0476-05)
FM75
ANTENNA
AM
GND
REC
PLAY
REC
PLAY
TAPE
MD
Phono jack
(E63-0047-15)
* Refer to parts list on page 21.
Knob
(K29-6751-04)
A
multi control
mode
phones
Knob
(K29-6739-04)
Metallic cabinet
(A01-3463-11)
SYSTEM
CONTROL
Rectangular receptacle
(E08-0312-05)
