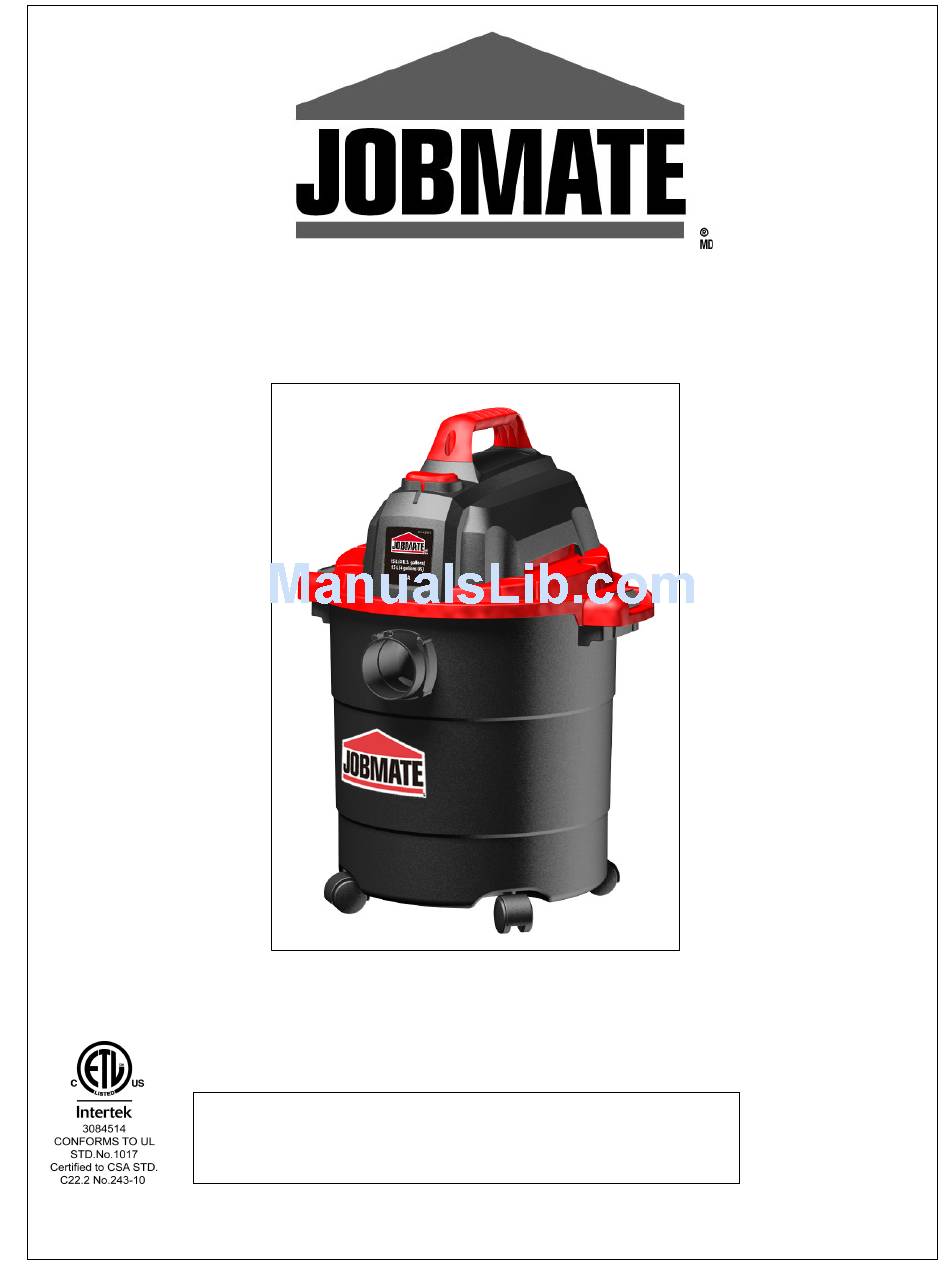

- Page 1 Wet/Dry Vacuum 054-0242-6 Owner s Manual Toll-Free Helpline: 1-866-JOBMATE (562-6283) © 2013...
-
Page 2: Table Of Contents
Table of Contents SECTION Page Specifications ………………………………………………………………………………………..Warranty……………………………………………………………………………………………….. Safety Warnings ……………………………………………………………………………………..Extension Cords…………………………………………………………………….………………… Location of Parts ….…………………………………………………………………….…………..General Assembly Instructions ……………………………………………………..……………..Dry Vacuum Operation……………………………………………………………………………….. Wet Vacuum Operation ..……………………………………………………………..……………... Blower Operation…….……………………………………………..…………………………….….. Maintenance ……………………………………………………………………………..…….…….. Troubleshooting ………………………………………………………………………..……………. Accessories …………………………………………………………………………..……………… Exploded View ………………………………………………………………………….…………… Parts List ……………………………………………………………………………………………... SPECIFICATIONS：... - Page 3 Warranty JOBMATE® LIMITED WARRANTY This JOBMATE® product is guaranteed for a period of one (1) year from the date of original retail purchase against defects in materials and workmanship Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
-
Page 4: Safety Warnings
Safety Warnings IMPORTANT SAFETY INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE. Read all instructions before using this appliance Read and understand this instruction manual and all labels on the Wet/Dry Vacuum before using. Safety is a combination of common sense, staying alert and knowing how this Wet/Dry Vacuum works. Use this Wet/Dry Vacuum only as described in this manual. - Page 5 • Do not leave the Wet/Dry Vacuum unattended when it is plugged in. Unplug it from the power outlet when not in use and before servicing. Turn off the Wet/Dry Vacuum before unplugging. • Do not put any objects into the ventilation openings. Do not vacuum with any ventilation openings blocked.
-
Page 6: Extension Cords
Extension Cords When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required AWG wire size. Before using the Wet/Dry Vacuum make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use. -
Page 7: General Assembly Instructions
General Assembly Instructions GENERAL ASSEMBLY Verify that the power cord is disconnected from the outlet (Fig. 1). Undo the clasps (Fig. 2). Lift the top section off the container (Fig. 3). Remove the contents from inside the container (Fig. 4). Turn the container upside down, and insert the four casters. -
Page 8: Dry Vacuum Operation
Dry Vacuum Operation DRY VACUUMING BEFORE YOU START WARNING! Be sure to read, understand, and apply Section 1, entitled “Safety Warnings.” Reminder: DO NOT vacuum hazardous substances. The use of an incorrect dust bag will void the warranty. 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. -
Page 9: Wet Vacuum Operation
Wet Vacuum Operation WET VACUUMING BEFORE YOU START WARNING! Be sure to read, understand, and apply Section 1, entitled “Safety Warnings.” Reminder: DO NOT vacuum hazardous substances. 1. Verify that the power cord is disconnected from the outlet. Verify that the container is clean and free of dust and dirt (Fig. -
Page 10: Blower Operation
Blower Operation This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSA Z94.3) BEFORE USING BLOWER. WARNING: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS. WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED. -
Page 11: Troubleshooting
Take off the dust filter, and wash and clean it. Reuse it when it is dry. It is recommended to use a new dust filter. Accessories Available accessories for your Jobmate® Wet/Dry Vacuum: Consumables 054-0151 Foam Sleeve / Wet Filter 054-0148... -
Page 12: Exploded View
Parts – Exploded view... -
Page 13: Parts List
Parts List Item Description Number Handle Assembly Top Cover Switch Assembly Baffle Motor assembly Press board Impeller Aluminium press board Screw Motor mount Rubber washer Safety float valve Filter basket Cord clamp assembly Cord wrap Internal wiring Tank Hose inlet assembly Caster Dry Reusable filter Extension wand...
