Specifications

Operating temperature
range:
Operating humidity range:
Region number:
Discs played
[8cm (3") or 12cm (5")]:
+5 to +35°C (+41 to +95°F)
5-85% RH (no condensation)
Region No.3 (DVD-LX110GCS)
Region No.5 (DVD-LX110EE)
DVD [DVD-Video, DVD-Audio, DivX
(EE only /*6, 8)]
DVD-RAM [DVD-VR, JPEG(*4,6,7),
MP3(*2,6), MPEG4(*5,6), DivX (EE
only /*6, 8)]
DVD-R [DVD-Video, DVD-VR,
JPEG(*4,6,7), MP3(*2,6),
MPEG4(*5,6), DivX (EE only /*6, 8)]
DVD-R DL (DVD-Video, DVD-VR)
DVD-RW [DVD-Video, DVD-
VR,JPEG(*4,6,7), MP3(*2,6),
MPEG4(*5,6), DivX (EE only /*6, 8)]
+R/RW (Video)
+R DL (Video)
CD, CD-R/RW [CD-DA, Video-CD,
SVCD(*1), MP3(*2, 6), WMA(*3, 6),
JPEG (*4,6,7), MPEG4(*5,6), DivX
(EE only /*6, 8), HighMAT Level 2
(Audio and Image)]

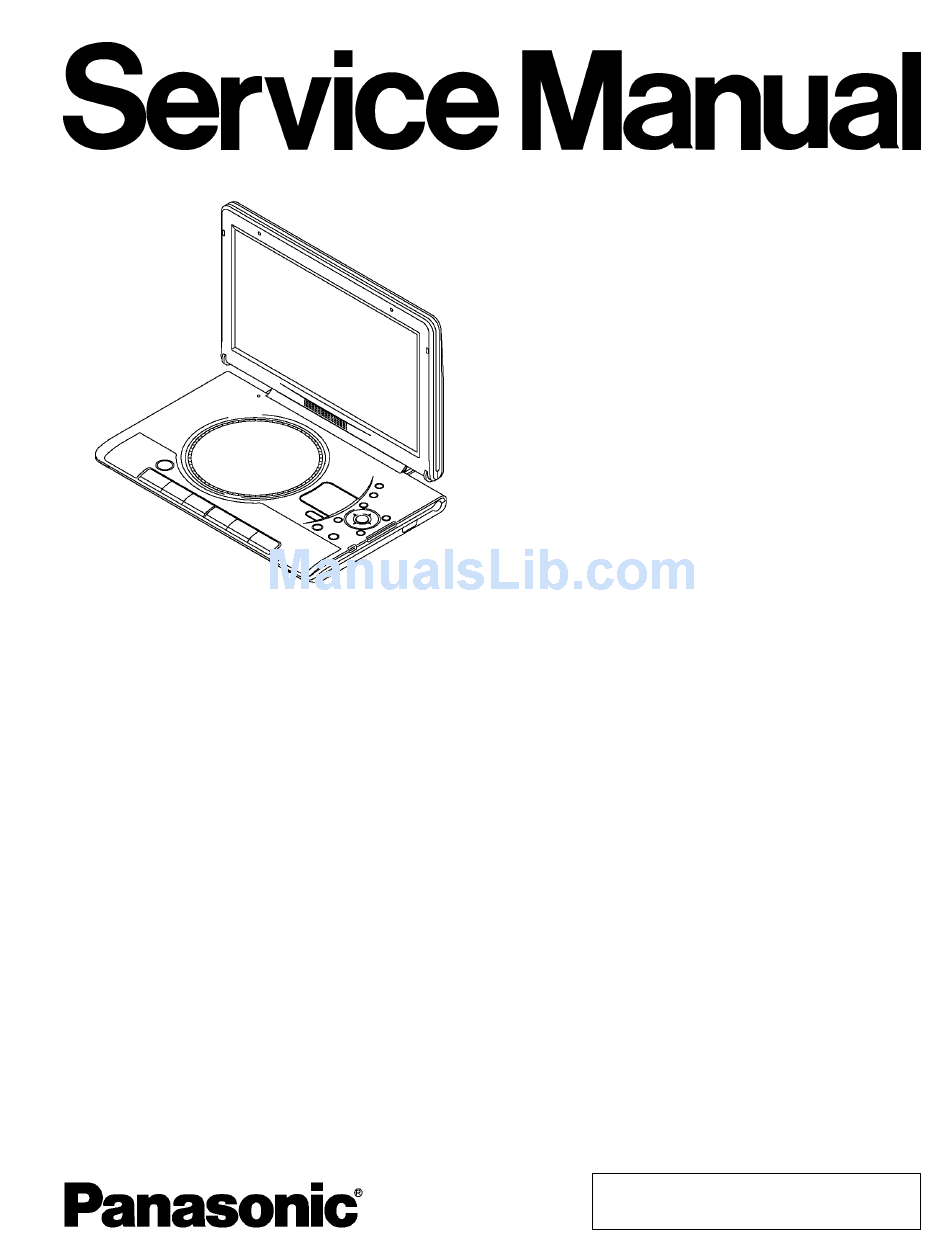

Portable DVD/CD PLAYER
DVD-LX110EE
DVD-LX110GCS
RAE1907Z-C Mechanism Series
Colour
(S).................Silver Type
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO.CHM0606037CE
*1: Conforming to IEC62107
*2: MPEG-1 Layer3, MPEG-2 Layer3
*3: Windows Media Audio Ver9.0 L3.
Not compatible with Multiple Bit Rate
(MBR)
*4: Exif Ver 2.1 JPEG Baseline files
Picture resolution: between 160×120
and 6144×4096 pixels (sub sampling
is 4:0:0, 4:2:2, 4:2:0 or 4:4:4)
*5: MPEG4 data recorded with the
Panasonic SD multi cameras or DVD
recorders Conforming to SD VIDEO
specifications (ASF standard)/MPEG4
(Simple Profile) video system/G.726
audio system.
*6: The total combined maximum
number of recognizalbe audio, picture
and movie contents and groups:
4000 audio, picture and movie
contents and 400 groups.
*7: Extremely long and slender
pictures may not be displayed.
Unauthorized
copying
and
