Summary of Contents for Waveblade WB12DC001
-

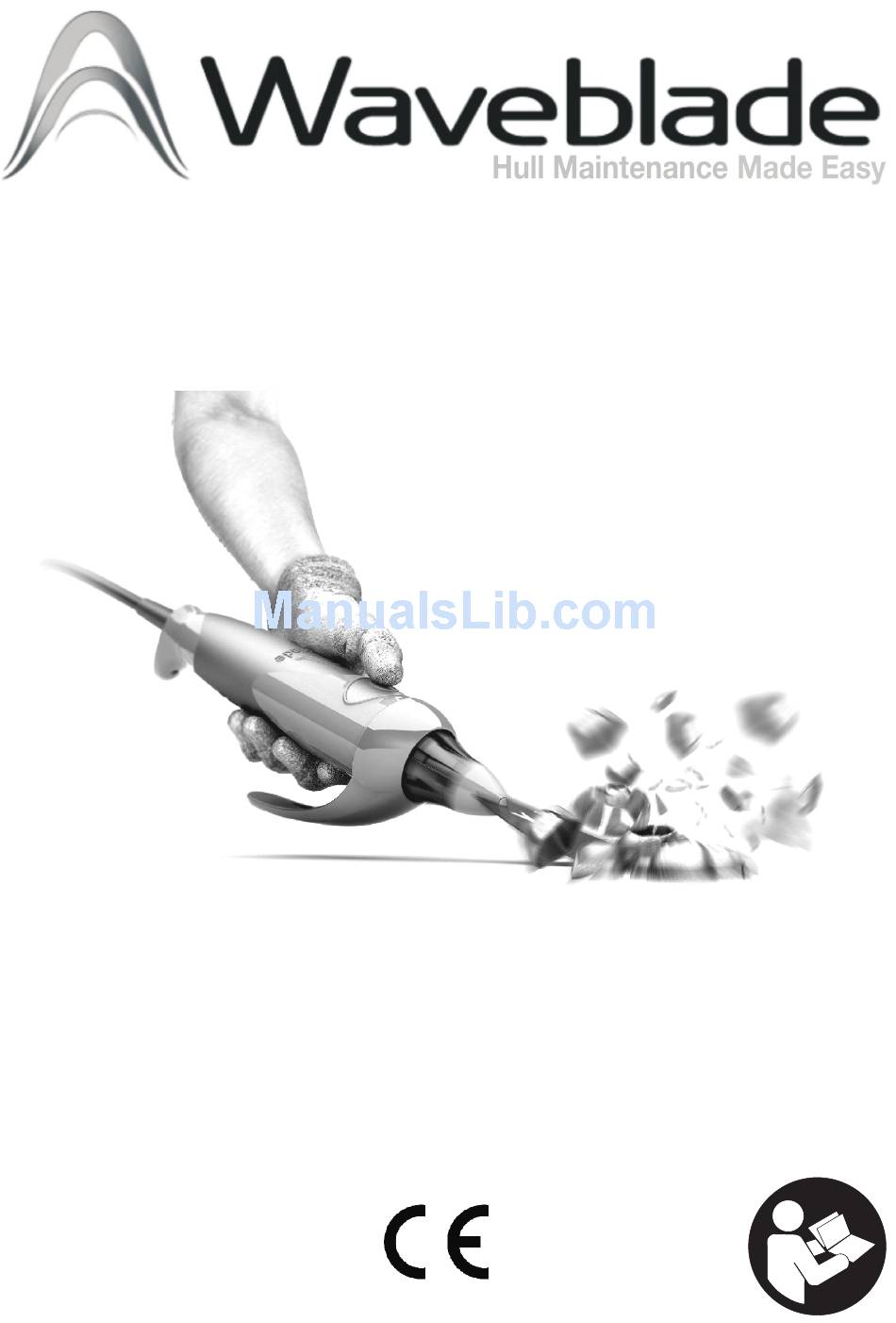

Page 1: Operating Instructions
Power Barnacle Remover Operating Instructions WBACC014-01 February 2010... -
Page 2: Table Of Contents
Contents Main Tool Parts Page General Safety Rules Page Introduction Page Functional Description Page Items Supplied Page Safety Instructions Page Work Area Page Electrical Safety Page Mechanical Safety Page Personal Safety Page Tool Use and Care Page Service Page Understood Everything Page Blade Attachment Page... -
Page 3: Main Tool Parts
Figure 1: Main Tool Parts... -
Page 4: General Safety Rules
SAVE THESE INSTRUCTIONS. Introduction Please make sure you familiarize yourself with the way the Waveblade works before you use it for the first time and that you understand how to handle electric power tools correctly. Further details can be found in this user manual. Keep these instructions in a safe place. -
Page 5: Functional Description
It does not remove your anti-foul! Any other use of, and modification to, the Waveblade is deemed to be improper usage and may result in serious physical injury and invalidate your warranty. -
Page 6: Safety Instructions
Safety Instructions Waveblade is a sealed unit with no internal serviceable parts other than the replacement of blades and the protective foam boot at the front of the tool. Take care, when using the Waveblade tool; never use damaged tools or tools you suspect may be damaged or not functioning correctly. -
Page 7: Mechanical Safety
Keep blade away from your hands, other body parts and other people. Do not use unless blade is correctly and securely fitted. Do not use the Waveblade in combination with other tools or processes. If the tool is dropped the power should be disconnected and the tool thoroughly inspected before further use. -
Page 8: Tool Use And Care
Blade tightness should be periodically checked, as operating the tool with a loose blade will damage the Waveblade. Always check before every use and re-tighten a loose blade immediately. Do not use damaged blades as they could cause personnel injury or damage to the hull surface. -
Page 9: Understood Everything
Before removing or installing a blade disconnect from the power. Figure 2: Unlocking the Blade To change the blade take the 2.5mm Allen Key supplied with your Waveblade and insert into the hole in the side of the blade retention collar and locate the locking screw. -
Page 10: Replacing The Front Seal Protective Foam Boot
Note: If it is a 3” flat blade ensure that the flat face of the blade is sitting at 90º to the vertical axis of the knuckle guard. If the ½ round curved blade is to be installed ensure the bottom of the curve points downwards in the same direction as the knuckle guard. -
Page 11: Connecting To The 12Vdc Power
Connecting to the 12Vdc Power To connect the tool to the 12Vdc supply firstly remove the closing cap from the end of the protective boot and slide the boot back revealing the 12Vdc Plug Connector. Closing Cap Protective Boot Figure 6: 12Vdc Plug Connector Protective Boot with Closing Cap in Closed Position Locate the nearest 12Vdc power socket (cigar lighter or similar) and push the 12Vdc plug connector firmly home into the socket to the stop position. -
Page 12: Operation
Let the blade vibration do the work. Reduce the force on the tool if it slows down. Waveblade should not be use continuously for periods exceeding 30 minutes. Ideally it should have an intermittent duty cycle of 1 minute on... -
Page 13: Do Not
Do Not! Do not jam the blade against fixed obstructions, such as metal fixings Do not force the blade. Do not dig the blade into the surface or marine growth Do not stab the blade at the growth Do not use blade to lever growth from surface. Do not point tool at any person. -
Page 14: Maintenance
MAINTENANCE The tool is a sealed unit and not repairable by the user, it does not require internal maintenance; however we do recommend regular checks for damage and regular cleaning. Store in a cool dry environment to preserve the tool’s parts. The only user maintenance required is to keep the tool clean and the blade free from damage. -
Page 15: Fault Finding
Unauthorised repairs may result in considerable danger to the user. Fault Finding If the Waveblade should fail to operate it could be caused by several possibilities. Before assuming that the tool is faulty, check the following: Has the fuse blown in the supply? Check the 12Vdc plug connector by plugging in another known working device such as a spotlight. -
Page 16: Disposal
The marine growths removed from boats may contain anti-fouling agents. Please dispose of correctly in accordance with your local guidelines/ byelaws / legal and accepted practices. Technical Data Model No: WB12DC001 Waveblade 12Vdc Corded Manufacturer WaveCraft Limited (Manufactured in China) - Page 17 Supply voltage rating 12.0 Vdc Nominal To be supplied via the supplied 13.7 meter (45 feet) specially designed Waveblade cable. Shorter cables are not to be used. Supply to be fuses at a current of 10 Amps or less. Rated Idle Running Speed...
-
Page 18: Declaration Of Conformity / Producer
3” Black Sprung Steel Delicate Surface Blade WBACC007-01 3” Stainless Steel Delicate Surface Blade WBACC008-01 Replacement Locking Collar WBACC009-01 Front Seal Protective Foam Boot WBACC010-01 Fuses WBACC011-01 Safety Gloves WBACC012-01 Safety Glasses WBACC013-01 Operating Instructions WBACC014-01 Waveblade Carry Bag WBACC015-01... -
Page 19: Guarantee
This warranty does not affect your statutory rights. Patented Wave Technology Patent & Copyright Notice Waveblade is covered by a number of international patent rights, intellectual property rights and trade secrets. These rights take the form of both granted and pending patents, copyright, trade secrets and registered designs.
