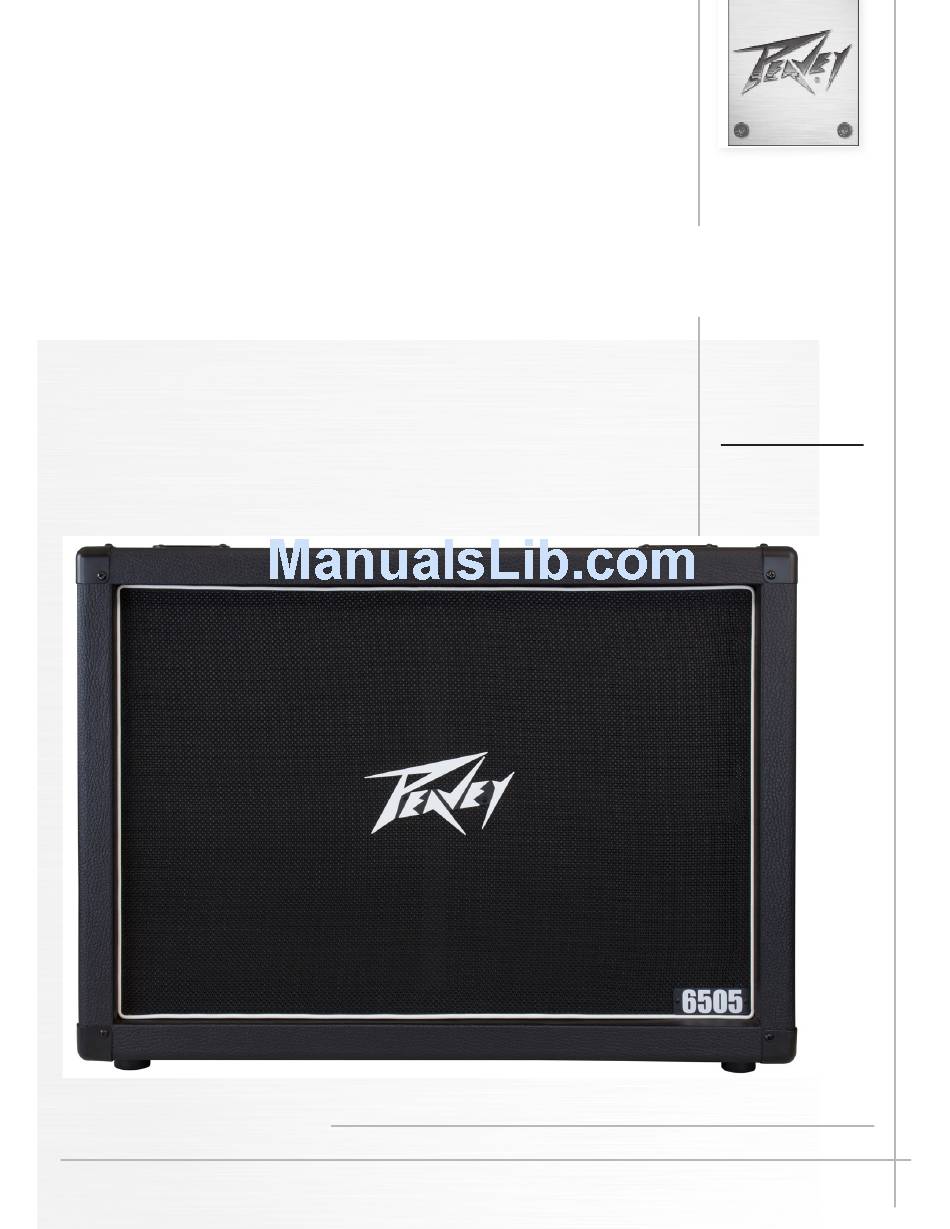

- Page 1 6505 ® Operating Manual www.peavey.com...

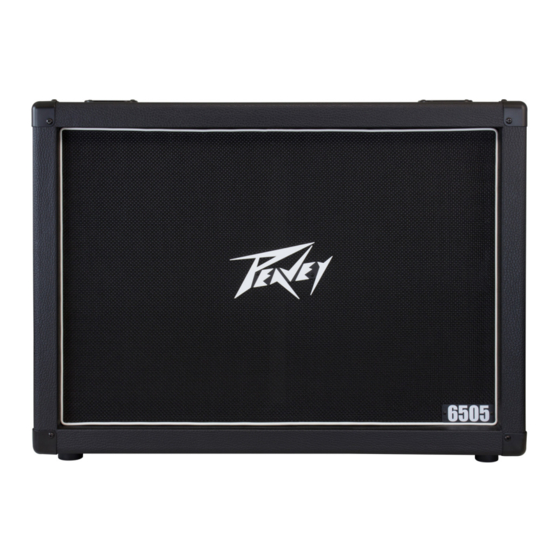

- Page 2 Description The Peavey 6505® SUB is a powered low frequency speaker system engineered to provide very high levels of performance in a compact loudspeaker. The 6505® SUB is capable of up to 119 dB peak SPL. The enclosure is made from 3/4” MDF, covered in black Tolex-style covering, with a fabric style wooden frame grille with the same styling as the other 6505 series components, to offer an attractive yet durable powered speaker system.
- Page 3 MERIDIAN, MS 39305 AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS. AVIS: DANS LE BUT DE REDUIRE LES RISQUES D’INCENDIE OU DE DECHARGE 6505...
- Page 4 THRU /HPF OUTPUT (6) This line-level balanced XLR output either is a full bandwidth thru, or a high-pass crossover output as determined by the THRU/HPF switch (4) described above. MAIN GUITAR AMPLIFIER SPEAKER LEVEL IN (7) This 1/4” T-S speaker-level input is of the medium impedance (10k) unbalanced type. It is internally padded to accept speaker level signals from an amplifier that also might be powering the mid-high frequency speakers.
- Page 5 shielded cable, to the 6505® SUB's thru/HPF XLR Output, with the THRU/HPF switch (4) in the HPF (High Pass Filter) mode, where the switch is IN. Connect the 1/4" end to the guitar head/combo effects loop return. When the effects loop is activated, the signal from the guitar amp will now pass thru the SUB's built-in crossover, and the lows below 120 Hz will now be reproduced by the 6505®...
- Page 6 If, after checking all the things listed to check and anything else you can think of to check safely, and the system still exhibits problems, carefully note all conditions and check with your Peavey dealer for advice.
- Page 7 The outside dimensions shall be: 27” tall x 21.9” wide x 19.6” deep, and the weight shall be 87 lbs. Power requirements shall be: 100-Watts nominal (1/8 audio power), 100-120 VAC, 50/60 Hz Domestic and 220-240 VAC, 50/60 Hz (Export). The loudspeaker system shall be called the Peavey 6505® SUB. SPECS...
- Page 8 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
