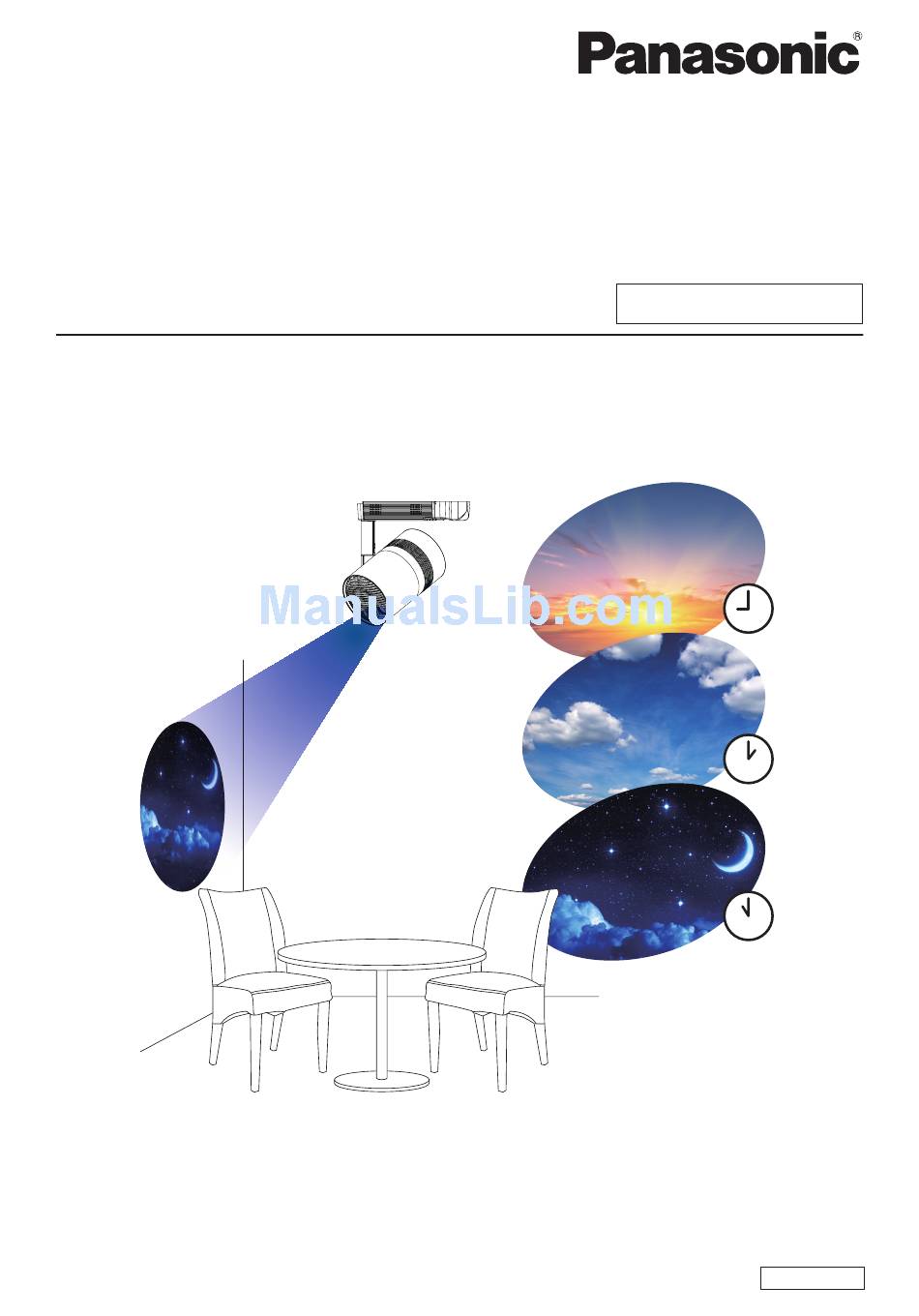

Thank you for purchasing this Panasonic product.
■ This manual explains the signage playback function (Content Manager).
For information other than the signage playback function, see "Operating Instructions -
Functional Manual".

Operating Instructions

Content Manager Manual
DLP™ Projector
PT-JX200 series
Model No.
Commercial Use
ENGLISH
DPQP1111ZC

Advertisement

Table of Contents
loading

Related Manuals for Panasonic PT-JX200 series

Summary of Contents for Panasonic PT-JX200 series

  • Page 1: Operating Instructions

    DLP™ Projector Commercial Use PT-JX200 series Model No. Thank you for purchasing this Panasonic product. ■ This manual explains the signage playback function (Content Manager). For information other than the signage playback function, see “Operating Instructions - Functional Manual”. ENGLISH...

  • Page 2: Table Of Contents

    Contents Introduction Registering the power supply content Editing the content Notation in this manual Deleting the content Functions of the Content Manager Creating a playlist Definitions of the Content Manager terms Editing the playlist Files compatible with signage playback Deleting the content registered in the playlist Changing the setting of content registered in a Preparation playlist...
  • Page 3 Trademark Registering the content used in the slideshow Adding content to be used in slideshow Deleting the content used in slideshow Editing the slideshow Changing the playback order of the content registered in slideshow Deleting the content registered in the slideshow Changing the content setting of still image registered in slideshow Operation method of the multiple direct...

  • Page 4: Introduction

    The part that is described as “device” in this manual and the software refers to the projector (Model No.: PT-JX200 series). f In this manual, the SD memory card and the SDHC memory card are referred to as “SD card”.

  • Page 5: Functions Of The Content Manager

    Functions of the Content Manager Content Manager has the following functions. f The signage playback function g Plays still image/movie/music files in the SD card, changes brightness of the light source, and turns off/on the power according to the registered schedule. g Plays still image/movie files in the SD card according to the slideshow setting.

  • Page 6: Files Compatible With Signage Playback

    Files compatible with signage playback The signage playback function (schedule/slideshow) can use the following still image/movie/music files. Extension Format Restriction Number of pixels: Maximum 8 000 x 8 000 (For progressive JPEG, maximum 4 096 x 4 096) jpg/jpeg JPEG YUV format: Only YUV444, YUV422, and YUV411 supported Still Color mode: Only RGB supported...
  • Page 7 f Files protected by DRM (Digital Rights Management) cannot be used. f Some files listed as compatible formats may still not be able to be used. f Use the SD card with high data transfer speed. If the data transfer speed is slow, movie or music recorded in the SD card may not be played back properly or it may take time to display a still image.

  • Page 8: Preparation

    Preparation Confirm the computer in use Computers for the signage setting The signage setting is performed by connecting a client computer (including iPad/iPhone/iPod touch or Android terminal) to the projector. A web browser is required for the setting. Prepare a computer which satisfies the following conditions beforehand. OS (Operating System) Web browser Windows 7/Windows 8.1/Windows 10...

  • Page 9: Accessing From The Web Browser

    Enter the user name and the password. f The factory default setting of the user name is “user1” (user rights)/“admin1” (administrator rights) and the password is “panasonic” (lower case). Click the [OK] button. f When logging in with administrator rights, you can use the user name and password set at factory. The screen of prompting to change password is displayed.
  • Page 10 The Content Manager of the projector can also be started from “Wireless Manager ME6.3” which is image transfer application software compatible with Windows computers and Mac, Panasonic image transfer application software compatible with iPad/iPhone/iPod touch and Android terminals, and “Multi Monitoring & Control Software” which is software to monitor and control multiple projectors connected via LAN.

  • Page 11: Logging Out From The Content Manager

    Logging out from the Content Manager Terminate signage setting (schedule/slideshow/multiple direct play) and log out from the Content Manager. Click the [logout] button at the top right of the screen. f After Logging out from the Content Manager, the login screen is displayed. Click the close button of the web browser to exit.
  • Page 12 Enter the desired new password again. f Clicking the [Undo] button will clear the already entered information. Click the [Save] button. When the confirmation screen is displayed, click the [OK] button. f The set contents are registered in the SD card. - 12 -...

  • Page 13: Basic Flow Of The Schedule Operation

    Enter the user name and the password. f The factory default setting of the user name is “user1” (user rights)/“admin1” (administrator rights) and the password is “panasonic” (lower case). Click the [OK] button. f When logging in with administrator rights, you can use the user name and password set at factory. The screen of prompting to change password is displayed.

  • Page 14: Registering The Content

    Registering the content To create a schedule with the Content Manager, first register still image/movie/music file as a content. The still image content registration is used as an example here. Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click the [Timetable] button.
  • Page 15 Enter the [Content name] and [Duration], and click the [Enter] button. f The content is registered in the [Add content] screen. When the addition of the content is completed, click the [Save] button. When the confirmation screen is displayed, click the [OK] button. f The selected still image file is registered in the SD card as a content.

  • Page 16: Creating A Timetable

    Creating a timetable Set the content details, playback time, and playback order to be played in one day as a timetable. Register the content in the timetable. f Drag and drop the registered still image content to the timetable at the bottom of the screen. f The [Content registration] screen is displayed.
  • Page 17 When the confirmation screen is displayed, click the [OK] button. f The created timetable is registered in the SD card. Note f To register contents other than still image, select the desired content tab before performing step 1. Next is the procedure for “Registering timetable to the schedule”. - 17 -...

  • Page 18: Registering Timetable To The Schedule

    Registering timetable to the schedule Set the created timetable to a specific day using the calendar. Click the [Schedule] button at the schedule screen f The [Schedule] page is displayed. The picture below is an example of setting the schedule for the first time. Select the day or the day of week to register the timetable.
  • Page 19 Note f From now to the twelve weeks ahead, the daily varying timetables can be set in schedule. Besides, the same content for each week can also be set. Next is the procedure for “Starting the playback of schedule”. - 19 -...

  • Page 20: Starting The Playback Of Schedule

    Starting the playback of schedule Perform the playback of a schedule on the [Operation] page. Click the [Operation] button on the schedule screen. f The [Operation] page is displayed. Click the [Play] button. f The input of the projector automatically switches to signage, and playback starts according to the registered schedule.

  • Page 21: Basic Flow Of The Slideshow

    Enter the user name and the password. f The factory default setting of the user name is “user1” (user rights)/“admin1” (administrator rights) and the password is “panasonic” (lower case). Click the [OK] button. f When logging in with administrator rights, you can use the user name and password set at factory. The screen of prompting to change password is displayed.

  • Page 22: Registering The Content To Use In Slideshow

    Registering the content to use in slideshow To create a slideshow in Content Manager, first register the still image/movie as content. The still image content registration is used as an example here. Click the [Slideshow] menu on the top menu screen. f The slideshow screen is displayed.
  • Page 23 When the confirmation screen is displayed, click the [OK] button. f The selected still image file is registered as content to the SD card. Note f To register a movie file as a content, select the [Video] tab in Step 2. Next is the procedure for “Creating a slideshow”.

  • Page 24: Creating A Slideshow

    Creating a slideshow Register the content in slideshow. Click the tab of content to register in slideshow from the content selection tab ( [Still] or [Video]). f The content list screen switches between still images and movies when clicked. Register the content to content list. f To register still image/movie content in slideshow, it is required to register the still image/movie files into the content list.

  • Page 25: Starting A Slideshow

    Starting a slideshow Start the playback of a slideshow. Click changes to f To pause the playback of the slideshow, click f To stop the playback of the slideshow, click Note f When you pause playing still image content, the playback time of the paused content is reset when it is resumed and played from the beginning.

  • Page 26: Basic Flow Of The Multiple Direct Play

    Enter the user name and the password. f The factory default setting of the user name is “user1” (user rights)/“admin1” (administrator rights) and the password is “panasonic” (lower case). Click the [OK] button. f If you log in with administrator rights, after logging in using the user name and password set at factory, the screen of prompting to change password is displayed.

  • Page 27: Registering The Content Used For Direct Playback

    Registering the content used for direct playback To create a playlist for direct play in Content Manager, first register the image content (still image/movie). The still image content registration is used as an example here. Click the [Direct play] menu on the top menu screen. f The [Remote control ID assignment] screen is displayed.
  • Page 28 Enter the [Content name] and [Duration], and click the [Enter] button. f The content is registered in the [Add content] screen. f To continue adding content, click on the [Add content] screen and register the content. When the content addition is completed, click the [Save] button. When the confirmation screen is displayed, Click the [OK] button.

  • Page 29: Creating A Playlist For Direct Playback

    Creating a playlist for direct playback Register the content to playlist in [Playlist edit] screen. f Drag and drop the registered still image content to the playlist at the bottom of the screen. When various settings are completed, click the [Enter] button. f Set the [Duration] and [Effect] in [Add content] screen, and click the [Enter] button.

  • Page 30: Assigning A Playlist To Remote Control Id

    Assigning a playlist to remote control ID Assign a playlist to remote control ID in [Remote control assignment] screen. f Drag and drop the created playlist ID to the remote control ID assignment list at the bottom of the screen. When the remote control ID assignment is completed, click the [Save] button.

  • Page 31: Delivering The Registered Playlist

    Delivering the registered playlist Duplicate and deliver the created playlist to multiple projectors for direct playback. For details of delivering methods, check the following items. f “Duplicating a schedule” (x page 74). f “Obtaining the backup of a schedule” (x page 71). f “Uploading a schedule”...

  • Page 32: Operating The Remote Control To Start Playing

    Operating the remote control to start playing Perform the direct playback operation. The playback operation can be performed with the remote control. For the playback with setting up the duration and playback group, refer to “Setting up the conditions and starting the direct playback”...

  • Page 33: Operation Method Of The Schedule

    Operation method of the schedule The functions of the Content Manager including the operation procedure described in “Basic flow of the schedule operation” is described. Various screens of the schedule Various screens of the schedule are described. Top menu screen Once the Content Manager is started up, the top menu screen is displayed.

  • Page 34: Schedule Screen

    Schedule screen Click the [Schedule] menu on the top menu screen, the schedule screen ([Operation] page) is displayed. [Top menu] button Projector name Click this to display the top menu screen. Displays the name of the connected projector. [Operation] button Login rights information Click this to display the [Operation] page.
  • Page 35 Brightness content display icon 10 Display scale The brightness contents that already registered to timetable Sets the display scale of the timetable. to change the brightness of light source are displayed when 11 [Play]/[Stop] button clicked. Click this to start playing a schedule, or to stop playing the Power supply content display icon schedule.
  • Page 36 r[Assigned timetable] screen Timetable name Timetable duplication icon Displays the timetable name. Duplicates the timetable being displayed. (“Duplicating the timetable” (x page 62)) Timetable ID Displays the timetable ID. Timetable edit icon Edits the timetable being displayed. (“Editing the timetable” Timetable (x page 56)) Displays the content registered in a timetable.
  • Page 37 Schedule confirmation screen The schedule confirmation screen is displayed when clicking the calendar icon in the schedule screen. Calendar Timetable name Displays the ID of the assigned timetable for each date. Displays the timetable name. Click an ID to display the timetable of the day. Timetable ID Move to the previous month Displays the timetable ID.
  • Page 38 Icon Details Power on Power off Schedule setting screen The schedule setting screen is displayed when clicking the setting icon on the schedule screen. [System setting] page [Time of change-of-day] 10 [Fixed loading time] Sets the time for the start of a day. Select whether to fix the loading time after starting the scheduled movie content till displaying the image on the [First day of week]...
  • Page 39 [Data management] page [Backup] - [All schedule] Upload data deletion icon Sets the backup target to be all schedules. Click this to enter the deletion mode. Select data you want to Select this radio button to include all the registered schedules in cancel upload, and delete it.

  • Page 40: [Content Registration] Screen/[Content Edit] Screen

    [Content registration] screen/[Content edit] screen The [Content registration] screen is displayed for each content when the content is to be registered to the timetable. The [Content edit] screen is displayed for each content when the setting of the content registered to the timetable is to be edited.
  • Page 41 [Effect] The following table shows the special effects ([Effect]) which can be set to still image contents and used when changing the playback screen. [Off] Does not apply image effects. [Random] Applies image effects randomly. [Wipe left] Displays the image gradually from the left like wiping. [Wipe right] Displays the image gradually from the right like wiping.

  • Page 42: Calendar Screen

    Calendar screen Move to the previous month Calendar Displays the calendar of the previous month. Click a date to display the schedule of the week. Move to the next month [Every week] button Displays the calendar of the next month. Click this to register a timetable for a certain day of the week.
  • Page 43 Click in the content list. f The [Add content] screen is displayed. Click on the [Add content] screen f The file selection screen is displayed. Select the content (one file at a time) to register in the file selection screen and click the [Open] button.

  • Page 44: Registering The Power Supply Content

    When the addition of the contents to register is completed, click the [Save] button. When the confirmation screen is displayed, click the [OK] button. f The added content is registered in the SD card. Note f The Content Manager can handle a maximum of 500 still image/movie/music files. However, the SD card might not be able to accommodate 500 files depending on its capacity.

  • Page 45: Editing The Content

    Click f The [Content registration] screen is displayed. Enter the [Start] and [End] time and click the [Enter] button. When the confirmation screen is displayed, click the [OK] button. f The power supply contents are registered in the SD card. Note f Up to 100 power supply contents can be used in Content Manager.

  • Page 46: Deleting The Content

    f The [Content edit] screen is displayed. Change [Content name] and/or [Duration], and click the [Enter] button. f [Content name] and [Duration] can be changed for the still image content, and [Content name] can be changed for the movie/music content. When the confirmation screen is displayed, click the [OK] button.

  • Page 47: Creating A Playlist

    Click the [Delete] button. When the confirmation screen is displayed, click the [OK] button. f The selected content is deleted from the SD card. Note f If the content to be deleted is registered in a schedule/slideshow/interrupt/multiple direct playback, the content cannot be deleted. Creating a playlist Register multiple still images/movies/external input contents together as a single content.
  • Page 48 Select the content to register in the playlist from the [Playlist edit] screen. f Drag and drop the content to be registered in the playlist to the playlist at the bottom of the screen. Register the content in the playlist. f Set [Duration] and [Effect] in the [Content registration] screen, and click the [Enter] button.

  • Page 49: Editing The Playlist

    Editing the playlist Edit the contents of the registered playlist. Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click the [Timetable] button. f The [Timetable] page is displayed. Click the [Playlist] tab on the [Timetable] page. f The playlist is displayed in the content list.

  • Page 50: Deleting The Content Registered In The Playlist

    Select the playlist to edit, and click the [Enter] button. f The [Playlist edit] screen is displayed. Edit the playlist. f To add the content, perform the same procedure as “Creating a playlist” (x page 47). f To delete the content, refer to “Deleting the content registered in the playlist” (x page 50). f To change the setting of the content, refer to “Changing the setting of content registered in a playlist”...

  • Page 51: Changing The Setting Of Content Registered In A Playlist

    f Click the [Cancel] button to exit the deletion mode. Select the content to delete. f You can select multiple contents. Click the [Delete] button. When the confirmation screen is displayed, click the [OK] button. f The selected content is deleted from the playlist. f Click the [Save] button in the [Playlist edit] screen to register the edited playlist in the SD card.

  • Page 52: Duplicating The Playlist

    Change [Duration] and [Effect], and click the [Enter] button. f Change the setting of playback duration and image effects. f The settings of the content on the playlist are changed. f You can set [Effect] only for still image content. f Return to the [Playlist edit] screen and click the [Save] button to register the edited playlist in the SD card.

  • Page 53: Displaying The Preview Of Playlist Contents

    Select the playlist you want to duplicate, and click the [Enter] button. f The playlist name entry screen is displayed. Enter the playlist name, and click the [Enter] button. f Up to 24 characters can be entered as the playlist name. f The duplicated playlist is displayed in the content list and is registered in the SD card.
  • Page 54 Select a playlist to preview and click the [Enter] button. f The [Playlist edit] screen is displayed. Click the [Preview] button. f The preview mode selection screen is displayed. Select a preview mode, and click the [Start] button. f When [WEB browser] is selected, the image is displayed on the web browser. f When [Projector] is selected, the image is displayed on the projection screen.
  • Page 55 Operation icon Performance Switches to the next content. Note f When there is a blank period between contents, the period is handled as one content and displayed in preview. f Regardless of the content setting, each content including blank periods is played for 10 seconds. f In the case of movie/external input content, only an icon is displayed on the preview screen instead of the actual image.

  • Page 56: Editing The Timetable

    Editing the timetable Editing the timetable Contents can be registered to the timetable and timetable name can be changed. Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click the [Timetable] button. f The [Timetable] page is displayed. Click the tab of the content to register in timetable from content selection tabs.

  • Page 57: Creating A New Timetable

    f To continue to create the timetable, refer to “Creating a new timetable” (x page 57). Attention f Register power supply content to the timetable only when the projector is installed in an environment where light from the light source will not enter the eyes of people around the projector even if it starts projection suddenly.

  • Page 58: Deleting The Music Content Registered In The Timetable

    Unselect , and for the timetable. f If any of the icons is displayed in yellow, click the icon to undo the selection. Click of the timetable. f The mode changes to deletion mode. f Click the [Cancel] button to exit the deletion mode. Select the image content to delete.

  • Page 59: Deleting The Brightness Content Registered In The Timetable

    Select the timetable ID. f Select the timetable ID to edit from the drop-down list. Click and select in the timetable. f When selected, the icon color changes to yellow. f When the icon is displayed in white, it is not selected. Click the icon again. Click of the timetable.
  • Page 60 Select the timetable ID. f Select the timetable ID to edit from the drop-down list. Click and select in the timetable. f When selected, the icon color changes to yellow. f When the icon is displayed in white, it is not selected. Click the icon again. Click of the timetable.

  • Page 61: Deleting The Power Supply Content Registered In The Timetable

    Deleting the power supply content registered in the timetable Delete the power supply content registered in the timetable. Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click the [Timetable] button. f The [Timetable] page is displayed. Select the timetable ID.

  • Page 62: Duplicating The Timetable

    Duplicating the timetable Duplicate the timetable being registered. Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click the [Schedule] button. f The [Schedule] page is displayed. Click on the timetable to duplicate. f The timetable name entry screen is displayed. Enter the timetable name and click the [Enter] button.

  • Page 63: Changing The Setting Of The Content Registered In The Timetable

    When the confirmation screen is displayed, click the [OK] button. f The selected timetable is deleted from the SD card. Note f The timetable cannot be deleted if that timetable is registered in a schedule. Changing the setting of the content registered in the timetable Change the settings of the content registered in the timetable.
  • Page 64 f When [Projector] is selected, the image is displayed on the projection screen. Note f In the following cases, the preview mode [Projector] is not available. g During signage playback (schedule/slideshow) g When the input is other than signage rPreview mode [WEB browser] f A preview screen like the following is displayed on the web browser.
  • Page 65 Note f When there is a blank period between contents, the period is handled as one content and displayed in preview. f Regardless of the content setting, still image content is played for 10 seconds, movie/external input content is played for 20 seconds, and blank period is played for 10 seconds.

  • Page 66: Editing The Schedule

    Editing the schedule The created schedule can be edited. Registering a schedule Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click the [Schedule] button. f The [Schedule] page is displayed. Click to set the period. f The calendar is displayed.

  • Page 67: Deleting The Schedule

    When the confirmation screen is displayed, click the [OK] button. f The schedule is registered in the SD card. Note f When you use Internet Explorer as the web browser, and drag the “Timetable ID” with the mouse pointer, the ID sometimes does not follow the mouse pointer properly depending on the set window size.

  • Page 68: Checking The Contents Of A Timetable Registered In A Schedule

    When the confirmation screen is displayed, click the [OK] button. f The schedule is registered in the SD card. Checking the contents of a timetable registered in a schedule The contents of the timetable registered in the desired schedule is displayed. Click the [Schedule] menu on the top menu screen.

  • Page 69: Checking The Content Of The Created Schedule

    Checking the content of the created schedule You can check the settings of the schedule created and saved in the Content Manager. Checking the schedule. Check the currently registered schedule. Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click f The schedule confirmation screen is displayed.

  • Page 70: Setting A Schedule

    Setting a schedule Perform the settings of the system setting and the data management for the schedule. Perform system setting Perform the system setting of the schedule. Click the [Schedule] menu on the top menu screen. f The schedule screen is displayed. Click f The schedule setting screen is displayed.

  • Page 71: Obtaining The Backup Of A Schedule

    Obtaining the backup of a schedule Download a registered schedule into the client computer (only Windows computer/Mac are supported). Click the [Schedule] menu on the top menu screen. f The [Schedule] screen is displayed. Click f The schedule setting screen is displayed. Click the [Data management] tab.

  • Page 72: Uploading A Schedule

    Note f When the link to a backup file is clicked, [Already selected] is displayed. Even though the backup files are not saved, they will be displayed while being clicked. Therefore, make sure to save all the backup files. f Backup data contains all information regarding the relevant schedule such as contents registered in the timetable and system setting information.
  • Page 73 f The uploading of schedule is supported only by Windows computer or Mac. f The timetable ID registered when a schedule is uploaded may vary depending on the schedule registration situation of the uploading destination. - 73 -...

  • Page 74: Playing The Schedule Simultaneously On Multiple Projectors

    Playing the schedule simultaneously on multiple projectors By synchronizing the date and time of the projector with the NTP server, you can meet the playback timing of the schedule among multiple projectors. Use this function when you set up multiple projectors of this model in the same floor or other close location and play back the same schedule.

  • Page 75: Web Browser

    f “Duplicating the data of SD card” (x page 75) f “Downloading/uploading schedules using the Content Manager” (x page 75) f “Acquiring and delivering schedules using “Multi Monitoring & Control Software”” (x page 76) Duplicating the data of SD card If you can eject the SD card where the source schedule has been registered, you can duplicate data in the SD card using the following procedure.

  • Page 76: Setting Synchronization For The Ntp Server

    f For the backup procedure, refer to “Obtaining the backup of a schedule” (x page 71). Log out from the Content Manager of the duplication source projector. f For the logout procedure, refer to “Logging out from the Content Manager” (x page 11). Log in to the Content Manager of the duplication destination projector from the web browser.

  • Page 77: Enabling [Fixed Loading Time]

    f For details on setting the NTP server, refer to “[Adjust clock] page” (Operating Instructions - Functional Manual). Click the [Set date and time] button on the [Adjust clock] page to apply the setting. f After a while, the projector is synchronized with the time of the NTP server. Note f To use the projector as the NTP server, set [NTP SYNCHRONIZATION] to [OFF], and then set the date and time.

  • Page 78: Operation Method Of The Slideshow

    Operation method of the slideshow The slideshow function including the operation procedure described in “Basic flow of slideshow” is described. Various screens of the slideshow Various screens of the slideshow are described. Top menu screen When the Content Manager is started, the top menu screen is displayed. Clicking the button of each menu moves to the operation screen of the clicked button.

  • Page 79: Slideshow Screen

    Slideshow screen Click the [Slideshow] menu on the top menu screen, the slideshow screen is displayed. Playback status [Clear] button (only for administrator rights) Displays the status of signage playback (slideshow). Click this to delete all contents registered in a slideshow. Content selection tab Settings icon (only for administrator rights) Select the type of content (still image or movie) to register in a...

  • Page 80: Slideshow Setting Screen

    Slideshow setting screen When clicking on the slideshow screen, the slideshow setting screen is displayed. [Effect] [Interval] Select the default image effect (special effect used when Sets the default playback time which is set when still image changing the playback screen) to be set when still image content is registered in a slideshow.

  • Page 81: Adding Content To Be Used In Slideshow

    Registering the content used in the slideshow Adding content to be used in slideshow Register the still image/movie as content to the SD card from client computer. Click the [Slideshow] menu on the top menu screen. f The slideshow screen is displayed. Click in content list.

  • Page 82: Deleting The Content Used In Slideshow

    When the confirmation screen is displayed, click the [OK] button. f The added content is registered in the SD card. Note f A maximum of 500 still image/movie/music files can be handled by the Content Manager. However, the SD card might not be able to accommodate 500 contents depending on its capacity.
  • Page 83 When the confirmation screen is displayed, click the [OK] button. f The selected content is deleted from the SD card. Note f If the content to be deleted is registered in a schedule/slideshow/interrupt/multiple direct playback, the content cannot be deleted. - 83 -...

  • Page 84: Editing The Slideshow

    Editing the slideshow Changing the playback order of the content registered in slideshow Change the playback order of the content registered in slideshow. Click the [Slideshow] menu on the top menu screen. f The slideshow screen is displayed. Drag and drop the content to change the playback order in the slideshow. Click the [Save] button.

  • Page 85: Changing The Content Setting Of Still Image Registered In Slideshow

    f Click the [Cancel] button to exit the deletion mode. Select the content to delete. f Multiple contents can be selected. Click the [Delete] button. When the confirmation screen is displayed, click the [OK] button. Click the [Save] button. When the confirmation screen is displayed, click the [OK] button. f The settings of edited slideshow is registered in the SD card.
  • Page 86 Note f The movie content settings cannot be changed. The playback time of movie content in a slideshow is the required playback time of the movie content. f If the content that first registered to the slideshow is still image content, the initial playback time of that still image content shortens compared with the set time.

  • Page 87: Operation Method Of The Multiple Direct Play

    Operation method of the multiple direct play The multiple direct play function including the operation procedure described in “Basic flow of multiple direct play” is described here. To perform the multiple direct play with multiple projectors, the network for the target projectors must be established.

  • Page 88: [Remote Control Id Assignment] Screen

    [Remote control ID assignment] screen When the [Direct play] is clicked on the top menu screen, the [Remote control ID assignment] screen is displayed. f It is displayed when operated from the computers other than the smartphones. [Direct play] button [Keyword search] Click this to display [Direct play] screen.

  • Page 89: [Direct Play] Screen

    [Direct play] screen The [Direct play] screen is displayed when the [Direct play] button is clicked in [Remote control ID assignment] screen. f When operating from smartphone, click the [Direct play] menu on the top menu screen to display the [Direct play] screen.

  • Page 90: Editing The Playlist To Direct Play

    Editing the playlist to direct play Edit the playlist to direct play Edit the content of the registered playlist. Click the [Direct play] menu on the top menu screen. f The [Remote control ID assignment] screen is displayed. Click in the playlist to be edited. f The [Playlist edit] screen is displayed.

  • Page 91: Change The Setting Of The Contents Registered In The Playlist Of Direct Play

    When the confirmation screen is displayed, click the [OK] button. f The selected content is deleted from the playlist. f When the [Save] button in the [Playlist edit] screen is clicked, the edited playlist is registered in the SD card. Change the setting of the contents registered in the playlist of direct play Change the setting of the contents registered in the playlist to direct play.

  • Page 92: Deleting The Playlist Of Direct Play

    Deleting the playlist of direct play Delete the registered playlist. Click the [Direct play] menu on the top menu screen. f The [Remote control ID assignment] screen is displayed. Click at the top right of the screen. f The mode changes to deletion mode. f Click the [Cancel] button to exit the deletion mode.

  • Page 93: Editing The Remote Control Id Assignment

    Editing the remote control ID assignment The playlist assigned to the remote control ID can be deleted and the contents assigned to the remote control ID can be checked. Assigning the playlist to the remote control ID Assign the playlist to the remote control ID. Click the [Direct play] menu on the top menu screen.

  • Page 94: Deleting The Playlist From The Remote Control Id Assignment

    Deleting the playlist from the remote control ID assignment Delete the playlist assigned to the remote control ID. Click the [Direct play] menu on the top menu screen. f The [Remote control ID assignment] screen is displayed. Click at the bottom right of the screen. f The mode changes to deletion mode.

  • Page 95: Check The Playlist Assigned To The Remote Control Id Assignment

    Check the playlist assigned to the remote control ID assignment Check the playlist content assigned to the remote control ID. Click the [Direct play] menu on the top menu screen. f The [Remote control ID assignment] screen is displayed. Click the remote control ID to which the playlist to check is assigned. f The [Assigned playlist] screen is displayed.

  • Page 96: Delivering The Registered Playlist

    Delivering the registered playlist Duplicate and deliver the created playlist to multiple projectors for direct playback. For details of delivering methods, check the following items. f “Duplicating a schedule” (x page 74). f “Obtaining the backup of a schedule” (x page 71). f “Uploading a schedule”...

  • Page 97: Starting The Direct Playback

    Starting the direct playback Setting up the conditions and starting the direct playback First, set [SETUP] menu → [DIRECT PLAY SETTING] of the projector to [Content Manager]. Set [DIRECT PLAY SETTING] to [Content Manager]. f For details of [DIRECT PLAY SETTING], refer to “[DIRECT PLAY SETTING]” (Operating Instructions - Functional Manual).
  • Page 98 The playback image of multiple direct play Perform the playback simultaneously using the multiple direct play function on multiple projectors connected to the network within the same segment. Firstly, set the [Group settings] as [All] or [Group 1] to [Group 5] on the Content Manager of each projector.

  • Page 99: Stop The Direct Playback Being Played

    rWhen the content is played from remote control When the direct playback is performed from remote control, the [Playback destination] group is played at [All] status. For the direct playback operation with the remote control, refer to “Operating the remote control to start playing” (x page 32).

  • Page 100: Operation Method Of The Interruption Playback

    Enter the user name and the password. f The factory default setting of the user name is “user1” (user rights)/”admin1” (administrator rights) and the password is “panasonic” (lower case). Click the [OK] button. f When logging in to the Content Manager by entering the default user name and password with the administrator rights, the password change screen is displayed.
  • Page 101 f The [Interrupt play] screen is displayed. f If logging in from the client computer other than the smartphone, click the [Schedule] menu on the top menu screen. Click the [Interrupt] button on the [Operation] page, the [Interrupt play] screen is displayed. For details of the [Operation] page, refer to (x page 34).

  • Page 102: Various Screens Of The Interruption Playback

    Various screens of the interruption playback Various screens of the interrupt play are described here. Top menu screen Once the Content Manager is started up, the top menu screen is displayed. Clicking on the button of each menu moves to the operation screen of the clicked menu. The next screen is the top menu screen when logging in from the smartphone.

  • Page 103: [Interrupt Play] Screen

    [Interrupt play] screen Click the [Interrupt] menu on the top menu screen to display the [Interrupt play] screen. [Top menu] button Interruption schedule Click this to display the top menu screen. Displays registered interruption schedules. Playback status [Operation] button Displays the status of signage playback (schedule/slideshow). Click this to display the operational information page.
  • Page 104 [Top menu] button Interrupted still image content being selected Click this to display the top menu screen. Displays the selected still image content. [Use registered content] button [Return] button Click this to perform interruption registration for registered still Click this to return to the [Interruption play] screen. image/movie content.

  • Page 105: Setting The Interruption Playback

    Setting the interruption playback Register and operate the interruption playback to play the content interrupting signage playback (schedule/ slideshow). Setting the interruption playback using the existing registered content Register the interruption playback to play the existing registered content interrupting the signage playback (schedule/slideshow).

  • Page 106: Setting Interruption Playback With Newly Registered Content

    f The registered content selection screen is displayed. Select the content used for interruption playback, and click the [Select] button. f The [Interrupt registration] screen is updated. Enter the [Duration]. f If the check box of [Specify Start time and End time] button is marked, you can enter the [Start] time and the [End] time.
  • Page 107 f If logging in from the client computer other than the smartphone, click the [Schedule] menu on the top menu screen. Click the [Interrupt] button on the [Operation] page, the [Interrupt play] screen is displayed. Click f The [Interrupt registration] screen is displayed. Click the [Use newly registered content] button.

  • Page 108: Deleting The Scheduled Interruption Playback

    Deleting the scheduled interruption playback Delete the scheduled interruption playback. Click the [Interrupt] menu on the top menu screen. f The [Interrupt play] screen is displayed. f If logging in from the client computer other than the smartphone, click the [Schedule] menu on the top menu screen.

  • Page 109: Canceling The Currently Played Interruption Schedule

    Canceling the currently played interruption schedule Stop the current interruption playback and terminate the interruption schedule. You can use this function when you set the wrong timing to start interruption playback or set the wrong content, or when interruption playback is no longer necessary during the interruption playback.

  • Page 110: Faq

    rCannot access to Content Manager f Check that the status of the LAN adapter of the using computer is available. The connection between the projector and the computer may not be able to establish depending on the computer settings, such as, a security software is installed in the computer, or an utility software for the LAN adapter is installed.

  • Page 111: Registering The Content Used In The Slideshow 81 Trademark

    Unauthorized use or reproduction of part or all of this software and manuals is strictly prohibited. f Please note that Panasonic takes no responsibility for any results of using the software or manual. f Panasonic reserves the rights to revise the software specifications or manual contents without notice.
  • Page 112 Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2016 M1016JG1116 -ST...

Table of Contents
