Page 1: User Manual

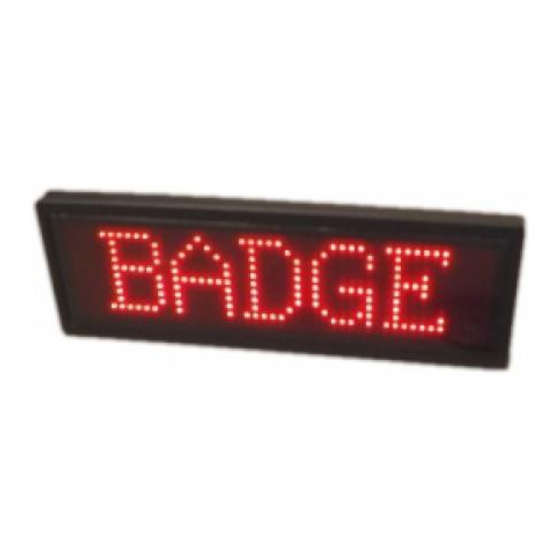

LED Mini Board User Manual Model:B1248U Version: 5.03... - Page 2 LED Mini Board 1. General Information 1.1 Parts 1) LED Name Badge 2) CHARGER 3) USB CORD. USED WITH THE CHARGER TO CHARGE THE BADGE, AND USED WITH YOUR COMPUTER TO PROGRAM THE BADGE 4) CD-ROM WITH SOFTWARE AND MANUALS Badge Panel Features: 1) 12x48 pixels.
- Page 3 LED Mini Board Buttons There are two buttons on the LED Name Badge. One is use to choose which message to display, the other is adjust the brightness. 1.3.1 On/Off Switch First, make sure the battery is charged before using. Turn on the switch, and the pre-stored message will run automatically.
- Page 4 LED Mini Board 2.2.2 Running the Software 1) There will be a program called “LED Mini Board” in your windows start menu. 2) On the desktop , there should also be an icon as called “LED Mini Board.” 3) Double-click the icon and the program will start:: When pull down the arrow in right corner, you can to choose the language you want, as shown below:...
- Page 5 LED Mini Board 2.3 Software operation 2.3.1 Input a test message: Type content directly into the entry boxes labeled 1, 2, 4, 5, or 6. To the right of where you typed in the message, you can set the speed, action (scrolling, falling snow, etc), font number and whether it is sent and so on.
- Page 6 LED Mini Board and one in slot 8. Please use the “Logo”buttons at the end of image message edit boxes to select an image. Black pixels on a white background, in the BMP format, work best. 2.3.3 How to edit an image There is a bundled Image Editor in the software package.
- Page 7 LED Mini Board...
