Summary of Contents for D-CUT TA-070

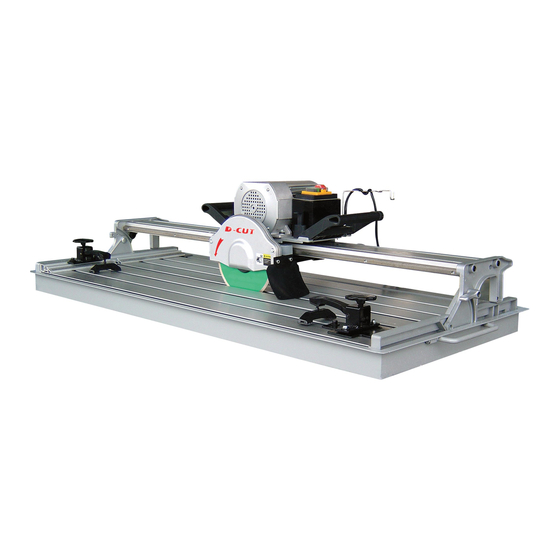

- Page 1 SERIES FOR YOUR SAFETY Operation Manual This saw can be operated safely only when the operating instructions TA-070 Wet Tile Saw have been completely read and strictly adhered to. It is recommended...
-
Page 2: For Your Safety
Do not use the saw when the blade is not installed properly. Always switch off the saw before lifting the table for cleaning. Only use original D-Cut accessories. Never leave the saw running unattended. Keep guards in place. Adhere to safety guidelines: (ANSI) American Safety Standards Institute. - Page 3 Keep work area well lit. Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators). Do not let persons, especially children, not involved in the work touch the tool or the extension cord and keep them away from the work area.
- Page 4 FOR YOUR SAFETY To avoid the possibility of the appliance plug or receptacle getting wet, position tile saw to one side of a wall-mounted receptacle to prevent water from dripping onto the receptacle or plug. The user should arrange a trip loop in the cord connecting the saw to a receptacle.
- Page 5 INNOVATION PUT TO WORK Here at D Cut Products, Inc. We are always looking to come out with new innovative products. Check out Our Website for Updates at www.dcutproducts.com Or contact us at sales@dcutproducts.com The serial number of your saw is located on the front side the gearbox of the motor.
- Page 6 Contents In the Box: Wench-------------- - - ----1P 0-90°Attachment----1P Press mechanism------2P Operation manual--- 1P Warranty card------- --1P Fig.1 Steel Stand Open folded stand in a flat area. Installation Press down wheel brakes as shown. Set the saw onto the 4pins of the stand and use provided screw to lock the saw to the stand.
- Page 7 Fig.4 Fig. Open the table Core Stand Remove all tools, The cord stand is for debris etc. from the the support of the saw table. Lock the electrical cord in a side plate in safe manner. position and lift the When storing the saw table allowing the always turn the stand...
- Page 8 Fig.1 Cutting: Insert a piece of tile under the guide rails and keep a flat and straight side against the gauge. Use the clap to hold the tile. Stand along the saw/table comfortably and start the saw and push the saw towards the tile.
- Page 9 Clean Drain the water by pulling the chain attached to the plug on the bottom of the water tray. Use the provided scraper to clean and remove the cutting debris and slurry and pour a bucket of clean water throughout the water reservoir tray.
- Page 10 Fig.1 Setting Accuracy（1） Adjustment the two screws as shown in Fig.16 the verticality of the gauge and the blade can be regulated if it is needed. Warning: If it is not needed please don’t adjustment the twos screws. Fig.1 Setting Accuracy (2) Adjustment the two screws as shown in Fig.16 the gap of the...
- Page 12 Parts Description Q’t Parts Description Q’t 35 Inner Hex screw M5×25 Water Tray 36 Flat washer 5mm Inner Hex screwM6×20 37 Inner Hex screw M5×40 Hex Nut M6 38 Belt cover Laser head assembly 39 Inner Hex screw M6×20 Cross screw M4×10 40 Big Flat washer Flat washer 4mm 41 Small pulley...
- Page 13 b. Make sure working piece is flush against the gauge. 2. Motor doesn’t work a. Check power source connection. b. Check power cords for damage. 3. Table vibration during cutting process a. Check blade installation. b. Check blade-wearing status. 4. Losing cutting speed a.
-
Page 14: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exit. Check with your local Authority or retailer for recycling advice. D CUT PRODUCTS, INC. 1041N. Lombard Road Lombard, IL 60148 USA Tel: 630-916-9100 Fax: 630-916-9101 Email: sales@dcutproducts.com www.dcutproducts.com...
