Summary of Contents for Kleenmaid KCRHSCK90

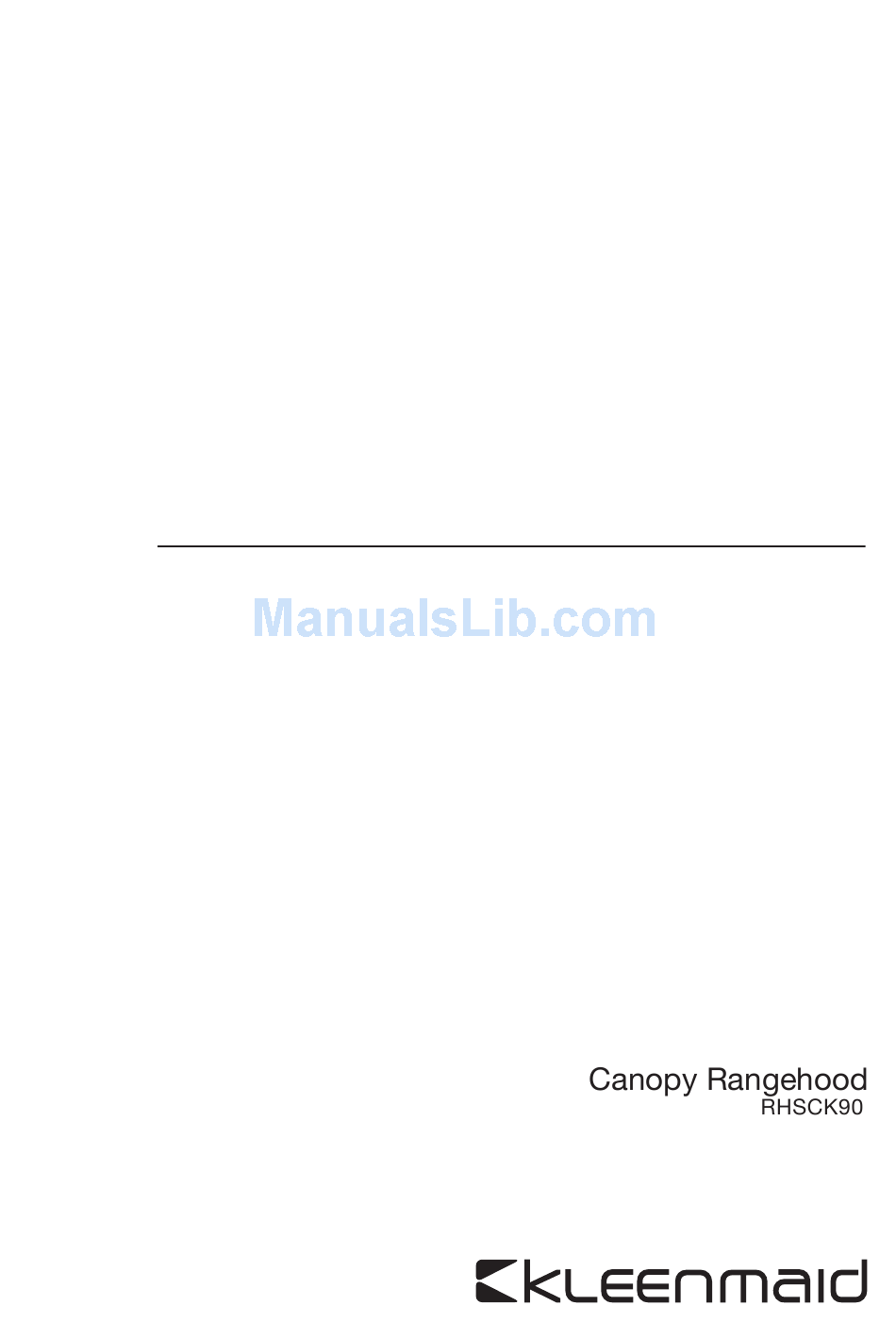

- Page 1 cooking collection Instructions for use and warranty details Model No.: KC...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
-
Page 5: Before You Start
Before You Start... 1. Read this manual carefully and completely. 2. The range hoods conform to related appliances standards. Please check your local building codes for any additional requirements. 3. The appliance has been manufactured as class I, there?fore ground connection is necessary. The range hood must be installed so that that the plug is easily accessible. -
Page 6: Installing The Ductwork
Installing the Ductwork 1. Plan where the ductwork will run between the hood and the outside. The hoods exhaust vertically but can be ducted to the rear behind the chimney duct through an outside wall or vertically up through the ceiling to the roof. - Page 7 Installing Guideline Note: The above installation guideline is for reference only, please contact your local dealer for installation services. Leveling Device When mounting hood on the wall,the level can be adjusted by turning the two screws on the motor housing.
- Page 8 The cooker hood can be installed in the following ways: Circulating indoor air (A) Outdoor venting (B)
- Page 9 Operations 1. For optimum performance in removing cooking odors, it is recommended that you turn on your range hood prior to cooking and you leave it operating for 15 minutes after cooking. 2. Clean the surfaces of the range hood regularly using a non-abrasive detergent. 3.
- Page 11 Emptying and cleaning the fat collector (for models fitted with a fat collector). Emptying and cleaning the fat collector (for models fitted with a fat collector). Emptying and cleaning the fat collector (for models fitted with a fat collector). 1. With the grease filter removed, from inside the hood press the light fixture out of its mounting bracket.
- Page 12 2. Unplug the light from the wiring harness. Avoid direct contact between the lense an your hands. Then replace the new one. 3.Push the light into its mounting bracket...
- Page 14 610mm from the stove...
- Page 15 Australian Consumer Law. c. In the event that a request for repair is made against this Kleenmaid Warranty where the serial number for the Product cannot be verified or you cannot produce for verification a proof of purchase for the Product (including but not limited to the original invoice), the repairer will not carry out any repairs on the Product and you will be charged a service call-out fee.
- Page 16 13. Kleenmaid accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the Product to an authorised service centre, you must ensure that it is securely packed and insured.
- Page 20 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2, 204 Botany Road Alexandria NSW 2015 www.kleenmaid.com.au...
