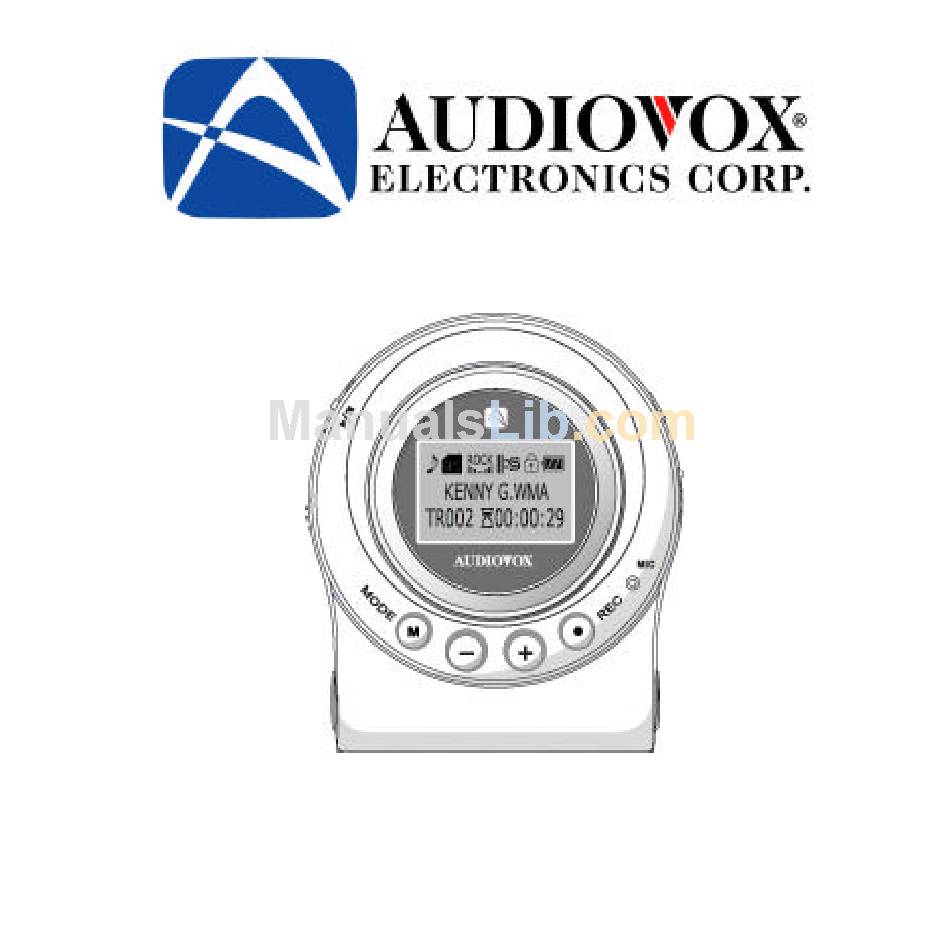

  • Page 1 MP2164 USER’S GUIDE 128-6373...

  • Page 2: Table Of Contents

    MP2164 MP3 PLAYER SYSTEM OVERVIEW... 6 OPERATING CONTROLS AND INDICATORS... 6 BATTERY INSTALLATION... 8 LCD INDICATIONS AND ICONS ... 9 MAIN MENU TABLE... 10 USING A SMARTMEDIA CARD (OPTIONAL)... 11 INSTALLING THE SMARTMEDIA CARD ... 11 EJECTING THE SMARTMEDIA CARD... 11 BASIC USAGE...13...
  • Page 3 To Adjust Volume...15 To Change To The VOICE Mode...16 To Change To The MUSIC Mode...16 ... 17 ECORDING VOICE To record a Voice...17 SEARCHING A DESIRED MUSIC / VOICE TRACK...19 TO SEARCH A DESIRED MUSIC TRACK DURING PLAYBACK ... 19 SEARCHING WITHIN A MUSIC TRACK...
  • Page 4 SETTING EQUALIZER ... 28 SETTING MY OWN OPTIONS... 29 Setting Contrast...29 Setting Backlight...30 Setting Scroll Speed...31 DISPLAY MODE... 32 Information...32 Logo ...32 Deleting Files (Tracks)...33 PRECAUTIONS ...34 TROUBLESHOOTING...35 SPECIFICATIONS...36 ACCESSORIES...37 WARRANTY ...38...
  • Page 5 FIGURE 1. MP2164 C FIGURE 2. MP2164 C FIGURE 3. B ATTERY FIGURE 4. LCD D ISPLAY FIGURE 5. MAIN MENU T FIGURE 6. S AMPLE FIGURE 7. S AMPLE FIGURE 8. S AMPLE FIGURE 9. S AMPLE FIGURE 10. S AMPLE FIGURE 11.
  • Page 6 ITHIN FIGURE 15. S AMPLE HILE FIGURE 16. S AMPLE FIGURE 17. S AMPLE FIGURE 18. S AMPLE FIGURE 19. S AMPLE FIGURE 20. S AMPLE FIGURE 21. S AMPLE FIGURE 22. S AMPLE FIGURE 23. S AMPLE FIGURE 24. S AMPLE FIGURE 25.

  • Page 7: Mp2164 Mp3 Player System Overview

    MP2164 MP3 PLAYER SYSTEM OVERVIEW OPERATING CONTROLS AND INDICATORS Front FIGURE 1. MP2164 Controls And Indicators, Front...
  • Page 8 Rear FIGURE 2. MP2164 Controls And Indicators, Rear...

  • Page 9: Battery Installation

    The MP2164 MP3 Player is not packaged with a battery preinstalled. Before attempting to operate, install the battery as described below. 1) Turn the MP2164 MP3 Player face down on a flat surface. Using your fingers, slide the battery cover off as shown in FIGURE 3 above.

  • Page 10: Lcd Indications And Icons

    LCD INDICATIONS AND ICONS The following is an example of the MP3 player LCD screen. All of the key Indicators and Icons are identified here and are described in detail in the following sections. FIGURE 4. LCD Display Indications And Icons...

  • Page 11: Main Menu Table

    MAIN MENU TABLE The following table is the breakdown sequence of the Main Menu (shown in dark gray) screens used for programming and playback. The functions of these menus are described in detail in the following sections. FIGURE 5. MAIN MENU Table...

  • Page 12: Using A Smartmedia Card (Optional)

    USING A SMARTMEDIA CARD (Optional) You can expand memory capacity of the MP2164 by adding a SmartMedia Card (not supplied). INSTALLING THE SMARTMEDIA CARD Inserting the SmartMedia Card into the memory expansion slot on your MP2164 in the direction of the arrow as shown in FIGURE 6 below.
  • Page 13 FIGURE 6. Sample Smart Media Card (SMC) Indicator NOTE: * Do not insert/eject the SmardMedia Card during playback of Music Tracks. * Always turn off the unit before inserting/ejecting the SmartMedia card. * Use only 3.3V SmartMedia Cards only. * SmartMedia cards of 32,64,128MB can be used. * SmartMedia cards of 8,16,256MB cannot be used.

  • Page 14: Basic Usage

    After inserting the battery, momentarily Press and Release the button, the “AUDIOVOX ” logo will be displayed on the LCD screen for a few seconds and then disappear A playback screen will be displayed as shown in FIGURE 7 below. The first track will automatically begin to play.

  • Page 15: To Stop Music Playback

    To Stop Music Playback To stop playback of a music track during playback, momentarily Press and Release button. FIGURE 8. Sample LCD PLAYBACK STOPPED Screen NOTE: The unit will automatically POWER OFF after 10 seconds if no other buttons are pressed.

  • Page 16: Setting Volume

    SETTING VOLUME To Adjust Volume The volume is adjusted by pressing the +/- buttons located on the front side of the unit (see FIGURE 1). FIGURE 9. Sample VOLUME ADJUSTMENT Screen You can adjust volume from 0 to 30 To Adjust Volume Slowly: Momentarily Press and Release the +/- buttons in the direction desired to adjust the volume 1 interval at a time (0-30) until the desired volume is reached To Adjust Volume Rapidly: Press and Hold the +/- buttons in the direction desired until...

  • Page 17: Changing The Mode

    CHANGING THE MODE To Change To The VOICE Mode 1. Stop the playback of Music and momentarily Press and Release the MODE button to change to the Voice mode. Momentarily Press and Release the If SMC is inserted, select the Voice saving location (either the internal memory or the external memory (SMC) using the FIGURE 10.

  • Page 18: Recording Voice

    Internal Memory or the External Memory (SMC) if SMC is inserted. NOTE: The MEMORY SELECT screen will be automatically canceled after 15 seconds if the MP2164 is idle (no buttons pushed) FIGURE 11. Sample MEMORY SELECT Mode Screen Press the button to begin recording voice.
  • Page 19 To stop recording, momentarily Press and Release the REC button. To create new Voice Track momentarily Press and Release the REC button again. The following screens will be displayed (FIGURE 12) FIGURE 12. Sample VOICE RECORDING Screens NOTE: * Do not take out or insert the SmartMedia card while voice recording is under way. * Once the memory is full, recording will stop automatically.

  • Page 20: Searching A Desired Music / Voice Track

    SEARCHING A DESIRED MUSIC / VOICE TRACK TO SEARCH A DESIRED MUSIC TRACK DURING PLAYBACK To Search For A Desired Music Track In A Upwardly Direction: Momentarily Press and Release the To Search For A Desired Music Track In A Downwardly Direction: Momentarily Press and Release the is reached.

  • Page 21: Searching Within A Music Track

    SEARCHING WITHIN A MUSIC TRACK To search a desired section on the same track, Press and Hold the buttons to find and listen to the desired section. Release the button to playback again. FIGURE 14. Sample MUSIC TRACK SECTION SEARCH Screen (Within The Same Track)

  • Page 22: Search For A Desired Music Track In The Stop Mode

    SEARCH FOR A DESIRED MUSIC TRACK IN THE STOP MODE * Momentarily Press and Release the then: *Press the button in short durations to skip ahead one track at a time . *Press the button in short durations to skip to the previous track at a time. *Momentarily Press and Release the FIGURE 15.

  • Page 23: Additional Usage

    ADDITIONAL USAGE Loop Repeating Starting point. Momentarily Press and Release the MODE button at the desired beginning point of the Music or Voice track you wish to program into the LOOP REPEAT Mode. A blinking icon (A ) will appear on the display screen as shown below in FIGURE 16. FIGURE 16.

  • Page 24: Ending Point

    Ending point Press the MODE button short once again at the point of ending Loop, then (A B) is displayed on the display window (FIGURE 17). The section set is repeatedly played back. FIGURE 17. Sample LOOP REPEAT Complete Screen NOTE : To release the Repeat track, Press the MODE button short once again...

  • Page 25: To Set The Menu

    TO SET THE MENU Press and Hold the MODE button for 3 second during Playback or Stop mode to access the Main MENU mode Use the buttons to move up and down (see FIGURE 5). Use the button to select. Press the MODE button again to return to the PLAY/STOP mode.
  • Page 26 Play mode : Repeat playback mode to listen to. Equalizer: Adjust equalizer function. Setting: Adjust backlight, contrast, scroll speed, and display information. Deleting: Delete Music and Voice files. Exit menu: Exiting the MENU. * If there is no input for 15 seconds in the MENU mode, the MENU mode will be released.

  • Page 27: To Playback Repeatedly

    TO PLAYBACK REPEATEDLY Highlight and Select Play Mode in the Main MENU by momentarily Pressing and Releasing the button. Navigate through the menu selections to a desired mode by using the buttons in the Play mode Select the desired mode by momentarily Pressing and Releasing the FIGURE 19.
  • Page 28 Normal: Tracks will be played back in the order they were recorded. Repeat one: To listen to one track only repeatedly. Repeat all: To listen to all the tracks stored repeatedly. Shuffle : To listen to the tracks stored in random order Intro: To listen to the beginning part only of all the tracks stored (play for 10sec.) Go up: Return to the main menu...

  • Page 29: Setting Equalizer

    SETTING EQUALIZER Select Equalizer from the MENU. Navigate through the menu selections to a desired mode by using the buttons. Select the mode by momentarily Pressing and Releasing the FIGURE 20. Sample EQUALIZER Mode Screen Normal Classic Jazz Rock User mode You can adjust “Bass” and “Treble ”...

  • Page 30: Setting My Own Options

    SETTING MY OWN OPTIONS Setting Contrast Select Setting from the MENU. Navigate through the menu selections to the Contrast mode by using the buttons. Select the Contrast mode by pressing the uu/tt Press buttons to set Contrast. You can adjust the contrast from 0 to 20. To exit the Contrast mode, momentarily Press and Release the FIGURE 21.

  • Page 31: Setting Backlight

    Setting Backlight Select the Setting menu from the Main MENU. Navigate through the menu selections to the Backlight mode by using the uu/tt buttons. Then select one of the following settings Never = No backlight 1sec. ON: Backlight ON for 1 Second 3sec.

  • Page 32: Setting Scroll Speed

    Setting Scroll Speed Select the Setting menu from the Main MENU. Navigate through the menu selections to the Scroll Speed mode by using uu/tt buttons. You can adjust the Scroll Speed from 0 to 10. “ 0” being the slowest and “ 10“ the fastest.

  • Page 33: Display Mode

    Play time: Indicates the current playing time. Remain time: Indicates the remaining playback time. Total time: Indicates the total playing time. Compression: Indicates the compression ratio. Free memory: Indicates the remaining memory. Logo Default: Sets the “AUDIOVOX” logo indication. None: No logo indication,...

  • Page 34: Deleting Files (Tracks)

    Deleting Files (Tracks) Select the Delete menu from the Main MENU. Navigate through the Delete menu selections to the Music or Voice file mode by using the Highlight Music or Voice file and press the Select a file desired to deleted Press the FIGURE 25.

  • Page 35: Precautions

    PRECAUTIONS Do not drop the unit or give a shock to the unit. Do not allow the unit to become wet. Avoiding storage or usage of the MP3 Player in places where there is excessive moisture, magnetism or heat. NOTE: If the unit becomes wet, remove battery and quickly wipe with a dry cloth, then contract a service center.

  • Page 36: Troubleshooting

    Installation Guide. • The unit dose not function / there is nothing displayed on the LCD screen. o Check the battery and check the battery is inserted correctly (see MP2164 MP3 PLAYER SYSTEM OVERVIEW).

  • Page 37: Specifications

    SPECIFICATIONS Table 1. MP2164 Specifications Table MODEL MEMORY VOLTAGE BATTERY SIZE (W X H X D) WEIGHT CASE FILE TRANSFER SPEED S/N RATIO EARPHONE OUTPUT OUTPUT FREQUENCY RANGE TEMPERATURE PROPERY * The specifications of this manual are subject to change without prior notice.

  • Page 38: Accessories

    ACCESSORIES FIGURE 26. Included Accessories...

  • Page 39: Warranty

    Applies to Audiovox Internet Products AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail purchaser of this produ ct that should this product or any part thereof, under normal use and conditions, be proven defectiv e in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 40 This Warranty gives you specific legal rights and you may also have other rights, which vary from state to state. 128-6001 U.S.A.: AUDIOVOX ELECTRONICS CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, N Y. 11788 CANADA: AUDIOVOX CANADA LTD., MISSASSAUGA, ONTARIO, CANADA L4W5A1...
