Audiovox MP1164 User Manual

Audiovox MP1164 User Manual

Audiovox mp3 player user's manual
Hide thumbs

Advertisement

Quick Links

Download this manual

MP3 PLAYER

Model : MP1164
DOWN
UP
ON/OFF
PREV
NEXT
128-6197

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP1164 and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox MP1164

Summary of Contents for Audiovox MP1164

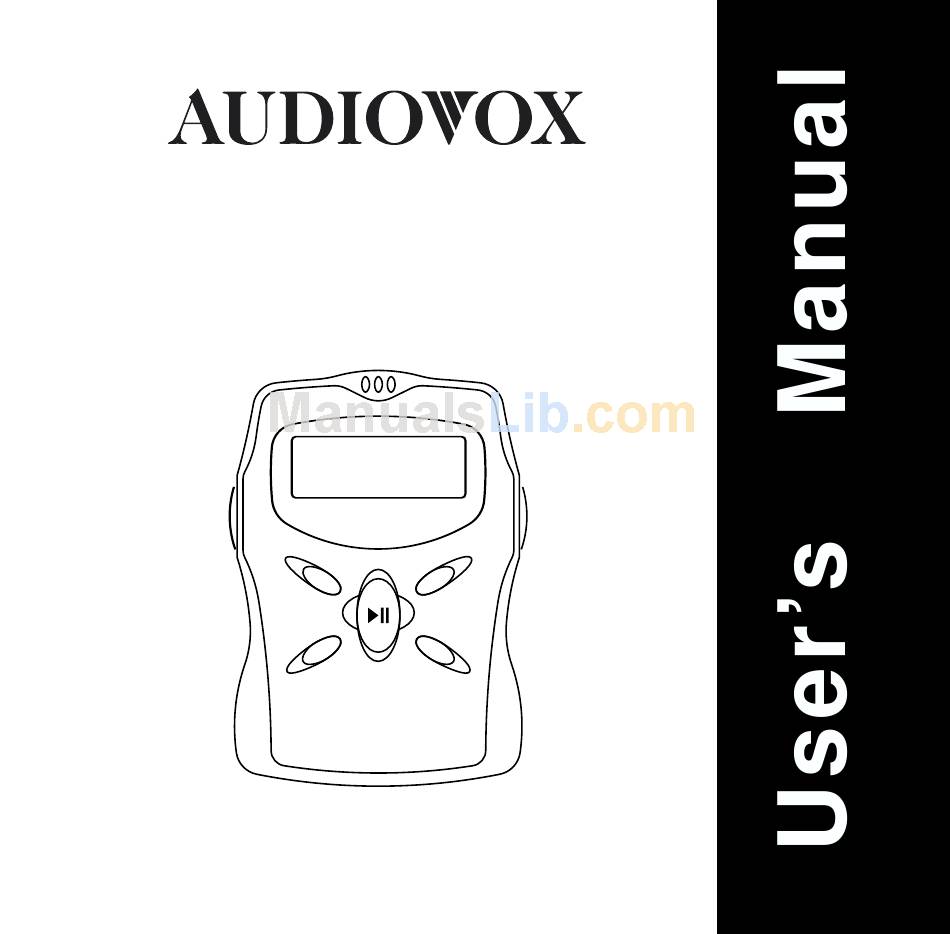

  • Page 1: Mp3 Player

    MP3 PLAYER Model : MP1164 DOWN ON/OFF PREV NEXT 128-6197...
  • Page 2 • Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. • Consult the dealer or an experienced radio / TV technician for help. FOR HOME OR OFFICE USE MP1164 Tested To Comply With FCC Standards...
  • Page 3 Introduction The Audiovox MP3 is a personal, compact, non-mechanical player designed for clear, skip-free digital audio playback. Download MP3 files from your PC hard drive into the player via USB Port, cable included. On-board flash memory and optional 128 Megabyte Smart Media Card, lets you enjoy CD quality music, for up to 6 hours.
  • Page 4 2. Accessories Included • Earphones • USB Cable • Carry case with belt clip • MP3 Manager Software 3. Connecting Player to your PC 1) Connect one end (mini plug) of data transfer cable to the connector slot located on the left side of Player.
  • Page 5 Please read the user manual of your computer. 2. Installing USB DriverProcedure After connecting the MP3 Player to your computer, install the MP3 Player software (USB driver) from the CD-ROM. Note: Screen displays of Windows 98 are used to represent all versions of Windows unless differ- ences in operating procedure arise, in such cases the specific Windows version such as “Windows ME”...
  • Page 6 3. When the Add New Hardware Wizard dialog box appears, insert the MP3 Player software CD in the CD-ROM drive, then click “Next >”. 4. Select the “Search for the best driver for you device” option (for Windows 98) or the “Search for a suitable drive for my de- vice”...
  • Page 7 For Windows 2000 users: When the following dialog box appears, click “Yes” to continue. Note: If you click “No” and stop installation, your MP3 Player will appear under Human Inter- face Devices with a question (!) mark in the Device Manager menu.
  • Page 8 7. Windows system has found the driver, then click “Next >” to in- stall MP3 Player driver. 8. When a dialog box similar to the one shown below appears, click “Finish”. Note: If necessary, restart your com- puter.
  • Page 9 3. Installing MP3 MANAGER Downloading Software 1) Turn on your computer 2) Insert Install CD disc into CD ROM, run CD ROM Drive with “setup exe.” by double clicking on “My Computer” followed by clicking on the CD ROM drive. 3) Follow the instructions on the screen.
  • Page 10 6) Click “Next >” 7) Select “Yes, launch the pro- gram file” then click “Finish”. NOTE: You may have to reboot your computer be- fore launching the MP3 manager. 8) When Installation is complete, the “MP3 Manager” icon will be on your desktop.
  • Page 11 THE DOWNLOADER PROGRAM Using the MP3 Manager The MP3 Manager is used to manage the files on your MP-1164. Use this program to transfer files back and forth between your PC and your MP-1164, change the order of songs on your MP-1164, and format the onboard and/or SMC memory.
  • Page 12 If an error message appears stating “MP3 Player Not Detected on USB Port” please check the following: 1) The unit is properly connected to the USB Port through the supplied accessory cable. 2) The unit is powered on (press the Play button ( ) on the MP-1164.“...
  • Page 13 Changing the order of files on the MP-1164: 1) Select the file you wish to re-order from the built-in memory or SMC window. 2) Click, hold, and drag the file to its new position. Let go of the mouse button. 3) Your selected file should now be in its new position.
  • Page 14 Refomatting the MP-1164 : Due to normal usage, some portions of space are lost in the Built-in and SMC memory of your MP-1164. Use the format icon (deletes ALL data on the MP-1164) from time to time as a maintenance measure to reclaim all free space on your unit. Note: 1) When “Formatting”, all contents within Built-in Memory and SMC card will be erased.

  • Page 15: Player Operation

    Volume Control (—)/ Menu Setting Down button (4) Earphone Jack DOWN Interface PREV Skip Down / Prev Menu Button (2) Power On/Off Play/Pause/Stop Button (1) Player Operation 1. How to use Control Buttons (In order to make all control buttons active, be sure the hold switch is in the unlocked Power ON and OFF : Press and hold button (1) for 1 second --- Power ON.

  • Page 16: Mode Set

    Skip Up, Skip Down: Press button (2) or (3) to skip tracks forward or backward. Fast Search: During Play, press and hold button (2) or (3) to search within current track. Mode : Press button (4) once to display one of the following menus Pressing button (2) or (3) can change the menu display : 1.
  • Page 17 HOLD switch When HOLD switch is ON, all button functions will be deactivated. “KEY HOLD” and “Good Bye” will show on the display, then the unit will automatically power down. The MP-1164 cannot be powered on when the Hold switch is on. To insert Smart Media Card (SMC) Unlock the SMC cover, remove the SMC Cover located on the top side of Player by applying slightly thumb pressure while sliding it outward.
