Summary of Contents for Kewtech KT117

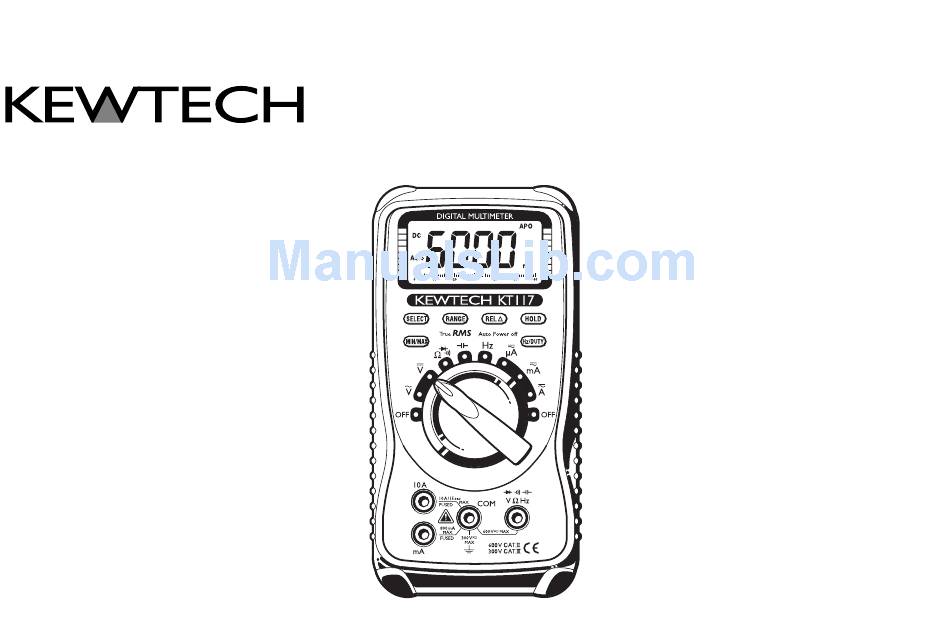

- Page 1 INSTRUCTION MANUAL AUTO RANGE DIGITAL MULTIMETER KT117...
-
Page 2: Safety Warnings
● Save and keep the manual handy to enable quick reference whenever necessary. ● This instrument should only be used by suitably trained person and be sure to follow measurement procedures described in the manual. KEWTECH assumes no responsibility for damage and injury caused by misuse or not following instructions in the manual. -
Page 3: Specification
Primary electrical circuit of the equipment, which is supplied power from a distribution board, and cable run from a distribution board to an outlet. CAT.Ⅲ： 2. Features This instrument, KT117, is a Digital Multimeter which designed for making measurement of the low-voltage equipment. (1) Designed to international safety standards (6) Diode and Continuity check function IEC 61010-1 Measurement CAT.Ⅲ... - Page 4 ±1.5%rdg±5dgt (50 / 60Hz) 6.000V ±1.8%rdg±5dgt (40∼400Hz) Overload protection: 600V DC or AC 0∼600V rms Impedance: 10MΩ 60.00V ±1.2%rdg±3dgt (50 / 60Hz) ＡＣＶ (4 Auto ranging) 0.1V or less is outside the accuracy 600.0V ±1.5%rdg±3dgt (40∼400Hz) Crest factor(CF): 3.0 or less ±1.5%rdg±5dgt (50 / 60Hz) 600V ±1.8%rdg±5dgt (40∼400Hz)
- Page 5 ● Standards IEC61010-1 Measurement CAT.Ⅲ 300V, pollution degree 2 / Measurement CAT.Ⅱ 600V, pollution degree 2 IEC61010-031 IEC61326 ● Mode of operation △∑ mode ● Indication LCD maximum value 6000 (ACV/A, DCV/A, Ω) / maximum value 9999 (Hz) / maximum valve 4000 (F) , units, symbols ●...
-
Page 6: Instrument Layout
4. Instrument Layout ② ⑤ ⑥ ①Function Selector Switch ②Display ④ ⑦ ③MIN/MAX Key ④SELECT Key ③ ⑤RANGE Key ⑥REL Key ⑧ ① ⑦HOLD Key ⑧Hz/DUTY Key ⑬ ⑨Measuring terminal (V/Ω/Hz) ⑩Measuring terminal (COM) ⑪ ⑪Measuring terminal (10A) ⑫Measuring terminal (mA) ⑨... - Page 7 (2) Set the Function Selector Switch to " " position.(Then, "AC", "Auto", and "V" symbols are indicated on the display.) (3) Connect the test leads to the circuit under test. Measured value is indicated on the display. Note) When you make measurement of the voltage less than 0.1V at the AC6V range, the measurement value cannot be indicated correctly. Even if short-circuit the input line at the range of AC6V, 1∼3dgt may remain indicated.
- Page 8 (5) Connect the test leads to the circuit under test so the instrument is in the series. (6) Power on the circuit under test. (7) Measured value is indicated on the display. 6-2-4 AC Current Measurement (up to 10A) CAUTION ●...
- Page 9 (Then, " " and "Ω" symbols are indicated on the display.) Make sure that the "OL." symbol is indicated on the display at this bout, then short the test lead tips and check "0" is indicated on the display and check if the buzzer beeps.
-
Page 10: How To Use Function Switches
7. How to use Function Switches 7-1 SELECT Key This key is to chose the measuring function at Ω/ Diode Check/ Continuity/ function and Current function(uA, mA, A). Actions at each function are as below. ● Ω/ Diode Check/ Continuity function When setting the instrument to "Ω/ Diode Check/ Continuity"... -
Page 11: Auto Power Off
8. Auto Power Off Auto power off function operates when about 15minutes passed after power on this instrument. When Auto power off function operates and the instrument powered off, the power-off statue returns to normal by pressing any key. And it is possible to release the Auto power off function. Turn the Function Selector Switch from OFF position to the function you want with pressing "SELECT"... - Page 12 92-1819A...
-
Page 13: Digital Multimeter
KT117 Digital Multimeter PRODUCT DATA SHEET KT117 DIGITAL MULTIMETER • TRUE RMS • Measures AC/DC current up to 10A • Measures AC/DC voltage up to 600V • Auto ranging • MIN/MAX memory for continuous testing • Data hold memory function •...
