Summary of Contents for YARD Commander SP31128

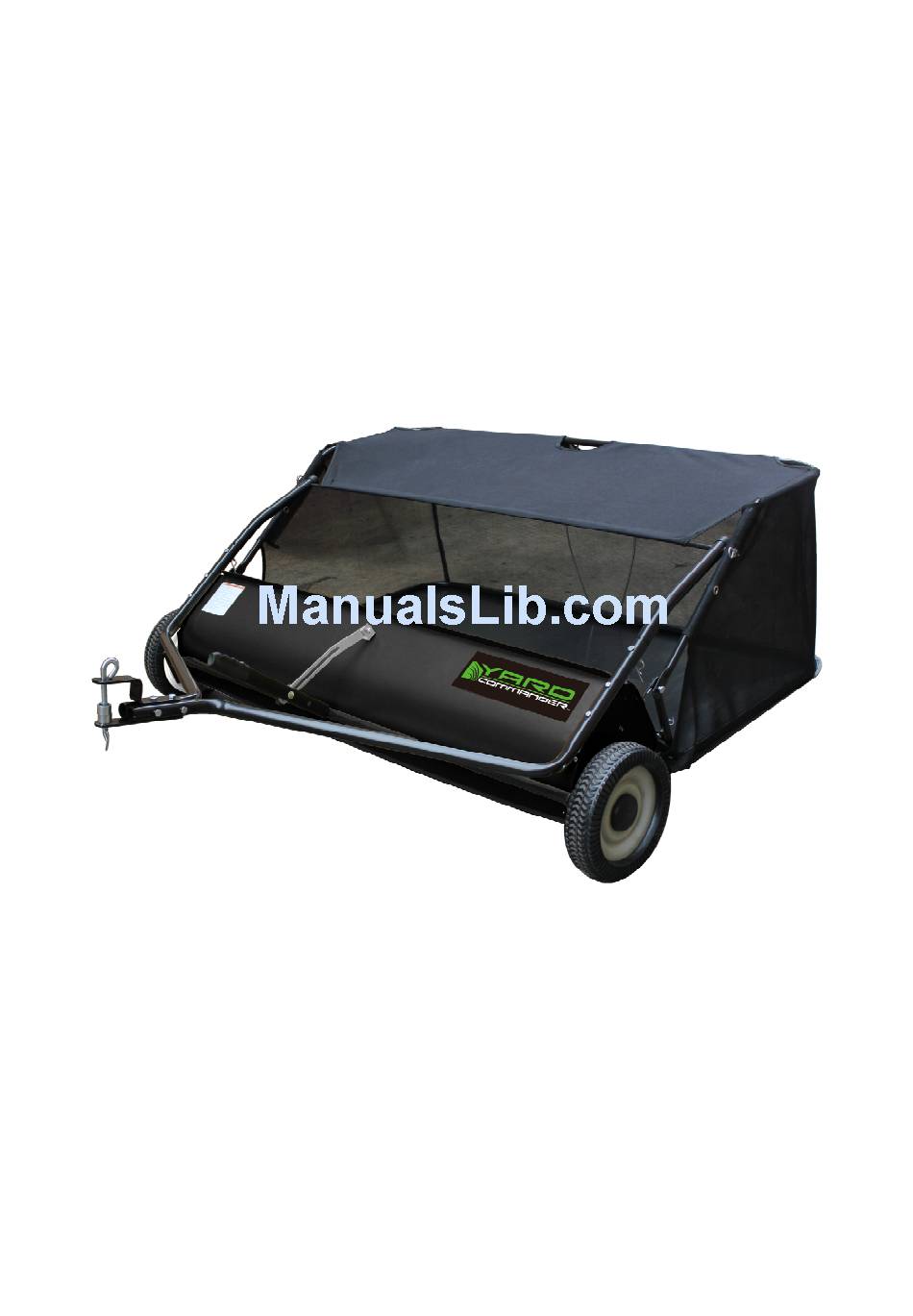

- Page 1 SP31128 54” TOW-BEHIND LAWN SWEEPER Instruction & Assembly SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE REV031714...
-
Page 2: Table Of Contents
Table of Contents General Warnings and Rules……………………………………………………3 Hazard Signal Word Definitions………………………………………………….4 Controls and Features Identification…………………………………………….5 Component & Hardware……………………………………………………….6, 7 Assembly Instructions……………………………………..8, 9 10, 11, 12, 13, 14 Operation Instructions…………………………………………………………..15 Maintenance and Storage………………………………………………….16, 17 Specification………………………………………………………………………18 Parts Drawing & Parts List………………………………………………….19, 20 - 2 -... -
Page 3: General Warnings And Rules
GENERAL WARNINGS READ and UNDERSTAND this manual completely before using the Lawn Sweeper. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the lawn sweeper could result in serious injury to the operator or bystanders. Operation Warnings l Do not at any time carry passengers, sit or stand on the lawn sweeper. -
Page 4: Hazard Signal Word Definitions
Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury. -
Page 5: Controls And Features Identification
Controls and Features Identification Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. 1) Hand Lever – Adjust the Brush Height. 2) Nylon Hopper – Holds all types of Debris. 3) Tires / Wheel –... -
Page 6: Component & Hardware
CAUTION Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage . LAWN SWEEPER COMPONENT PARTS AND ASSEMBLY Take all parts out of the shipping crate and inspect components to ensure there are no missing pieces before starting to assemble the sweeper follow steps 1 through 10. -
Page 7: Component & Hardware
Component and Hardware Parts REF. QTY. REF. QTY. DESCRIPTION DESCRIPTION Hitch Tube (RH) Hopper Support Rod Hitch Tube (LH) Lower Hopper Side Tube Handle Assembly Hopper Bag Hitch Bracket (Straight) Upper Hopper Side Tube Hitch Bracket Connecting Rod Sweeper House Assembly Rear Hopper Tube Front Support Rod Rope... -
Page 8: Assembly Instructions
Assembly Instructions STEP 1: Attach the Angle Bracket to Sweeper Housing 1. Assemble the angle bracket to the sweeper housing using M8x16 hex bolt and M8 hex lock nut. NOTE: Make sure the bracket is turned as shown and aligned straight with the housing and tighten. - Page 9 STEP 3: Fasten Hitch Tubes Together 1. Fasten both hitch tubes together using two M8x75 hex bolts and M8 lock nuts. Loosely tighten. STEP 4: Attach Hitch Bracket to the Hitch Tubes 1. Attach the hitch bracket to the hitch tubes using two M8x55 hex bolts and M8 hex lock nuts. The bolts should straddle the front hitch tube bolt.
- Page 10 STEP 5: Assemble the Height Adjustment Handle 1. Attach the height adjustment handle to the height adjustment tube using two M8x40 hex bolts and M8 lock nut. Loosely tighten. STEP 6: Attach the Adjustment Strap to the Angle Bracket 1. Insert a M8x20 hex bolt through the angle bracket. In the following order put the polo spacer, height adjustment strap, Ø8 big flat washer and M8 lock nut and tighten.
- Page 11 STEP 8: Attach Connecting Rod 1. Attach the connecting rod to the sweeper housing using two sets of M6x12 hex bolts and M6 lock nut. STEP 9: Assemble Hopper Bag 1. Position the rear hopper tube so the brace holes are in the middle and the tube is facing down. 2.
- Page 12 5. Turn the second rear hopper tube so that the brace holes are in the middle and the tube faces 6. Attach the ends of the rear hopper tube into the ends of the lower hopper side tubes. Fasten together using plastic plugs. 7.
- Page 13 12. Secure the bag corners around the lower hopper side tubes by snapping the bag flaps to the bag bottom on both sides. CAUTION Do not over bend the support rods during the next steps. Over bending will cause the steel rods to lose supporting tension.
- Page 14 16. Secure the rope to the top center of the hopper bag frame. STEP 10: Attach Hopper Bag to Sweeper 1. Slide the ends of the bag arms tubes into the ends of the sweeper’s hitch tubes and secure using two Ø6X42 clevis pins and Ø2 R pins. 2.
-
Page 15: Operation Instructions
Operation Instructions WARNING Before operating or using the sweeper, review the instructions below and safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. ATTACH SWEEPER TO TOW VEHICLE 1. Make sure the tow vehicle and sweeper are on a level surface. 2. -
Page 16: Maintenance And Storage
Maintenance and Storage WARNING Improper maintenance and storage of the sweeper may void your warranty. MAINTENANCE · After each use clean material out of hopper. · Rinse/dry inside and outside of the sweeper after each use. · Remove any material which has wrapped around the brushes. ·... - Page 17 Maintenance and Storage BRUSH REPLACEMENT 1. Remove the hopper bag from lawn sweeper. 2. Only replace one brush at a time. 3. Tip the sweeper forward on housing. Do not remove the hex bolts from double brush retainers. 4. Loosen hex bolts and hex lock nuts from single brush retainers. Slide brush out of retainers, making note of over-lap bristles position.
-
Page 18: Specification
Specifications Frame Construction ..................Steel Hopper Construction ................Nylon Mesh Hitch Type ....................Pin Style Wheel Type ................. Semi-Pneumatic Working Width ....................54” Wheel Size ....................10.5” - 18 -... -
Page 19: Parts Drawing & Parts List
Parts Drawing & Parts List - 19 -... -
Page 20: Parts Drawing & Parts List
Parts Drawing & Parts List Ref # Description Ref # Description Hitch Tube, Right Side Pinion Gear R.H. Hitch Tube, Left Side Pinion Gear L.H. End plate, Right Side Hex Bolt M5x25 End plate, Left Side Dust Cover Assy Wrapper Hopper Frame Tube (Rear) Hex Bolt, M6×12 Lock Washer Ø10...
