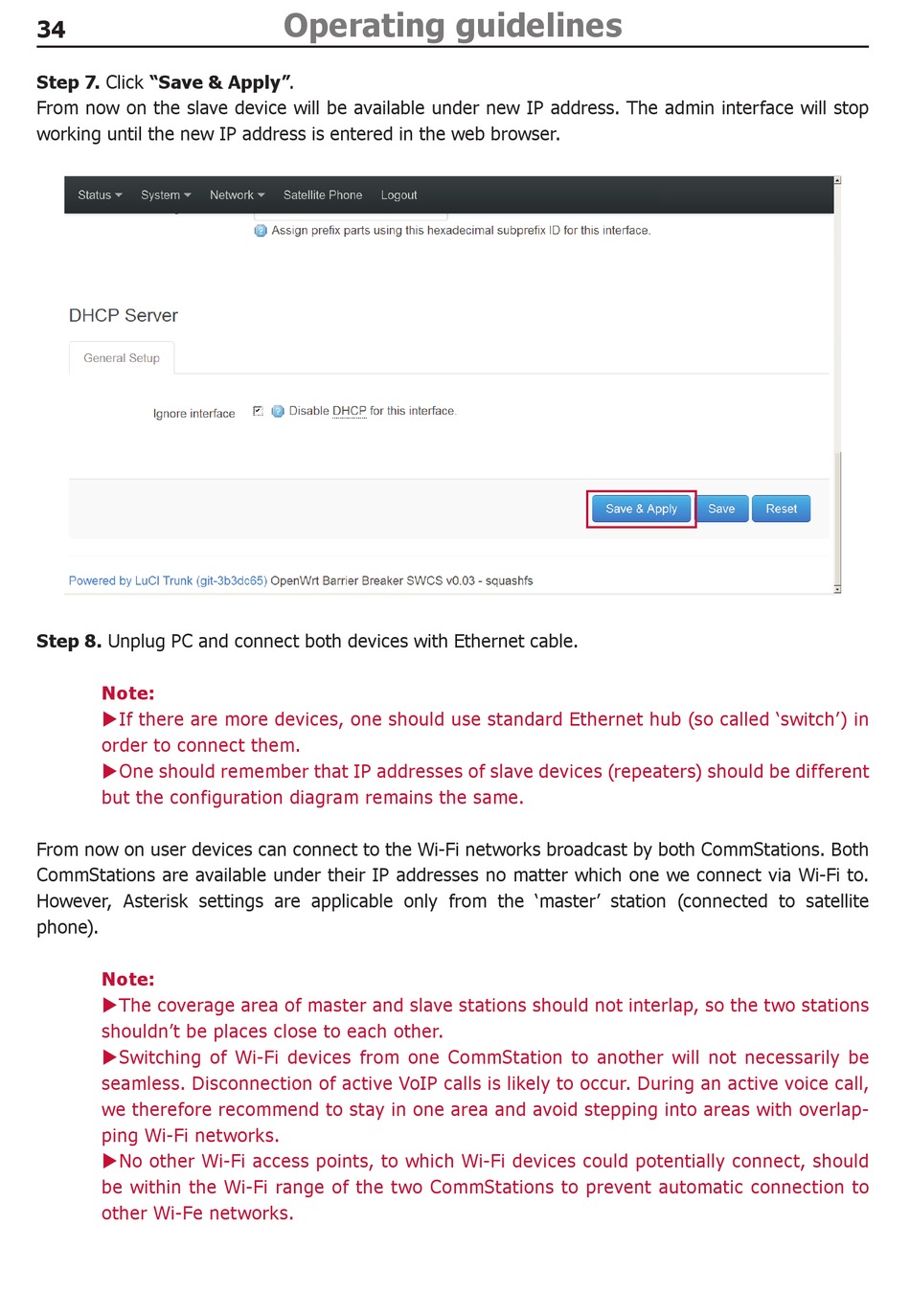

Sattrans wi-fi commstation Operating And Installation Manual page 36

34
Step 7. Click "Save & Apply".
From now on the slave device will be available under new IP address. The admin interface will stop
working until the new IP address is entered in the web browser.
Step 8. Unplug PC and connect both devices with Ethernet cable.
Note:
If there are more devices, one should use standard Ethernet hub (so called 'switch') in
X
order to connect them.
One should remember that IP addresses of slave devices (repeaters) should be different
X
but the configuration diagram remains the same.
From now on user devices can connect to the Wi-Fi networks broadcast by both CommStations. Both
CommStations are available under their IP addresses no matter which one we connect via Wi-Fi to.
However, Asterisk settings are applicable only from the 'master' station (connected to satellite
phone).
Note:
The coverage area of master and slave stations should not interlap, so the two stations
X
shouldn't be places close to each other.
Switching of Wi-Fi devices from one CommStation to another will not necessarily be
X
seamless. Disconnection of active VoIP calls is likely to occur. During an active voice call,
we therefore recommend to stay in one area and avoid stepping into areas with overlap-
ping Wi-Fi networks.
No other Wi-Fi access points, to which Wi-Fi devices could potentially connect, should
X
be within the Wi-Fi range of the two CommStations to prevent automatic connection to
other Wi-Fe networks.
Operating guidelines
