REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System

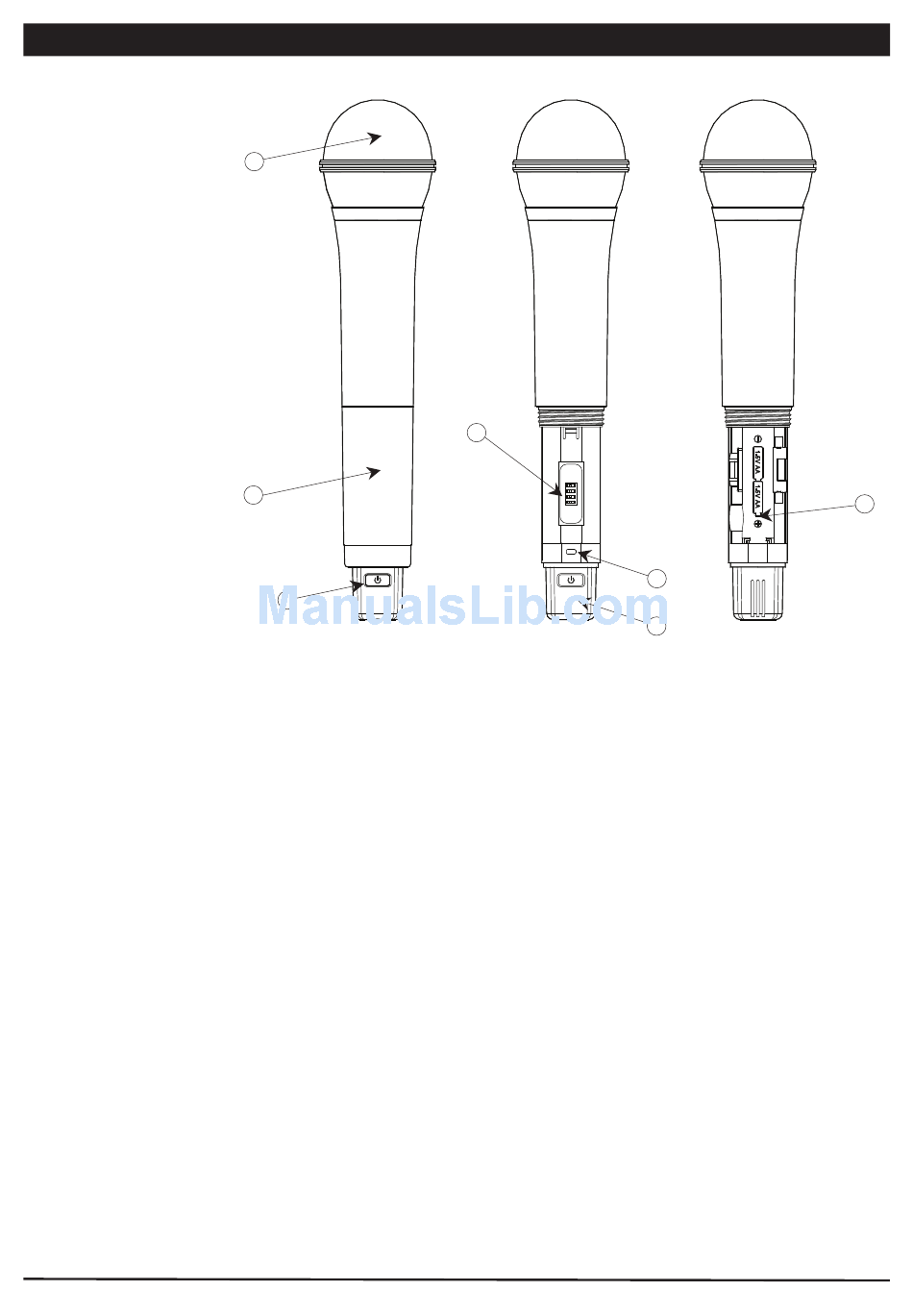

Figure 2: C 8867C
Handheld Transmitter
1. Grille: Protects the
microphone capsule and
helps reduce breath sounds
and wind noise.
2. Low Battery LED: Indicates
battery life status. Solid light –
battery ok. Flashing light –
battery power low. No LED
light indicates dead battery.
3. Power: Press for a few
seconds to turn transmitter on
or off.
4. Battery Compartment: Ensure
batteries are inserted
according to the polarity
shown.
5. Channel Selector: 16 different
selectable transmitter
frequencies.
6. Battery Cover: Unscrew to
expose battery compartment
and channel selector rotary
switch.
7. Antenna: Built-in high gain
helical antenna.

TRANSMITTER SPECIFICATIONS:

Carrier Frequency Range: ................................................................................................................................ 520-550MHz UHF band
RF Power Output: ................................................................................................................................................................10mW (max.)
Oscillation Mode: ......................................................................................................................PLL synthesized, 16 Channel selectable
Frequency Stability: ....................................................................................................................................................................±0.005%
Maximum Deviation:............................................................................................................................±48kHz with limiting compressor
Spurious Emission: ..................................................................................................................................>60dB below carrier frequency
Total Harmonic Distortion:................................................................................................................................................ <1% (at 1kHz)
Microphone Capsule:
Handheld:.......................................................................................................................................uni-directional electret condenser unit
Lavalier:..........................................................................................................................................uni-directional electret condenser unit
Battery: ......................................................3V d.c. (2 x 1.5V AA size batteries ) or 2.4V d.c. ( 2 x 1.2V AA size rechargeable batteries)
Current consumption: ....................................................................................................................................................120mA +/- 5mA
Dimensions (mm) WxHxD: ..................................................................................................................................Handheld = 266 x 550

HANDHELD TRANSMITTER OPERATION (C 8867C model)

1. Insert 2 x 1.5V AA size dry or rechargeable batteries. Note that fully charged rechargeable batteries will not provide power to the unit
as long as will good quality alkaline dry cell batteries.
2. Set the channel frequency inside the battery compartment, to match the receiver.
3. Press button for two seconds to turn on the microphone. The LED will stay on to indicate the batteries have sufficient power. If the
LED fails to light, the battery is either dead or not positioned correctly. If the LED stays flashing, it indicates that the battery will soon be
out of power and should be changed.
4. Set the levels on your audio mixer or amplifier as appropriate.
3
1
6
3
5
2
7
Beltpack = 65 x 100 x 27
4
