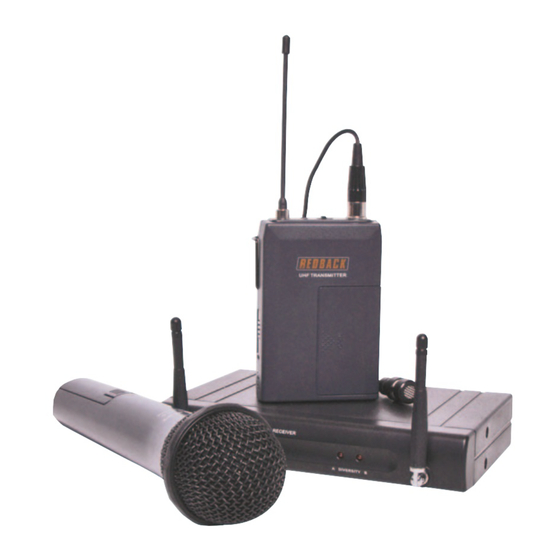

REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System
®
16 Channel UHF
Wireless Microphone Systems
C 8867C: Receiver & Handheld Transmitter Microphone
C 8868C: Receiver & Beltpack Transmitter
Operating Instructions
Manufactured exclusively for Altronic Distributors Pty Ltd
Advertisement
Table of Contents
Summary of Contents for Altronics redback C 8867C
-

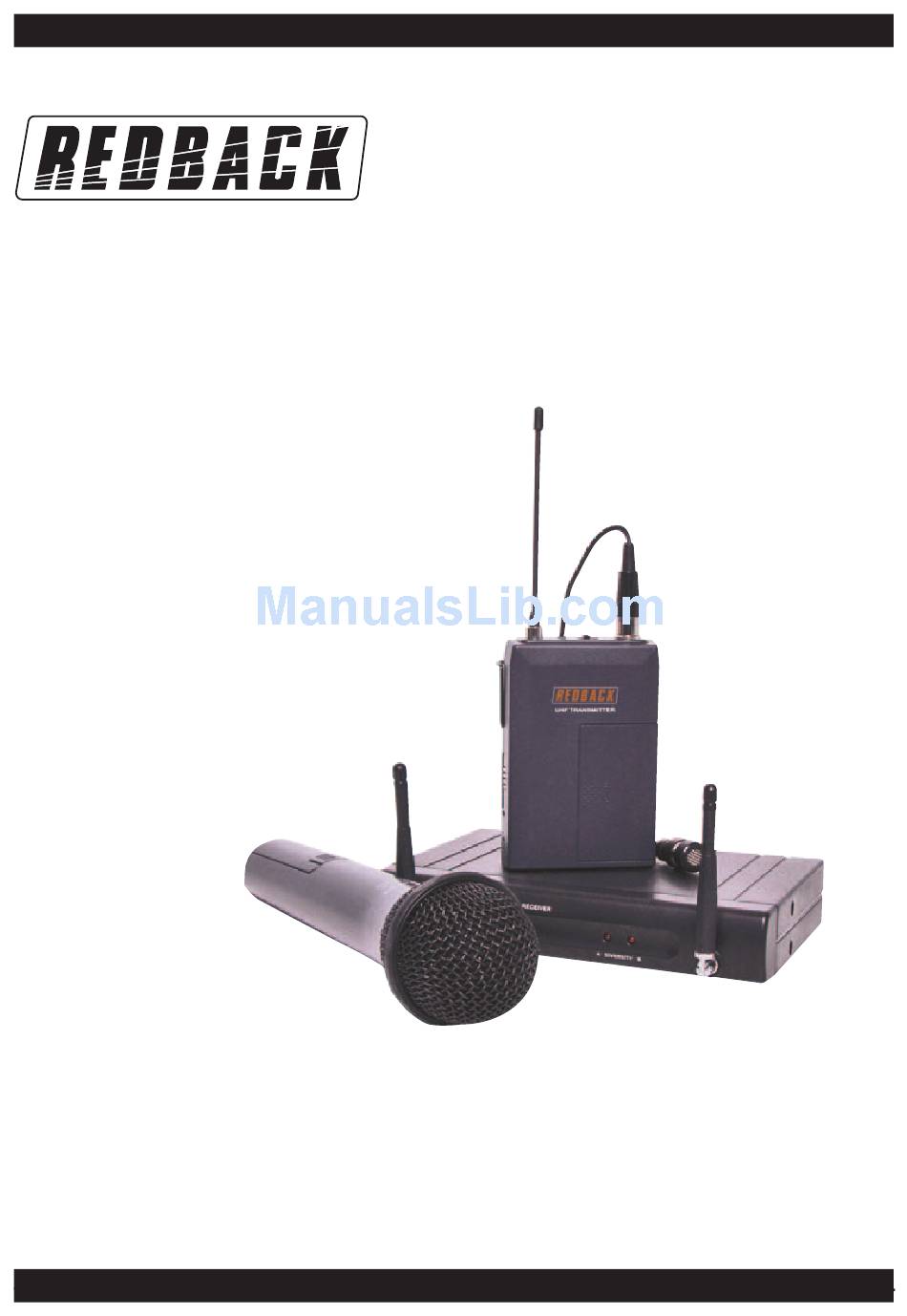

Page 1: Operating Instructions
REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System ® 16 Channel UHF Wireless Microphone Systems C 8867C: Receiver & Handheld Transmitter Microphone C 8868C: Receiver & Beltpack Transmitter Operating Instructions Manufactured exclusively for Altronic Distributors Pty Ltd... - Page 2 REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System OVERVIEW: This switching diversity system is the perfect entry level wireless microphone system for clubs, restaurants, function centres, wedding ceremonies etc. produce a clear, crisp vocal reproduction, while allowing freedom of movement. The unit is supplied as a complete system with either handheld or beltpack/lavalier microphone transmitters included in the package.
- Page 3 REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System Figure 1: Front and Rear Panels 1. Antenna: Fixed-length UHF antenna permanently mounted on the front panel. 2. PWR: The indicator LED illuminates when the receiver is ready to operate.
- Page 4 REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System Figure 2: C 8867C Handheld Transmitter 1. Grille: Protects the microphone capsule and helps reduce breath sounds and wind noise. 2. Low Battery LED: Indicates battery life status. Solid light – battery ok.
- Page 5 REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System TROUBLESHOOTING Solution Problem • Check the power supply of the microphones and receiver. No Sound • Check the transmitter and receiver are tuned to the same frequency. • Check whether the audio amplifier is switched on and the receiver output is connected to it.
- Page 6 REDBACK® C 8867C & C 8868C 16 Channel UHF Wireless Mic System...
- Page 7 Note: Under no circumstances should you attempt to repair the player yourself or via a non-authorised Altronics service centre as this will invalidate the warranty! During the warranty period, we undertake to repair or replace your product at no charge if found to be defective due to a manufac- turing fault.
