Based on the context, a Grand Design Imagine RV with ST225/75 R15 LRE tires likely uses 15" wheels with 1/2" studs. The socket size needed to torque 1/2" lug nuts is typically 3/4" (19mm).

This answer is automatically generated

Randy

March 21, 2025

We have a tankless Hot water heater but the control on the wall will not come on

1 comments:

Mr. Anderson

May 14, 2025

If the wall control for a Grand Design Imagine tankless hot water heater is not turning on, possible issues could include a tripped fuse in the load center, lack of 120VAC power to the electric element, or an incorrect setting in the Nautilus water management system. Additionally, if fixture handles (such as an outside sprayer) are left open, it could cause mixing of hot and cold water, affecting heater performance.

This answer is automatically generated

Timothy Lee

May 16, 2025

How do I shut of the courtesy light on the electric trailer hitch lift?

Joanne Willi

May 16, 2025

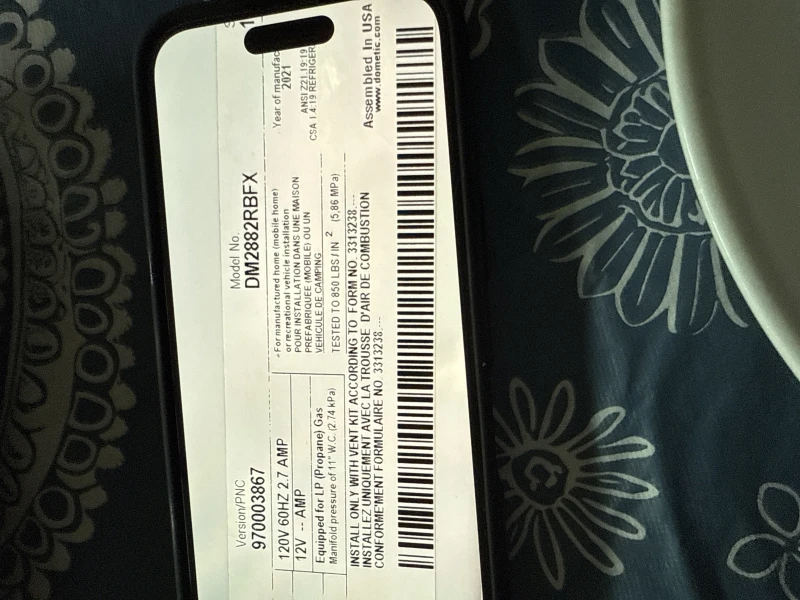

Where do we find the ground fault receptacle on our 2022 2600rb image camper? Also we need a heating element dm2662 for our refrigerator-can you help with this part? Thanks JoAnne

Summary of Contents for Grand Design Imagine

Page 1 IMAGINE TRAVEL TRAILER OWNER’S MANUAL...
Page 3 RV lifestyle as a family friendly form of leisure, recreation and fun. It is the intent of the Grand Design RV Team and our Dealer Partners to do our absolute best to assure that you enjoy a positive ownership experience and capitalize on all the exciting opportunities this “Grand”...
Page 4 This page is intentionally blank.
Page 5: Table Of Contents
TABLE OF CONTENTS Imagine Owner's Manual INTRODUCTION………………………………………………………………………………………5 REPORTING SAFETY DEFECTS………………………………………………………………10 SERVICE & WARRANTY…………………………………………………………………………11 Grand Design RV, LLC ONE YEAR LIMITED BASE WARRANTY……………………………17 Grand Design RV, LLC THREE YEAR LIMITED STRUCTURAL WARRANTY………………23 COMPONENT MANUFACTURER CONTACT INFORMATION………………………………29 COMPONENT MANUFACTURER WARRANTY INFORMATION……………………………30 OCCUPANT SAFETY………………………………………………………………………………31 PRE-TRAVEL INFORMATION……………………………………………………………………49...
Page 6 This page is intentionally blank.
Page 7: Introduction
Customer Service 13868 County Road 4 Bristol IN 46507 Phone: (574) 825-9679 Fax: (574) 825-9249 Email: customerservice@granddesignrv.com OWNER’S INFORMATION PACKAGE Your new Imagine RV includes an Owner’s Information Pack- age containing various component manufacturer manuals, and registrations. Some component manufacturers offer...
Page 8 RV. If the RV is sold, they should remain with the RV for the next owner. MANUFACTURING CERTIFICATION Grand Design RV is subject to frequent and random audits to ensure our RVs are constructed to the thorough safety and manufacturing codes, standards and regulations established by the Recreation Vehicle Industry Association (RVIA), and Transport Canada.
Page 9 Introduction Make / Model: M — Momentum S — Solitude R — Reflection E — Imagine Length: The number listed falls within a pre-determined, specified grouping that does not indicate the actual measured length of your RV. Model Year: E — 2014 F —...
Page 10 Introduction (Safety Alert Symbols Cont.)
Page 11 Introduction [Customer Supplied] This denotes aftermarket items not installed or included by Grand Design RV. Items noted as “customer supplied” are not covered by the Limited Base and Structural Warranties. The inclusion of items noted as “cus- tomer supplied” does not imply or suggest the availability, application sustainability, or inclusion for any specific unit.
Page 12: Reporting Safety Defects
National Highway Traffic Safety Adminis- tration (NHTSA) in addition to notifying Grand Design RV. If NHTSA receives similar complaints, it may open an inves- tigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 13: Service & Warranty
7. Complete and return your “Warranty Registration and New Vehicle Pre-Delivery Inspection Check List” form within thirty (30) days from the date of delivery to Grand Design RV to activate your applicable warranty coverage. OWNER’S RESPONSIBILITIES As the owner, you are responsible for the regular care and proper maintenance of your RV.
Page 14 Service & Warranty proper service prior to delivery, and has a continued interest in your satisfaction. Therefore, we recommend warranty and maintenance services be performed by your Grand Design RV dealer. As with your other personal belongings, it is important to protect yourself and others with insurance coverage.
Page 15 Design RV directly; otherwise, you are expected to pay them. b. Have the RV repair facility inspect your RV. Either they or you must call Grand Design RV Customer Support to discuss applicable warranty coverage prior to any repair work being performed.
Page 16 Obtaining weekend or after business hours emergency repair assistance If an authorized Grand Design RV dealer is not located near- by, contact your selling dealer for assistance. If your dealer is closed, check with the campground staff or telephone yellow pages for an RV repair facility.
Page 17 This page is intentionally blank.
Page 18 This page is intentionally blank.
Page 19: Grand Design Rv, Llc One Year Limited Base Warranty
SUMMARY What does this Warranty cover? Grand Design RV, LLC (“Warrantor”) provides this One (1) Year (“Warranty Period”) Limited Base Warranty [which begins to run from the earlier of (i) the date of purchase by the original retail con- sumer purchaser or (ii) when the recreational vehicle is put into service] against certain defects in ma-...
Page 20 Service & Warranty What types of things are excluded from the Warranty? This Warranty does not cover: Defects in any component parts or labor of the recreational vehicle which are not considered the RECREATIONAL VEHICLE or which were not manufactured by Warrantor; Defects in any items or labor which are covered by a separate warranty from the original manu- facturer of any part that is used by Warrantor in the RECREATIONAL VEHICLE;...
Page 21 Service & Warranty aa. Exterior paint or finish which is warranted independently by the paint manufacturer and/or inde- pendent applicator; bb. DEFACING: scratches, dents, and rust on any surface of the RECREATIONAL VEHICLE; and cc. EXCESS weight on the RECREATIONAL VEHICLE. WARRANTOR’S OBLIGATIONS - HOW TO GET WARRANTY SERVICES How Do You Get Service? In no event shall repair or replacement for a defect be covered under this Warranty unless the repair or replacement occurs at Warrantor’s facilities, or Warrantor’s designated repair shop or dealer.
Page 22 Service & Warranty What are the Dealer’s Responsibilities? • Perform a walk-through to assure that the customer understands the operation, use and safety requirements of the vehicle; • Review vehicle warranties, operating manuals and instruction guides; and • Inform the customer on how to obtain service, locally or while in transit; Warrantor is not responsible or liable for any failures, breaches, negligence, inattention or problems on the part of the Dealer.
Page 23 Service & Warranty Some states do not allow the exclusion or limitation or the exclusion may not apply to you. TO THE EXTENT NOT EXCLUDED IN THIS LIMITED WARRANTY, THE IMPLIED WARRANTY OF MERCHANTABILITY, AN UNWRITTEN WARRANTY THAT THE PRODUCT IS FIT FOR ORDINARY USE, IS LIMITED TO THE WARRANTY PERIOD OF THIS WRITTEN WARRANTY, AND ANY OTHER IMPLIED WARRANTY ARISING BY OPERATION OF LAW ARE SPECIFICALLY LIMITED TO THE WARRANTY PERIOD OF THIS WRITTEN WARRANTY TO THE EXTENT NOT ACTUALLY EXCLUDED IN THIS...
Page 24 Service & Warranty How Does State Law Relate to This Warranty? This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. By registering or having your recreational vehicle registered in your name, or by asserting a claim under this Limited Warranty, Purchaser (and all assigns) is agreeing on behalf of the pur- chaser and all assigns to be bound by the terms and conditions of this Limited Warranty.
Page 25: Grand Design Rv, Llc Three Year Limited Structural Warranty
SUMMARY What does this Warranty cover? Grand Design RV, LLC (“Warrantor”) provides this Three (3) Year (“Warranty Period”) Limited Structural Warranty [which begins to run from the earlier of (i) the date of purchase by the original re- tail consumer purchaser or (ii) when the recreational vehicle is put into service] against certain defects...
Page 26 Service & Warranty The defective material or workmanship for which the warranty work and/or part is sought must be to the STRUCTURAL COMPONENTS only. 4. The other terms and conditions of this Limited Warranty must be satisfied. What types of things are excluded from the Warranty? This Warranty does not cover: Defects in any component parts or labor of the recreational vehicle which are not considered the STRUCTURAL COMPONENTS or which were not manufactured by Warrantor;...
Page 27 Service & Warranty Damage caused by unprotected electrical hook-ups (home or campground), power surges, light- ning, circuit overload or electrical system modifications; Damage caused by overloading or improper weight distribution; Damage caused by improper ventilation resulting in excessive condensation which results in water damage and/or mold or mildew; aa.
Page 28 Service & Warranty menced not more than three (3) months thereafter; otherwise the Purchaser will have waived any such defect and claim, and any and all damages arising as a result thereof. The purchaser must perform reasonable and necessary maintenance upon the recreational vehicle and STRUCTURAL COMPO- NENTS and use the recreational vehicle and STRUCTURAL COMPONENTS in accordance with the manufacturer of the recreational vehicle’s and Warrantor’s directions and recommendations.
Page 29 Service & Warranty TO THE EXTENT NOT EXCLUDED IN THIS LIMITED WARRANTY, THE IMPLIED WARRANTY OF MERCHANTABILITY, AN UNWRITTEN WARRANTY THAT THE PRODUCT IS FIT FOR ORDINARY USE, IS LIMITED TO THE WARRANTY PERIOD OF THIS WRITTEN WARRANTY, AND ANY OTHER IMPLIED WARRANTY ARISING BY OPERATION OF LAW ARE SPECIFICALLY LIMITED TO THE WARRANTY PERIOD OF THIS WRITTEN WARRANTY TO THE EXTENT NOT ACTUALLY EXCLUDED IN THIS LIMITED WARRANTY.
Page 30 Service & Warranty How Does State Law Relate to This Warranty? This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. What to do if a separately manufactured part is defective? Our warranty does not cover defects in separately manufactured products which are not produced or manufactured directly by Warrantor. These products may be warranted by their individual manu- facturers.
Page 31: Component Manufacturer Contact Information
Component Manufacturer Contact Information COMPONENT MANUFACTURER CONTACT INFORMATION All components listed are correct at the time of printing. Grand Design RV may change com- ponents mid-model year at their discretion. Please contact GDRV Customer Support for any questions. Component Manufacturer...
Page 32: Component Manufacturer Warranty Information
Component Manufacturer Warranty Information COMPONENT MANUFACTURER WARRANTY INFORMATION Manufacturer warranty information is current at the time of printing. Warranties are subject to change at any time per the manufacturer. Details can be found on each manufacturer's website or by contacting them directly. Component Manufacturer Manufacturer Warranty...
Page 33: Occupant Safety
Occupant Safety OCCUPANT SAFETY Your RV is designed with comfort and safety as a priority. It complies with applicable codes and safety standards in effect at the time it was built. A number of required safety items are installed for your safety and the safety of other occupants of the RV.
Page 34 Occupant Safety Pets may not be allowed into shelters for health and space reasons. Prepare an emergency plan for pets that includes at least a 3-day supply of dry food and a large container of wa- ter. The survival of a beloved pet often depends on the plans its owner has made in advance.
Page 35 Occupant Safety • Review the locations and operational instructions on the egress window label with all people staying in the • Plan fire escape routes. • Decide who will exit through the emergency escape windows first, and in what position. •...
Page 36 Occupant Safety FIRE EXTINGUISHER A portable fire extinguisher can save lives and property by putting out a small fire or containing it until the fire department arrives; but portable extinguishers have limitations. It is im- portant to recognize when to leave the RV. Because fire grows and spreads so rapidly, the number one priority is to get out safely.
Page 37 Occupant Safety Disposal Contact your local fire department, sanitation department or environmental protection department to find out what your local laws stipulate before disposing of your used (non-refill- able) factory-installed dry chemical fire extinguisher. SMOKE ALARM Three of the most common fire safety issues are smoking in bed, leaving children unattended and cleaning with flamma- ble fluids.
Page 38 Occupant Safety 2. If it does not alarm, make sure the smoke alarm is receiving power and test it again. 3. If it still does not alarm, replace it immediately. Battery The smoke alarm will not function if the battery is missing, disconnected, dead, the wrong type of battery is used or the battery is installed incorrectly.
Page 39 Occupant Safety CARBON MONOXIDE ALARM The CO alarm is designed to detect the toxic carbon monox- ide fumes that result from incomplete combustion, such as those emitted from appliances, furnaces, fireplaces and auto exhaust. A CO alarm is NOT A SUBSTITUTE for other com- bustible gas, fire or smoke alarms.
Page 40 Occupant Safety Batteries The CO alarm will not function if the batteries are missing, disconnected, dead, the wrong type of battery is used or the batteries are installed incorrectly. When the batteries become weak, the CO alarm will "beep" (the low battery warning). If the low battery warning sounds, the batteries MUST be replaced.
Page 41 Occupant Safety If the alarm sounds 1. Turn off all propane gas appliances (i.e., stove, water heater, furnace, etc.). 2. Open all windows and roof vents and execute your family safety plan. 3. Turn OFF the propane tank valve. 4. Do not touch any electrical switch or use any phone or radio in the RV.
Page 42 Occupant Safety pollution sources include molds, pollen, dander from pet fur, secondhand smoke, carbon monoxide from burning propane and other fuels (and charcoal), and household cleaners. Inadequate ventilation can increase indoor pollutant levels by not bringing enough outdoor air to dilute emissions from indoor sources and by not carrying indoor air pollutants out- side.
Page 43 Occupant Safety mildew, viruses, animal dander, and pollen, (ii) Household products such as paints, varnishes, cleaning and disinfecting solutions, cosmetics and hobby products, and (iii) Pesticides. Ventilation. To reduce or lessen exposure to chemicals from off-gassing it is of utmost importance that you ventilate your RV.
Page 44 (MDF), and plywood which are commonly used throughout the Recreational Vehi- cle Industry. As mandated by the RV Industry, Grand Design RV recreation vehicles contain composite wood products (hardwood plywood, particle board, and MDF) that comply with the California Air Resource Board (CARB) formaldehyde emission standards under California Code of Regulations §...
Page 45 Occupant Safety CONDENSATION Just as moisture collects outside of a glass of cold water during humid weather, moisture can condense on the inside surfaces of the RV during cold weather when relative humidity of the interior air is high. This condition is increased because the insulated walls of a RV are much thinner than house walls.
Page 46 Occupant Safety In hot weather, start the air conditioner early as it removes excess humidity from the air while lowering the temperature. • Manage the inside temperature during cold weather. The higher inside temperature along with colder out- side temperatures will cause condensation to form on areas that are not insulated as well as others (win- dows, vents, wall studs, etc.).
Page 47 Occupant Safety By controlling relative humidity, the growth of mold and mil- dew can be inhibited. In warm climates, use of the air condi- tioner will reduce the relative humidity. Vents are located in the bathing and cooking areas and constant use is advised during food preparation and bathing, even during colder weather.
Page 48 Your use of these websites are at your own risk. Grand Design RV shall have no liability what- soever for any errors, omissions or inaccuracies in the infor-...
Page 49 External or third party links may be provided for the convenience of the users of that website. Grand Design RV is not responsible for the availability or content of these external...
Page 50 Occupant Safety Towing – Follow posted speed limits and adjust for road conditions, weather and the environment. Pay close attention to passing vehicles and the effect they can have on your tow vehicle & trailer, especially large trucks which create external forces on both as they pass.
Page 51: Pre-Travel Information
Pre-Travel Information PRE-TRAVEL INFORMATION To help ensure your traveling enjoyment, call ahead for tourist information in each area that you will be visiting or traveling through. To help eliminate frustration, make sure you obtain the most current road maps. Research and make sure there are no federal, state or local regulations that may prohibit you from fully enjoying your camping adventure.
Page 52 RV. If any decal, data or instruction plate is painted over, dam- aged or removed, it should be replaced. WEIGHT RATINGS & DEFINITIONS Ratings are limits established by Grand Design RV and our component manufacturers which are not to be exceeded. Exceeding a rating may result in unsafe conditions, potential damage, may void a warranty, may complicate an insurance claim, and in some cases, may violate a law.
Page 53 Pre-Travel Information Federal certification label This label specifies maximum capacities for GVWR, GAWR and tires. It is located on exterior left front of the vehicle. Tire and loading information label This label specifies the maximum amount of cargo that can be safely added to the RV.
Page 54 RV tires is 7,800 lbs., which is within the weight rating of the tires. If you have further questions, please contact your dealer or Grand Design RV Customer Service. LOADING YOUR RV Store and secure all loose items inside the RV before trav- eling.
Page 55 Pre-Travel Information WEIGHING YOUR TOW VEHICLE & RV There are two important factors when loading your RV, total weight and balance. It is imperative that you verify compliance within all applicable weight ratings. Overloading your RV will void the Limited Base Warranty and Limited Structural War- ranty, and the warranties of many component part manufac- turers.
Page 56 Pre-Travel Information To determine the wheel position weight 1. Pull the RV onto the scale so only one tire is on the scale. Record the weight. Your RV must remain as level as possible on the scale (even though an axle or side is not physically on the scale).
Page 57 Pre-Travel Information These actions, along with other care and maintenance activi- ties, can also: • Improve vehicle handling. • Help protect you and others from avoidable break- downs and accidents. • Improve fuel economy. • Increase the life of your tires. Use this information to make tire safety a regular part of your vehicle maintenance routine.
Page 58 Pre-Travel Information in pounds per square inch (psi), a tire requires to be properly inflated. (You will also find this number on the vehicle infor- mation placard expressed in kilopascals (kPa), which is the metric measure used internationally.) Vehicle manufacturers determine this number based on the vehicle’s design load limit, that is, the greatest amount of weight a vehicle can safely carry and the vehicle’s tire size.
Page 59 Pre-Travel Information 3. At a service station or using an air compressor, add the missing pounds of air pressure to each tire that is under-inflated. 4. Check all the tires to make sure they have the same air pressure. If you have been driving your vehicle and think that a tire is under-inflated, fill it to the recommended cold inflation pres- sure indicated on your vehicle’s Tire and Loading Information label.
Page 60 Pre-Travel Information TIRE SIZE To maintain tire safety, purchase new tires that are the same size as the vehicle’s original tires or another size recommend- ed by the manufacturer. Look at the Tire and Loading Informa- tion label, or the sidewall of the tire you are replacing to find this information.
Page 61 Pre-Travel Information Another method for checking tread depth is to place a penny in the tread with Lincoln’s head upside down and facing you. If you can see the top of Lincoln’s head, you are ready for new tires. US DOT TIRE IDENTIFICATION NUMBER (TIN) This begins with the letters “DOT”...
Page 62 Pre-Travel Information MAXIMUM PERMISSIBLE INFLATION PRESSURE This number is the greatest amount of air pressure that should ever be put in the tire under normal driving conditions. SPEED RATING • Typically tires with a ST designation are speed re- stricted to 75 mph under normal inflation and load conditions.
Page 63 SPARE TIRE If equipped, the spare tire can be utilized in an emergency if a trailer tire loses air pressure or goes flat. Certain Grand Design RV brands may use different spare wheels than original with the intent for the spare to be temporary.
Page 64 Pre-Travel Information Lug nut torque at every wheel should be checked before depart- ing on any trip, regardless of how short it may be. Always use a properly calibrated torque wrench to confirm proper torque. Do not allow under or over torque on any wheel. •...
Page 65 Pre-Travel Information EMERGENCY STOPPING Always carry road flares or reflective warning signs to display if necessary. Pull off the roadway as far as possible for emergen- cy stopping or tire changing. Turn ON your RV hazard warning flashers. If traveling at night, use three red warning indicators such as flares, reflectors or lanterns, as follows: 1.
Page 66 This page is intentionally blank.
Page 67: Towing & Leveling
Towing & Leveling TOWING & LEVELING Driving safety and protection against injury cannot be fully ensured; however, we recommend you pay special attention to the following: • The use of daytime running lights can increase other motorists' awareness of the RV to all traffic. •...
Page 68 offer driving seminars. The schedules and locations of the various RV driver education seminars and schools can be researched through RV-related publications and internet sites. Use caution when using the internet as a resource tool. Verify the information is from a credited and reliable source in the RV industry, and it pertains to your RV.
Page 69 Towing & Leveling Your dealer can assist you with the selection, purchase and installation of this aftermarket part. BRAKE CONTROLLER (CUSTOMER SUPPLIED) The brake controller should be installed in the tow vehicle to work in conjunction with the RV electric brakes. Consult with your dealer or the brake controller OEM to decide what is right for your towing combination.
Page 70 Towing & Leveling SAFETY CHAINS Safety chain requirements vary from state to state. Your RV is equipped with chains to meet SAE standard requirements for maximum gross trailer weight. • Always have the safety chains attached when towing. • Hook them to the safety chain loops provided on the tow vehicle’s hitch, crossing them under the trailer tongue.
Page 71 Towing & Leveling bounce and accelerate wear of your tow vehicle and RV combi- nation. There are a variety of tow vehicle suspension systems available that will affect the ball height, stability and levelness of a hooked up RV. Your dealer can best assist you with purchasing a compatible hookup.
Page 72 Towing & Leveling • As soon as possible, stop to determine the cause of the sway. Check all equipment and load distribution. If the problem cannot be solved immediately, con- tact your dealer for a service appointment (travel at a much reduced speed on your way there).
Page 73 Towing & Leveling 7. Install the (customer supplied) weight distributing bars (also referred to as “equalizers”) as directed by the OEM. 8. Remove the tongue jack foot, and retract the tongue jack to its maximum height. 9. Attach the breakaway switch cable to the tow vehicle. 10.
Page 74 Towing & Leveling Apply and release brakes at short intervals to give them chance to cool. The tow vehicle transmission and engine will help in controlling downhill speed and can lengthen brake life. The distance required to stop the RV is greater than an automo- bile’s.
Page 75 Towing & Leveling • With the site on the passenger side, you would be backing into the site on your blind side, which is more difficult. • When you determine the site conditions are satisfac- tory, maneuver the RV into position for backing up into the site space.
Page 76 Towing & Leveling 4. Unhook the 7-way wire harness/connector plug, safety chains and breakaway switch lanyard. 5. Install the tongue jack foot. 6. Release the weight distributing bars (customer sup- plied). 7. Open the tongue jack coupler latch. 8. Make sure the power tongue jack is hooked to 12-volt power and turned ON, then use the tongue jack RET/ EXT control button to raise the travel trailer tongue above the hitch ball.
Page 77: Electrical Systems
Electrical Systems ELECTRICAL SYSTEMS The RV electrical system is comprised of two independent electrical systems. One operates off 12-volt DC power, and the other off 120-volt 60hz AC power. All installations have been made in compliance with industry standards applicable on the date of manufacture.
Page 78 Electrical Systems Exposure to voltages higher or lower than a nominal 120-volts will damage or shorten the service life of the electrical system and appliances. 120-VOLT CIRCUIT BREAKERS The 120-volt AC circuit breakers located inside the main load center protect all 120-volt wiring and components in the RV from circuit overloads and short circuits.
Page 79 Electrical Systems 1. Turn “off” the load center main 120-volt circuit breaker. 2. Carefully extend the entire length of the power cord from the electric cable hatch to the external power source. 3. Plug the power cord into the receptacle. Be sure all the power cord prongs are properly plugged into the re- ceptacle.
Page 80 Electrical Systems Inspection and maintenance If the 12-volt power converter is not working (auxiliary battery not being charged) check the reverse polarity fuses (dual 40- amp or 35-amp fuses) in the converter fuse panel. There are no customer serviceable parts inside the converter case and the manufacturer’s warranty will be void if the case has been removed.
Page 81 Electrical Systems 12-VOLT DC SYSTEM The majority of your RV lighting is powered by 12-volt electric- ity. The 12-volt DC system is composed of components that will operate when the following conditions are met: • Power is supplied by the tow vehicle alternator when the engine is running and the 7-way trailer plug is connected.
Page 82 Electrical Systems For accuracy, test the auxiliary battery voltage using a volt- ohm meter. A fully charged auxiliary battery will read 12.7 volts DC and 1.265 specific gravity at 80°F (32°C). The auxil- iary battery is considered discharged at 11.8 volts, and dead at 11.65 volts.
Page 83 Electrical Systems Replacing a fuse Before replacing a fuse, always turn off the electrical compo- nent(s) protected by it. 1. Disconnect the shore power cord. 2. Disconnect the RV auxiliary battery main negative bat- tery cable. 3. Remove the fuse panel cover to check fuses. 4.
Page 84 Electrical Systems APPROXIMATE ELECTRICAL LOAD RATINGS Use actual amperage (or wattage divided by 120) of appli- ance being used whenever possible. 120 Volt System Air conditioner 18 amps Coffee maker 6-12 amps Converter (each) 8 amps Curling iron or hair dryer 10-14 amps DVD system 3 amps...
Page 85: Plumbing Systems
Plumbing Systems PLUMBING SYSTEMS There are two different water systems in your RV: the fresh water system and the waste water system. The fresh water system consists of the fresh water holding tank, fresh water connections, water pump, outside shower assembly (if so equipped), water heater, faucets, shower or tub, and water purification system (if so equipped).
Page 86 Plumbing Systems Operation Press only one switch at a time: 1. As you push either the “FRESH”, “BLCK,” “GRY1” or “GRY2” switch, one or more LED lights will illuminate indicating that holding tank content level. 2. When pushing the “BAT” switch, the highest LED light illuminated indicates the estimated auxiliary battery condition.
Page 87 Plumbing Systems FRESH WATER CONNECTIONS There are two types of direct exterior fresh water connections in your RV: The city water fill is typically used at a camp- ground when there is access to an external, pressurized pota- ble water source. The gravity water fill is generally used to fill the fresh water tank when dry-camping.
Page 88 Plumbing Systems 5. Enter the RV and open the cold water supply faucets to bleed air from the water lines. When the water lines are nearly full, you may experience some "air pockets." Allow them to escape before closing the cold water supply faucets.
Page 89 Plumbing Systems start when pressure drops. Some cycling may occur, depend- ing on the volume of water being released. The water pump has a built-in check valve to prevent water from back flowing. Water pump filter (if so equipped) The water pump incorporates a screen filter on the inlet side. This reusable screen must be cleaned periodically.
Page 90 Plumbing Systems from a yellow burner may occur, indicating the possibility of carbon monoxide. You may also notice a lack of efficiency in heating the water because of incomplete combustion of the burner at these higher altitudes. Consult with a local propane company, your dealer or the water heater manufacturer for proper de-rating of the water heater.
Page 91 Plumbing Systems • During winterization/sanitization, turn the water heater bypass valves to the bypass position shown below: SPRAY PORT A quick connect spray port is available for washing or rinsing outside the RV. To use, attach one end of the quick connect hose to the spray port and attach a sprayer nozzle (customer supplied) to the other end of the quick connect hose.
Page 92 Plumbing Systems The bathing facilities in your RV function similar to those in your home. Keep the water heater and holding tank capacities in mind when using the fresh water system. The used water will drain through the plumbing pipes into the grey water hold- ing tank.
Page 93 Plumbing Systems 6. Position the “water heater bypass” valves as shown below: 7. Relieve the water pressure using the water heater P&T valve BEFORE removing the water heater drain plug. Otherwise, if there is any water pressure present the water will spray out of the opening when the drain plug is removed.
Page 94 Plumbing Systems 3. Open all faucet fixtures, allowing all of the mixture to pass through. 4. Allow the mixture to stand for three (3) hours. Drain the mixture, and flush the fresh water system with fresh potable water. Be sure to run plenty of water through the entire system before using.
Page 95 Plumbing Systems i. Pull the drawer out until it stops. ii. Gently push and hold down the plastic drawer release clip located on the right-hand side of the drawer while - at the same time - push and hold up the plastic drawer release clip located on the left hand side of the same drawer, and iii.
Page 96: Water Heater Bypass 3-Valve System
Plumbing Systems WATER HEATER BYPASS 3-VALVE SYSTEM Closed position Battery disconnect Open position City water Fresh water connection Fresh tank gravity fill Water heater bypass 3-valve system: Water heater bypass 3-valve system: • Hot water line valve (open) • Hot water line valve (closed) •...
Page 97: Winterizing & Sanitizing 3-Valve System
Plumbing Systems WINTERIZING & SANITIZING 3-VALVE SYSTEM Winterizing: 1. Move the white valve to the closed position (shown on the previous page) and put the suction hose into your container of RV antifreeze. 2. Turn the water pump on. Sanitizing: 1.
Page 98 Plumbing Systems BLACK/GREY WATER SYSTEM Water from the sinks and shower flow into the grey water (or waste water) holding tank. Water from the toilet will flow into the sewage (or black water) holding tank. The weight of the holding tank contents is not calculated into the RV cargo carrying capacity (this extra weight would reduce your avail- able cargo capacity).
Page 99 Plumbing Systems moved before passing the cleanout tool through the piping. Passing a mechanical cleanout tool through the waterless valve may cause damage to the internal seal that may poten- tially allow sewer gases to escape to the RV interior. VENTS &...
Page 100 Plumbing Systems 6. Remove, clean and store the sewer hose. 7. Close the sewer hose housing dust cap. You can locate many dump stations throughout the United States and Canada in Woodall’s, Rand McNally Camp Guide, Good Sam Camp Guide, KOA Kampgrounds Camp Guide and various other publications.
Page 101 Plumbing Systems flush, the average recreation vehicle system uses one to three quarts (1-3 liters). For added convenience and better sanitation system performance, it is advisable to always have four to six inches (10 - 15 cm) of water in the toilet. To prevent help toilet blockage, always use RV grade sin- gle-ply toilet paper.
Page 102 This page is intentionally blank.
Page 103: Propane System
Maintenance Although both Grand Design RV and your selling dealer care- fully test for leakage, travel vibrations can loosen fittings. Have the propane system checked at all connections soon after the purchase of your RV, and after the initial filling of the propane tanks.
Page 104 Propane Systems PROPANE ALARM Please refer to the “Occupant Safety” section for information on this alarm; also read and follow the component manufac- turer instructions supplied in your Owner Information Pack- age. PROPANE GAS CONTAINER Propane “container” is a general all inclusive term used to describe a vessel that is used for storage and delivery of propane gas.
Page 105 Propane Systems The main shut off valve must be kept closed at all times un- less you are using the propane system or filling the propane cylinder. When the cylinder is disconnected from the hose, install the valve cover that is attached to the container. Close the propane cylinder main shut off valve by hand tightening only.
Page 106 Propane Systems 5. Check to make sure the LP regulator is mounted on the housing so the vent is pointed downward. The LP regulator vent must be unobstructed at all times. Be sure to check the vent opening after a freezing rain, sleet storm, or snow to make sure ice has not formed in the vent.
Page 107 Propane Systems pressure to 10-13 lbs. The second stage reduces the 10-13 lbs. of pressure further to an operating pressure of 11” W.C. (water column) or 6.35 oz. of outlet pressure to your applianc- The second stage is adjustable and will need to be adjusted by your dealer or qualified propane service technician for op- timum performance (this adjustment should always be made with a properly calibrated manometer).
Page 108 Propane Systems USING THE PROPANE SYSTEM After the RV is completely set up and you are prepared for camping enjoyment, use the following steps for propane oper- ation: 1. Close ALL burner valves, controls and pilot light valves. 2. Open the main valve in the propane container slowly to avoid a fast rush of propane vapor through the excess flow valve causing propane “freeze-up.”...
Page 109 Propane Systems Propane consumption depends on individual use of applianc- es and the length of time operated. Unless there is heavy use of hot water, the water heater consumption of propane is mini- mal. During cool temperature or high wind conditions, furnace consumption can be extremely high.
Page 110 This page is intentionally blank.
Page 111: Appliances
Appliances APPLIANCES The following contains quick highlights of the RV appliances and equipment, written for original factory-installed equip- ment usage. If there have been modifications or replace- ments made to your RV then these instructions may not apply (please contact the service center or technician who performed the modifications or substitutions if assistance is required).
Page 112 Appliances or the fire is fuel-fed, get clear of the RV and have the Fire Department handle the emergency. 3. Try to smother a flaming pan with a tight-fitting lid or cookie sheet. 4. Never pick up a flaming pan. 5.
Page 113: Electronics
Electronics ELECTRONICS AUDIO/VISUAL SYSTEM GUIDE The following is a basic overview of the audio/visual (A/V) electronics operation. The information in this section is written for original factory-installed equipment usage. If there have been modifications or replacements made to your electronics system then these instructions may not apply (please contact the service center or technician who performed the modifica- tions or substitutions if assistance is required).
Page 114 Electronics TV RECEPTION BASICS Television stations broadcast their signal "over the air" to sur- rounding areas. TV antennas are designed to receive the sig- nal broadcasted by the transmitters. Picture quality depends on the type of the antenna and the distance from the trans- mitter.
Page 115 Electronics When using analog TV: 1. Disconnect the coaxial cable from the TV and connect it to the input of the converter box. Use an extra coaxial cable to connect the output of the converter box to the input of the TV. 2.
Page 116 Electronics CABLE/SATELLITE OUTLET There are RG-6 coax cable/satellite outlet connections in the utility center. Please refer to the (customer supplied) satellite manufacturer’s instructions for setup, care and maintenance. While the cable RG6 cabling goes through in-line splitters to provide service at multiple locations, all satellite connections are directly run RG6 cables to specific locations (no splitters).
Page 117: Heating & Cooling
Heating & Cooling HEATING & COOLING The following contains quick highlights of the RV heating and cooling components. It is written for original factory-installed equipment usage. If there have been modifications or re- placements made to your RV then these instructions may not apply (please contact the service center or technician who performed the modifications or substitutions if assistance is required).
Page 118 Make sure you have sufficient pow- er available before operating your furnace. If you have any questions contact your dealer or Grand Design RV Customer Service. A qualified RV technician should perform all furnace maintenance at least once a year (more often depending on...
Page 119 Heating & Cooling FIREPLACE (IF SO EQUPPED) Refer to the OEM manual for operation, service and main- tenance information. If you have further questions, please contact your dealer. PATIO AWNING Please refer to the awning manufacturer’s operators manual. Keep your awning in good condition to prevent costly repairs. It is very important to keep the awning clean.
Page 120 This page is intentionally blank.
Page 121: Slideout Systems
Slideout Systems SLIDEOUT SYSTEMS Slideouts are designed to provide additional living space during stationary camping. Make sure you have sufficient power available before operating your slideout system, then level and stabilize the RV. If the RV is not level, the slideout rooms and/or mechanisms may become damaged as level- ing helps keep the RV square so the slideouts extend/retract and seal correctly.
Page 122 If a slide out system stalls out before reaching end of stroke OR if the slide room does not close and seal tightly, call your dealer or Grand Design RV Customer Service for trouble shooting and/ or repair assistance. MAINTENANCE...
Page 123 Slideout Systems 3. Push or pull slide room in as desired; a. Larger rooms may require several people to push. b. Keep both sides of room relatively even. 4. When the bedroom slide is completely in, plug both the motors back in to the control board (this applies the motor brake for road travel).
Page 124 Interior Low voltage The Schwintek InWall slide controller is capable of operating the bedroom slide room with as little as 8-volts. But at these lower voltages the amperage requirement is greater. Check the voltage at the battery; if the voltage is lower than 11-volts, it is recommended that the auxiliary battery be placed on a charger until it is fully charged.
Page 125: Interior
Interior INTERIOR CLEANING THE INTERIOR To keep the value of your RV, perform regular maintenance using the proper materials and procedures. Using the wrong cleaner may result in damage to the surfaces in your RV. Check the component manufacturer’s information for the recommended cleaning agent.
Page 126 Interior VINYL UPHOLSTERY Do not dry clean vinyl components. If they are dry cleaned, the vinyl on the reverse side will shrink, become hard and crack. If a spill does occur water base cleaners are recom- mended (solvents are not recommended as they may have an adverse reaction to the specific backing of your upholstery fabric).
Page 127 Interior CABINETRY & TABLES To keep hardwood doors, cabinet fronts and hardwood tables looking like new regularly dust with a soft cloth dampened with a cleaning polish or mild detergent solution. Avoid using ammonia based products or silicone oils as they may cause damage if used over a long period of time.
Page 128 Interior For additional information on the removal of difficult stains or surface damage repair, refer to the countertop manufacturer’s user guide. FLOORING Always test a cleaning agent in an inconspicuous area for colorfastness. Carpet Vacuum regularly with a vacuum cleaner with a revolving brush or beater bar.
Page 129 Interior ABS PLASTIC ABS plastic components will retain their original beauty with reasonable care. Dust and wipe clean with soft, damp cloth or chamois, wiping gently. Do not use gritty or abrasive particle soaps or scouring compound to clean ABS plastic. Avoid us- ing “Citrus”...
Page 130: Convert Sofa Into A Bed
Interior CONVERT SOFA INTO A BED 1. Remove the seat back cushions. Seat back cushion Seat back cushions removed 2. Lift the front of the sofa up, uncovering the legs. 3. Extend the legs to the outmost position. Lifted front of sofa Legs extended 4.
Page 131: Convert Dinette Into A Bed
Interior CONVERT DINETTE INTO A BED 1. Remove back cushions from the dinette. Seat back cushions Seat back cushions removed 2. Find the yellow cap cover on the front leg of the table and flip the lever to the right. Yellow cap cover and lever...
Page 132 Interior Convert dinette into a hide-a-bed (cont.) 4. Place the two matching cushions on the table and your dinette is converted to a bed.
Page 133: Exterior
Exterior EXTERIOR CLEANING THE EXTERIOR To protect your RV's exterior finish, wash it often and thor- oughly. Regular cleaning and waxing will help protect the exterior. If chalking occurs, wash and try to wax a small area to see if the luster returns. If the exterior becomes scratched, nicked or cracked have your dealer inspect the RV.
Page 134 Exterior We recommend that you do not take your RV through auto- matic car washes. Extreme caution should be used if utilizing any type of pressure sprayer around all attachments, doors, windows, appliance vents, etc. Avoid forcing water inside the RV, which could possibly damage component parts.
Page 135 Exterior Waxing your RV Wax your RV once or twice a year, or when painted surfac- es do not shed water well. Use a soft cloth to apply a small amount of wax to the painted surfaces. After the wax has dried, polish the RV with a dry, soft cloth.
Page 136 Exterior 1010 Non-Sag Sealant over top of any existing sealant need- ing resealed. Please note ONLY ALPHA SUPPLIED SEAL- ANTS SHOULD COME IN CONTACT WITH THE SUPER- FLEX ROOF MEMBRANE. While you are cleaning the exterior roof, also inspect the roof vents (including sealants) for cracks and keep them clean.
Page 137 Exterior sealant and foam. In general, sealants do not have "set" life- times. Varying environmental factors affect the pliability and adhesiveness of sealants. You or your dealer must: • Inspect all sealants, a minimum of every six months. Make sure to check the roof and all four sides of the RV including al moldings, doors, vents and exterior attachments.
Page 138 Exterior Prior to storage – if storing for the winter, be sure the RV is winterized. • Check your roof and other surfaces to ensure there is no damage and potential leakage that might otherwise go unnoticed until it is too late. •...
Page 139 Exterior SUGGESTED MAINTENANCE CHECKLIST This list is a quick reference sheet for suggested areas of reg- ular maintenance. Review all manufacturer’s operators manu- als supplied with your RV to perform these listed maintenance items. Prior to first trip • Inspect and reseal as needed. •...
Page 140: Required Maintenance Schedule
Exterior REQUIRED MAINTENANCE SCHEDULE Procedure to be Performed: Maintenance schedules are minimum requirements. Extended use, extreme Maintenance Item temperatures, high humidity or other extreme condi- tions will require more frequent maintenance. Check settings & adjustments per manufacturers guide. Appliances Make sure burner tubes/vents are clean/unobstructed. Clean &...
Page 141 Exterior REQUIRED MAINTENANCE SCHEDULE Procedure to be Performed: Maintenance schedules are minimum requirements. Extended use, extreme Maintenance Item temperatures, high humidity or other extreme condi- tions will require more frequent maintenance. Safety equipment Check operation of detectors - recharge and replace batteries every 6 months if equipped.
Page 142 This page is intentionally blank.
Page 143: Basic Troubleshooting
Basic Troubleshooting BASIC TROUBLESHOOTING ELECTRICAL POWER No AC power to RV • Check circuit breakers at power center. The 120-volt circuit breaker may be off or tripped. • Have a dealer check that there is power to the shore- line receptacle. FURNACE Furnace does not ignite and/or cycles frequently •...
Page 144 Basic Troubleshooting Generator starts, but lacks electrical power • Breaker switches may be off or tripped at generator. Reset breaker if necessary. • Breaker may be off or tripped inside power center. Reset main breaker if necessary. Generator makes clicking sound when trying to start •...
Page 145 Basic Troubleshooting Holding tank lights deliver false readings (i.e. 1/3 or 2/3 indication) • Verify tank is empty. • Debris may be built up across probes. Clean and flush tank using four parts vinegar mixed to two parts water. Propane indicator display indicates E or F all the time •...
Page 146 Basic Troubleshooting Gas smell • Check all connections with leak detector solution. Food burns on the bottom • Oven too full for proper circulation. Use smaller pans or put less food in the oven. PROPANE GAS Smell gas in or around unit •...
Page 147 Basic Troubleshooting • Have a qualified RV technician check that the vents and chimney at the rear of the refrigerator are clear and unobstructed. • Have a qualified RV technician make sure the burner jets or burners are not dirty or damaged. •...
Page 148 Basic Troubleshooting • Should your air conditioner still not work after the above checks have been made, contact a qualified service facility to perform more extensive testing. RUNNING LIGHTS Running lights not working • Blown fuse. Replace fuse with one of the same am- pere rating.
Page 149 Basic Troubleshooting TERMINATION VALVE Termination valve leaks • Debris keeps valve from seating. Clear debris from and around valve O-ring set. • Bad gasket. Have your dealer or qualified RV techni- cian replace gasket with new. TV ANTENNA Poor TV reception •...
Page 150 Basic Troubleshooting WASTE TANK Waste tank (black) will not drain • Buildup or debris in tank. Check for buildup in tank at stool. • Always use a minimum amount of biodegradable toilet paper. • Always use plenty of water when flushing. •...
Page 151 Basic Troubleshooting air pressure through the relief valve support flange. In either case, with the drain valve open, the air pressure will force the remaining water out of the tank. If air pressure is unavailable, you may flush your tank with fresh water.
Page 152 Basic Troubleshooting Pump will not shut off, runs when faucet is closed • Turn off the pump or city water supply. • Check for damp areas around plumbing appliances. • Check plumbing for leaks and inspect for leaky valves on toilet. •...
Page 153: Glossary
Glossary GLOSSARY AC ELECTRICITY – Alternating current also known as shoreline power. For purposes of this manual, it refers to 120-volt AC (abbreviated 120 VAC). AMP – Short for ampere, the electric current unit of measure. RV sites with electric hookup will specify the maximum amps supported, which generally come in units of 20, 30, or 50 amps.
Page 154 Glossary CAMBER (WHEEL ALIGNMENT) – The number of degrees each wheel is off of vertical. Looking from the front, tops of wheels farther apart than bottoms means "positive camber". As the load pushes the front end down, or the springs get weak, camber would go from posi- tive to none to negative (bottoms of wheels farther apart than tops).
Page 155 12-volt DC (abbreviated 12 VDC). DEALER – For purposes of this manual, this refers to the independent dealer authorized to sell and/or service your camper by Grand Design RV. This term will be used in this context unless specified otherwise.
Page 156 Glossary FIFTH WHEEL (FW) – A trailer and hitch configuration connected to the tow truck direct- ly above the rear axle by way of a special fifth wheel hitch. This causes several feet of the connected trailer to hang over the tow truck, placing about 15 to 25% of the trailer's weight on the rear axle of the truck.
Page 157 Glossary GROSS COMBINED WEIGHT RATING (GCWR) – The MAXIMUM ALLOWABLE COM- BINED WEIGHT of the tow vehicle and attached towed vehicle. GCWR assumes that both vehicles have functioning brakes, with exceptions in some cases for very light towed vehi- cles, normally less than 1,500 pounds. (Check your tow vehicle’s towing guide.) GROSS TRAILER WEIGHT RATIING (GTWR) –...
Page 158 Glossary HOUSE BATTERY – One or more batteries in a RV for operating the 12 volt lights, applianc- es, and systems. House batteries can be 12 volt units tied in parallel or pairs of 6 volt bat- teries tied in series (to double the voltage). The term house battery is of more significance in motor homes because they contain one or more other batteries for the operation of the engine, referred to as the chassis or starting batteries.
Page 159 Glossary LEVELING JACK – A jack lowered from the underside of trailers and motor homes for the purpose of leveling the vehicle. A leveling jack is designed to bear a significant portion of the RV's weight. LP GAS – Liquefied Petroleum Gas, commonly written as "LP Gas". Two examples of LP Gas are propane and butane.
Page 160 Glossary POWER SOURCE – Also referred to as shore power, this refers to the receptacle outlet you are using to plug in your shoreline power cord. This can be a campsite power box or elec- trical box, a residential receptacle outlet specifically wired for your camper or a generator (customer supplied).
Page 161 Glossary SLEEPING CAPACITY WEIGHT RATING (SCWR) – The manufacturer's designated num- ber of sleeping positions multiplied by 154 pounds (70 kilograms). SLIDEOUT – A compartment added to an RV to increase interior space. It slides into the body during travel and slides out when parked. SNOWBIRD –...
Page 162 Glossary TRAVEL TRAILER (TT) – Also referred to as "conventional trailers," these types of rigs have an A-frame and coupler and are attached to a ball mount on the tow vehicle. Travel trailers are available with one, two or three axles. Depending upon tow ratings, conventional trailers can be towed by trucks, cars or sport-utility vehicles.
Page 163 Glossary WET WEIGHT – The weight of the vehicle with the fuel, freshwater and propane tanks full. Note: • Propane weighs 4.25 pounds per gallon • Water weighs 8.3 pounds per gallon • Gasoline weighs 6.3 pounds per gallon • Diesel fuel weighs 6.6 pounds per gallon WIDE BODY –...
Page 164: Index
Index INDEX 7-way wire harness…………………………………………………………………………………67 12-volt DC system…………………………………………………………………………………79 12-volt fuse panel……………………………………………………………………………………80 120-volt AC system…………………………………………………………………………………75 120-volt circuit breakers……………………………………………………………………………76 Additional safety precautions………………………………………………………………………47 Air conditioner………………………………………………………………………………………115 Auxiliary battery……………………………………………………………………………………79 Basic troubleshooting……………………………………………………………………………141 Battery disconnect switch…………………………………………………………………………79 Black/grey water system……………………………………………………………………………96 Black tank flusher……………………………………………………………………………………98 Breakaway switch……………………………………………………………………………………67 Carbon monoxide……………………………………………………………………………………36 Cargo carrying capacity label………………………………………………………………………51 Component manufacturer contact information…………………………………………………29 Component manufacturer warranty information…………………………………………………30 Condensation………………………………………………………………………………………43...
Page 165 Index Microwave…………………………………………………………………………………………109 Monitor panel………………………………………………………………………………………83 One year limited warranty…………………………………………………………………………17 Oven………………………………………………………………………………………………110 Propane gas alarm…………………………………………………………………………………38 Propane leak test…………………………………………………………………………………101 Propane regulator…………………………………………………………………………………104 Propane system……………………………………………………………………………………101 Refrigerator…………………………………………………………………………………………109 Roof vent…………………………………………………………………………………………115 Required maintenance schedule…………………………………………………………………138 RV storage…………………………………………………………………………………………135 Safety alert symbols…………………………………………………………………………………8 Safety defects………………………………………………………………………………………10 Sanitizing the potable water system………………………………………………………………91 Schwintek IN-WALL slideout……………………………………………………………………120 Shore line power cord………………………………………………………………………………76 Slideout systems…………………………………………………………………………………119 Smoke...
Page 166 Customer Notes...
Page 167 Customer Notes...
Page 168 Customer Notes...
Page 169 Customer Notes...
Page 170 Customer Notes...
Page 171 Customer Notes...
Page 172 Customer Notes...
Page 173 Customer Notes...
Page 174 Customer Notes...
Page 175 Customer Notes...
Page 176 Customer Notes...
Page 177 Customer Notes...
Page 178 Customer Notes...
