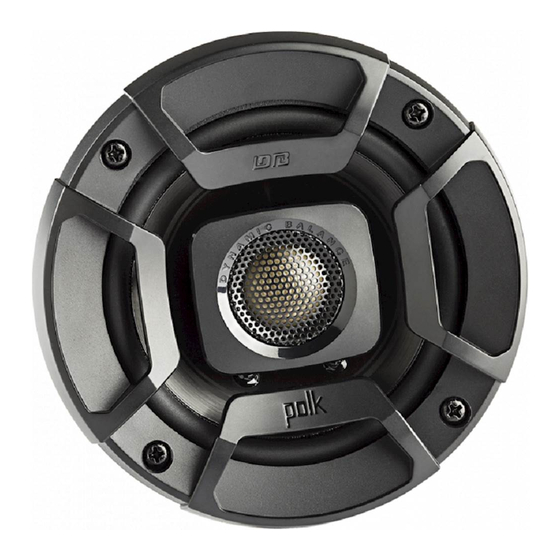

Polk Audio DB 402 Owner's Manual
  1. Manuals
  2. Brands
  3. Polk Audio Manuals
  4. Speaker System
  5. DB 402
  6. Owner's manual

Polk Audio DB 402 Owner's Manual

Hide thumbs Also See for DB 402:

Advertisement

Quick Links

Download this manual
Owner's Manual
DB 402, DB 462, DB 502, DB 572, DB 5252,
DB 652, DB 692, DB 6502

Advertisement

loading
Need help?

Need help?

Do you have a question about the DB 402 and is the answer not in the manual?

Questions and answers

Related Manuals for Polk Audio DB 402

Summary of Contents for Polk Audio DB 402

  • Page 1 Owner’s Manual DB 402, DB 462, DB 502, DB 572, DB 5252, DB 652, DB 692, DB 6502...
  • Page 2 Getting Started Please inspect your loudspeakers carefully. Notify your Polk dealer if you notice any damage or missing items. Keep the carton and packing material; this will do the best job of protecting your loudspeakers if they must be transported. Safe Limits of Operation Damage to loudspeakers can occur when an amplifier, regardless of its wattage, is made to play at higher listening levels than it can produce at low distortion levels.

  • Page 3: Wiring Diagrams

    Wiring Diagrams Figure 1 Figure 1 Basic coaxial connection Figura 1 Conexión coaxial básica Figure 1 Connexion d’un hautparleur coaxial Abbildung 1 Einfache koaxialverbindung Figura 1 Connessione coassiale di base Figure 2 Basic component connection installing DB 5252, DB 6502 Figura 2 Conexión de componentes básicos instalación de DB 5252, DB 6502 Figure 2...
  • Page 4 Figura 3 Installazione del DB 402, DB 522, DB 652, DB 5252 & DB 6502 modelli circolari Figure 4 installing DB 402, DB 522, DB 652, DB 5252 & DB 6502 round models with grille Figure 4 Figure 4 installation: DB 402, DB 522, DB 652, DB 5252 & DB 6502 avec grille Figura 4 instalación del modelo DB 402, DB 522, DB 652, DB 5252 &...
  • Page 5 Figure 5 spacer/adapter bracket (for DB 652 / DB 6502 installation only) support adaptateur-espaceur (pour l’installation des transducteurs DB 652 / DB 6502 seulement) soporte espaciador/adaptador (solamente para la instalación de los excitadores DB 652 / DB 6502) abstandsring-adapter (nur für die DB 652 / DB 6502-treiber-installation) staffa di adattamento/distanziatrice (solo per l’installazione del driver DB 652 / DB 6502)
  • Page 6 Figure 6 Figure 6 Installing DB 462 & DB 572 oval models Abbildung 6 Figure 6 Installation von DB 462 & DB 572 ovale modelle Installation: DB 462 & DB 572 modèles ovales Figura 6 Figura 6 Installazione del DB 462 & DB 572 modelli ovali Instalación de los modelos ovalados DB 462 &...
  • Page 7 Figure 7 Figure 7 Installing DB 692 oval model with grille Figure 7 Abbildung 7 Installation: DB 692 modèles ovale avec grille Installation von DB 692 ovales modell mit grill Figura 7 Figura 7 Instalación de los modelos ovalado DB 692 con rejilla Installazione del DB 692 modello ovale con griglia...
  • Page 8 Figure 8 Tweeter Attenuation Jumper Tweeter qui atténue le câble de liaison Puente para atenuar el altavoz de agudos Die Hochtöner-Dämpfungsbrücke Il jumper dell’attenuazione del tweeter Figura 8 Montaje de crossover deje espacio para la ventilación. Figure 8 Abbildung 8 Crossover mounting allow for ventilation clearance.
  • Page 9 Figure 9 (DB5252) Tweeter attenuation switch a 3-position switch (0db, +3db, +6db) allows you to adjust tweeter level for the tonal balance thats right for your car and system. Figure 9 (DB5252) Commutateur d’attenuation du tweeter un commutateur à trois positions (0db, +3db, +6db) vous permet d’ajuster le niveau du tweeter selon vos préférences et l’acoustique de votre voiture.
  • Page 10 Figure 10 DB 5252, DB 6502 Figure 10 Flush mount tweeter mounting 1. Check for proper clearance: The flush mount kit is 1” (26mm) deep. 2. Mark the center of the spot and cut a 2” (50.8mm) diameter hole using a hole saw, drill bit or razor knife.
  • Page 11 Figure 11 DB 5252, DB 6502 Figure 11 Surface mount tweeter mounting 1. Using the base of the surface mount cup as a template, mark the screw hole and drill them using a 1/8” (3mm) drill bit. Drill a second hole (for the speaker wire) using a 3/16”...
  • Page 12 DB Plus series coaxial and component systems specifications DB 402 DB 522 DB652 DB 462 DB572 DB692 DB 5252 DB 6502 Type 4" coaxial 5.25" 6.5" 4" x 6" 5" x 7" 6" x 9" 5.25" 6.5" coaxial coaxial coaxial...
  • Page 13 DB 402 DB 522 DB652 DB 462 DB572 DB692 DB 5252 DB 6502 Peak Power handling Continuous Power handling Nominal Impedance (ohm) 107-20K 90-20K 75-20K 110-20K 70-20K 55-20K 85-20K 70-20K Frequency response (Hz) 14.07 17.55 22.94 17.55 Grille height Sensitivity (dB)
  • Page 14 Limited Warranty Polk Audio, Inc. warrants the original purchaser only that this Polk DB Product (the Product) will be free from defects in materials and workmanship for a period of (1) one year from the date of original retail purchase from a Polk Authorized Dealer.
  • Page 15 In no event will Polk Audio, Inc. be liable to you for any incidental or consequential damages arising out of the use or inability to use the Product, even if Polk Audio, Inc. or a Polk Dealer has been advised of the possibility of such damages, or any other claim by any other party.
  • Page 16 1 Viper Way Vista, CA 92081 800-638-7276 www.polkaudio.com HBP3606...
