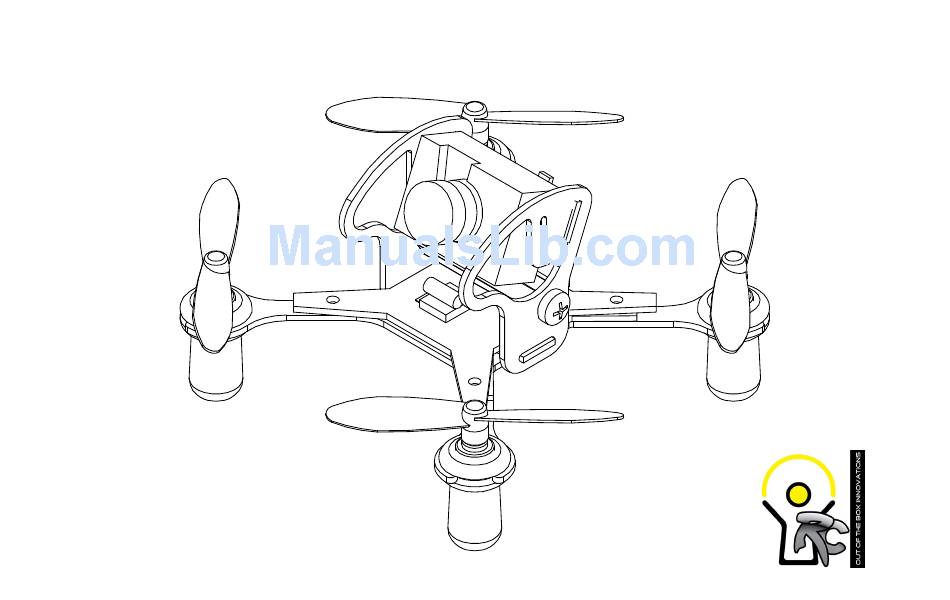

- Page 1 H8CF101 Assembly manual V1.20161004...
- Page 2 DISCLAIMER: Out of the Box Innovations RC can not forsee the equipment you will purchase or how you will use the product when you recieve it. We are not responsible for any injuries or property damage to any- one or anything as it relates to this product. USE AT YOUR OWN RISK!
- Page 3 Please go over this list below. Verify that all You will need these items to fly your kit. objects on this list are accounted for before building your quad-copter. Eachine H8 or equivalent quad-copter. 8.5mm brushed motors x4 55mm-65mm propellers for the motors x4 Main Plate (though extras are always recommended) For FPV flight...
- Page 4 PCB Preperation Side Plate Assembly Remove the screws from under the H8 frame. Gently re- Attach the 25mm standoff to the side plate as shown with move the top and de-solder the motors from the PCB. 1 nylon screw. Gently remove the PCB from the quad-copter. Solder your power tail from the male PICO connector to your PCB at the point where the battery connects to the PCB.
- Page 5 PCB Preperation Motor Assembly Gently pinch the rubber grommet and insert into the Put a tiny bit of soapy water on the bottom of each grom- groove at the end of each limb. Release the gromment met. Gently press the motors until they slide into place and gently adjust any material until it rests in the groove.
- Page 6 PCB Preperation Ready to fly Gently press on your new 55mm-65mm propellers onto Now you’ve completed your build. Be sure to research the motors verifying the direction of the props. your particular equipment and be sure it is 100% opera- Gently press on the rubber caps to the underside of the tional before attempting to fly.
