Summary of Contents for Mo-vis P014-40

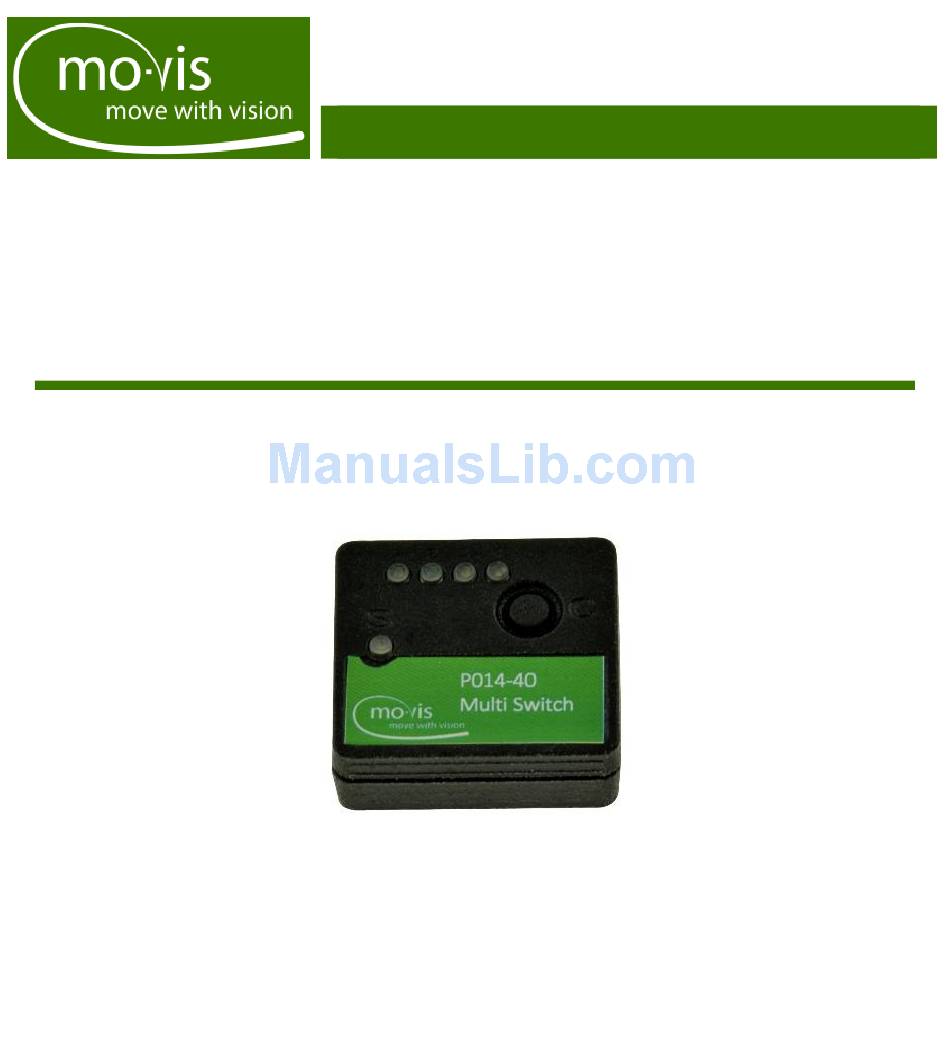

- Page 1 User & Installation Manual Multi Switch Control multiple outputs with one input Multi Switch (P014-40) Multi Switch Proximity sensors (P014-41)
-
Page 2: Contact & Product
Contact & Product mo-Vis bvba Biebuyckstraat 15 D 9850 Nevele - Belgium Website: www.mo-vis.com E-mail: contact@mo-vis.com Telephone: +32 9 335 28 60 Hand Warmer User & Installation manual Produced and published by mo-Vis bvba, Belgium Edition October 2016 Manual item: D-P014-40-70-00... -
Page 3: Table Of Contents
Parts and accessories ---------------------------------------------------------- 17 Technical description of the Multi Switch -------------------------------- 20 Technical description of the Multi Switch Proximity sensors -------- 22 mo-Vis Configurator software ----------------------------------------------- 24 Installation instructions -------------------------------------------------------------- 26 Preparations --------------------------------------------------------------------- 27 Installation of the Multi Switch --------------------------------------------- 28... - Page 4 Lock Mode ----------------------------------------------------------------------- 35 Calibration Mode --------------------------------------------------------------- 36 Troubleshooting ----------------------------------------------------------------------- 37 Error codes ----------------------------------------------------------------------- 39 Maintenance ---------------------------------------------------------------------------- 42 Parameter settings -------------------------------------------------------------------- 43 Technical data -------------------------------------------------------------------------- 48...
-
Page 5: Important Information About This Manual
Important information about this Manual Congratulations for choosing a mo-Vis product! If you would like to learn more about mo-Vis and its products, we invite you to visit our website: www.mo-vis.com. Before you install or begin using this product, it is important that you read and understand the content of these installation and operating instructions, the safety instructions in particular. -
Page 6: Ordering Documentation
We reserve the right to make changes to the product without prior notice. Ordering documentation You can download additional copies of this User & Installation manual on the mo-Vis website: www.mo-vis.com. -
Page 7: Support, Scrapping And Spare Parts
Support, scrapping and spare parts Technical support In case of technical problems, we advise you to contact your dealer. If the dealer is not available, or unknown, please contact mo-Vis bvba by email support@mo-vis.com or by phone +32 9 335 28 60. -
Page 8: Warranty
(RA) number from mo-Vis and the product must be shipped to a service centre designated by mo-Vis. mo-Vis will repair or, at mo-Vis’ option, replace any product covered by the warranty. - Page 9 The Multi Switch unit and Multi Switch proximity sensors are considered as non-serviceable parts.
- Page 10 Understanding usage The health care professional (authorised installer) is responsible for understanding the intended use of the mo-Vis equipment, the specifications and its programming parameters. mo-Vis cannot be held responsible for damage caused by incorrect installation or incorrect use of the product. Misuse, mishandling or storage is not...
-
Page 11: Safety Precautions
Safety precautions General Multi Switch is intended to control multiple devices/technical aids with one input device (switch). Incorrect use or installation may lead to risk of injury to the user and damage to the connected device or other property. In order to reduce these risks, you should carefully read this instruction manual, paying particular attention to the safety instructions and warning texts. - Page 12 CAUTION! Limited liability mo-Vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual.
- Page 13 Use only spare parts or accessories approved or recommended by mo-Vis. All other use could lead to changes which might impair the function and safety of the product. It could also lead to the warranty becoming void.
- Page 14 CAUTION! Testing Multi Switch should always be tested in a safe surrounding after the physical installation of the Multi Switch unit and/or a Multi Switch proximity sensor or adjustment of the parameters.
-
Page 15: Design And Function Of The Multi Switch
The Multi Switch unit is USB-powered, and contains its own control electronics. One 3.5 mm stereo input jack allow to connect a mechanical switch or a mo-Vis proximity sensor as input device. Two 3.5 mm stereo jacks allow to connect up to four separate outputs. - Page 16 The small 12 mm sensor allows installation on a very limited space. The regular 24 mm sensor offers a more sensitive activation, thanks to a larger sensor surface. The sensitivity of both sensors is fully adjustable with the mo-Vis Configurator software.
-
Page 17: Parts And Accessories
Parts and accessories Multi Switch A Multi Switch (P014-40) consists of the following parts: Product description Product code Multi Switch unit P012-40 USB connection lead PMCAB-00031 A to B micro (100 cm) Multi Switch manual, with D-P014-40- Serial number sticker... - Page 18 P014-20 sensor 12 mm Multi Switch proximity P014-23 sensor 24 mm Optional: Splitter cable To connect multiple output devices, a 3.5 mm stereo jack splitter to 3.5 mm mono jack cable is required. Contact your dealer or mo-Vis for ordering.
- Page 19 Contact your dealer or mo-Vis for more information and assistance on choosing the right power source, e.g. power bank. Multi Switch...
-
Page 20: Technical Description Of The Multi Switch
Tip is the sensing Use the special input, Ring is the proximity sensors Shield (Sleeve is supplied by mo-Vis. open). Outputs The outputs are potential free and fully isolated from the rest of the Multi Switch. The four outputs are arranged as two groups of two. Each group is connected to a stereo 3.5 mm jack. - Page 21 The second output is connected to the ring and the sleeve is common for both outputs. Output Location Green tip Green ring Yellow tip Yellow ring Output LEDs Four green LEDs at the front show the output. The LEDs indicate the current selected channel, and eases to select the desired channel.
-
Page 22: Technical Description Of The Multi Switch Proximity Sensors
PC to interact with the mo-Vis Configurator software. See the configurator manual for more information. Operation and level selection At the front of the device a push button is provided. (to learn more about the function of the push button see p.22 : Calibration mode –... - Page 23 CAUTION Moisture (e.g. rain) is also a conductive substance. A few drops of rain will not cause issues, but a water film can cause the sensor to be activated all the time. The bigger the surface of the sensor the more sensitive it will be.
-
Page 24: Mo-Vis Configurator Software
For all details on how to install and use the software, we advise you to consult the manual of the mo-Vis Configurator software (included in the software download). User profiles Depending on your profile (user, attendant, dealer, OEM), you will... - Page 25 For a user profile, no password is required. Attendant, Dealer and OEM profiles require a password. Multi Switch...
-
Page 26: Installation Instructions
Installation instructions Safety precautions CAUTION The Multi Switch is not waterproof. Mount the device in such a way that no water (rain) can enter the device. Some drops of water will not cause problems, excess water must be avoided. CAUTION The Multi Switch Proximity sensors may be influenced by Moisture. -
Page 27: Preparations
CAUTION The Multi Switch should not be used in conditions where malfunctioning of the device can cause potential risk situations. CAUTION The device contains a controller that continuously checks the integrity of the device, whenever a problem is detected the device will be switched off automatically. -
Page 28: Installation Of The Multi Switch
Connect the Multi Switch with the USB connection lead to a PC on which the mo-Vis Configurator software is installed. The device will be powered on automatically and an USB connection will be established allowing to use the mo-Vis configurator. - Page 29 Make sure that the user has visual contact with indication LEDs at the front of the Multi Switch, to enable him to check the status. Although every action can trigger an auditive signal, it is not advised to have this signal as only available check for the user. Secure all cables with straps or fasteners.
-
Page 30: Usage
Usage Safety precautions CAUTION The Multi Switch Proximity sensors may be influenced by Moisture. Moisture (e.g. rain) is a conductive substance. A few single drops of rain will not cause issues, but a water film can cause the sensor to be activated all the time. CAUTION Keep radio transmitters (e.g. -
Page 31: First Time Use
First time use Dealer assistance During first time use by the user it is advised that the dealer or service engineer assists and explains the different possibilities to the customer (the user and/or his attendant). If needed, the dealer can make final adjustments. User testing It is important that the customer is fully aware of the installation, how to use it and what can be adjusted to optimise his experience. -
Page 32: User Adjustments
Is every function accessed by the switch functioning providing the least effort for the user? If needed, adjust the Multi Switch (with the mo-Vis Configurator software if required) and retest till optimal position and functioning. Explain to the customer possible problems and how to address them (see Troubleshooting). -
Page 33: Operation Modes
Operation modes Note: When power is removed from the Multi Switch all outputs will return to their open condition. Select Modes The select mode is used to select one of the active outputs. If only one active output is selected, the select modes have no meaning because there is nothing to select. - Page 34 A corresponding number of beeps is generated. The selection LEDs are activated. When the desired output is selected, press again to activate it. The output will react depending on the output’s ‘Lock’ setting: the output is closed as long as the input is kept closed, or ...
-
Page 35: Momentary/Timed Or Switched
Momentary/Timed or Switched Momentary The output will be closed as long as the input is closed, or The output will be closed for a set time. Switched The output will toggle between open and closed. This is useful to switch something on continuously. -
Page 36: Calibration Mode
Calibration Mode Auto The system will automatically adjust over time. This is only usable when the user of the device is able to keep a distance of at least 30mm from the sensor when not operated. Manual Ask the user to go to the position where he would like the input to be open, then press the button on the box, the system will store that position as the open reference. -
Page 37: Troubleshooting
Troubleshooting Flash codes When a fault occurs the LED will start to flash. There is a long delay and then a number of flashes with a short delay. Count the number of flashes and look up the according code in the table below. Flash Reason Required action... - Page 38 Scheduler fault Update Software Replace PCB Coding Error Update Software Replace PCB If the problem persists after intervening, please contact your local dealer or mo-Vis Service Engineer to attend to the problem.
-
Page 39: Error Codes
Error codes The system maintains a fault log with counters. Each time a specific fault occurs its counter will be incremented by one (the maximum count value is 254). The fault log can be accessed by the configurator (Dealer Level), it is possible to clear one fault counter or all counters. - Page 40 went wrong. Update MSP Sub Command Unknown Sub Firmware or update Unknown Command was Configurator Software. received. Try again. MSP Argument Invalid argument Invalid received. MSP Device Not Device as not ready to Ready receive an MSP command. MSP Device Wrong The device is not able State to receive a command...
- Page 41 The Proximity Sensing Remove dust in device Sensor Circuit is faulty and replace device if not solved. Multi Switch...
-
Page 42: Maintenance
Maintenance Cleaning Clean all parts of the Multi Switch and the optional Proximity sensors on a regular basis (monthly), or whenever needed. Gently remove dust and dirt with a damp cloth. Use only non-aggressive disinfectant cleaning agents WARNING! Do not immerse the unit in water or do not use excessive amounts of liquid. -
Page 43: Parameter Settings
Parameter settings With the mo-Vis Configurator Software you can change the parameters of the Multi Switch. Depending on your user profile (user, attendant, dealer, OEM), you will be able to change a number of parameters. Input Settings Default/ Parameter Description... - Page 44 is done at an interval of ‘Select Time’. Active Number of outputs used. If Outputs set to ‘1’, the switch will never enter Select mode. Calibration Auto The system will Method automatically adjust over time. Only to be used if the (proximity user of the device is able to mode only)
- Page 45 Output The Select Sequence is: Tip-Tip Sequence Green Tip - Yellow Tip - Green Ring - Yellow Ring. Tip-Ring The Select Sequence is: Green Tip - Green Ring - Yellow Tip - Yellow Ring. Debounce 2500 In mS Time Select Time 5000 1000 In mS...
-
Page 46: Output Settings
Output Settings There are four groups, one group for each output. The parameters for each group are equal. Default/ Parameter Description options Momentary The output will be closed as Mode / Timed long as the input is kept closed, or the output will be closed for a set time. - Page 47 for a time longer than the ‘Quit Time’. Quit Time 1000 25000 5000 The time needed to close the input in order to open the Lock. The parameter ‘Lock’ needs to be set ‘Yes’ for this output. Multi Switch...
-
Page 48: Technical Data
1.42 in x 1.57 in x 0.67 in (HxWxD) Voltage supply Over micro USB : 5V Power consumption 14 mA Input mechanical switch (Closed max 200 Ohm, Open min 150 kOhm) mo-Vis proximity sensor, 12mm or 24mm... -
Page 49: Cable Length
Output : 60V, 75mA, Output On resistance : 10 Ohm Cable length Sensor 12 mm : 120 cm (0.49 ft.) Sensor 24 mm : 120 cm (5.9 ft.) Tested According (relevant sections) EN12182 Multi Switch... - Page 50 Installation date: . . / . . / ..Dealer: ....Dealer stamp: Serial number sticker...
