Waterproof Housing; Camera Frame - MAXTEK 74269 User Manual

Assembling Mounts

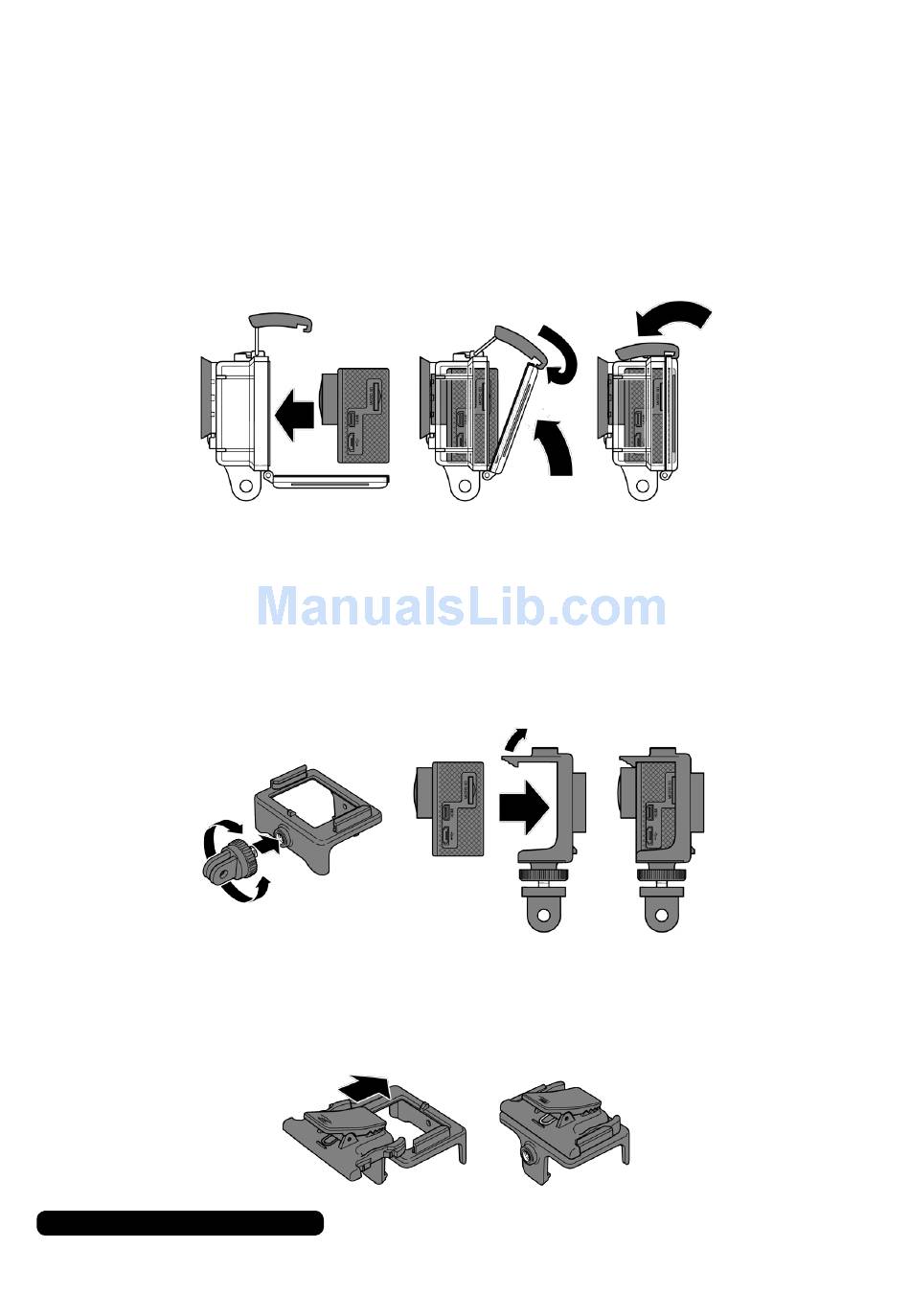

Waterproof Housing

Lower the rear door of the waterproof housing and insert the
camera. Close and hook the catch over the rear lip of the door.
Snap the catch into position by pushing forward over the housing
to ensure a waterproof seal.

Camera Frame

Screw the camera frame mount to the brass screw mounts on the
camera frame. Turn the locking screw to secure the placement.
Raise the clip enough to slide the camera into position. Push the
camera into the frame and check that the clip is over the front edge
to keep the camera in the frame.
Alternatively you can use the personal clip to mount the camera.
Slide the personal clip on the back of the camera frame. Use the
crocodile clip to mount the camera on clothing, straps or bags.
