747ProS GPS Trip Recorder
User's Manual
Published on 7-Jan-2011
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 747ProS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transystem 747ProS

Summary of Contents for Transystem 747ProS

  • Page 1 747ProS GPS Trip Recorder User’s Manual Published on 7-Jan-2011 V1.0...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Before you begin..................... 4 1.1 Note and Warning ...................... 4 1.2 Introduction ........................ 5 1.3 Features ........................5 1.4 Applications......................... 5 1.5 Appearance ......................... 6 1.6 Power Switch and Push Button................. 7 1.7 Appearance & LED indication.................. 7 1.8 Buzzer Alarm ......................
  • Page 3 Appendix B. Free software from partners ..............18 Appendix C. Certification....................20 Appendix D. Warranty Information................22...

  • Page 4: Chapter 1 Before You Begin

    The + Lithium-Ion battery inside the 747ProS should be recycled. For a long period not using 747ProS, take out the battery and store it in dry/cool places. For safety, keep the 747ProS and all accessories out of children’s reach.

  • Page 5: Introduction

    747ProS is a powerful GPS Datalogger comes with the latest MTK chipset to work under most of circumstance. 747ProS allows you to log your route by setting the interval of time/ distance/ speed and intelligent auto gear function and motion sensor for smart logging(smart mode) to save memory and power.747ProS also implement with special power circuit...

  • Page 6: Appearance

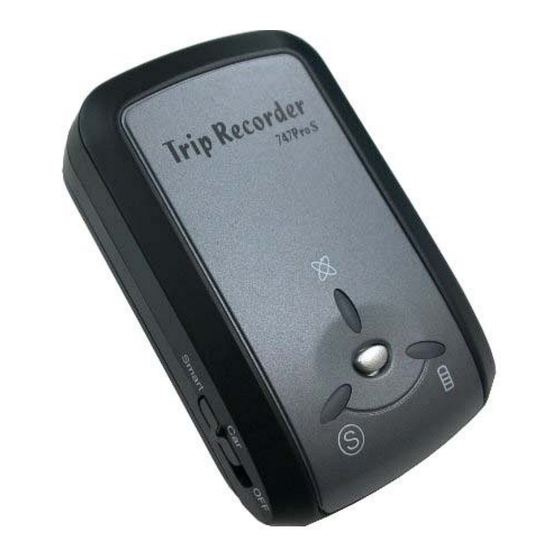

    1.5 Appearance 1. Slide switch (Power off/ Car mode/ Smart Log mode) 2. Smart Log LED 3. Battery status LED (red/green) 4. GPS LED (red/green) 5. DC jack (mini USB type) 6. POI button...

  • Page 7: Power Switch And Push Button

    Push LED will blink 3 times which means the POI is recorded. 1.7 Appearance & LED indication The 747ProS GPS Trip Recorder has three LED lights, one is Smart Log LED, the 2 one is Battery Status LED, the 3 one is GPS Status LED/ Push to log LED.

  • Page 8: Buzzer Alarm

    1.8 Buzzer Alarm 747ProS is equipped with a buzzer and it supports the alarm by sound. 747ProS will beep as an alarm to let you know when the GPS position is fixed, or when you push the POI button or switch to change to car / smart log mode.

  • Page 9: Chapter 2 Getting Started

    3~4 hours and you can charge from PC/ Notebook’s USB HOST or from cigarette-lighter in car. For the 1st time you use the 747ProS, please charge battery until it is full. The LED that represents the battery is the right-most battery icon.

  • Page 10: Helpful Tips

    - If no LED light display that means battery is fully charged. 2.3 Helpful Tips - It’s better to turn off the 747ProS when you don’t use it, or the serial Flash's life can’t last long. - Some vehicles having heavy metallic sun protecting coating on windshields may affect GPS signal receptions - Driving in and around high buildings may affect GPS signal receptions.

  • Page 11: Chapter 3 How To Configure Your Gps Record

    3.2 GpsView software Open GpsView software and select correct COM port and Baud Rate and then click “On” button to establish the communication between 747ProS and PC. If the connection is successful, the NMEA stream will keep showing. Default baud rate of 747ProS is 115200bps...

  • Page 12: Configuration

    3.2.1 Configuration In Setup Page, Output frequency of each NMEA can be changed from 1second to 5 seconds and Fix update–Rate can be changed from 1 time to 5 times per second. DGPS like WAAS, EGNOS, MSAS can be enable or disable. Here also allow users to update the AGPS and record the NMEA sentence.

  • Page 13: Update Agps

    3.2.2 Update AGPS Step1. Make sure you have network available for accessing the internet. Step2. Connect 747ProS to PC and then open GpsView to establish the communication. Step3. Go to “Setup” page Step4. Click “Update” button under AGPS to update the AGPS data. The program will connect to the AGPS server and download the data automatically.
  • Page 14 Note: AGPS has 6 day time limited.

  • Page 15: Chapter 4 Using Photo Tagger Software

    For further function to use the Photo Tagger software in detail, please refer to Photo Tagger user manual: Photo Tagger software > Help > User Manual To use a mini-USB cable to connect the 747ProS to your PC, you have to power on the 747ProS unit.

  • Page 16: Appendix

    Appendix Appendix A. Specifications General Frequency L1,1575.42MHZ C/A Code 1.023MHZ Datum WGS84 Performance Characteristics Without aid: 3.0m 2D-RMS Position Accuracy* <3m CEP(50%) without SA(horizontal) DGPS (WAAS,EGNOS,MSAS):2.5m Without aid: 0.1m/s, DGPS (WAAS,EGNOS,MSAS):0.05m/s Velocity Accuracy* Acceleration* Without aid:<4g, DGPS (WAAS,EGNOS,MSAS):<4g Timing Accuracy* 50 ns RMS Reacquisition Time* <1s Hot start*...
  • Page 17 Acceleration Maximum 4g Power Vin : 5.0V±5% Input Voltage Battery Chargeable + Lithium-Ion battery Operation time 30 hours Standby time 300 hours Available Baud Rates 115200 bps Protocols NMEA 0183 v3.01 Record data (default) RCR/ Date/ Time/ GPS valid/ Latitude/ Longitude/ Altitude/ Speed、Heading Environment Operating Temperature -10°C ~ +60°C -20°C ~ +60°C...
  • Page 18 Appendix B. Free software from partners - locr GPS Photo software. Please find the installation file for Windows in CD tool, or go to http://www.locr.com further information. HoudahGeo Please find the installation file for Mac in CD tool, or go to http://www.houdah.com further information.
  • Page 20 Appendix C. Certification FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interface, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 21 CE Notices Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed.
  • Page 22 Appendix D. Warranty Information Thank you for your purchase of GPS product from the company. The company warrants this product to be free from defects in materials and workmanship for one year from the date of purchase. The warranty for accessories is six months. The stamp of distributor or a copy of the original sales receipt is required as the proof of purchase for warranty repairs.
