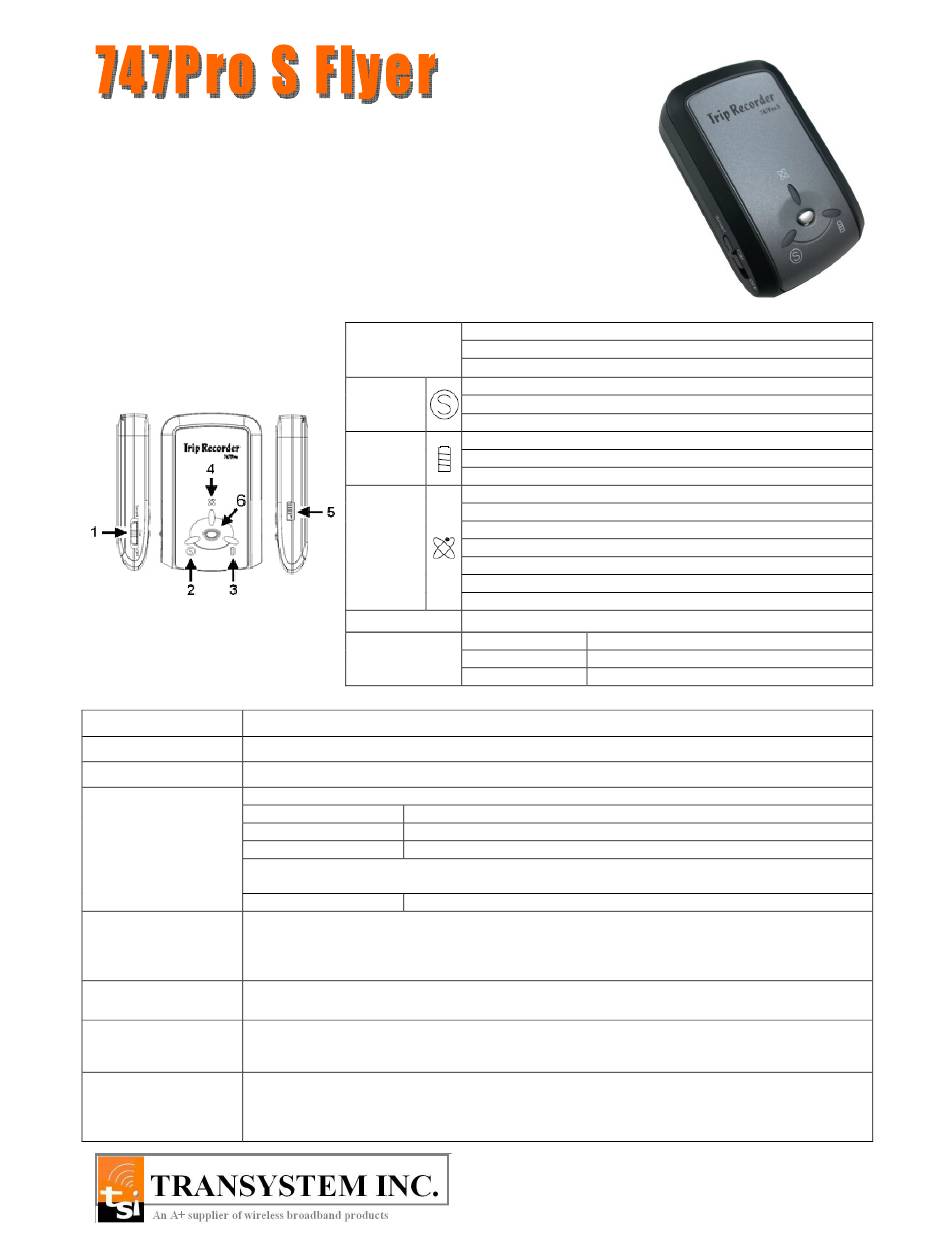

Transystem 747Pro S Flyer Quick Start Manual

Overview

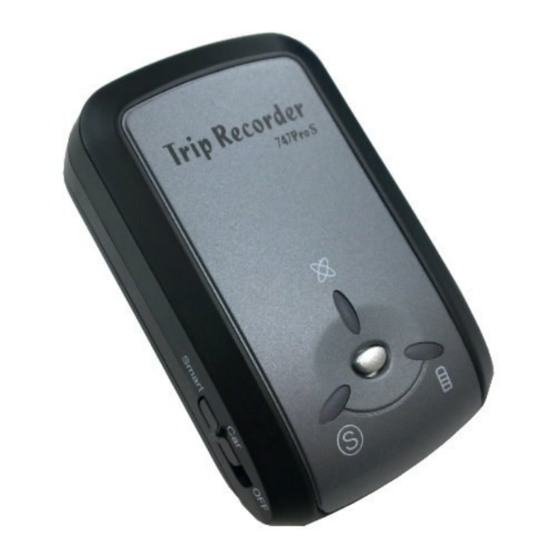

747ProS is a powerful GPS Datalogger comes with the latest MTK chipset to
work under most of circumstance. 747ProS allows you to log your route by
setting the interval of time/ distance/ speed and intelligent auto gear function and
motion sensor for smart logging(smart mode) to save memory and power.747ProS
also implement with special power circuit design to start logging when car start
and protect the electric serge from car power (Car mode). Easy to use and through
user friendly utility, it can display the tracks on Google Earth/Map.
● Appearance & LED indications.
● Key Features
Built-in MTK II GPS High performance GPS solution with A-GPS for instant fix less than 15 seconds.
Built-in 64Mb memory Capacity for up to 250,000 waypoints recording.
Rechargeable Battery 850mA Li-ion battery for up to 30 hours operation time and 300 hours standby time.
Default is "ON" for both smart mode and car mode.
Mode change
POI recorded
Built-in buzzer
GPS Fix
Buzzer function for POI record and GPS fix can be turned on/off by pressing the POI button for 4
seconds or provided software.
Turn on/off buzzer
For automatically start/ stop logging and smart power management and waypoint saving.
747ProS will enter power saving mode when it is static for 2 minutes and recover when motion is
Built-in motion sensor
detected. (This function is turned on as default at smart mode and turned off as default at car mode and
can be turned off/on by pressing the POI button for 8 seconds or provided software)
747ProS goes into power saving mode when external power supply is not detected and recover when
Car mode
external power supply is detected.
Motion sensor is turned on as default and log time interval will be changed according to the speed
Smart Log mode detected by the Device to save power and memory.
Speed for each time interval can be programmed by the provided software.
For power charging and data exchange.
Use the changer which output 5V, 0.5A~1A current to charge the battery.
Built-in Mini USB port
Connect to PC to download the logged data or upload the A-GPS EPO data.
*Connect to Laptop via USB cable to work as a wired GPS receiver.
Smart log mode
1. Slide switch Car log mode
Power off
Blue - Always OFF = Motion sensor OFF
2. Motion
sensor Blue - Blink every 2 seconds = logging, Motion sensor ON
LED
Blue - Blink every 5 seconds = power saving mode
3. Battery Green - always ON = Charging
status Green - OFF = Fully charged
LED
Red - always ON = Low battery
Orange - always ON = Not Fix and searching for satellite
Orange - Blink every 2 seconds=GPS fix and logging (smart mode)
4. GPS &
Orange - Blink every 1 second=GPS fix and logging (car mode)
Memory
Orange - OFF = Power saving mode or power off
status
Red - always ON = memory full
LED
Red - Blink every 2 seconds= 80% memory occupied
Red - Quick blink 3 times = POI recorded
5. USB Port For power supply and data exchange
One click
6. POI button
Press for 4 seconds To turn on/off buzzer
Press for 8 seconds To turn on/off motion sensor
Quick beep 1 time (can nit be turned off)
Quick beep 3 times
Quick beep 2 times.
long beep 2 times
To record POI
* Specifications subject to change without prior notice.
* Copyright ©2011 TRANSYSTEM, INC. all rights reserved.
Ver.01
