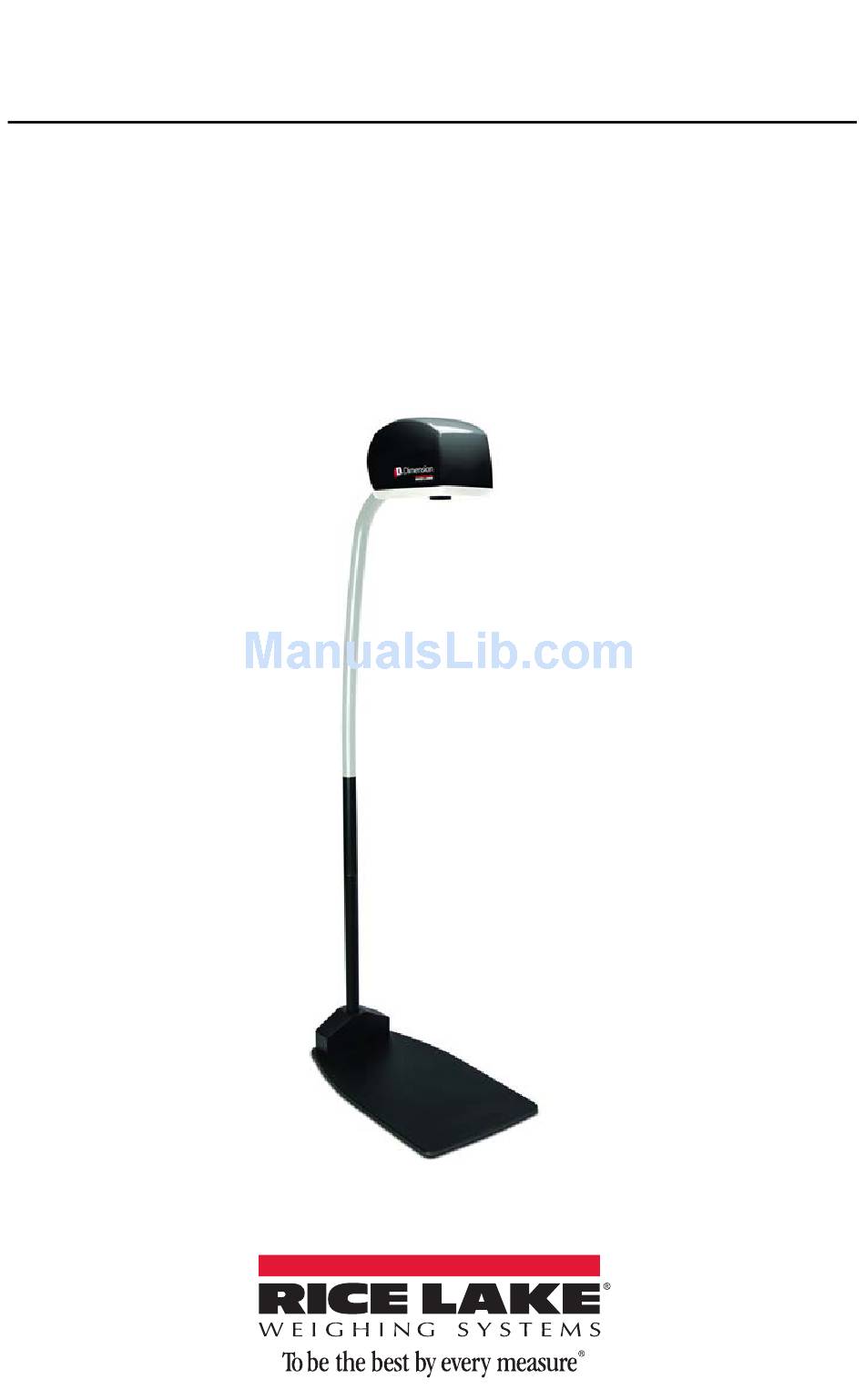

- Page 1 200 Workstation Operation Manual PN 167738 Rev A...
-
Page 3: Table Of Contents
3.1 Troubleshooting ........11 3.1.1 iDimension 200 is Not Responding ....11 3.1.2 The Image is Black . - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. iDimension 200...
-
Page 5: Introduction
Introduction Thank you for purchasing the iDimension 200. This document describes how to operate the iDimension 200. Prior to using this unit, read this manual to ensure correct use. Manuals can be viewed or downloaded on the Rice Lake Weighing Systems distributor site at www.ricelake.com... -
Page 6: Safety
Safety Precautions Do not operate or work on this equipment unless you have read and understand the instructions and warnings in this manual. Contact any Rice Lake Weighing Systems dealer for replacement manuals. Proper care is your responsibility. General Safety DANGER Failure to heed may result in serious injury or death. -
Page 7: Overview
• Power (DC IN) — 24V 2.5A • Three standard USB ports (Type A) • One USB port (Type B) • Host indicator light • USB indicator light iDimension 200 is functioning correctly when all three lights are on and green. Introduction... -
Page 8: Accessories
1.3 Accessories Part Description Calibration Object Ethernet Cable Tools for assembling iDimension 200 Power Cord – US Power is 110V/240 V but it may be necessary to supply a different cord for a specific country’s plug requirements. Table 1-1. Accessories 1.4 Cables... -
Page 9: Operation
The iDimension 200 may include the hand/arm as part of the dimensions. Automatic Operation When iDimension 200 is configured in Automatic mode, a scan of the item will start after the system has detected that all motion has stopped under the scanning head. -
Page 10: Measurement
The maximum size of an item to be dimensioned varies due to the camera’s field of view. The zone of interest is typically the size of the scale. Any item that is not a least partially within the zone of interest will not be scanned. iDimension 200... -
Page 11: Zone Of Interest
2.4 Zone of Interest The zone of interest represents the detection area to be used for item dimensioning. Items must be placed at least partially within the zone of interest. The zone of interest is typically the size of the scale. Any item that is not at least partially within the zone of interest will not be captured. -
Page 12: Environmental Conditions
2.6 Environmental Conditions 2.6.1 Lighting iDimension 200 is designed to work in most locations without having to use additional lighting. For best results in bar code scanning and imaging, the LUX value at the center of the scanning area should be 300 or higher. If only capturing dimensions, low lighting is not a factor. - Page 13 Donut Sphere Polybag Tube Triangular tube Cube with an uneven top Cube with a sloped side Cube with 1 irregular side Table 2-1. Packaging Shapes Operation...
- Page 14 Overstuffed cube Crumpled cube Cube with handles Cube on a cube Cube next to a cube Table 2-1. Packaging Shapes 10 iDimension 200...
-
Page 15: Appendix
Lock . Refer to the Administrator Reference Guide in Section 6 Motion Motion Down of the iDimension 200 Installation Manual for more information. 3.1.4 Some Items Do Not Trigger Automatic Capture If operating with a scale: • Make sure the scale is registering a stable weight for the item. -
Page 16: Specifications
Background should have contrasting color from items to be dimensioned; also avoid overly polished or glossy surfaces Interoperability Scales The following are supported: ® Mettler Toledo Standard Protocol METTLER TOLEDO Standard Interface Command Set (MT-SICS) NCI Standard Protocol 12 iDimension 200... - Page 17 1 – 10/100/1000BASE-T Ethernet Technical Specifications System requirements Client computer with Ethernet connection. Customer applications can be integrated with iDimension 200 using a web service interface. Configuration tool requires a JavaScript-enabled browser. Bar codes EAN 13, UPC-A and 2/5 digit extensions...
-
Page 18: Regulatory Information
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved could void the user’s FCC granted authority to operate the equipment. 14 iDimension 200... -
Page 19: Idimension 200 Limited Warranty
UNLESS MADE IN WRITING AND SIGNED BY A CORPORATE OFFICER OF RLWS AND THE BUYER. © Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved. RICE LAKE WEIGHING SYSTEMS • 230 WEST COLEMAN STREET RICE LAKE, WISCONSIN 54868 • USA... -
Page 20: Notes
NOTES 16 iDimension 200... - Page 22 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 04/27/2015 PN 167738 Rev A...
