Summary of Contents for LEECO uMax85
- Page 1 User Manual...

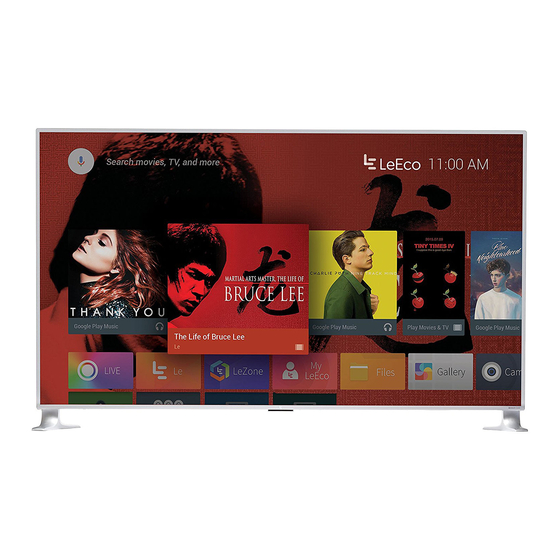

- Page 2 The pinnacle of in-home cinema that is every sports fan and movie lover’s dream come true and the definition of television without limits, our uMax85 ecotv immerses you in 85 inches of life-sized entertainment that fills the senses. You won’t be able...
-
Page 3: Table Of Contents
Table of Contents Getting Started Warnings What’s Inside Opening Instructions Assembly Instructions Settings Connecting Your TV Powering On/Off Pairing the Remote Control Remote Control Functions Antenna Setup Display Sound Interface & eui Apps Android TV™ Introducing eui — Ecosystem User Interface Other Troubleshooting Specs... -
Page 4: Getting Started
Getting Started Warnings What’s Inside Opening Instructions Assembly Instructions... -
Page 5: Warnings
Please read and follow all instructions that come with Pour réduire le risque d’incendie ou de choc électrique, this product. LeEco disclaims any liability for loss or ne pas exposer cet appareil sous la pluie et l’humidité. damage resulting from improper use or use contrary L’appareil ne doit pas être exposé... -
Page 6: What's Inside
What’s Inside 2 3D Glasses 2 Stands 6 Bolts Remote & Power Cord Cable w/ Batteries* 2 AA Batteries Accessories Stands * remove battery protection to activate batteries... -
Page 7: Opening Instructions
Opening Instructions Step 1: Stand TV box upright. Step 2: Remove lock clips (squeeze tabs inward and pull out) from (E), and lift box lid from package base. Step 3: Pull out accessories kit and stands from foam cover (A). Step 4: Remove front protective cover (B) from TV, and place foam side down. -
Page 8: Assembly Instructions
Assembly Instructions Installing the Stand 4 people required for installation. Wear safety gloves. Step 1: Carefully lift TV out of box. Slowly set down Step 3: Secure the stands to each side of TV using the with screen facing up. To avoid damaging the prod- bolts provided. - Page 9 Installing a Wall Mount It is advisable to consult a qualified professional. To avoid electric shock, power off television prior to completing these steps. LeEco maintains no liability for damages 19.69 in or personal injury. Before installing, ensure the wall 15.75 in...
-
Page 10: Settings
Settings Connecting your ecotv Antenna Setup Powering On/Off Display Pairing the Remote Control Sound Remote Control Functions... -
Page 11: Connecting Your Tv
Connecting your ecotv HDMI: Connect external components (such as Blu-ray Video Graphics Array (VGA): Use your TV as a monitor and game consoles) to your TV using HDMI. by connecting your computer with a VGA cable**. ARC (Audio Return Channel): Send a digital signal to PC Input: Connect PC audio to TV using 3.5mm audio a compatible device without the need for an additional cable (not included). -
Page 12: Powering On/Off
Powering On/Off Step 1: Plug TV into a power outlet. Step 2: Turn the switch under the TV to ON mode. Step 3: To turn on/off the TV, press power button on your remote. Note: Wait about five seconds for TV to fully power on. -
Page 13: Remote Control Functions
Remote Control Functions Power television on or off Mute sound Display and select input sources Display and select settings Input desired channel number Access Netflix Increase or decrease volume Activate voice commands Channel up or down Navigate up, down, left or right Select/Enter Return to previous screen Display TV home page... -
Page 14: Antenna Setup
Antenna Setup Set up an antenna to access broadcast channels. • Plug a coaxial cable into the ANT IN connector. • Navigate to Inputs from the home screen, and select Cable/Antenna. NOTE: If you have not programmed your TV to scan for channels using the antenna, then select Tuner from Channel Sources. -
Page 15: Display
Display By default, your TV is set to Energy Saving Mode. To adjust, press the Settings button on your remote, and navigate to: Picture > Display Mode Advanced display options, such as brightness, color and clarity, can be found by navigating from the home screen to: Settings >... -
Page 16: Interface & Eui Apps
Interface & eui Apps Android TV™ Introducing eui — Ecosystem User Interface... -
Page 17: Android Tv
Android TV™ Launching your interface: Select language: Once your device is powered on, you’ll be prompted to select your preferred language. Sync external device (optional): Transfer Google™ EcoPass membership account information from an external device. Configure Wi-Fi: Here, you’ll be asked to select your network connection and enter your Wi-Fi password. -
Page 18: Introducing Eui - Ecosystem User Interface
Le: Stop in. Stay a while. Creating a My LeEco account: Grab the popcorn and kick back with your complete Enjoy top entertainment with a My LeEco account, media library. Your gateway to LeEco’s full, unparalleled which gives you premier access to exclusive feature library of streaming content, Le aggregates our films, international movies, shows and more. -
Page 19: Other
Troubleshooting & Other Troubleshooting Certifications Specs TV Standard Limited Warranty Use & Safety... -
Page 20: Troubleshooting
Troubleshooting Issue: Solution: My television isn’t powering on. • Plug TV into a power outlet. • Confirm that power cord is securely plugged into TV. • Make sure the switch behind the TV is turned on. • A blue light at the bottom of your TV indicates power is on. -
Page 21: Specs
Specs: uMax85 Model Product Model D85XUCNN UPC Code 815493020585 Features Size 85” (84.5” diag.) Resolution 4K UHD (3840x2160) Processor Mstar 6A938 Android TV™ Cortex A72x2 + A53x2 1.7 GHz Multi-Core Mali-T820 Dolby Vision™ + HDR 10 Flash Memory 64GB Local Dimming... -
Page 22: Use & Safety
Use & Safety 1. Read these instructions. has two blades with one wider than the other. A grounding type plug has two blades and a third 2. Keep these instructions. grounding prong. The wide blade or the third prong 3. Heed all warnings. are provided for your safety. -
Page 23: Certifications
Certifications Dolby and the double-D symbol are registered trade- marks of Dolby Laboratories. All other trademarks remain the property of their respective owners. Dolby® Vision™ support varies by program. Streaming content not currently supported will be supported by a future software upgrade. For DTS patents, see http://patents.dts.com. - Page 24 FCC CERTIFICATION ENERGY STAR This equipment has been tested and found to comply 1. Picture Mode (Power Saving) is the setting in which with the limits for a Class B digital device, pursuant the product qualifies for ENERGY STAR ®. to Part 15 of the FCC Rules.
-
Page 25: Tv Standard Limited Warranty
To obtain service under this Limited Warranty, you must For service, contact LeEco at 1-855-343-6688. Shipping return the Product to LeEco or to a LeEco authorized charges may apply. You may be required to provide service facility accompanied by the original sales receipt proof of purchase in submission of your warranty claim. - Page 26 AGES IN EXCESS OF THE PURCHASE PRICE OF THE the product instructions or information accompanying PRODUCT OR FOR, WITHOUT LIMITATION, LOSS OF the product or supplied by a party other than LeEco USE, DATA, OPPORTUNITY, GOODWILL, PROFITS OR the shall be construed to create an express warranty SAVINGS;...
- Page 27 LeEco, ecotv and uMax85 are marks or registered trademarks of LeEco or its affiliates. Other names, trademarks or logos are the marks or registered trademarks of their respective holders.
