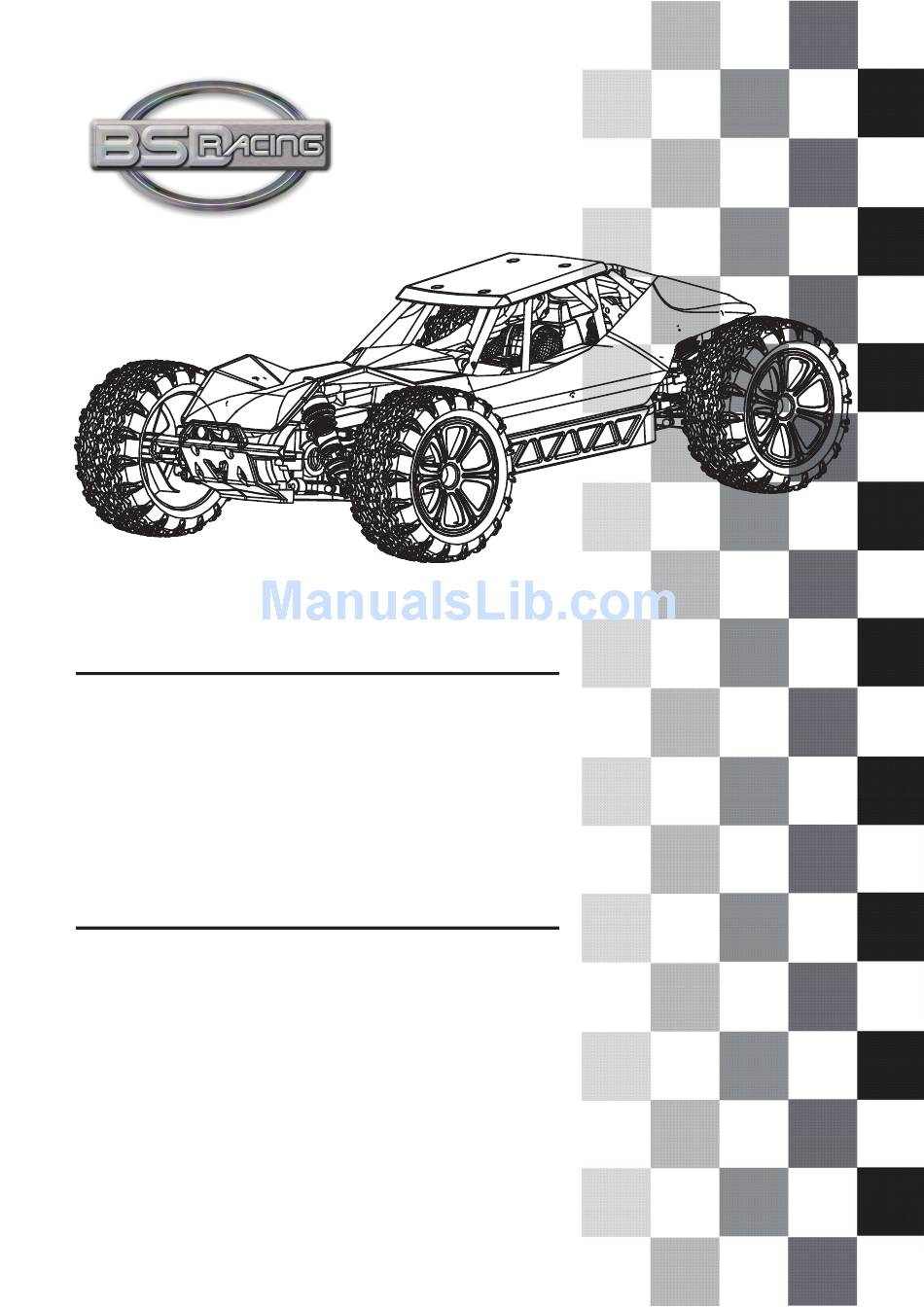

- Page 1 Model: DUNE RACER / DUNE RACER PRO DUNE RACER XB / DUNE RACER XB PRO DUNE RACER XT / DUNE RACER XT PRO Features: 4 Wheel Drive. Ball Differential Box. Completely waterproof, driving all whether! Buggy, Truck, Rollage three different bodies.
-
Page 4: Transmitter Specifications
TRANSMITTER SPECIFICATIONS TR TYPE: MADGEAR-TRV1 Channel: 3CH Frequency: 2.4GHz Use DC: (4.0V-8.6V); ≤110mA N.W.: 320g RX TYPE: MADGEAR-RXV1 Channel: 3CH Frequency: 2.4GHz 162mm DC: (4.0V-8.6V); ≤20mA N.W.: 8g R/F Power: ＜20dBm; Sensititity: 1024 Modulation: 2-FSK; Frequency Signal: FHSS Specifications: One Set(200*165*105mm) NOTE: Install the batteries in correct polarity. - Page 5 AUX CHANNEL(3CH) Press the CH3 button once, servo turns 90 degrees, press again, servo turns back 90 degrees. NOTE: During the binding process, the CH3 button functions as a bind button and does not provide channel 3 functionality. STEERING DUAL RATES ADJUSTMENT (ST.D/R) Adjust the dual rate for steering by turning the ST D/R knob.
-
Page 9: Common Parts
COMMON PARTS BS218-001 Fr.Brace BS218-002 Servo mount 2pcs BS218-006 Upper Deck-Fr. BS218-003 Chassis BS218-005 Wire Mount BS218-019 Screw BT2*8 12pcs BS218-020 Screw BT2*12 12pcs BS218-021 Screw BT2*5 12pcs BS218-011 Screw 3*50 4pcs BS218-008 Gear Box Case Unit BS218-007 Motor Mount Unit BS213-001 Shock Unit 2pcs... - Page 10 Motor Gear 20T BS903-116 Master Gear Unit BS218-004 Rollage / Yount BS213-032 Body Mount 2pcs (zinc alloy) (plastic) (Zinc Alloy) 2pcs DUNE RACER PRO PARTS BS218-014 45A Brushless BS218-010 Body Mount Waterproof Esc BS218-009 Body BS214-001 Bumper Unit BS214-009 Tire Unit 2pcs BS803-028 7.4V 3200 mAh...
- Page 11 BS903-116 Master Gear Unit (zinc alloy) (plastic) BS213-031 Front Chassis BS213-034 Tail Wing Mount Unit 2pcs (Zinc Alloy) DUNE RACER XB PRO PARTS BS213-033 Front Tires Unit BS218-014 45A Brushless BS218-016 Body BS218-018 Tail wing BS709-002 Rr Tires Unit 2pcs...
- Page 12 Battery BS213-025 Gear Shaft Unit BS213-035 Motor Gear 20T BS903-116 Master Gear Unit (zinc alloy) (plastic) (Zinc Alloy) DUNE RACER XT PRO PARTS BS218-014 45A Brushless BS218-017 Body BS214-002 Body Mount 2pcs Waterproof Esc BS214-001 Bumper Unit BS214-009 Tire Unit 2pcs BS803-028 7.4V 3200 mAh...
- Page 14 BSD Racing http://www.bsdracing.com PRINTED IN CHINA NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS...
