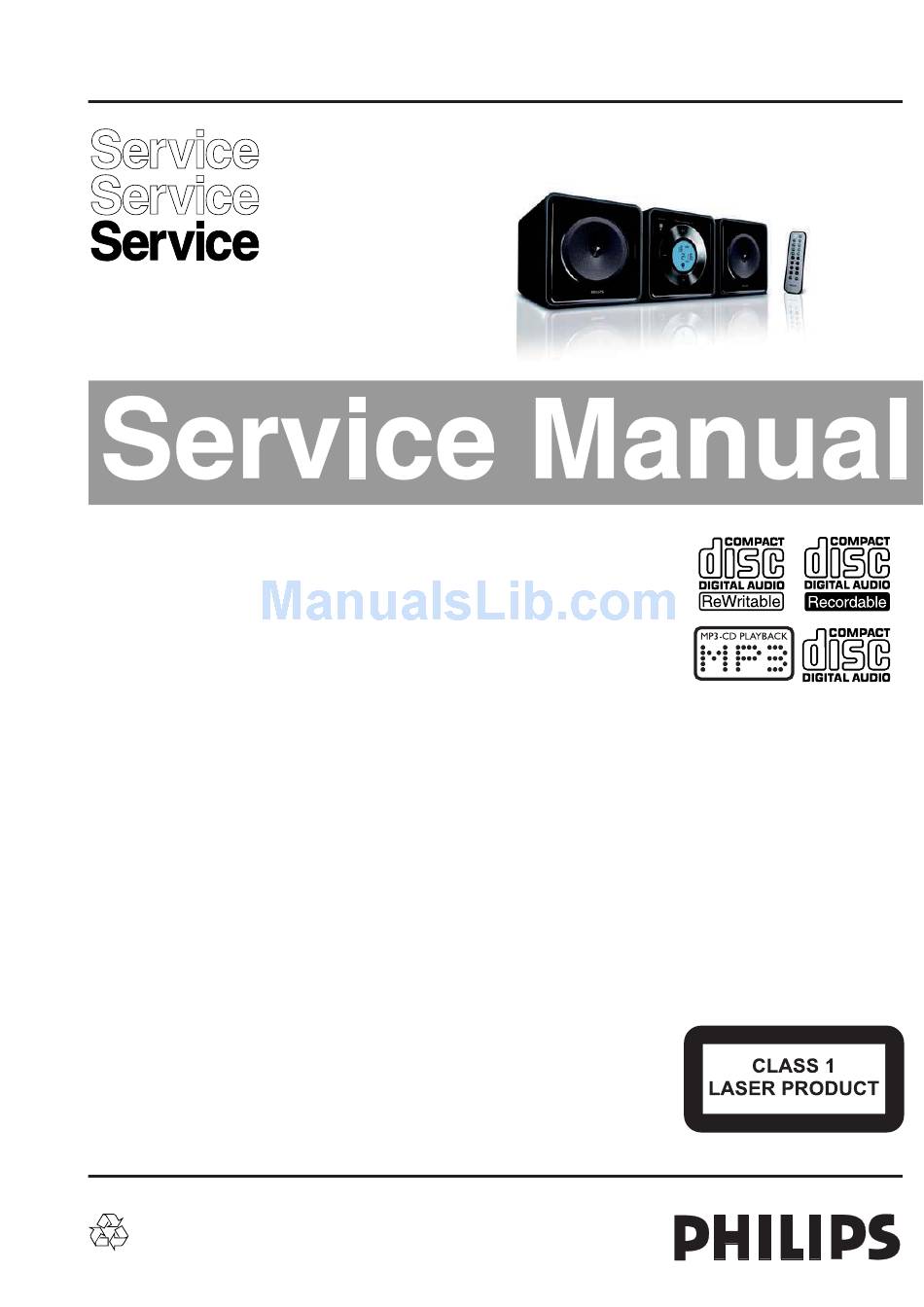

Philips MCM118B Service Manual
Hide thumbs Also See for MCM118B:

Advertisement

Quick Links

Micro Hi-Fi System
©
Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Published by LX 0632- Service Audio
Version 1.0

TABLE OF CONTENTS

Handling chip components .......................................... 1-1
Technical Specifi cations .............................................. 2-1
Service Tool ................................................................. 2-1
Measurement setup ..................................................... 2-2
Connections and Controls ....................................3-1..3-2
Set Block diagram ....................................................... 4-1
Set Wiring diagram ...................................................... 4-2
Disassembly diagram .................................................. 5-1
Main board
Circuit diagram ..................................................6-1..6-2
Layout diagram ..................................................6-3..6-4
Display board - Circuit diagram ............................7-1..7-2
Display board - Layout diagram............................7-3..7-4
AC Power board - Circuit diagram ............................... 8-1
AC Power board - Layout diagram .............................. 8-2
Set Mechanical Exploded view ................................... 9-1
Mechanical Service parts list ...................................... 9-2
Electrical Service parts list................................10-1..10-4
Printed in The Netherlands
Page
Subject to modifi cation
MCM118B/
all
© 3141 785 31400

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCM118B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Philips MCM118B

  • Page 1: Table Of Contents

    Electrical Service parts list........10-1..10-4 © Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 1 - 1...
  • Page 3: Technical Specifi Cations

    2 - 1 TECHNICAL SPECIFICATIONS...
  • Page 4 2 - 2...
  • Page 5: Connections And Controls

    3 - 1 CONNECTION AND CONTROLS...
  • Page 6 3 - 2 CONNECTION AND CONTROLS...
  • Page 7: Set Block Diagram

    4 - 1 SET BLOCK DIAGRAM...
  • Page 8: Set Wiring Diagram

    4 - 2 SET WIRING DIAGRAM...
  • Page 9: Disassembly Diagram

    5 - 1 5 - 1 DISASSEMBLY DIAGRAM Dismantling of the Bottom Cabinet 1) Remove 4 screws A as indicated to loosen the Rear Cabinet. 2) Remove 2 screws B as indicated to loosen the Bottom Cabinet. BOTTOM CAB. Dismantling of the Front Cabinet and Main Board 1) Remove 2 screws C as indicated to loosen the Front Cabinet.
  • Page 10: Circuit Diagram

    6 - 1 6 - 1 CIRCUIT DIAGRAM - MAIN BOARD CD PART...
  • Page 11 6 - 2 6 - 2 CIRCUIT DIAGRAM - MAIN BOARD MP3 PART...
  • Page 12: Layout Diagram

    6 - 3 6 - 3 LAYOUT DIAGRAM - MAIN BOARD COMPONENT SIDE...
  • Page 13 6 - 4 6 - 4 LAYOUT DIAGRAM - MAIN BOARD COPPER SIDE...
  • Page 14 7 - 1 7 - 1 CIRCUIT DIAGRAM - DISPLAY BOARD PART 1...
  • Page 15 7 - 2 7 - 2 CIRCUIT DIAGRAM - DISPLAY BOARD PART 2...
  • Page 16 7 - 3 7 - 3 LAYOUT DIAGRAM - DISPLAY BOARD COMPONENT SIDE...
  • Page 17 7 - 4 7 - 4 LAYOUT DIAGRAM - DISPLAY BOARD COPPER SIDE...
  • Page 18 8 - 1 8 - 1 CIRCUIT DIAGRAM - AC POWER BOARD...
  • Page 19 8 - 2 8 - 2 LAYOUT DIAGRAM - AC POWER BOARD...
  • Page 20 9 - 1 9 - 1 SET EXPLODED VIEW DIAGRAM...
  • Page 21 9940 000 05398 CD MECHANISM DA11B3VF 9940 000 02354 CD DOOR SWITCH DLS-02-W-1 ACCESSORIES 9965 000 39367 REMOTE ASS'Y "PHILIPS"(BLK) 9965 000 40319 SPK BOX ASS'Y (15W)(L/R) 9965 000 39363 AM LOOP ANT ASS'Y Note: Only these parts mentioned in the list are...
  • Page 22 10 - 1 ELECTRICAL PARTSLIST - MAIN BOARD - IC & TRANSISTORS - Q506 9965 000 39345 TRANSISTORS 2W 8050D Q505 9965 000 39345 TRANSISTORS 2W 8050D Q102 9965 000 39346 TRANSISTORS 2W 8550D Q508 9965 000 39348 PNP TRANSISTORS 9012G 1W Q510 9965 000 39348 PNP TRANSISTORS 9012G 1W...
