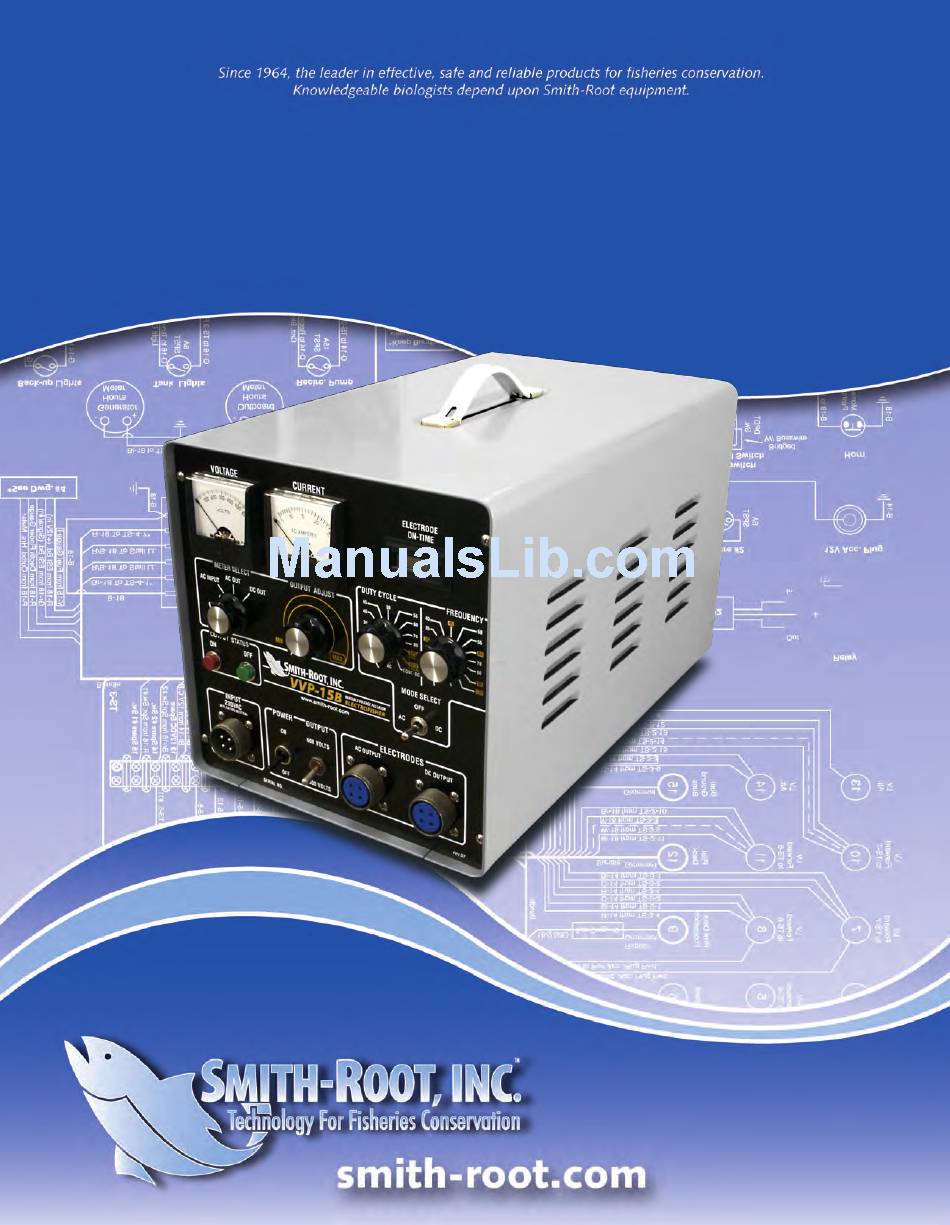

USER'S MANUAL
VVP-15B Electrofisher
#07955.012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VVP-15B and is the answer not in the manual?

Questions and answers

Related Manuals for Smith-Root VVP-15B

Summary of Contents for Smith-Root VVP-15B

  • Page 1 USER'S MANUAL VVP-15B Electrofisher #07955.012...

  • Page 2: Table Of Contents

    Wash hands after handling. Items manufactured by companies other than Smith-Root carry the original manufacturer’s warranty. Please contact product manufacturer for return instructions. All Smith-Root, Inc. manufactured products are covered by a one year warranty.

  • Page 3: Description

    Coffelt design to aid in implementation into existing boat and shore systems. The VVP-15B requires a 5000 watt generator to reach full rated output. Generators with less output can be used but will not achieve full output potential.

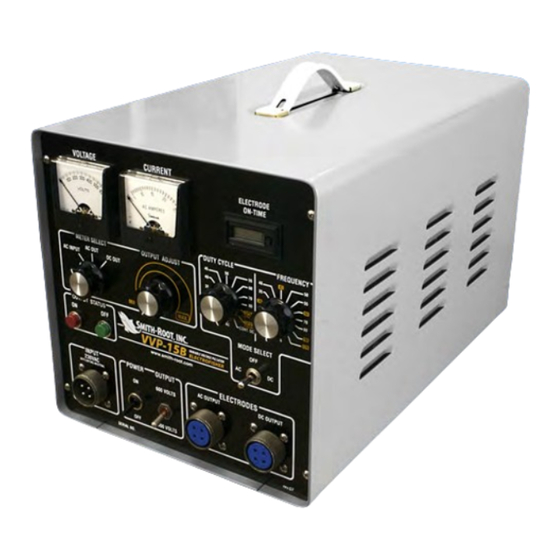

  • Page 4: Front Panel Controls

    3 - METER SELECT CONTROL: selects the desired input or output voltage to be measured. 4 - OUTPUT ADJUST CONTROL: Output voltage from the Model VVP-15B can be varied from 0 Volts to Maximum Volts of selected Range (may be limited by load conditions and overload protection) for all outputs—AC, DC, and Pulsed DC (CPS included).
  • Page 5 METER. THIS SWITCH MUST BE POSITIONED TO MATCH THE OUTPUT CONNECTOR IN USE. 13 - ELECTRODE CONNECTORS: AC OUTPUT: connector is the electrode connector for the AC output. DC OUTPUT: connector is the electrode connector for the DC and pulsed DC output. smith-root.com...

  • Page 6: Set-Up

    VVP-15B ELECTROFISHER WARNINGS WARNING!: HIGH VOLTAGE IS USED IN THE OPERATION OF THIS EQUIPMENT! DEATH ON CONTACT MAY RESULT IF PERSONNEL FAIL TO OBSERVE SAFETY PRECAUTIONS. BE CAREFUL TO AVOID CONTACT WITH ALL CIRCUIT COMPONENTS AND CONNECTIONS WHILE CHECKING OR SERVICING THIS EQUIPMENT This equipment will not function properly when operated from a 240 Volt AC generator if the gen- erator neutral line is grounded or connected to any other points.

  • Page 7: Possible Overload Conditions

    Characteristics: Indicator “ON LIGHT” will turn off and Indicator “OFF LIGHT” will turn on. Output will be disabled. VVP-15B will not reset after three seconds. Correction: Turn off the “ON/OFF” circuit breaker. Return VVP-15B to set-up conditions. Quickly inspect to ensure output is not shorted. If situation occurs at low settings then perform detailed inspection of output cabling and arrays.

  • Page 8: Safety Quick List

    16. If an accident occurs, stop electrofishing and turn working correctly as it can present a severe off the power to the VVP-15B. The remaining shock hazard. members of the crew should help or attend to the Check the cathode cable for wear and accident victim.

  • Page 9: Settings Chart

    DC OUTPUT 5 THRU 120 10 THRU 80 300 OR 600 DC OUT AC OUTPUT DC OUTPUT CONNECTOR SPECIFICATIONS Connectors on front panel of VVP-15B Electrofisher OUTPUT PLUG: Line #08164 INPUT PLUG: Line #08163 TERMINAL DESIGNATION TERMINAL DESIGNATION ANODE (+)
  • Page 11 No charge will be made to the Consumer for any such parts. Smith-Root, Inc. will also pay for the labor charges incurred by Smith-Root, Inc.
