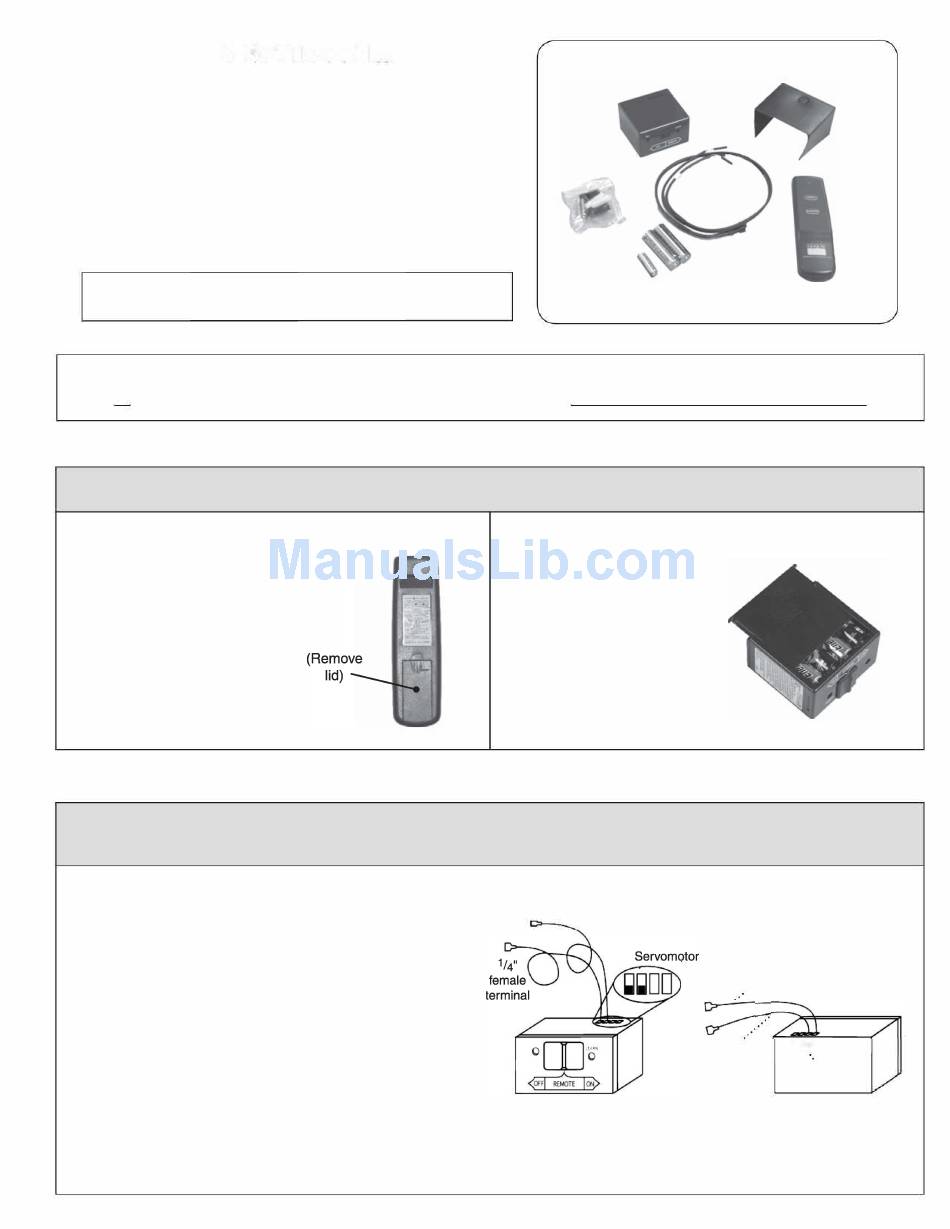

Real Fyre VR1 A Quick Start Manual

RH�PETERSON
tr. a al�
VR1 A / VR2A Remote
Quick Start Guide
INSTALLER:
Leave these instructions with consumer.
CONSUMER:
Retain for future reference.
This guide serves as a supplement to any remote information found in the burner, pilot kit, and remote instructions.
Read all instructions completely and carefully prior to product use. Select models shown. design may vary.
I

INSTALL BATTERIES

Remote Transmitter
• Remove lid.
• Install "12V" battery (included).
• Re-secure lid.
II

CONNECT WIRES TO RECEIVER (IF APPLICABLE)

Select models require installation of wires to remote receiver.
Connect Wires
• Locate supplied black remote wires.
• Slightly loosen screws on rear of receiver.
• Insert wires AS SHOWN.
Important: Ensure each wire is placed into
correct position on servomotor.
• Gently tighten screws.
REV O - 1601261600
realfyrestore.com | 855-512811
co.
Remote Receiver
• Remove lid.
• install four "AA"
batteries (included).
• Re-secure lid.
7/32'' female terminal
Remote Receiver
(front)
1
1/4" female
.·· terminal
ITm
7/32'' female
terminal
· . . (screws)
Remote Receiver
(rear)
L-A2-391
