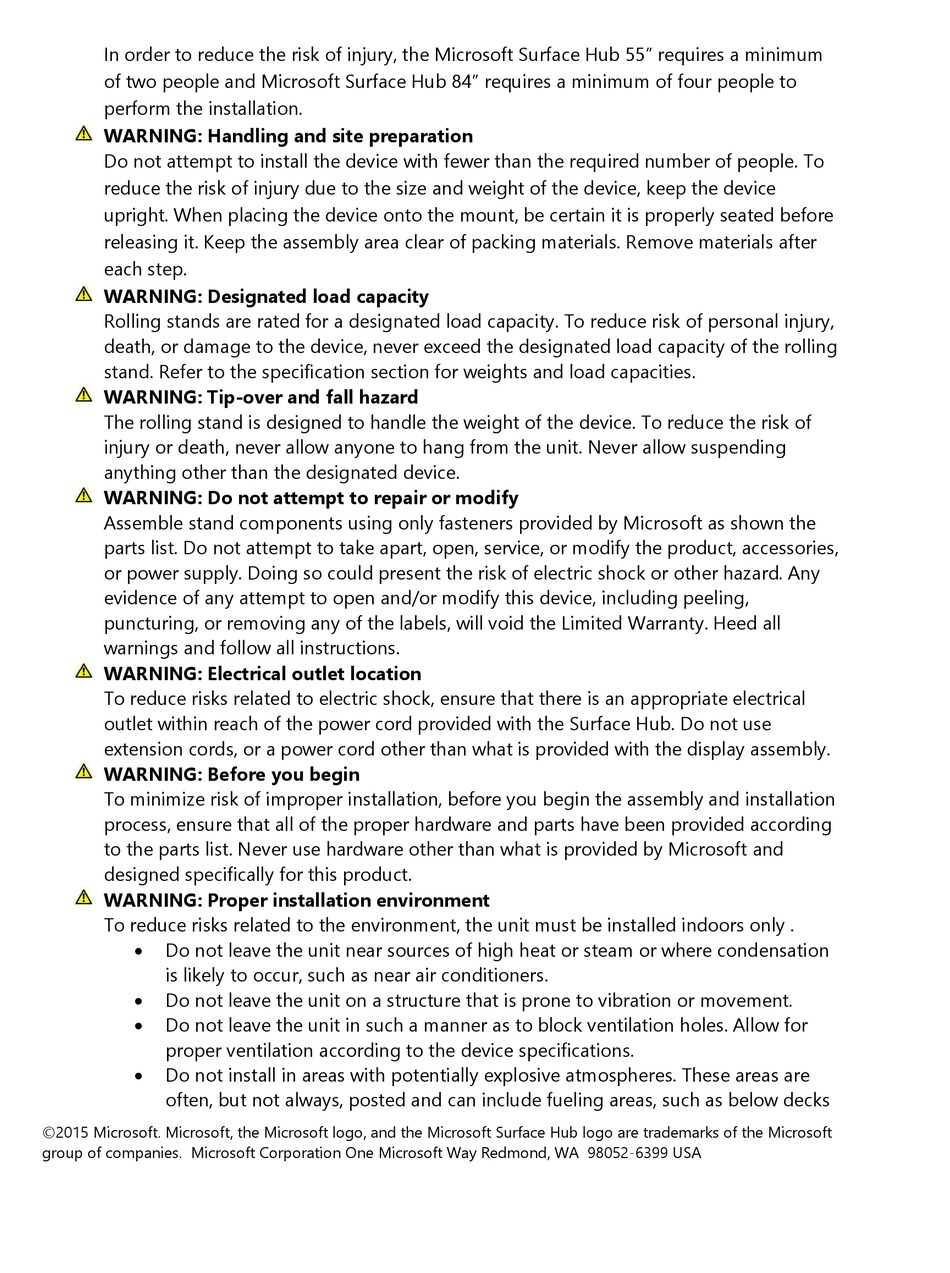

In order to reduce the risk of injury, the Microsoft Surface Hub 55" requires a minimum
of two people and Microsoft Surface Hub 84" requires a minimum of four people to
perform the installation.
WARNING: Handling and site preparation
Do not attempt to install the device with fewer than the required number of people. To
reduce the risk of injury due to the size and weight of the device, keep the device
upright. When placing the device onto the mount, be certain it is properly seated before
releasing it. Keep the assembly area clear of packing materials. Remove materials after
each step.
WARNING: Designated load capacity
Rolling stands are rated for a designated load capacity. To reduce risk of personal injury,
death, or damage to the device, never exceed the designated load capacity of the rolling
stand. Refer to the specification section for weights and load capacities.
WARNING: Tip-over and fall hazard
The rolling stand is designed to handle the weight of the device. To reduce the risk of
injury or death, never allow anyone to hang from the unit. Never allow suspending
anything other than the designated device.
WARNING: Do not attempt to repair or modify
Assemble stand components using only fasteners provided by Microsoft as shown the
parts list. Do not attempt to take apart, open, service, or modify the product, accessories,
or power supply. Doing so could present the risk of electric shock or other hazard. Any
evidence of any attempt to open and/or modify this device, including peeling,
puncturing, or removing any of the labels, will void the Limited Warranty. Heed all
warnings and follow all instructions.
WARNING: Electrical outlet location
To reduce risks related to electric shock, ensure that there is an appropriate electrical
outlet within reach of the power cord provided with the Surface Hub. Do not use
extension cords, or a power cord other than what is provided with the display assembly.
WARNING: Before you begin
To minimize risk of improper installation, before you begin the assembly and installation
process, ensure that all of the proper hardware and parts have been provided according
to the parts list. Never use hardware other than what is provided by Microsoft and
designed specifically for this product.
WARNING: Proper installation environment
To reduce risks related to the environment, the unit must be installed indoors only .
Do not leave the unit near sources of high heat or steam or where condensation
is likely to occur, such as near air conditioners.
Do not leave the unit on a structure that is prone to vibration or movement.
Do not leave the unit in such a manner as to block ventilation holes. Allow for
proper ventilation according to the device specifications.
Do not install in areas with potentially explosive atmospheres. These areas are
often, but not always, posted and can include fueling areas, such as below decks
©2015 Microsoft. Microsoft, the Microsoft logo, and the Microsoft Surface Hub logo are trademarks of the Microsoft
group of companies. Microsoft Corporation One Microsoft Way Redmond, WA 98052-6399 USA
