Summary of Contents for Apricus AP series

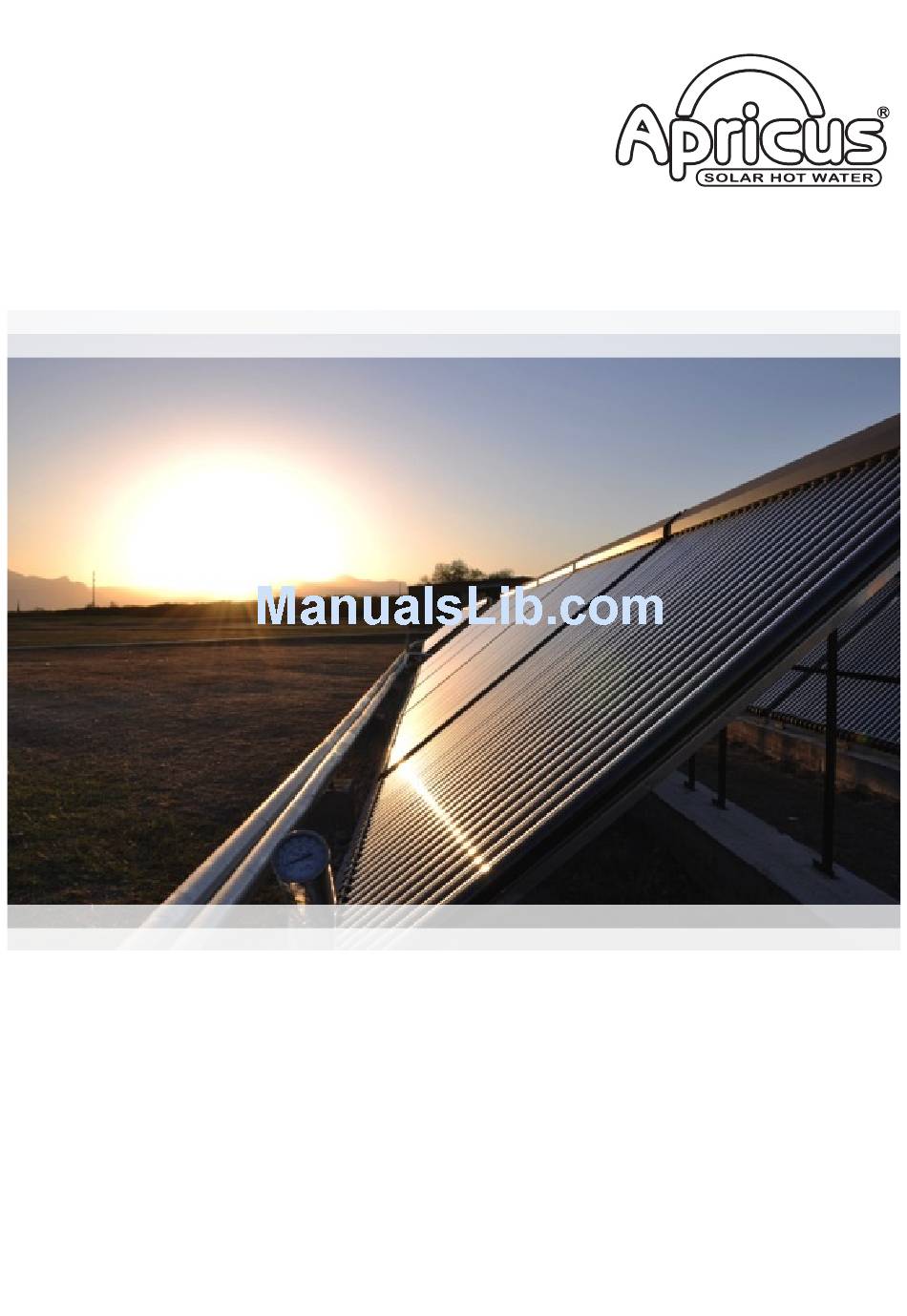

- Page 1 Delivering Sustainable Hot Water Solutions AP Solar Collector Installation & Operation Manual International Edition - V16 - May 2013...
-
Page 2: Table Of Contents
Apricus Solar Collector Installation and Operation Manual - International Edition Contents 1. Important Information ....................1.1. Scope of Manual ............................1.2. Local Standards ............................. 1.3. Authorized Person(s) ............................1.4. Collector Dimensions & Weights ........................1.5. Naming Convention ............................2. Transport, Unpacking and Inspection ................ -
Page 3: Important Information
Installation may only be completed by authorised persons. c) Unless otherwise specified in section 3, no part of the Apricus solar collector may be inspected, repaired or maintained by anybody other than an authorized person(s). -
Page 4: Naming Convention
Apricus Solar Collector Installation and Operation Manual - International Edition 1.5. Naming Convention Refer to the Apricus product catalogue for complete details of all product and names. Below are explanation of the manifold, collector and frame kit naming which are covered in this manual. -
Page 5: Frame Unpacking & Inspection
Apricus Solar Collector Installation and Operation Manual - International Edition e) Apricus does not warrant the tube or heat pipes against failure as a result of damage incurred during transport or installation. WARNING • NEVER TOUCH THE INSIDE OF THE EVACUATED TUBE OR HEAT PIPE TIP AFTER EXPOSURE TO SUNLIGHT. -
Page 6: Collector And Tank Location
As many as 10 x AP-30 solar collectors may be connected in series as long as flexible connectors are used and maximum flowrate limit is adhered to, as outlined above. g) Apricus does not warrant the collector against damage resulting from poorly managed header expansion and contraction. -
Page 7: Solar Controller Settings
Apricus Solar Collector Installation and Operation Manual - International Edition either removes the scale forming minerals, or prevents formation of a scale layer. d) In regions where freeze protection is required, it is advisable to use a closed loop system with a non-toxic grade polypropylene glycol used as the heat transfer liquid. -
Page 8: Freeze Protection
Evacuated tubes are not susceptible to damage in cold weather, and Apricus heat pipes are protected against damage that could result from the freezing of the water inside. -
Page 9: Collector Mounting
Apricus Solar Collector Installation and Operation Manual - International Edition 4. Collector Mounting Apricus solar collectors are supplied with a standard frame, which is suitable for flush mounting on a suitably pitched roof. For installation on low-pitched roofs, flat roofs or on walls, additional angle frame kits are available. - Page 10 Apricus Solar Collector Installation and Operation Manual - International Edition SS Standard Frame (30 tube) Front Track (#FR-SS-FT) Roof Rail (#FR-AL-RR) attachment option Horizontal Brace (#FR-SS-HB) Tube Clips (#FR-SS-TC[SS-BT]) Roof Strap Round Foot (#FR-SS-RF) (#FR-SS-ST-__) attachment option attachment option Rubber Pad...
- Page 11 Apricus Solar Collector Installation and Operation Manual - International Edition AL Standard Frame (30 tube) Roof Rail (#FR-AL-RR) attachment option Front Track (#FR-AL-FT) Tube Clips (#FR-SS-TC[AL-BT]) U Foot (#FR-SS-UF) Roof Strap attachment option (#FR-SS-ST-__) attachment option Rubber Pad Bottom Track...
- Page 12 Apricus Solar Collector Installation and Operation Manual - International Edition Frame Attachment Components Name: SS Roof Rail Name: AL Roof Rail Part #: FR-SS-RR-XX (XX = 10, 18, 20, 22 or 30T) Part #: FR-AL-RR-XX (XX = 10, 18, 20, 22 or 30T)
- Page 13 Apricus Solar Collector Installation and Operation Manual - International Edition Name: Roof Track Name: M8x20 Nut Lock Assembly Part #: FR-SS-FT Part #: FR-BOLT-M8x20-SPW-NL Notes: Provides the same flush mounting method as Notes: Assembly including M8x20 Bolt, M8 Nut, Spring the front track for stainless steel angled frames.
- Page 14 Apricus Solar Collector Installation and Operation Manual - International Edition Name: Round Foot Cover Name: Standard Rubber Pad Part #: FR-RFC Part #: FR-SRPAD Notes: Used under Round Foot to protect roof from Notes: Provides the same flush mounting method as the direct metal contact.
-
Page 15: Galvanic Reaction
If any penetrations in the roof are made they must be waterproofed to prevent water ingress. Commercially available flashing kits are available for different roofing materials. Apricus also offers silicone rubber frame pads which can be used for some roofing materials, providing a good roof seal when combined with quality roof sealants. -
Page 16: Roof Attachment Strength
• 22mm OD copper header pipe: Use 22mm copper olive compression fittings (#BF-ST-CO22x3/4”MBSP) or soldered connection. • Flared Nut: If the collector is provided with a loose nut on the header pipes, use Apricus standard brass adapters. These adapters will provide a ¾” M BSP thread (#BF-ST-FL19x3/4”MBSP). -
Page 17: Pipe Insulation
Apricus Solar Collector Installation and Operation Manual - International Edition d) Following these steps to install the sensor: STEP 1: Wet the sensor tip and cable with water. STEP 2: Slide on the rubber sensor plug, provided in the manifold box. - Page 18 flow of high temperature liquid which could damage the pump. g) Pressure drop through an Apricus 30 tube header with cold water at 3L/min is only 1kPa. See graph below for pressure drops at flow rates up to 15L/min.
-
Page 19: Evacuated Tube Installation
Apricus Solar Collector Installation and Operation Manual - International Edition 6. Evacuated Tube Installation WARNING DO NOT INSTALL THE HEAT PIPES AND EVACUATED TUBES UNTIL SYSTEM PLUMBING IS COMPLETED AND PUMP AND CONTROLLER ARE OPERATIONAL ALWAYS WEAR SAFETY GLASSES WHEN HANDLING EVACUATED TUBES 6.1. -
Page 20: Post Installation Cleaning
Apricus Solar Collector Installation and Operation Manual - International Edition d) IMPORTANT INFORMATION: Do not spray water into the evacuated tube. e) Follow this process to insert the evacuated tube into the header: STEP 1: Firmly hold the evacuated tube, taking care to ensure the metal spring plate... -
Page 21: Post Installation Check
Apricus Solar Collector Installation and Operation Manual - International Edition 7. Post Installation Check After installing all the tubes, and given good sunlight, the solar collector will begin to produce heat after a 5-10min “warm up” period. Check the controller and pump for correct operation and adjust settings as required. -
Page 22: Maintenance
Apricus Solar Collector Installation and Operation Manual - International Edition 8. Maintenance Under normal conditions the solar collector is maintenance free. Other system components such as the pump, glycol liquid (if used) may require periodic inspection and changing/maintenance. Please refer to the documentation provided by the manufacturer of these other components. -
Page 23: Draining The Collector
Apricus Solar Collector Installation and Operation Manual - International Edition b) For any insulation that is exposed to sunlight, ensure any protective cover/wrap/foil is in good condition, replacing as required. 8.5. Draining the Collector a) Draining of the manifold may be required if maintaining the system or in preparation for extremely cold conditions (extended snow cover). -
Page 24: Troubleshooting
Apricus Solar Collector Installation and Operation Manual - International Edition 9. Troubleshooting Those inspection items with an (H) may be completed by the home-owner, but only if such investigation is clearly both SAFE and the home-owner has sufficient technical understanding. Any information obtained during an investigation can then be relayed onto the company who supplied and installed the system. -
Page 25: Disclaimer
This booklet is only a guide and as such Apricus Solar Co., Ltd will not be held responsible for any damage to person or property that results during the installation or subsequent use of this solar collector and related system components. -
Page 26: Manufacturer's Limited Warranty
Apricus’s sole discretion. However, (iii) Any repairs that may have been made. Apricus will not elect to refund the purchase price unless it is unable to (iv) Evidence that the Product(s) were installed by a qualified, licensed provide a replacement, and repair is not commercially practical and contractor. -
Page 27: Installation Record Form
Thank you for choosing Apricus. The following form should be completed by the Installation Officer and Home Owner to keep as a record of the installation in case of a warranty claim. Also please complete online registration at www.apricus.com Customer’s Name:...
