Summary of Contents for Hydrofarm ACTIVE AQUA AACH50

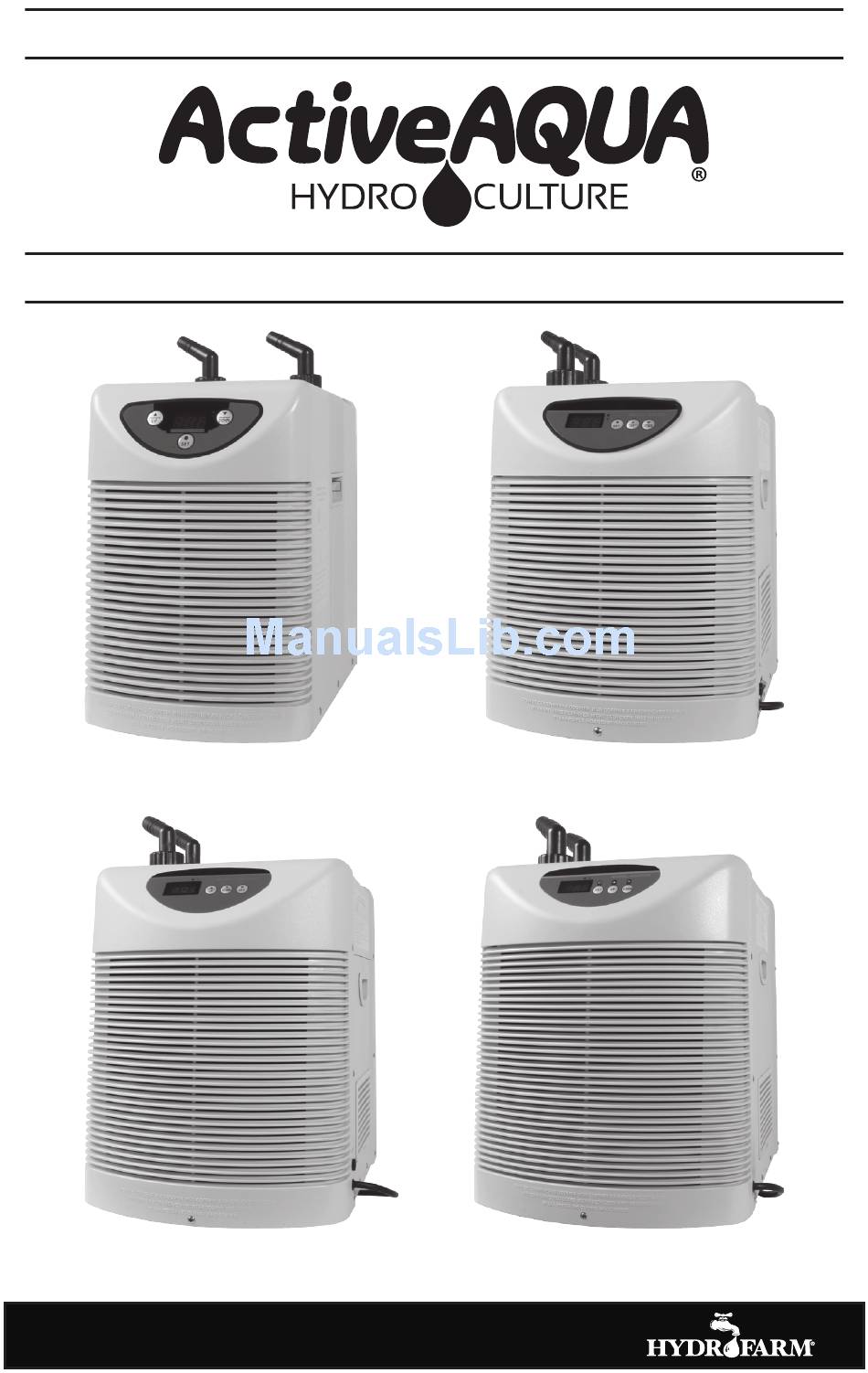

- Page 1 INSTRUCTIONS WATER CHILLERS AACH10 AACH25 AACH50 AACH100...
- Page 2 (30°C), the water temperature before refrigeration is 82°F (28°C), and the water refrigerated is 150 L (40 gal). When water refrigeration is reduced, the water temperature will drop down to any degree above 39°F (4°C) in a short period of time. www.Hydrofarm.com...
- Page 3 4. When there is not enough circulation in a room, the refrigeration efficiency is reduced. * The BTU is measured at an ambient temperature of 97°F (36°C) and the chiller is working at 1100W/9.6A power. Recommended Pump: Hydrofarm AAPW160 OR AAPW250...
- Page 4 (30°C), the water temperature before refrigeration is 82°F (28°C), and the water refrigerated is 150L (40 gal). When water refrigeration is reduced, the water temperature will drop down to any degree above 39°F (4°C) in a short period of time. www.Hydrofarm.com...
- Page 5 4. When there is not enough circulation in a room, the refrigeration efficiency is reduced. * The BTU is measured at an ambient temperature of 97°F (36°C) and the Chiller is working at 1100W/9.6A power. Recommended Pump: Hydrofarm AAPW250 or AAPW550...
- Page 6 (30°C), the water temperature before refrigeration is 82°F (28°C), and the water refrigerated is 150L (40 gal). When water refrigeration is reduced, the water temperature will drop down to any degree above 39°F (4°C) in a short period of time. www.Hydrofarm.com...
- Page 7 4. When there is not enough circulation in a room, the refrigeration efficiency is reduced. * The BTU is measured at an ambient temperature of 97°F (36°C) and the Chiller is working at 1100W/9.6A power. Recommended Pump: Hydrofarm AAPW550 or AAPW800...
- Page 8 AACH100 PERFORMANCE CURVE THE REFRIGERATION PERFORMANCE TEST IS INDICATED WHEN THE AMBIENT TEMPERATURE IS 88°F (31°C), the water temperature before refrigeration is 86°F (30°C), and the water refrigerated is 500L (132 GAL), 1000L (264 gal) and 2000 L (528 GAL). www.Hydrofarm.com...
- Page 9 4. When there is not enough circulation in a room, the refrigeration efficiency is reduced. * The BTU is measured at an ambient temperature of 97°F (36°C) and the Chiller is working at 1100W/9.6A power. Recommended Pump: Hydrofarm AAPW1000...
-
Page 10: Circuit Diagram
• The compressor protection device system is built to shut off the circuit automatically to prevent the motor from burning out when the motor is overheating • Temperature memory system that allows the chiller to refrigerate continuously according to the previous temperature setting www.Hydrofarm.com... -
Page 11: Suggestions For Safe Operation
INSTRUCTIONS INTRODUCTION Thank you for purchasing the Active Aqua Series Chiller. The chiller represents a significant step forward in horticultural chiller engineering, offering state of the art technology at highly competitive prices. With this chiller, water temperatures for reservoirs can be quickly and economically maintained. - Page 12 The inflow should connect the chiller to the appropriate sized submersible water pump, such as an Active Aqua Water Pump, in the proper sized reservoir (see attached performance curve chart). The outflow tube should hang freely in the reservoir to re-introduce the chilled water back into the holding tank. www.Hydrofarm.com...
-
Page 13: Operation
INSTRUCTIONS NOTE: Please note that the filter (with the pump) must be located below the reservoir water level. If you wish to place the unit at the side of the reservoir, you must fill the filtration system with water before turning it on. OPERATION 1. -
Page 14: Compressor Operation
5. Plug in the pump and allow it to run for at least 1 hour so that the projected solution contacts all of the internal components used in the chiller during operation. Unplug the pump and empty the reservoir solution. 6. Repeat steps 4 and 5 with clean water ONLY. www.Hydrofarm.com... -
Page 15: Troubleshooting
INSTRUCTIONS 7. Remove front grill from unit so the air inlet filter is accessible. Vacuum and/or brush both. 8. Replace the air inlet filter and grill to the front. WE RECOMMEND THE FOLLOWING AIR FILTER MAINTENANCE PROCEDURE ON A REGULAR BASIS 1. -
Page 16: Limited Warranty
Hydrofarm’s warranty liability extends only to the replacement cost of the product. Hydrofarm will not be liable for any consequential, indirect, or incidental damages of any kind, including lost revenues, lost profits, or other losses in connection with the product. Some states do not allow limitation on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
Need help?
Do you have a question about the ACTIVE AQUA AACH50 and is the answer not in the manual?
Questions and answers
My water chiller runs for a minute and shuts off, wondering where to start troubleshooting
If the Hydrofarm ACTIVE AQUA AACH50 water chiller runs for a minute and then shuts off, follow these troubleshooting steps:
1. Check if the chiller is in protection mode: The unit may shut off and enter a 3-minute protection cycle. Wait 3 minutes to see if it restarts automatically.
2. Inspect the fan: Ensure the fan is working and the chiller is dissipating heat properly. If the fan is not working, return the unit to the place of purchase.
3. Verify the set temperature: Make sure the set temperature is lower than the water temperature. If not, reset the temperature.
4. Clean air inlets/outlets: Use a brush or vacuum cleaner to clean the air inlet and outlet if they are clogged.
5. Ensure proper installation: Confirm the unit is installed on a flat surface. Reinstall if necessary.
If these steps do not resolve the issue, return the unit for warranty assessment.
