Brüel & Kjær Vibro VIBROCONTROL 1500 Operating Instructions Manual

2-channel monitoring device for bearing vibrations, rolling-element bearing condition and temperature with diagnostic remote monitoring
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
B & K s.r.o.
Palisády 20, 811 06 Bratislava
Slovak Republic
02/ 544 307 01
bk@bruel.sk, www.bruel.sk

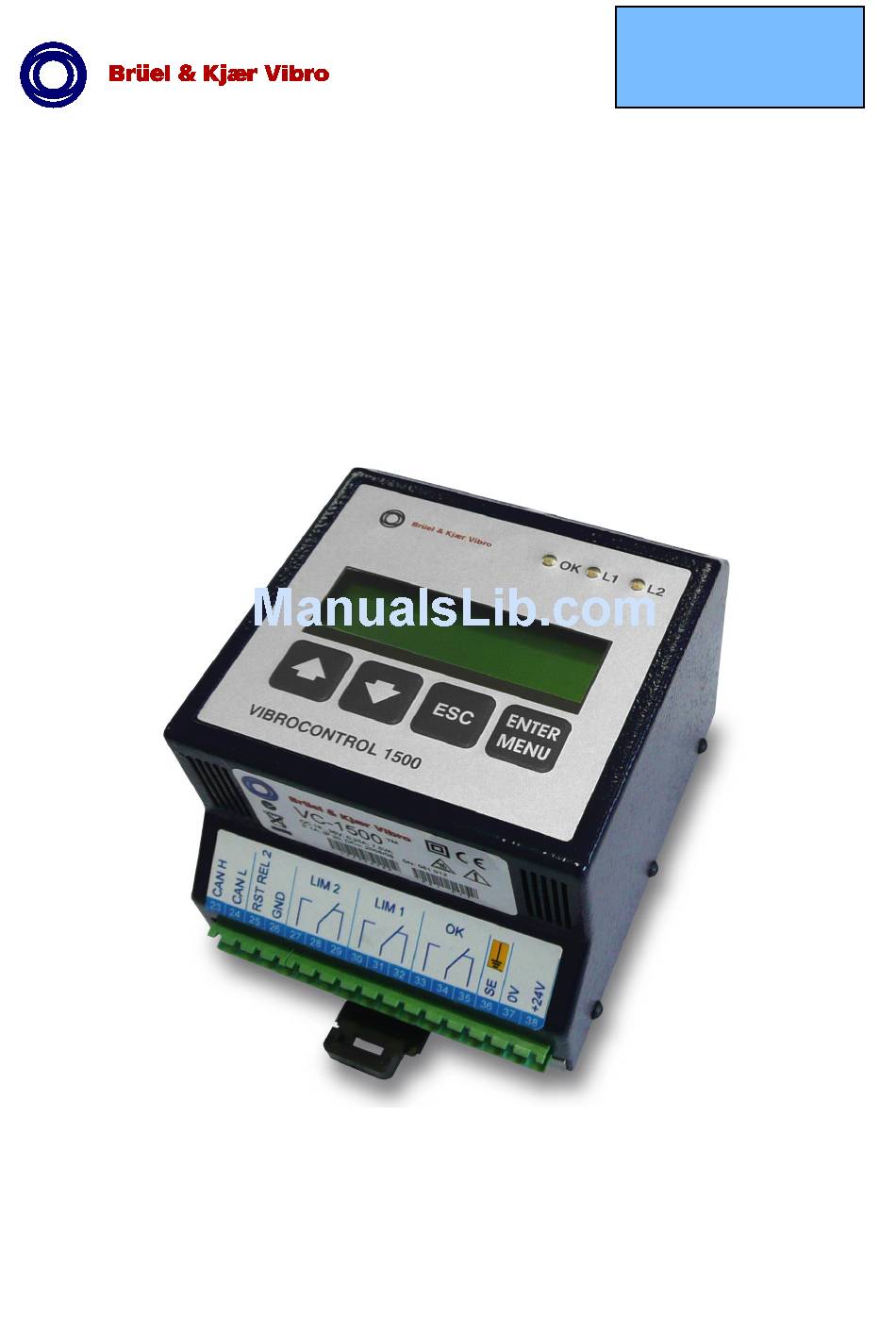

VIBROCONTROL 1500
2-channel Monitoring Device for
Bearing Vibrations, Rolling-element Bearing
Condition and Temperature
with Diagnostic Remote Monitoring

Operating Instructions

Advertisement

Table of Contents
loading

Related Manuals for Brüel & Kjær Vibro VIBROCONTROL 1500

Summary of Contents for Brüel & Kjær Vibro VIBROCONTROL 1500

  • Page 1: Operating Instructions
