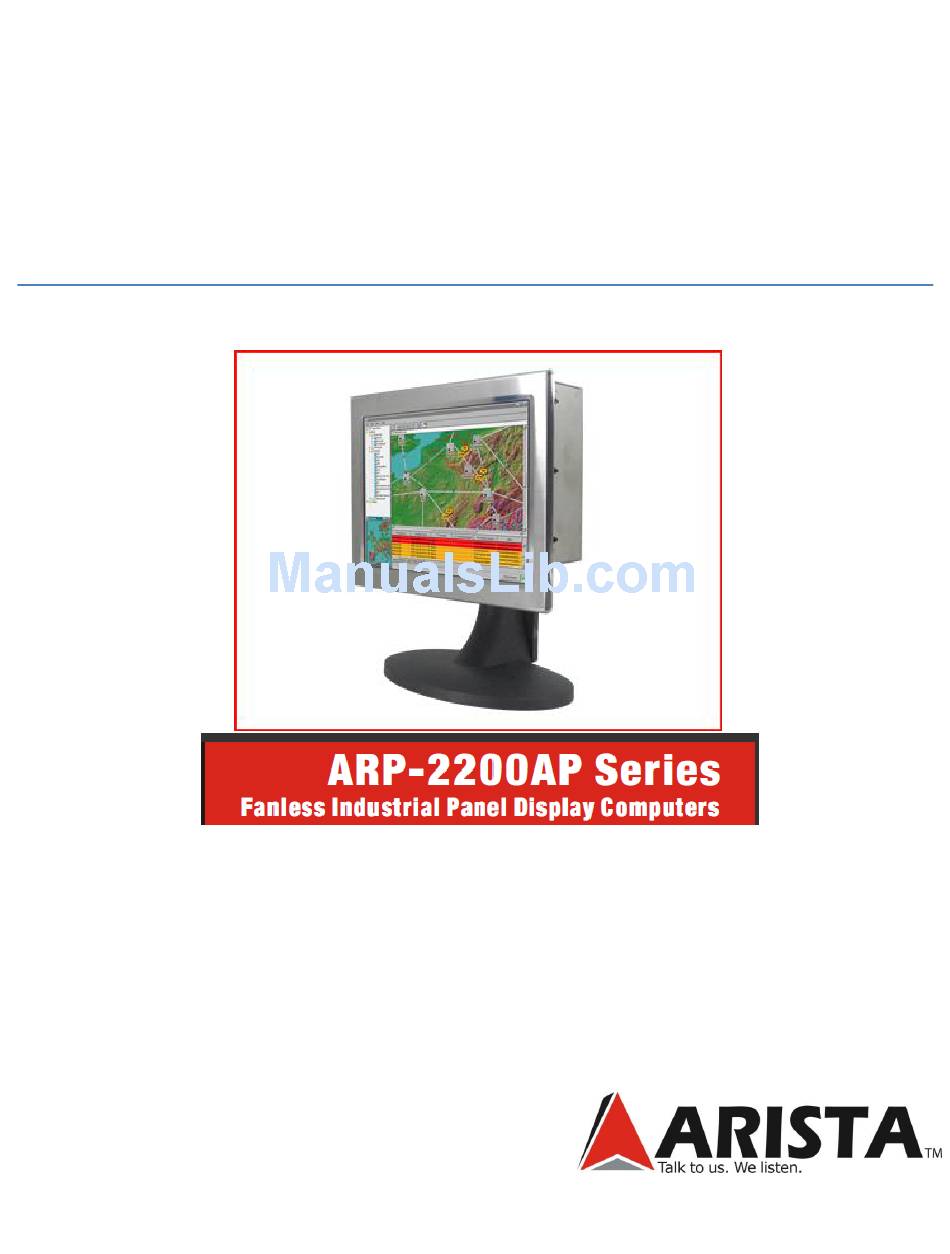

Arista ARP-2200AP SERIES User Manual

Fanless industrial panel display computers
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARP-2200AP SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Arista ARP-2200AP SERIES

Summary of Contents for Arista ARP-2200AP SERIES

  • Page 1 USER MANUAL...
  • Page 2 The documentation and the software included with this product are copyrighted 2010 by Arista Corporation. All rights are reserved. Arista reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Arista Corporation.
  • Page 3 Arista Corporation supports its customers, before, during and after the sale. Arista provides one of the most comprehensive warranty and support programs in the industry. From the date that your product is invoiced, Arista will provide a full two year depot warranty which covers defects in design, materials, and workmanship.
  • Page 4 Technical Support and Assistance Visit the Arista web site at www.goarista.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Arista’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: ...

  • Page 5: Packing List

    Mounting screws and mounting brackets Additional Information and Assistance Visit the Arista web site at www.goarista.com to find the latest information about the product. Contact the distributor, sales representative, or Arista’s customer service center for technical support and additional assistance. Please have the following information ready before calling: ...
  • Page 6 Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately. Sl.No. Revision By Approved By Revision History Revision Date ARP-2200 Series Users’ Manual Navan Paul Shu 4/21/2010 (Initial Draft Version) Arista ARP-2200AP User Manual P a g e...

  • Page 7: Safety Instructions

    17. The sound pressure level at the operator’s position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: Arista Corporation reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or...
  • Page 8 CPU card or other cards while the PC is on.  Disconnect power before making any configuration changes. The sudden rush of power while connecting a jumper or installing a card may damage sensitive electronic components. Arista ARP-2200AP User Manual P a g e...

  • Page 9: Table Of Contents

    ARP-2219AP Specifications ........................... 18 Dimensions ................................20 ......................23 HAPTER ARDWARE NSTALLATION 2.1. A Quick Tour of ARP-2200AP Series ........................23 2.2. Preparing for First-Time Usage ..........................23 2.3. Installation and Mounting Procedures ........................23 2.3.1. Mounting on Panel Cutout ..........................23 XP- P ................
  • Page 10 Running the Alignment Program ........................... 76 7.3. Calibrate Touch Screen (ACP ThinManager) ....................... 77 ..................80 HAPTER AINTENANCE AND ROUBLESHOOTING 8.1. Electrostatic Discharge ............................81 8.1.1. Grounding Methods ............................81 Arista ARP-2200AP User Manual 10 | P a g e...
  • Page 11 Liability Limitation / Exemption from Warranty Obligation..................82 8.6. Reinstalling the Operating System ........................82 8.6.1. Reinstalling the Drivers ..........................82 8.7. Troubleshooting..............................82 ....................84 HAPTER ERTIFICATES AND OMPLIANCE Arista ARP-2200AP User Manual 11 | P a g e...
  • Page 12 Chapter 1 General Information General Information This chapter gives background information on the ARP-5500AX Series. Sections include:  Specifications  Dimensions Arista ARP-2200AP User Manual 12 | P a g e...

  • Page 13: Chapter 1 General Information

    1 GB of DDR or 2 GB DDR2-667, 160GB HDD, CD RW drive, choice of 15”, 17”, 19” LCD display and as well with the choice of either 1.5GHz C7 CPU or 1.83GHz Core 2 Duo processor . The ARP-2200AP Series offers quick access hard disk bay, dual gigabit Ethernet connectivity, five COM ports and six USB 2.0 ports and one PCI expansion slot.

  • Page 14: Specifications

    PC can be heated up to operating temperature and started within a short span of time in the food production industry. ARP-2200AP Series fully sealed enclosure offers excellent chemical and corrosion resistance and hence an ideal solution for petroleum refining, chemical industries and wastewater treatment where chemical compound are extensively used. The ARP-2200AP Series enclosure is fully sealed through gasket which prevents chemical gas flowing into the unit causing electronic components damage.
  • Page 15 16.1 lbs / 7.31 kg Physical / Dimension (LxWxH) 14.51 x 11.08 x 4.52 inch / 368.55 x 298.82 x 14.51 x 11.08 x 4.52 inch / 368.55 x 298.82 Arista ARP-2200AP User Manual 15 | P a g e...

  • Page 16: Arp-2217Ap Specifications

    Contrast Ratio 800:1 800:1 Brightness 300 nits 300 nits Touch Screen Technology 5 Wire Resistive 5 Wire Resistive Touch Rating 35 Million Touches 35 Million Touches MTBF 490,000 Hours 490,000 Hours Arista ARP-2200AP User Manual 16 | P a g e...
  • Page 17 1 x Port OS Support OS Support Win XP Pro, XP Win XP Pro Power / Thermal Specs. Power Requirement (Max) 120VAC/0.775A, 24VDC/3.8A 120VAC/0.96A, 24VDC/4.8A Power Consumption (Max) 108W 130W Arista ARP-2200AP User Manual 17 | P a g e...

  • Page 18: Arp-2219Ap Specifications

    Viewing Angle (V/H) / 178 / 178 Response Time (Typical) 20 ms 20 ms Pixel Pitch (mm) 0.294 x 0.294 0.294 x 0.294 Contrast Ratio 700:1 700:1 Brightness 300 nits 300 nits Arista ARP-2200AP User Manual 18 | P a g e...
  • Page 19 5 x RS-232, 1 x RS-232/422/485 5 x RS-232, 1 x RS-232/422/485 IEEE 1394 2 x IEEE 1394B Dual Gigabit LAN Dual Gigabit LAN Parallel Port 1 x Port 1 x Port OS Support Arista ARP-2200AP User Manual 19 | P a g e...

  • Page 20: Dimensions

    0% ~ 95% (Non-Condensing) Rating NEMA 4 / 4X Bezel NEMA 4 / 4X Bezel Certification Dimensions This section describes the line drawings and appropriate product dimensions specific to ARP-2200 Series. Arista ARP-2200AP User Manual 20 | P a g e...
  • Page 21 The following table provides the complete dimension details for the different models of ARP-2200AP Series. ARP-2215AP/BP/CP/DP ARP-2217AP/BP/CP/DP ARP-2219AP/BP/CP/DP 11.80 inch / 298.82 mm 13.34 inch / 338.84 mm 14.6 inch / 370.84 mm 14.51 inch / 368.55 mm 15.88 inch / 403.35 mm 17.

  • Page 22: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Hardware Installation This chapter gives the hardware installation information for the ARP-5500AX Series. Sections include:  A Quick Tour  Installation Procedures  Installing the Drivers Arista ARP-2200AP User Manual 22 | P a g e...

  • Page 23: A Quick Tour Of Arp-2200Ap Series

    Installation and Mounting Procedures The ARP-2200AP Series can be either panel or VESA mounted. If utilizing a panel mount, the chassis offers 12 mounting screw locations yielding NEMA sealability when properly installed. If mounting on an arm or desktop mount, the rear of the unit offers an industry standard 100mm VESA screw pattern.
  • Page 24 Mount the key ways in base chassis of the unit. Assemble the Hanger Key-1 at 9 places and Hanger Key-2 at 4 places. Arista ARP-2200AP User Manual 24 | P a g e...
  • Page 25 Assemble the screw at 13 places in the unit. The following picture shows the IO communication. Arista ARP-2200AP User Manual 25 | P a g e...
  • Page 26 Arista ARP-2200AP User Manual 26 | P a g e...
  • Page 27 Driver Installation for Windows XP-Pro Driver Installation for Windows XP-Pro This chapter gives information on installing drivers for Windows XP-Pro operating system. Sections include:  Driver Installation  Updating Drivers Arista ARP-2200AP User Manual 27 | P a g e...

  • Page 28: Chapter 3 Driver Installation For Windows Xp- Pro

    Driver Installation – ARP2200AP A00 Model ARP-2200AP Series lets you insert the utility CD to the CD-ROM drive. Subsequent to this process, the install menu spears automatically. Select the corresponding driver of utility CD if the install menu does not list the suitable drivers. The ARP-2200AP A00 model refers to the VIA 1.5 GHz C7 CPU and E4215 motherboard.
  • Page 29 Click Next. The update or remove program option appears. Arista ARP-2200AP User Manual 29 | P a g e...
  • Page 30 Select Update and click Next to proceed. This displays the Install List items. Select the appropriate components to install and click Next. This displays the current settings. Click Finish to complete the settings. Arista ARP-2200AP User Manual 30 | P a g e...

  • Page 31: Display Driver Software

    3.1.2. Display Driver Software This section describes the display driver software installation procedures. Follow these steps: Insert the utility CD to CD-ROM to initiate the installation process. Click Display Driver. Arista ARP-2200AP User Manual 31 | P a g e...
  • Page 32 Double-click Setup to continue. Arista ARP-2200AP User Manual 32 | P a g e...
  • Page 33 Click Finish to complete the setup. Arista ARP-2200AP User Manual 33 | P a g e...

  • Page 34: Sound Card Driver Software

    This section describes the sound card driver software installation procedures. Follow these steps: Insert the utility CD to CD-ROM to initiate the installation process. Click Sound Card. Double-click Win2KXP_WDM_A300 to continue. Arista ARP-2200AP User Manual 34 | P a g e...
  • Page 35 Click Finish to complete the setup. Arista ARP-2200AP User Manual 35 | P a g e...

  • Page 36: Lan Driver Software

    3.1.4. LAN Driver Software This section describes the LAN driver software installation procedures. Follow these steps: Insert the utility CD to CD-ROM to initiate the installation process. Click LAN. Arista ARP-2200AP User Manual 36 | P a g e...
  • Page 37 Double-click Setup. Arista ARP-2200AP User Manual 37 | P a g e...
  • Page 38 Click Next. Arista ARP-2200AP User Manual 38 | P a g e...
  • Page 39 Click Install to begin the installation. Arista ARP-2200AP User Manual 39 | P a g e...
  • Page 40 Click Finish to complete the installation. Arista ARP-2200AP User Manual 40 | P a g e...

  • Page 41: Driver Installation - Arp2200Ap D00 Model

    Driver Installation – ARP2200AP D00 Model ARP-2200AP Series lets you insert the utility CD to the CD-ROM drive. Subsequent to this process, the install menu spears automatically. Select the corresponding driver of utility CD if the install menu does not list the suitable drivers. The ARP-2200AP D00 model refers to the Core 2 Duo Mobile Processor.
  • Page 42 Read the license agreement and click Yes to continue. Click Next. This displays the readme file with regards to the system requirements and installation information. Arista ARP-2200AP User Manual 42 | P a g e...
  • Page 43 Click Next. Click Finish to complete the setup. Arista ARP-2200AP User Manual 43 | P a g e...

  • Page 44: Intel Graphic Media Accelerator Driver

    This section describes the Intel graphic media accelerator driver installation procedures. Follow these steps: Insert the utility CD to CD-ROM to initiate the installation process. Click Next. The Intel® Chipset Graphics Driver Software – InstallShield Wizard dialog box appears. Arista ARP-2200AP User Manual 44 | P a g e...
  • Page 45 Click Next. This displays the setup program information. Click Next. Read the license agreement and click Yes to continue. Arista ARP-2200AP User Manual 45 | P a g e...
  • Page 46 Click Next. This displays the readme file details, such as system requirements and installation information. Click Next. Arista ARP-2200AP User Manual 46 | P a g e...
  • Page 47 Click Finish to complete the setup. Arista ARP-2200AP User Manual 47 | P a g e...

  • Page 48: Lan Driver

    This section describes the LAN driver installation procedures. Follow these steps: Insert the utility CD to CD-ROM to initiate the installation process. Click Next. Click Install to proceed with the installation. Arista ARP-2200AP User Manual 48 | P a g e...
  • Page 49 Click Finish. This completes the installation. Arista ARP-2200AP User Manual 49 | P a g e...

  • Page 50: Audio Driver

    Insert the utility CD to CD-ROM to initiate the installation process. Click Next. The InstallShield Wizard installs Realtek High Definition Audio Driver on your PC. Click Finish to complete the setup. Arista ARP-2200AP User Manual 50 | P a g e...
  • Page 51 Arista ARP-2200AP User Manual 51 | P a g e...
  • Page 52 This chapter gives information on ACP enabled ARP-2200AP setup. Sections include:  Boot Process  IP Address Assignment  Configuring Hardware  Creating New Terminal Mode  Auto Creation of Terminals Arista ARP-2200AP User Manual 52 | P a g e...

  • Page 53: Chapter 4 Acp Enabled Arp-2200Ap Setup

    The terminal server will process the data and send the graphics back to the terminal for display, giving a full Windows experience to the user. Arista ARP-2200AP User Manual 53 | P a g e...

  • Page 54: Ip Address Assignment

    ThinManager Ready thin clients use DHCP (Dynamic Host Configuration Protocol) by default. If they have been set to use a static IP they can be reset to DHCP from static IP by pressing any key when prompted during the boot sequence to open the IP Configuration Menu. Arista ARP-2200AP User Manual 54 | P a g e...

  • Page 55: Static Ip

    Most models of ThinManager Ready thin clients allow the usage of static IPs. These are set by interrupting the boot process to launch the IP Configuration Menu and adding the static IPs. Arista ARP-2200AP User Manual 55 | P a g e...
  • Page 56 Press the A to allow the client IP to change from DHCP. Type in the static IP address for the client, including the separating periods and press the Enter key. Arista ARP-2200AP User Manual 56 | P a g e...

  • Page 57: Hybrid Ip Addressing

    ThinManager Server IP addresses entered as static IPs to save having to configure the DHCP server with Option 066. Select any key when prompted during boot up. This opens the IP Configuration Menu. Arista ARP-2200AP User Manual 57 |...

  • Page 58: Configuring New Hardware

    The configuration of terminals is done in ThinManager on the ThinManager Server and not on each individual terminal. When a new, undefined ThinManager Ready Thin Client is first connected to a ThinManager Server one of three things will happen: Arista ARP-2200AP User Manual 58 |...

  • Page 59: Create New Terminal Mode

    Turning on a terminal for the first time will initiate the Replace or Create New Terminal Mode if one or more of the defined terminals are offline and they have the Allow this terminal to be replaced if Offline check box selected. Arista ARP-2200AP User Manual 59 |...

  • Page 60: Auto-Creation Of Terminals

    Modify, or select Manage > Settings from the menu. The terminal will be given the name of the Auto-Create Mask and a number, starting with —0“. The Auto-Create Mask is configured on the Unknown Terminals page of the ThinManager Server Configuration Wizard. Arista ARP-2200AP User Manual 60 | P a g e...

  • Page 61: Configuring Default Terminal

    4.6.2. Configuring Default Terminal The Default Terminal is created by selecting Manage > Configure Default Terminal. This will launch the Terminal Configuration Wizard for a terminal pre-named —Default“. Arista ARP-2200AP User Manual 61 | P a g e...
  • Page 62 Configure the terminal with the desired settings. The Default terminal can be added to a Group by selecting the Change Group button. Once the wizard is finished, the Default terminal will be displayed in the ThinManager Server tree. Arista ARP-2200AP User Manual 62 |...
  • Page 63 ThinManager Server will have AutoCreate Terminal as an option. The user needs to scroll to AutoCreate Terminal and press the Enter key to automatically create and configure the terminal. Arista ARP-2200AP User Manual 63 |...
  • Page 64 The new terminal will be given the AutoCreate Mask and a number, starting at 0, for its name. This name will also be entered in the Username field of the Log in Information page of the Terminal Configuration Wizard. Arista ARP-2200AP User Manual 64 |...
  • Page 65 Chapter 5 ARP-2200AP Series Optional Accessories ARP-5500AX Series Optional Accessories This chapter explains onboard devices and peripheral I/O ports available in the ARP-2200AP Series. Sections include:  Power Supply Arista ARP-2200AP User Manual 65 | P a g e...

  • Page 66: Chapter 5 Arp-2200Ap Series Optional Accessories

    Optional Accessories 5.1. Introduction This chapter describes the basic features and procedures for using the ARP-2200AP Series NEMA 4/ 4X computers. This includes the accessories, such as power supply, PS/2 keyboard and mouse, resistive touchscreen, and mounting brackets. 5.2. Accessories 5.2.1.
  • Page 67 Plug the supplied AC power cord into an outlet and then into the unit’s power input socket. The AC power cord provides the necessary earth grounding for safety. The unit is now ready to power up. Turn on the computer by pressing the momentary switch on the bottom of the chassis. Arista ARP-2200AP User Manual 67 | P a g e...

  • Page 68: Connector Pin Assignments

    Sections include:  USB Ports  COM Ports  Ethernet  VGA Port  PS/2 Mouse and Keyboard  Touchscreen  Mounting Bracket  Optical Output  Audio  Printer Arista ARP-2200AP User Manual 68 | P a g e...

  • Page 69: Chapter 6 Connector Pin Assignments

    CTS, Clear to send +5V, Ring-IN or +12V (Ring indicator) 6.2.2. COM2 Serial Port COM2, a 10-pins header connector, is the onboard COM2 serial port. The following table shows its pin assignments. Arista ARP-2200AP User Manual 69 | P a g e...

  • Page 70: Com3 Serial Port

    RTS, Request to send CTS, Clear to send Ring-IN N.C. 6.2.4. COM4 Serial Port COM4, a 10-pins header connector, is the onboard COM4 serial port. The following table shows its pin assignments. Arista ARP-2200AP User Manual 70 | P a g e...

  • Page 71: Com5 Serial Port

    COM6, a 10-pins header connector, is the onboard COM6 serial port. The following table shows its pin assignments. Pin-9 is power pin to support devices required power. The voltage can be selected by jumper JP7. Arista ARP-2200AP User Manual 71 |...

  • Page 72: Ethernet

    6.3. Ethernet This section provides information on Ethernet port connectivity. ARP-2200AP Series provides two Ethernet ports. You can connect devices to the LAN port to establish the network connectivity. External devices on the network may be connected to the system through the external Ethernet port located on the bottom of the system unit.

  • Page 73: Ps/2 Mouse And Keyboard

    Connect a PS/2 mouse to the green 6-pin mini DIN connector. The system will automatically assign IRQ 12 to the PS/2 mouse if one is connected. Signal Name Keyboard / Mouse Data Keyboard / Mouse Clock Arista ARP-2200AP User Manual 73 | P a g e...

  • Page 74: Touchscreen

    The resistive touchscreen is connected to the internal RS-232 port. Its function is similar to that of a mouse. Touchscreen is one of the standard features Arista implements in almost all the configurations. It is necessary to install the touchscreen driver prior to its functioning. The touchscreen drivers for various operating systems are stored on the CD-ROM disc inside the accessory box.
  • Page 75 Chapter 7 Video Alignment (Calibration) Video Alignment (Calibration) This chapter provides information on launch options and running the alignment program. Sections include:  Options to Launch  Running the Alignment Program Arista ARP-2200AP User Manual 75 | P a g e...

  • Page 76: Video Alignment (Calibration)

    If the cursor does not appear at the position touched, click the blue curved arrow and the alignment program will run again. Arista ARP-2200AP User Manual 76 | P a g e...

  • Page 77: Calibrate Touch Screen (Acp Thinmanager)

    Refer Touch Screen Modules for details.  The Term Mon ActiveX can be configured to launch the calibration program. Refer TermMon ActiveX Control for details. Arista ARP-2200AP User Manual 77 |...
  • Page 78 Arista ARP-2200AP User Manual 78 | P a g e...
  • Page 79  Instructions Specific to Lithium Battery  FCC Statement  Exclusion of Accident Liability Obligation  Liability Limitation / Exemption from Warranty Obligation  Reinstalling the Operating System  Troubleshooting Arista ARP-2200AP User Manual 79 | P a g e...

  • Page 80: Chapter 8 Maintenance And Troubleshooting

     The extension of the device can be carried out only in the factory.  Maintenance or repair on the open device may only be carried out by qualified personnel authorized by Arista Corporation.  Only original accessories approved by Arista Corporation may be used.

  • Page 81: Electrostatic Discharge

    The small lithium battery on this ARP-2200AP Series PC motherboard is responsible for retaining clock related information, such as the date and time of the system, so that even if ARP-2200AP Series PC is switched off for a long period, the system can still compute and recall the current date and time.

  • Page 82: Fcc Statement

    FCC Statement The ARP-2200AP Series is tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial environment.
  • Page 83 Chapter 9 Certificates and Compliance Certificates and Compliance This chapter provides certification and compliance related details. Sections include:   Arista ARP-2200AP User Manual 83 | P a g e...

  • Page 84: Chapter 9 Certificates And Compliance

    Chapter 9 Certificates and Compliance This section provides information on test certificates earned by Arista Corporation for emissions compliance. Complete test reports are available upon request. For more information, please touch base with Arista Customer Support. Arista ARP-2200AP User Manual...
