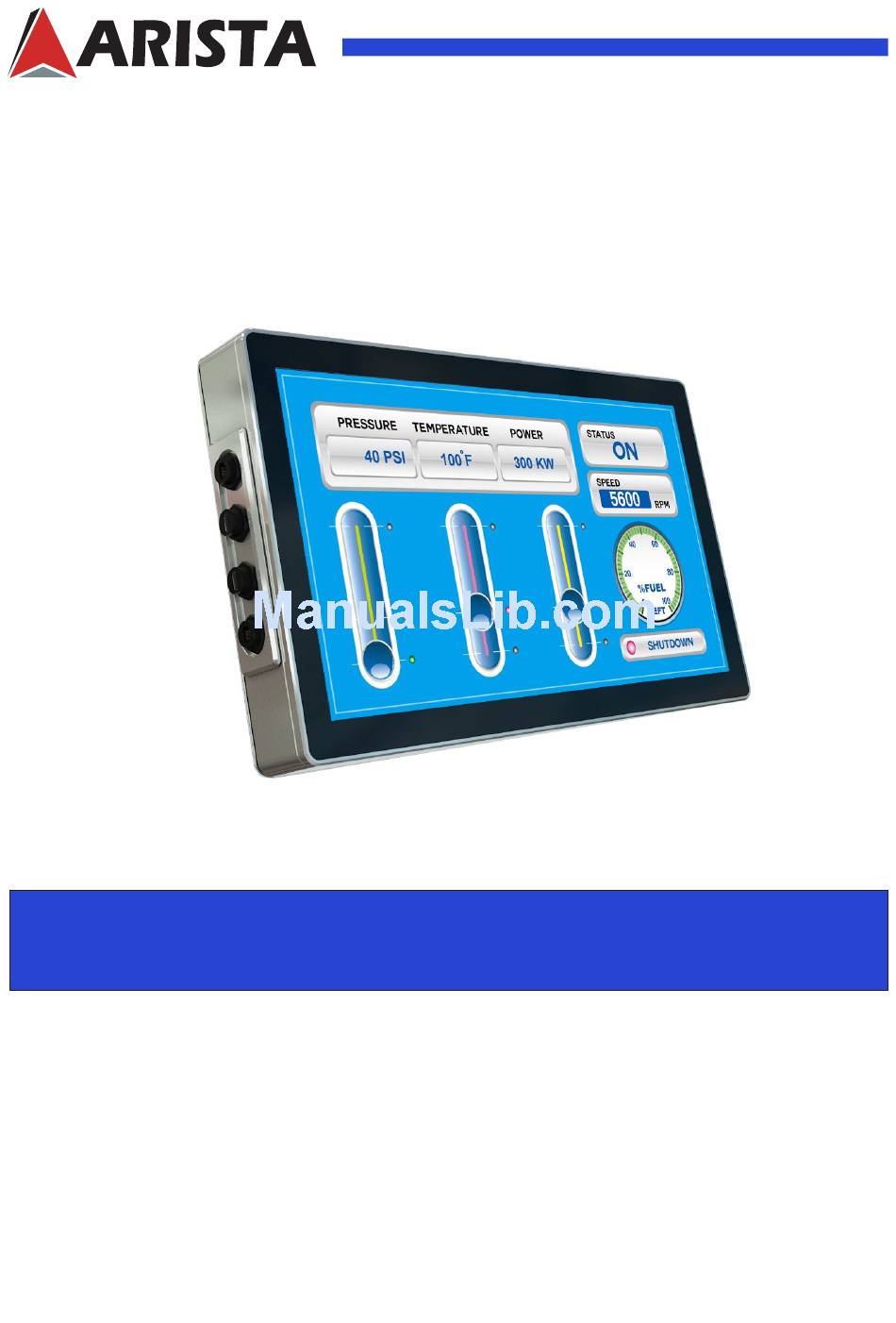

Industrial Waterproof Touch Screen Display
ADM-5821AX
USER MANUAL
This manual is a user guide for
ADM-5821AX industrial waterproof touch screen
display.
It includes detailed description about how to install and operate the product. Arista
Corporation recommends users to read through the entire manual and follow instructions to
avoid any kind of obscurity in using the product. For any questions or support, please call
us at 1.877.827.4782 Monday through Friday 8:00am to 5:00PM Pacific Time.
Advertisement
Table of Contents
Related Manuals for Arista ADM-5821AX
Summary of Contents for Arista ADM-5821AX
- Page 1 ADM-5821AX industrial waterproof touch screen display. It includes detailed description about how to install and operate the product. Arista Corporation recommends users to read through the entire manual and follow instructions to avoid any kind of obscurity in using the product. For any questions or support, please call...
-
Page 2: Product Safety Precautions
• Unplug the unit when not in use for an extended period of time. • Consult a service technician if the ADM-5821AX waterproof industrial display does not operate normally when you have followed the instructions in this manual. • Do not attempt to repair this product yourself. Always get a qualified service technician to carry out adjustments or repairs. -
Page 3: Table Of Contents
Contents Contents Product safety precautions ....................2 Contents ..........................3 Chapter 1 Welcome ......................4 Introduction ............................4 Features............................5 Product specifications ........................6 Unpacking ............................7 Chapter 2 Basics.........................8 Product Overview.......................8 Physical dimensions ........................11 Chapter 3 Connections ....................14 Mounting the ARD-1007TX HDMI extender................15 Mounting the display........................17 Connecting to ARD-1007TX HDMI extender................25 Connecting to ARD-5816TX digital extender cluster..............26 Chapter 4 Appendix......................28... -
Page 4: Chapter 1 Welcome
Ideal for a wide variety of industrial environments, applications and outdoor use. The ADM-5821AX is integrated with KVM extender receiver in the unit. Therefore, Arista's KVM extender transmitter has to be used with ADM-5821AX. Arista ARD-1007TX is compatible with ADM-5821AX and is shipped with ADM-5821AX. -
Page 5: Features
Features • 21.5” industrial waterproof display, 1920 x 1080 resolution • 16:9 aspect ratio for the display with touch support. • LCD protected by tempered glass. • High quality, waterproof stainless steel bezel. • Supports multiple digital signals such as audio, video(HDMI, VGA, DVI, SDI, DP, CVBS, YPbPr). -
Page 6: Product Specifications
Product specifications LCD Display Display Size 21.5" Max Resolution 1920 x 1080 Backlight Lifetime 50,000 hours Visual Characteristics Colors 16.7 million Aspect Ratio 16:9 Viewing Angle (V/H) 178° / 178° Response Time 14 ms Pixel Pitch (mm) 0.248 x 0.248 Contrast Ratio 1000 : 1 Brightness... -
Page 7: Unpacking
Before unpacking, please inspect the shipping carton for any external damage. Please contact for assistance if any damage is visible. Keep original packaging material safe in case of any return, repair or transport to other location. ADM-5821AX waterprrof display x1 ARD-1007TX HDMI Extender... -
Page 8: Chapter 2 Basics
Chapter 2 Basics Product Overview ADM-5821AX Display Front View Side View Rear View RJ45 LAN port - For network connection, connect to network device. USB1/USB2 Port - Connect mouse or keyboard for control of Remote PC on ADM- 5821AX display. - Page 9 ARD-1007TX HDMI Extender Transmitter Rear Front Connector Description RS-232 IN RS-232 signal source input(Touch signal input). HDMI IN HDMI video signal source input. Connect to a PC via USB cable(for inputting touch/keyboard/mouse signal etc.) Connect to a Remote control connector terminal for remote IR Remote control(In/Out) control on the display.
- Page 10 ARD-5816TX 16-Way Digital Extender Cluster(Optional) Front View Rear View B C D 1. LED Indicators 4. Power button 2. USB Service connector 5. AC power input jack 3. Remote control IR connector A, B, C, D, E, F, G, H. Extender Transmitter channels - Input and output connectors for 16 channels(16-Way) of different signal transmission.
-
Page 11: Physical Dimensions
Physical dimension The diagrams below show the physical and specific dimensions of the ADM-5821AX industrial waterproof touch screen display. ADM-5821AX Display 537.2mm 93.7mm 21.15" 3.69" 532.0mm 78.7mm 20.94" 3.10" 265.1mm 10.44" 329.8mm 207.4mm 12.98" 8.17" 431.0mm 16.97"... - Page 12 ARD-1007TX HDMI Extender 34mm 1.35 " 5.12 " 130mm 144mm 5.65 " 103mm 4.04 " 70mm 2.76 " 157mm 6.19 "...
- Page 13 ARD-5816TX Digital Extender Cluster 442.0mm 17.40" Bottom View 262.2mm 10.32" 482.0mm 18.98" 466.0mm 18.33" 4 x R.09 2.25" Front View 133.5mm 222.2mm 5.26" 8.75"...
-
Page 14: Chapter 3 Connections
Warning! Make sure your display is grounded at all times. Also make sure that it is on the same ground as any other equipment connected to its communications ports. Connectors Connectors are located on the side of ADM-5821AX waterproof industrial display Connectors Connectors Rear... -
Page 15: Mounting The Ard-1007Tx Hdmi Extender
Mounting the ARD-1007TX HDMI Extender 1. Wall mounting There are two methods available to install the ARD-1007TX HDMI digital extender: Wall mounting and DIN-rail mounting. 1. Wall mounting The extender can be placed on a shelf, table, or mounted onto a wall or board. To mount them onto a wall or board, you will require the mounting screws found in the accessory box. - Page 16 2. DIN-Rail mounting As shown in the figure below, please follow the steps to mount the ARD-1007TX HDMI digital extender via DIN-Rail. • Step 1: The two metal clasps are pre-installed on the back of ARD-1007TX HDMI digital Extender, place one Din-Rail on the wall or board, and use a screwdriver to tighten the screws to affix the Din-Rail onto the wall or board.
-
Page 17: Mounting The Display
As shown in the figure below, please follow these steps to mount the display. • Step 1: Place the metal mounting plate on the back of the ADM-5821AX display, and align holes on the mounting plate with the holes on display. - Page 18 Physical dimensions for VESA mounting 537.2mm 93.7mm 21.15" 3.69" 532.0mm 78.7mm 20.94" 3.10" 265.1mm 10.44" 329.8mm 207.4mm 12.98" 8.17" 431.0mm 16.97"...
-
Page 19: Wall Mounting
As shown in the figure below, please follow these steps to mount the display. • Step 1: Place the metal mounting plate on back of the ADM-5821AX waterproof industrial display, align holes on the mounting plate with holes on the display. - Page 20 Physical dimensions for Wall mounting 537.2mm 93.7mm 21.15" 3.69" 532.0mm 78.7mm 20.94" 3.10" 265.1mm 10.44" 329.8mm 207.4mm 12.98" 8.17" 431.0mm 16.97"...
- Page 21 3. Benchtop stand mounting The ADM-5821AX display can be placed on a table or bench by mounting it onto the metal benchtop stand. To mount it onto the benchtop stand, you will require mounting screws found in the accessory box.
- Page 22 Physical dimensions for Benchtop Stand mounting 2.0mm 169.7mm 532.0mm 0.079" 6.68" 20.94" 329.8mm 12.98" 429.4mm 16.91" 13.6 286.6mm 0.54" 11.28" 78.0mm 3.07" 93.7mm 215.0mm 3.69" 8.46" 537.2mm 93.7mm 21.15" 3.69" 532.0mm 78.7mm 20.94" 3.10" 265.1mm 10.44" 329.8mm 207.4mm 12.98" 8.17" 431.0mm 16.97"...
- Page 23 As shown in the figure below, please follow these steps to mount the display. Step 1: Place the metal mounting plate on the back of the ADM-5821AX industrial display, and align holes on the mounting plate with holes on the display.
- Page 24 Physical dimension for Pedestal mounting 537.2mm 93.7mm 21.15" 3.69" 532.0mm 78.7mm 20.94" 3.10" 265.1mm 10.44" 329.8mm 207.4mm 12.98" 8.17" 431.0mm 16.97"...
-
Page 25: Connecting To Ard-1007Tx Hdmi Extender
4. Connect one end of the Cat5e/Cat6 cable to the Local Out connector of ARD-1007TX, and connect the other end to the Remote In port on the side of the ADM-5821AX. 5. Insert a USB device or USB keyboard on the ADM-5821AX if you have USB connection between the PC and ARD-1007TX. -
Page 26: Connecting To Ard-5816Tx Digital Extender Cluster
Remote In port on the side of ADM-5821AX display. 4. Insert a USB mouse or keyboard on the ADM-5821AX for controlling on PC if you have USB connection between the PC and ARD-5816TX. - Page 27 3. Connect one end of the Cat5e/Cat6 cable to the Local Out connector of ARD-5816TX, and connect the other end to the Remote In port on the side of ADM-5821AX display. 4. Connect one end of the supplied power adapter to the ARD-5816TX, and connect the other end to the wall AC outlet.
-
Page 28: Chapter 4 Appendix
Chapter 4 Appendix Maintenance and troubleshooting Maintenance Regular maintenance of the ADM-5821AX industrial waterproof display can help prevent damage or downtime. Warning! Do not operate or service the unit with its chassis open. There are hazardous voltages inside. Service should only be performed by qualified and authorized personnel. Make sure your industrial display is powered down and unplugged before removing the cover or working on internal components. - Page 29 Troubleshooting on ARD-1007TX HDMI extender No power • Insert the power plug properly into the power outlet. • Check if the ON/OFF button on the display is set to “on”. • Check if there is power at the AC outlet by plugging another device for a test. No signal • Check if all cables are connected correctly.
-
Page 30: Product Limited Warranty
(invoice date),Arista Corporation will repair or replace with new or refurbished product or parts. • Arista Corporation holds every right to decide for repair or replacement of any product or part. During the “labor” limited warranty period there will be no charge for labor and during the “parts”... - Page 31 If shipment of missing items or replacement of wrong items is requested, Arista will ship the replacement in 7 calendar days. A credit memo will be issued to the customer after the returned product is received and verified.
- Page 32 • No Credit DOA: No credit will be given to the customer for DOA products received by Arista beyond 30 calendar days after the invoice date. No credit will be given to all non- cancellable, non-returnable, custom order parts.
- Page 33 7. RMA Transportation Policy Product Non-Acceptance • Products will not be accepted by Arista Corporation if not accompanied by a valid RMA number, which must be clearly marked on the outside of the package. • Any products refused by Arista will incur fees and/or charges applied by the shipping carrier, and shall be the sole liability of the original shipper.
- Page 34 • Arista Corporation is not liable for incidental or consequential damages resulting from the use of Arista products or arising out of any breach of Arista’s full limited warranty. • Under no equitable theory shall Arista Corporation be held liable for monetary and/ or non-monetary damages resulting from the normal or abnormal usage of our products.
-
Page 35: Frequently Asked Questions
Frequently Asked Questions What does ‘refresh rate’ mean in relation to an LCD display? The refresh rate is of much less relevance for LCD displays. LCD displays stay at a stable, flicker-free image at 60Hz. There is no visible difference between 85Hz and 60Hz. Are LCD display Plug-and-Play? Yes, the displays are Plug-and-Play compatible with Windows XP, 7 and 8 What is a Liquid Crystal Display? A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc. -
Page 36: Disposal And Recycling Information
Disposal and Recycling Information ADM-5821AX waterproof industrial display must be disposed as per the local laws and regulations applicable to that location. Once the product reaches end of its life cycle and needs to be disposed, local authorities should be contacted for appropriate options. - Page 37 Talk to us. We listen. Arista Corporation 40675 Encyclopedia Circle, Fremont, CA 94538 U.S.A. Tel: (510) 226-1800 Fax: (510) 226-1890 http://www.goarista.com...
