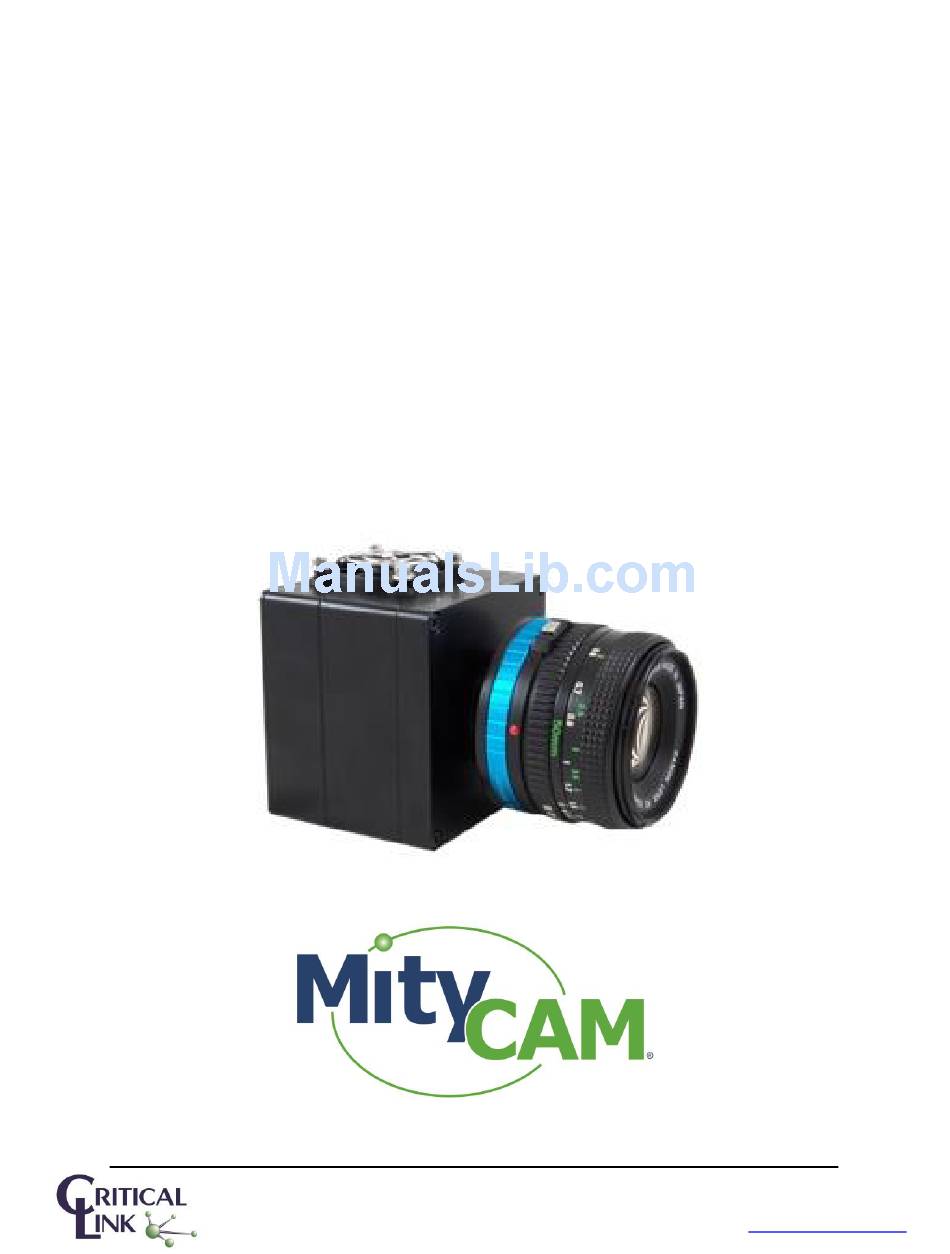

- Page 1 MityCAM-B2521 EPIX XCAP User’s Guide (CT031 Revision 1) Page 1 of 13 60-000014 May 13, 2015 www.criticallink.com...
-
Page 2: Table Of Contents
MityCAM-B2521 EPIX XCAP User’s Guide Contents 1 Installing Laptop Express Card .......................... 3 2 Using the Camera in Single Camera Link mode (Laptop) ..................3 3 Single Camera Link Notes ..........................4 4 Using the Camera in Dual Camera Link mode (Desktop) ..................5 5 Configure ................................ -
Page 3: Installing Laptop Express Card
MityCAM-B2521 EPIX XCAP User’s Guide 1 Installing Laptop Express Card 1.1 Insert the EPIX Installation CD/DVD into your Windows PC. 1.2 It should open an installation type dialog box. Select “XCAP Imaging Application for Win 8/7/Vista – 64- Bit”. 1.3 Complete the setup process using all default settings and OK through prompts. -
Page 4: Single Camera Link Notes
MityCAM-B2521 EPIX XCAP User’s Guide 2.7.3 Enable the serial port, set it as 115200 baud rate and 8-n-1 ( Figure 7 ). 2.7.4 Send the <SBPP X> command (similar to Figure 8 ). 2.7.4.1 <SBPP 5> to set the camera to 8 BBP x 2 @ 28 FPS. -
Page 5: Using The Camera In Dual Camera Link Mode (Desktop)
MityCAM-B2521 EPIX XCAP User’s Guide 4 Using the Camera in Dual Camera Link mode (Desktop) 4.1 Open “XCAP for Windows” from the Desktop Shortcut. 4.2 Say “OK” to the dialog that is shown on startup. 4.3 Set your settings for each of the “Generic Camera Link: Capture and Adjust” options: 4.3.1 Configure ( Figure 1 ) –... -
Page 6: Configure
MityCAM-B2521 EPIX XCAP User’s Guide 5 Configure Figure 1: Configure Configuration Menu Page 6 of 13 60-000014 May 13, 2015 www.criticallink.com... -
Page 7: Resolution
MityCAM-B2521 EPIX XCAP User’s Guide 6 Resolution Figure 2: Resolution Configuration Menu Page 7 of 13 60-000014 May 13, 2015 www.criticallink.com... -
Page 8: Mode
MityCAM-B2521 EPIX XCAP User’s Guide 7 Mode Figure 3: Mode Configuration Menu Page 8 of 13 60-000014 May 13, 2015 www.criticallink.com... -
Page 9: Multitap
MityCAM-B2521 EPIX XCAP User’s Guide 8 MultiTap Figure 4: MultiTap Configuration Menu Page 9 of 13 60-000014 May 13, 2015 www.criticallink.com... -
Page 10: Serial Configuration
MityCAM-B2521 EPIX XCAP User’s Guide 9 Serial Configuration Figure 5: PIXCI Serial Terminal Window Figure 6: Controls/Setup Menu Page 10 of 13 60-000014 May 13, 2015 www.criticallink.com... -
Page 11: Figure 7: Configure Serial Port (Enable, 115200, 8N1)
MityCAM-B2521 EPIX XCAP User’s Guide Figure 7: Configure Serial Port (Enable, 115200, 8n1) Figure 8: Set Bits per Pixel to 16 (default is 8) Page 11 of 13 60-000014 May 13, 2015 www.criticallink.com... -
Page 12: Figure 9: Send
MityCAM-B2521 EPIX XCAP User’s Guide Figure 9: Send <STRT> Command to Begin Capture Figure 10: Send <STOP> Command to Halt Capture Page 12 of 13 60-000014 May 13, 2015 www.criticallink.com...Command To Begin Capture -
Page 13: Image Capture Example
MityCAM-B2521 EPIX XCAP User’s Guide 10 Image Capture Example Figure 11: Image Capture Example 11 Revision History Revision Date Author Description 3/7/2014 Alex Block Initial Release. 5/13/2015 Mike Williamson Add Critical Link style guide and document number markings. Page 13 of 13...
