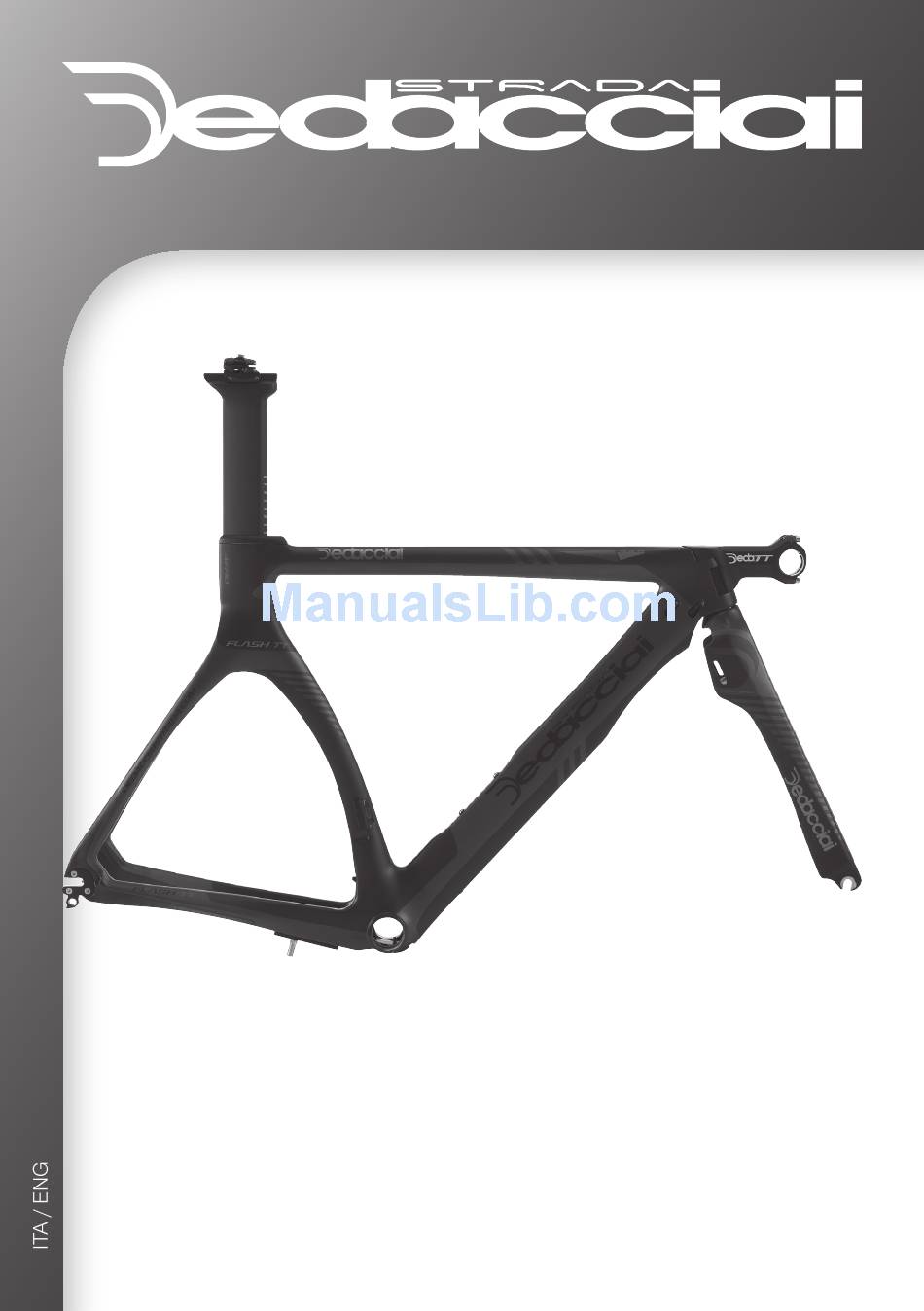

MANUALE D’USO E MANUTENZIONE OWNER'S MANUAL flash tt...
Page 2
Vi ringraziamo per aver scelto un prodotto DEDAccIAI. DEDAccIAI sviluppa, realizza e testa continuamente i propri prodotti al fine di mantenere i più elevati standard qualitativi. Vi chiediamo comunque di collaborare con noi nel preservare ed utilizzare correttamente i componenti DEDAccIAI. Per ottenere questo risultato, Vi invitiamo a leggere attentamente questo manuale d’istruzioni, custodirlo con cura e di consegnarlo al nuovo proprietario in caso di rivendita del Vostro telaio o di componenti DEDAccIAI di vostra proprietà.
IL TELAIO FLASH TT ________________________________________________________ pag. 6 PARTI E ASSEMBLAGGIO _____________________________________________________ pag. 9 inDEx ____________________________________________________________________ pag. 14 USE LiMiTS ________________________________________________________________ pag. 14 WHAT iS iMPORTAnT FOR YOUR SAFETY? _____________________________________ pag. 15 THE FLASH TT FRAME KiT ___________________________________________________ pag. 16 PARTS AnD ASSEMBLinG ____________________________________________________ pag. 19...
INTRODUZIONE fLASh TT Questo manuale riporta ciò che è importante conoscere sul telaio che vi apprestate ad acquistare e/o a montare. Vi invitiamo a leggerlo accuratamente, e a consultare periodicamente il sito www.dedacciaistrada.com per essere informati su eventuali raccomandazioni aggiuntive, campagne di aggiornamento, ed eventuali richiami di prodotti difettosi.
COS’è MOLTO IMPORTANTE PER LA VOSTRA SICUREZZA ? Fate montare e manutenere la Vs. bicicletta da meccanici professionisti qualificati della rete vendita DEDAccIAI STRADA Ogni anno, ed in ogni caso ogni 5.000 km, fate smontare la vs. bicicletta per le periodiche...
I posteriori ribassati incrementano la rigidità verticale ed un migliorato comfort senza ridurre la rigidità verticale. Ogni telaio FLASH TT è un manufatto superiore che porta il numero di serie al di sotto del movimento centrale. Tale numero rappresenta l’originalità del telaio e la possibilità...
Page 8
4.4 PASSAGGIO CAVI E COMPATIbILITà Il telaio FLASH TT è compatibile con i seguenti sistemi di cambio: • Gruppi meccanici, il passaggio dei cavi è previsto all’interno mediante regolatori e placchette metalliche. • Deragliatore anteriore a saldare. Disegno illustrativo dei passaggi meccanici •...
PARTI E ASSEMbLAGGIO 5.1 fORCELLA La forcella del telaio FLASH TT è un manufatto in monoscocca di carbonio con sterzo differenziato con le seguenti caratteristiche tecniche: • Steli in carbonio • Forcellini in carbonio • Finitura esterna UD • Sterzo unico 1”1/8 •...
Page 10
5.4 REGGISELLA Il telaio FLASH TT ospita il reggisella aerodinamico incluso nel kit del peso di 235 grammi. Il reggisella deve essere inserito all’interno del tubo sella per almeno 80 mm. Il serraggio del reggisella avviene mediante expander e vite integrati all’interno del tubo orizzontale.
INDEx fLASh TT The following manual shows what is important to know about your Dedacciai Strada frame kit you are going to purchase and/or to equip as bicycle We highly invite you to carefully read it and to periodically check the website www.dedacciaistrada.com in order to be updated regarding further information,...
WhAT IS IMPORTANT fOR yOUR SAfETy? We highly suggest to equip your Dedacciai Strada frame kit to professional and qualified mechanic official Dedacciai. Every year, or every 5.000 km, inspect and check-up the frame for the grease operation service, in that occasion it is important to check carefully the frame with particular regards to the connection between head tube and down tube, down tube to bottom bracket.
Each FLASH TT frame carries a serial number, stamped underneath of the down tube, close to the bottom bracket. The serial number is used for traceability and warrantee purposes.
Page 16
4.4 CAbLE ROUTING AND COMPATIbILITy The FLASH TT is compatible for: • Mechanical groupsets inner equipment via alloy parts and regulators • Front derailleur brazed-on-type MEcHANIcAL cABLE ROUTING Below the parts needed for a mechanical groupset • Electronic groupsets: Shimano Di2 & campagnolo EPS internal equipment •...
PARTS AND ASSEMbLING 5.1 fORK FLASH TT monocoque carbon flat steering tube with the following features: • carbon blades • carbon drop-out • Finishing: external lamination UD • Steerer: 1-1/8” • Steerer tube length 220 mm • Rake 45 mm •...
Page 18
5.4 SEAT POST EqUIPMENT The FLASH TT frame kit allows the custom aero seat tube of 235 gr. The seat tube has to be insert in the frame for at least 80 mm or in any case the minimum size shown by the constructor.
Page 19
5.8) bRAKES The special FLASH TT Brakes are integrated in frame and fork. In particular cantilever TRPS brakes are positioned under the chain stay. The front brakes are covered by the fork fairing. Serial part n°FcTTT2 Adjuster screws Adjusting the alignment of the brakes is done by adjuster screws to adjust the tension of the springs in the flexible areas.
