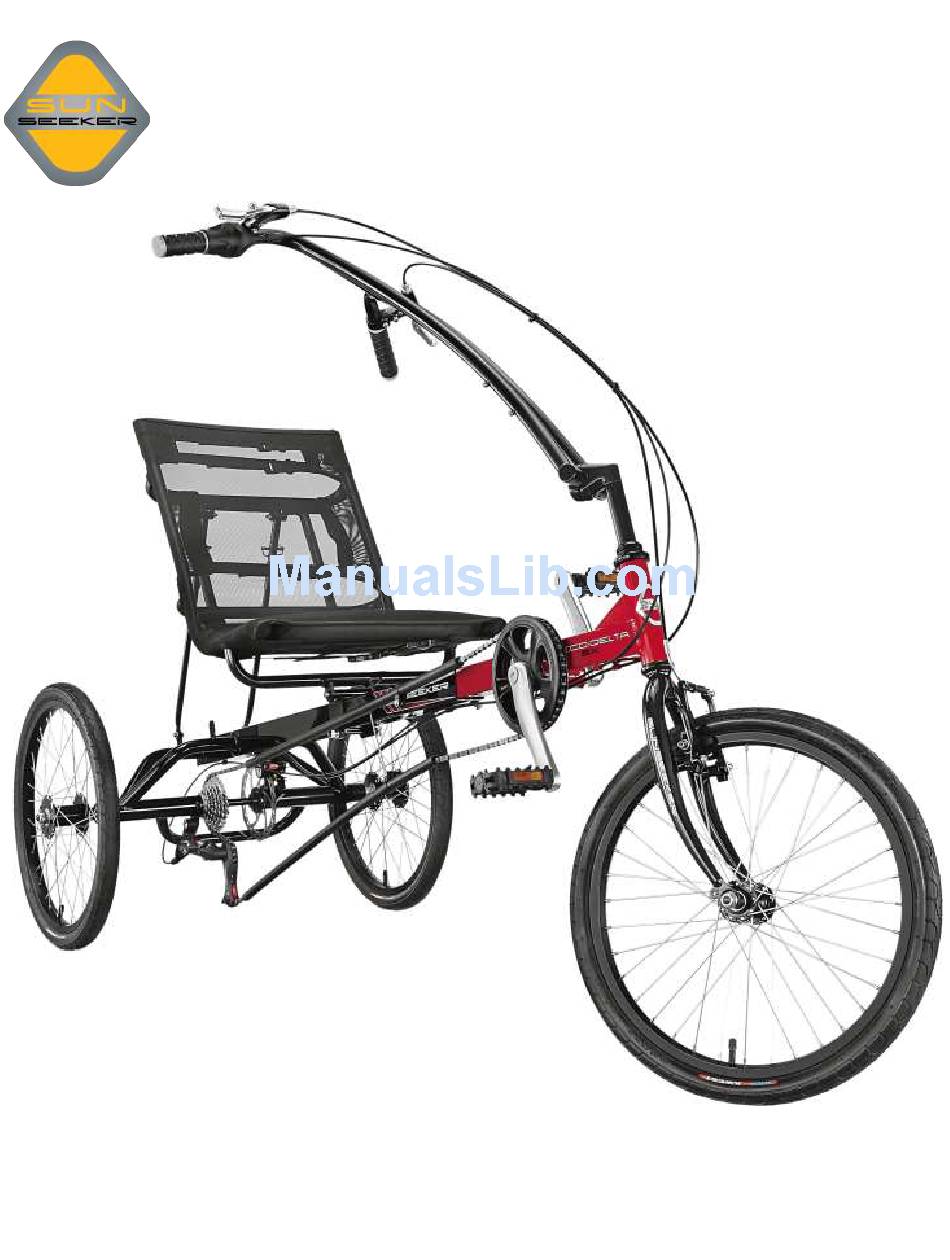

- Page 1 Eco-Delta Supplemental Owner’s Manual Find us online at SunSeeker.bike Revised 12.2014...
- Page 2 Congratulations and welcome to the Sun Seeker Recumbent family! You have selected one of the most comfortable and advanced recumbents on the market. Please read this manual before riding your Sun Seeker Recumbent. In this manual you will find that we cover the basics for setting up and understanding your new recumbent.

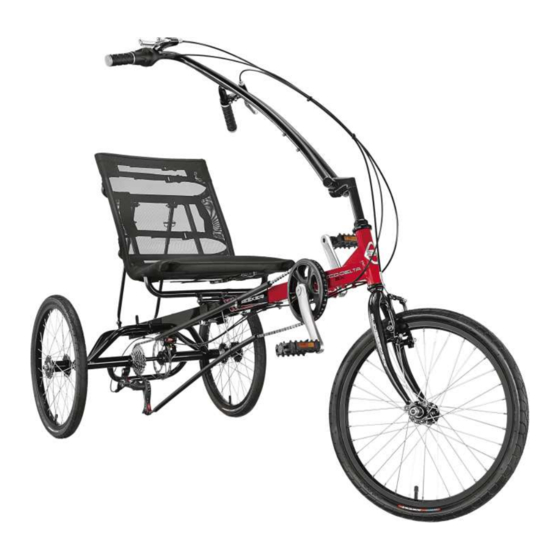

- Page 3 Eco-Delta Reference Views Side View Top View...
- Page 4 Eco-Tad Assembly Reference ECO-DELTA PARTS LIST ITEM DESCRIPTION QUANTITY Main Frame Assembly Fork Assembly Crank & Front Wheel Boom Assembly Front Wheel Assembly Rear Wheel Assembly Chain Tube Assembly Handlebar Assembly Handlebar Stem Seat Frame Assembly Seat Mesh (Not Pictured Above) Upper Seat Strut 5/8"x 150mm...
-
Page 5: Assembly Guide
Assembly Guide Rear Wheel Installation 1. Install #5 Wheel Assembly Assemble #5 Rear Wheel, #25 Rear Wheel Washer M15*2mm and #24 Rear Wheel Nylock Retaining Nut M14 onto right side (drive side) rear axle. See Figure A. Assemble #26 Rear Wheel Spacer 23mm, #5 Rear Wheel, #25 Rear Wheel Washer M15*2mm and #24 Rear Wheel Nylock Retaining Nut M14 onto left side (non drive side) rear axle. -
Page 6: Front Fork Installation
Crank & Front Wheel Boom Installation 1. Install #3 Crank & Front Wheel Boom Assembly Insert #2 Crank & Front Wheel Boom Assembly into the front of the frame. For now, insert midway and secure boom bolts. See Figure C. NOTE: DO NOT extend Crank &... -
Page 7: Front Wheel Installation
Front Wheel Installation 1. Install #4 Front Wheel Assembly Insert #4 Front Wheel onto the #2 Fork drop outs. See Figure F. Derailleur Installation 1. Install #3 Rear Derailleur Install #3 Rear Derailleur onto the rear frame derailleur tab. See Figure G. - Page 8 Chain and Chain Tube Installation 1. Insert Chain Into Chain Tubes Insert the chain into the chain tubes. Make sure the “Y” spring brackets are pointed toward the rear of the trike. 2. Install Chain Onto Crank Pull enough chain to go around crank. See Figure H. 3.
- Page 9 Handlebar Stem Installation 1. Handlebar Stem Install #8 Handlebar Stem into #2 Fork. See Figure J. Handlebar Assembly Installation 1. Handlebar Assembly Install #7 Handlebar Assembly onto #8 handlebar Stem. See Figure K.
- Page 10 Seat Assembly Installation 1. Install Seat Frame Assembly Install #9 Seat Frame Assembly onto frame and secure with #15 Quick Release Seat Pin M8*95mm. See Figure L. 2. Install Upper Struts Install 2 #11 Upper Seat Struts and ½ moon washers to the seat frame with the provided hardware. See Figure M. 3.
-
Page 11: Cable Guide Installation
Cable Guide Installation Installing Cable Ties Thread 2 #21 Cable Ties over the #15 Quick Release Seat Pin and zip them onto the pin. Trim the ties and route the rear brake and derailleur cable through the eye of the cable tie. See Figure O. Pedal Installation Installing Pedals Apply grease to the threads of the pedal spindle. - Page 12 Fit Adjustment Adjusting Seat and Boom The goal is for your seat (and therefore your weight) to be as far back as possible when your set up is complete. Loosen and slide the #10 Seat Frame Assembly rearward on the Main Frame until in a comfortable seating position. Adjust the seat angle by removing and reinstalling the #27 Strut Pins into a new position on the Seat Struts if necessary.
- Page 13 CAUTION: Never lubricate or wax the part of the boom that goes into the frame. See Figure S. Adjusting Handlebar and Stem Stem height can be adjusted to provide desired toe clearance during pedal stroke. NOTE: DO NOT extend stem past its marked safety line. Handlebar can be rotated up or down for desired comfort.
